RI85
Artikelnr.: PM-7159 | HAN: RI85-PH

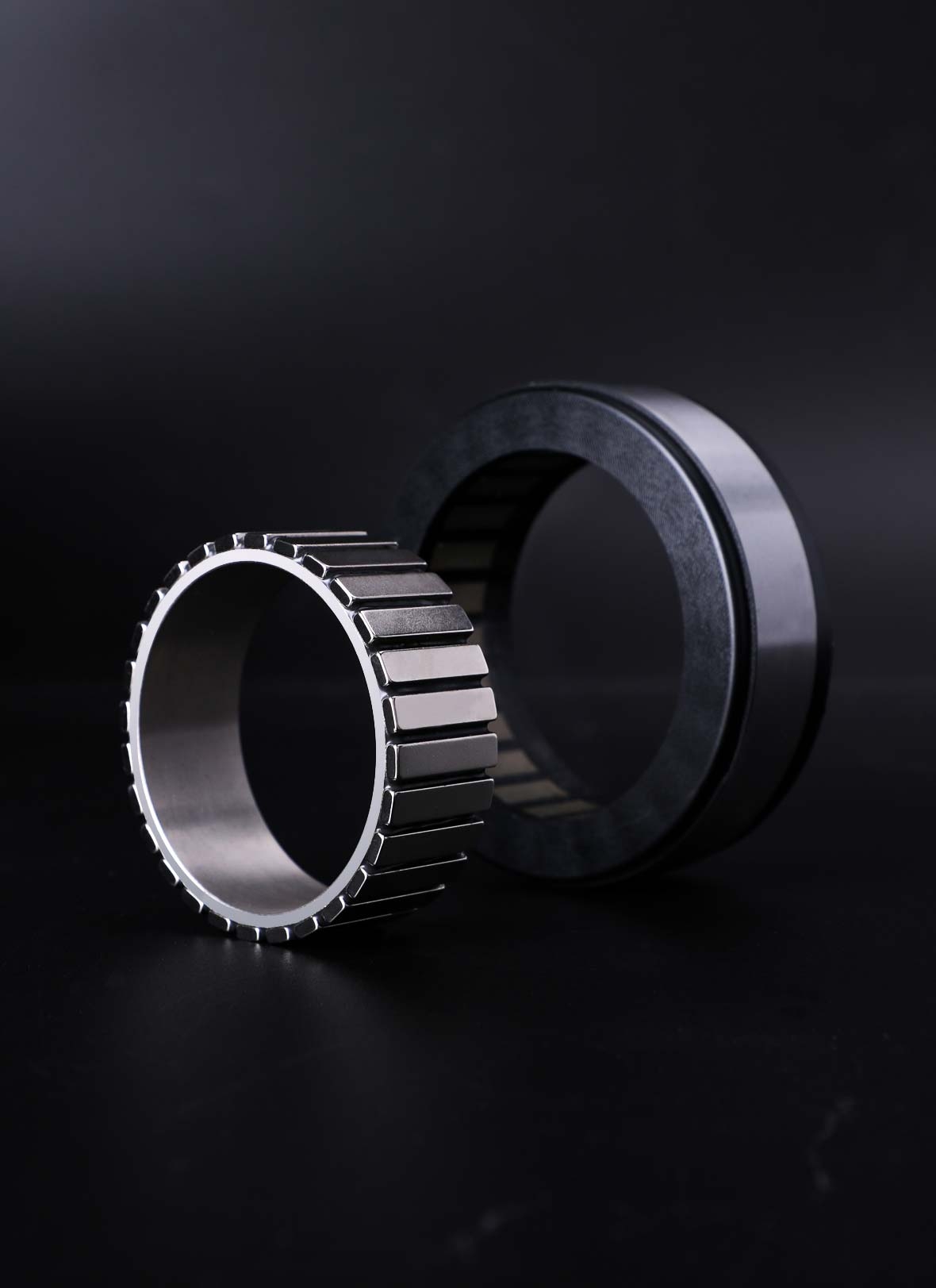

• Potting Frameless Inrunner Torque Motor _x000D_
• High Temperature Resistant
• High Fill Factor for Efficiency and Stability
• Equipped with Hall Sensors
• Ideal for Joint of Robotic Arms and Robots
_x000D_ _x000D_ _x000D_ _x000D__x000D__x000D_ Detail information_x000D_ ?Specifications_x000D_ ?Support and Downloads_x000D_ Add to cart_x000D__x000D_ _x000D__x000D__x000D_
CubeMars introduces the RI-PH series frameless inner-rotor motors, as a brushless DC motor, it's an ideal choice for industrial automation and robotics technology. This motor is specially designed to meet the high-performance application demands, such as exoskeletons, quadruped robots, robotic arms, and industrial collaborative robots. With its outstanding electrical performance, lightweight, and compact size, this motor stands out. The electromagnetic part is meticulously designed, boosting torque and power density by 25%. The thinning design of the core yoke reduces the overall volume to adapt to various compact installation requirements.
Moreover, this frameless inner-rotor motor excels in precision control and torque output, providing stable power output while maintaining high efficiency. It integrates Hall sensors and temperature sensing, enabling precise control during usage, significantly enhancing operational flexibility.
As a leading brand in the industry, CubeMars has been committed to relentless innovation and quality pursuit. Our factory employs advanced manufacturing technology and rigorous quality control processes to ensure that each product meets the high standards required by our customers.
Compact Design, Powerful Performance
RI-PH SERIES FRAMELESS INRUNNER TORQUE_x000D_ MOTOR
LIGHTWEIGHT DESIGN HIGHLY COMPATIBLE

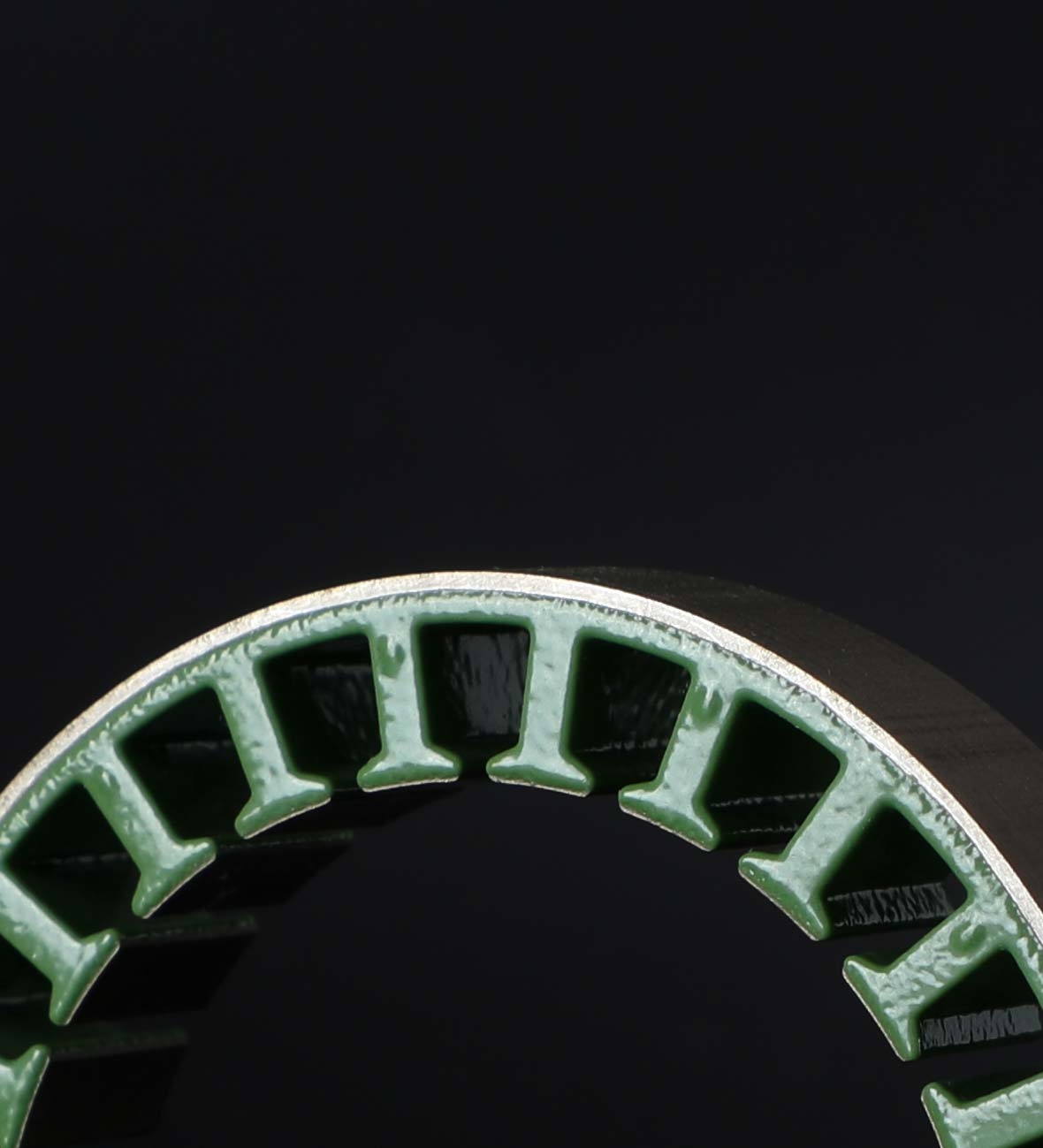

The core yoke is over 30% thinner than the previous RI series maintaining magnetic density and_x000D_ fitting compact installations in embedded devices and collaboorative robots
HIGH-TEMPERATURE RESISTANT CONTINUOUSLY_x000D_ EFFICIENT
Using potting technoloogy,cooling performance is significantly enhanced It performs excellently_x000D_ below 85°C and can continuously maintain performance even at winding temperature exceeding 150°C

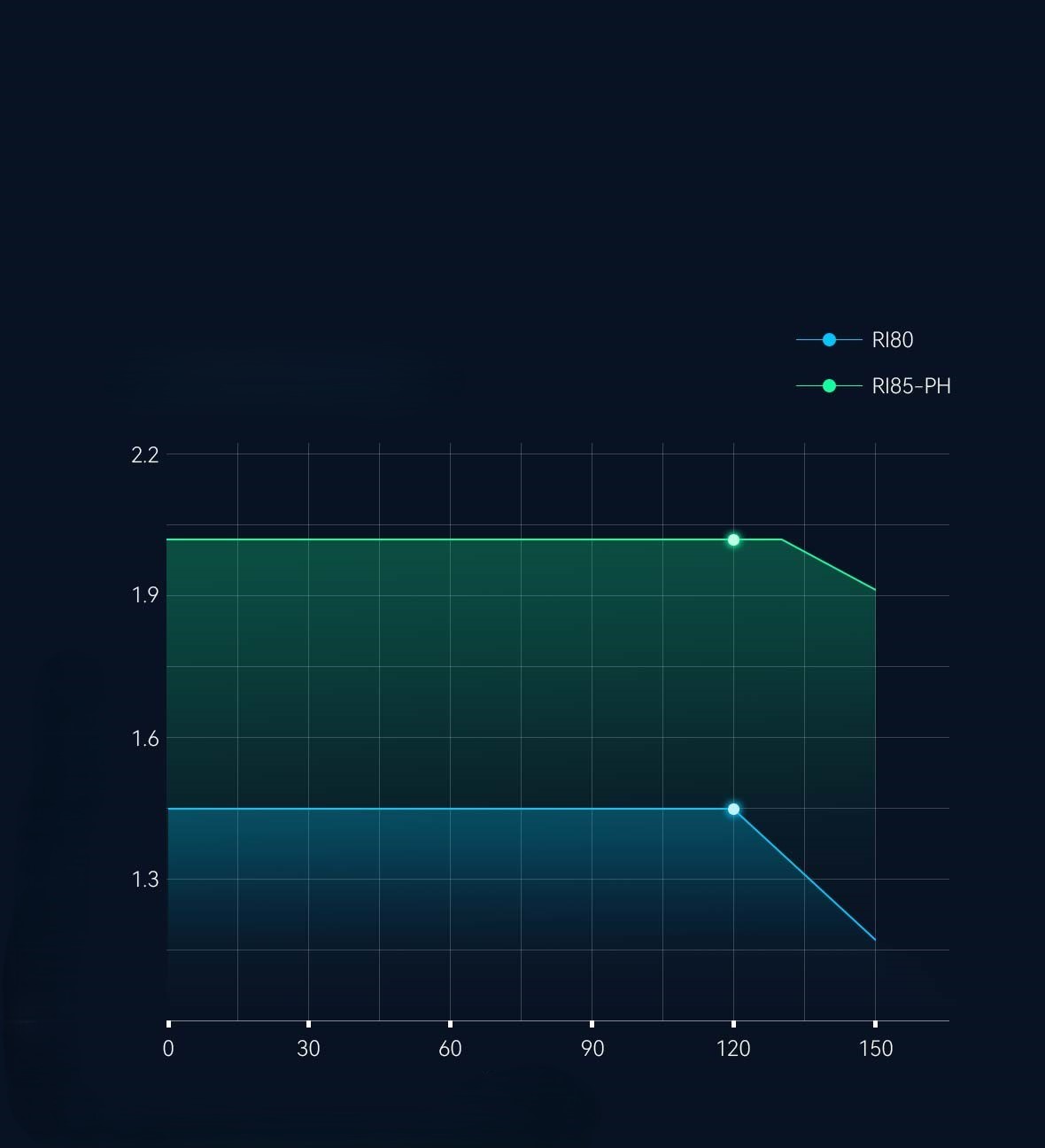

*In high-temperature environments,RI85-PH_x000D_ significantly reduces torque decay
Torque/N·m
Temperature/°C
SUPERIOR DESIGN ENHANCED PERFORMANCE

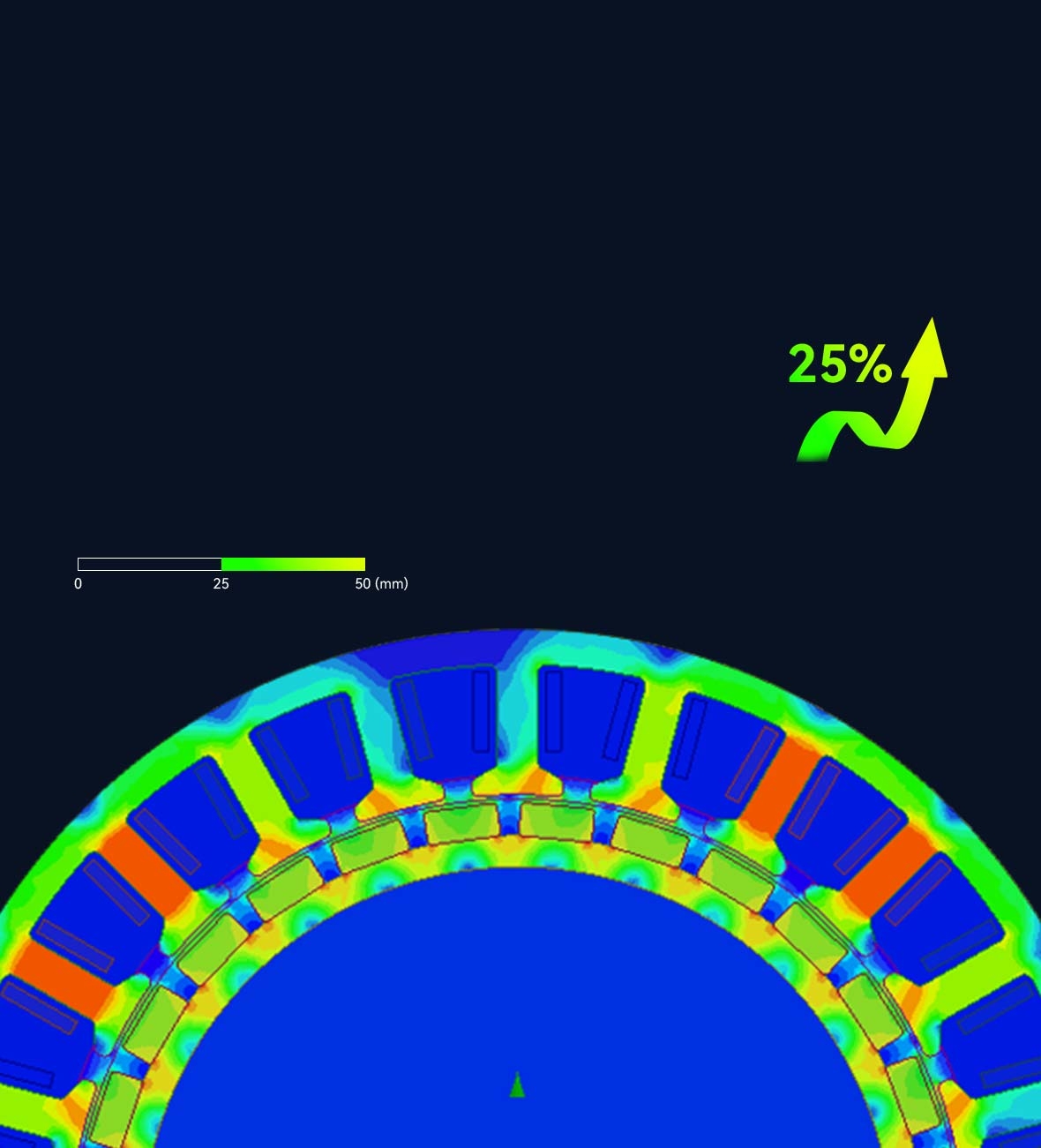

The electroomagnetic design is meticulously crated resulting in a 25% increase in torque and power density
STABLE OUTPUT LONG-LASTING EFFICIENCY

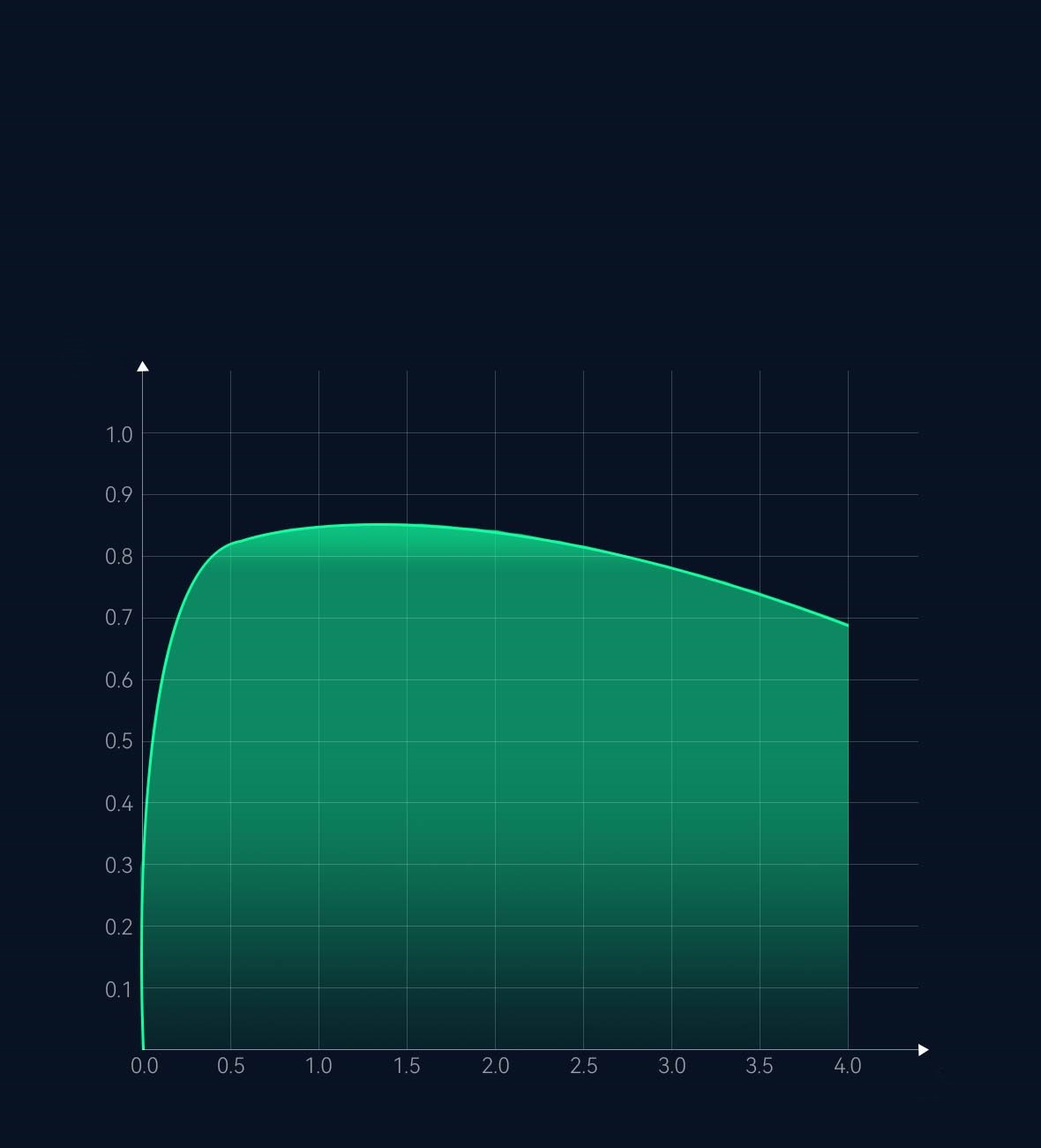

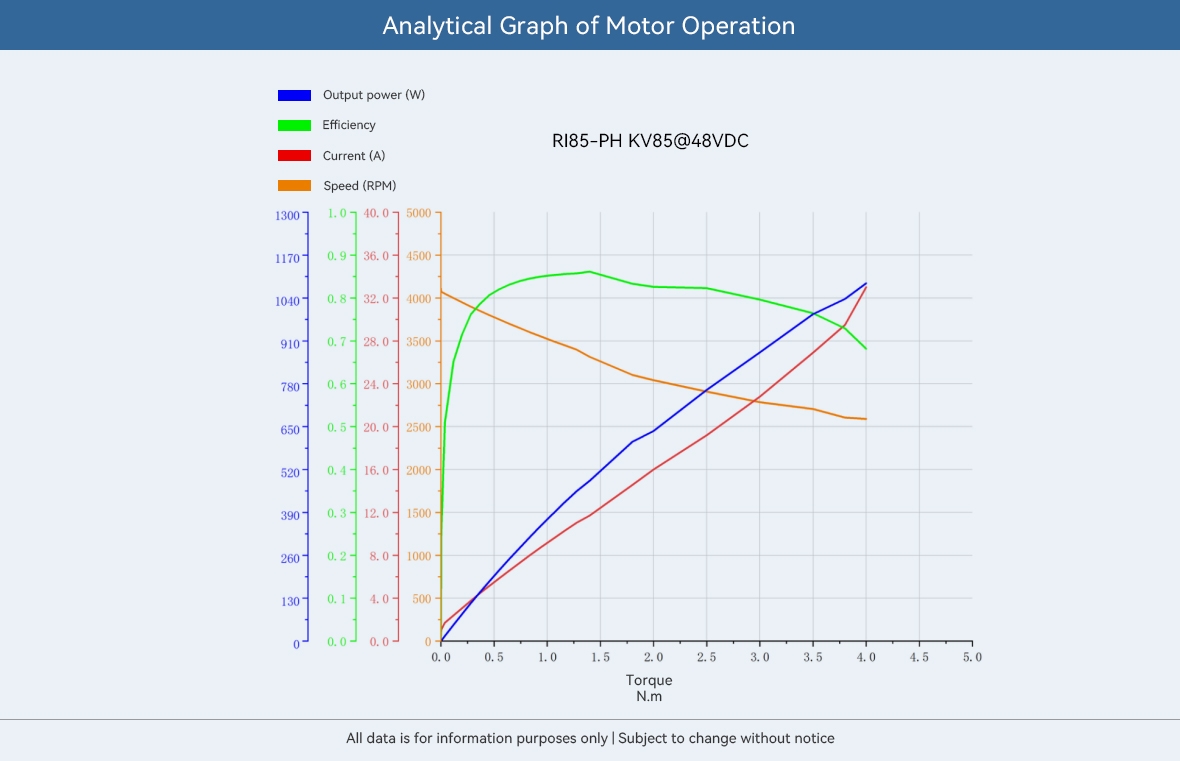

Proovides stable and efficient power output across multiple torque ranges
Efficiency
Torque
INTEGRATED SENSORS FLEXIBLE CONTROL

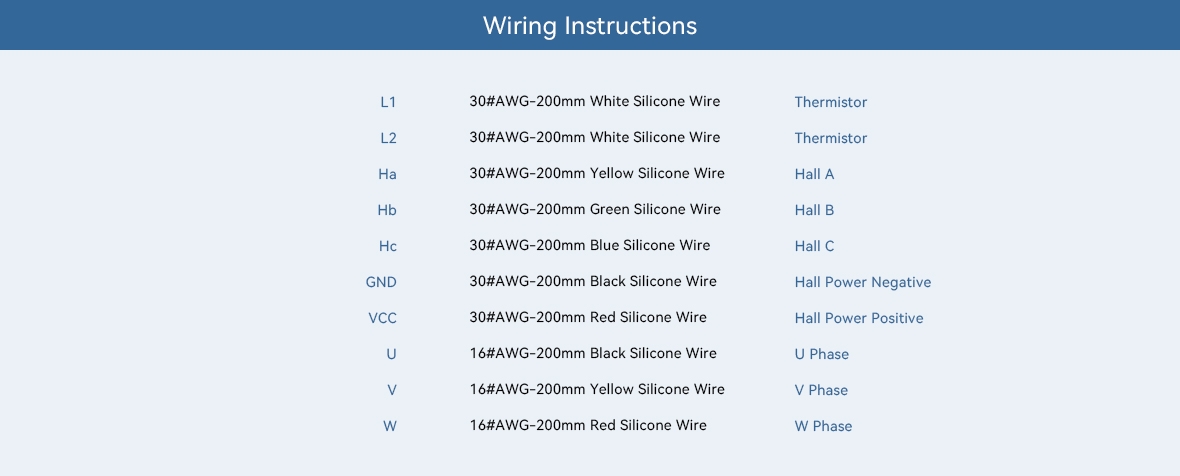

Integrated with Hall sensors and temperature sensors for precise control of angle and_x000D_ temperature,enhancing flexibility and performance
_x000D_
_x000D__x000D__x000D__x000D_
_x000D__x000D_ _x000D_ _x000D__x000D_ _x000D__x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
Vergleich aller Cube Mars RI Innenläufer Motoren:
_x000D_ _x000D_ _x000D_ _x000D_ Product Comparison _x000D__x000D_

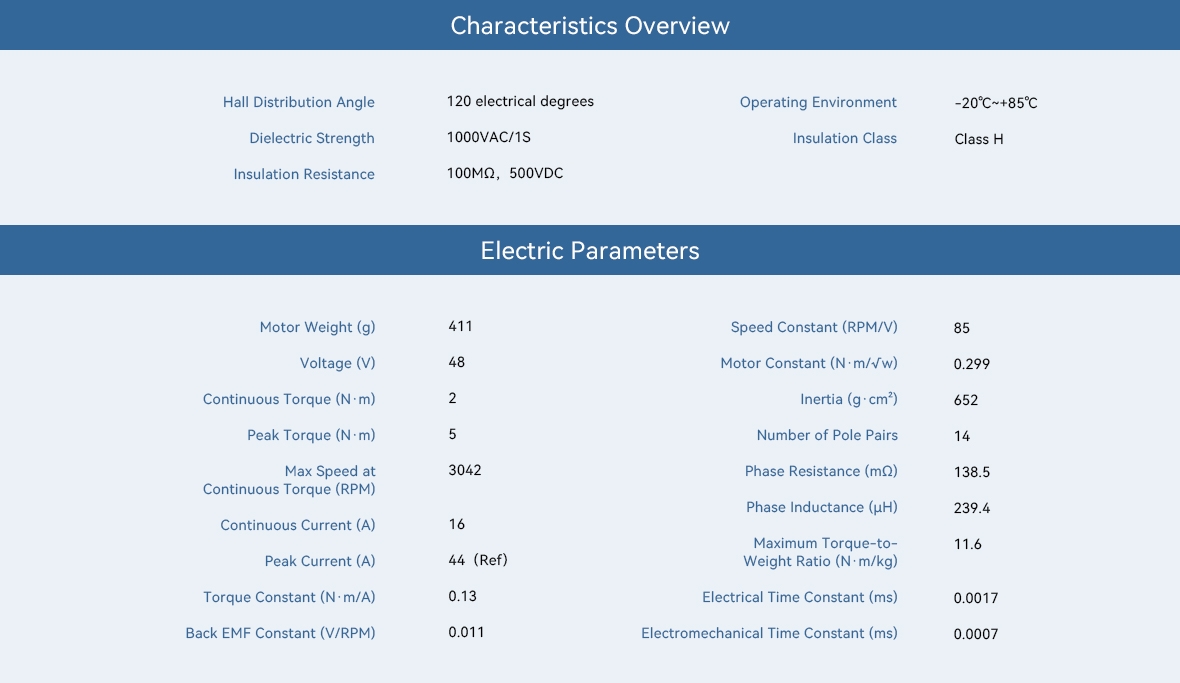

_x000D__x000D_|_x000D_ category |_x000D_ Model |_x000D_ Rated Voltage (V) |_x000D_ Rated Power (W) |_x000D_ Rated Torque (Nm) |_x000D_ Rated Current (A) |_x000D_ Rated Speed (RPM) |_x000D_ Peak Torque (Nm) |_x000D_ Peak Current (A) |_x000D_ No-load Speed (RPM) |_x000D_ Phase to Phase Resistance (mO) |_x000D_ Phase to Phase Inductance (µH) |_x000D_ Pole Pairs |_x000D_ Weight (G) |_x000D_ Size (diameter *length) MM |_x000D_ | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | _x000D__x000D__x000D_|_x000D_ RI Potting Frameless Inrunner Torque Motor |_x000D_ RI75-PH |_x000D_ 48 |_x000D_ 297 |_x000D_ 1.2 |_x000D_ 7.28 |_x000D_ 2365 |_x000D_ 3.8 |_x000D_ 24.2 |_x000D_ 3360 |_x000D_ 495 |_x000D_ 673 |_x000D_ 14 |_x000D_ 348 |_x000D_ ?70*31.8 |_x000D_ _x000D_|_x000D_ RI Potting Frameless Inrunner Torque Motor |_x000D_ RI85-PH |_x000D_ 48 |_x000D_ 637 |_x000D_ 2 |_x000D_ 16 |_x000D_ 3042 |_x000D_ 5 |_x000D_ 44 |_x000D_ 4080 |_x000D_ 138.5 |_x000D_ 239.4 |_x000D_ 14 |_x000D_ 411 |_x000D_ ?85*27.3 |_x000D_ _x000D_|_x000D_ RI Potting Frameless Inrunner Torque Motor |_x000D_ RI115-PH |_x000D_ 48 |_x000D_ 823 |_x000D_ 5.5 |_x000D_ 20 |_x000D_ 1430 |_x000D_ 16 |_x000D_ 52 |_x000D_ 1920 |_x000D_ 134 |_x000D_ 245 |_x000D_ 20 |_x000D_ 1108 |_x000D_ ?115*38.1 |_x000D_ _x000D_|_x000D_ RI Framless Inrunner Motor |_x000D_ RI50 |_x000D_ 24/36/48 |_x000D_ 66 |_x000D_ 0.58 |_x000D_ 4.8 |_x000D_ 1090/1860/2600 |_x000D_ 1.67 |_x000D_ 14.8 |_x000D_ 2004/3006/4008 |_x000D_ 1420 |_x000D_ 1500 |_x000D_ 7 |_x000D_ 180.8 |_x000D_ ?54*27 |_x000D_ _x000D_|_x000D_ RI Framless Inrunner Motor |_x000D_ RI60 |_x000D_ 24/36/48 |_x000D_ 85 |_x000D_ 0.57 |_x000D_ 5.6 |_x000D_ 1440/2320/3190 |_x000D_ 1.63 |_x000D_ 16.8 |_x000D_ 2532/3798/5064 |_x000D_ 900 |_x000D_ 877.5 |_x000D_ 14 |_x000D_ 155.9 |_x000D_ ?60*23 |_x000D_ _x000D_|_x000D_ RI Framless Inrunner Motor |_x000D_ RI70 |_x000D_ 24/36/48 |_x000D_ 125 |_x000D_ 0.94 |_x000D_ 7.1 |_x000D_ 1270/1990/2710 |_x000D_ 2.68 |_x000D_ 21 |_x000D_ 1956/2934/3912 |_x000D_ 418 |_x000D_ 622.7 |_x000D_ 14 |_x000D_ 270.4 |_x000D_ ?76*24 |_x000D_ _x000D_|_x000D_ RI Framless Inrunner Motor |_x000D_ RI80 V2.0 |_x000D_ 24/36/48 |_x000D_ 172 |_x000D_ 1.45 |_x000D_ 9.4 |_x000D_ 1135/1785/2430 |_x000D_ 4.1 |_x000D_ 9.4 |_x000D_ 1480/2220/2960 |_x000D_ 330 |_x000D_ 510 |_x000D_ 8 |_x000D_ 411 |_x000D_ ?85*27 |_x000D_ _x000D_|_x000D_ RI Framless Inrunner Motor |_x000D_ RI100 |_x000D_ 24/36/48 |_x000D_ 252 |_x000D_ 1.76 |_x000D_ 13.6 |_x000D_ 1370/2100/2825 |_x000D_ 4.95 |_x000D_ 38.6 |_x000D_ 2184/3276/4368 |_x000D_ 126 |_x000D_ 366.7 |_x000D_ 14 |_x000D_ 500 |_x000D_ ?104*26 |_x000D_ _x000D__x000D_
