# RO80

***

## CubeMars RO80 Lite 105kv Framless Außenläufer Motor 48V 265g

**Artikelnr.:** PM-7164 | **HAN:** RO80-105kv-Lite

[Zum Premium-Modellbau Shop](https://www.premium-modellbau.de/search?sSearch=PM-7164)

![CubeMars RO80 Lite 105kv Framless Außenläufer Motor  48V 265g](https://img.cubemars.com/products/ro100_80_60/images/setting-icon.png)

• Rated voltage 48V - KV105

• Ultra-low cogging torque

• Increased large hollow through-hole design

• High adaptability, switch the shaft for versatile usage

• Rated torque 1.3Nm

• Equipped with Hall (nur bei Standard Version) and temperature sensors

• Mainly used in exoskeleton robots, collaborative robotic arms, as well as in medical and aerospace fields.

###

### Angeboten wird hier die Lite-Version ohne Hallsensor

The CubeMars RO series brushless DC outer rotor torque motor is introduced to meet diverse market demands, catering to applications in exoskeleton robotics, collaborative robotic arms, as well as medical and aviation fields. After a year of market research and meticulous engineering, the RO series has been launched in December 2023.As the new favorite across the entire series, based on the foundation of the R series, the RO series has undergone careful upgrades to address challenges in robot joint design. It successfully tackles issues related to limited internal installation space within joints and increased torque requirements.

**Product Features:1. Ultra-Low Cogging Torque:** The RO series motor exhibits 50% lower tooth count torque compared to the R series, ensuring smoother operation at low speeds.

**2. Large Hollow Through-Hole:** In comparison to the GL series, the RO series motor boasts a larger hollow diameter, adapting flexibly to various diameter requirements, allowing for versatile applications with a simple shaft replacement.

**3. Integrated Temperature and Hall Sensors:** Real-time monitoring of motor temperature prevents damage due to abnormal temperatures, and precise positioning control is provided through Hall sensors.

**4. Aluminum Alloy Housing:** The rotor of the RO series adopts an aluminum alloy housing, enhancing impact resistance, corrosion resistance, and providing various customization possibilities for appearance. This also improves transparency in controlling raw material costs.

**5. Easy Installation:** Stator features pin holes for easy assembly, and the product is equipped with magnetic pins and screws, greatly simplifying the installation process.

**the entirely redesigned RO Series**

#### UNVEILING A

### NEW ICON

![High Adaptability](https://img.cubemars.com/products/ro100_80_60/images/setting-icon.png)High Adaptability![Large Hollow](https://img.cubemars.com/products/ro100_80_60/images/circle-icon.png)Large Hollow

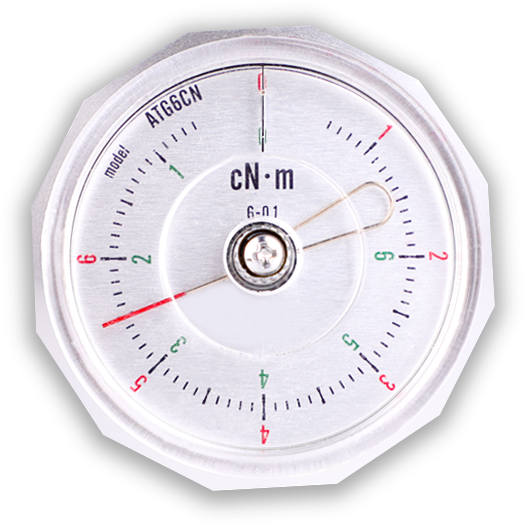

#### ULTRA-LOW COGGING TORQUE

A 50% reduction in cogging torque compared to products of the same level offering a silky-smooth new experience

50![compass-circle](https://img.cubemars.com/products/ro100_80_60/images/compass-circle.png)![compass](https://img.cubemars.com/products/ro100_80_60/images/compass.png)![arrow-down-icon](https://img.cubemars.com/products/ro100_80_60/images/arrow-down.png)

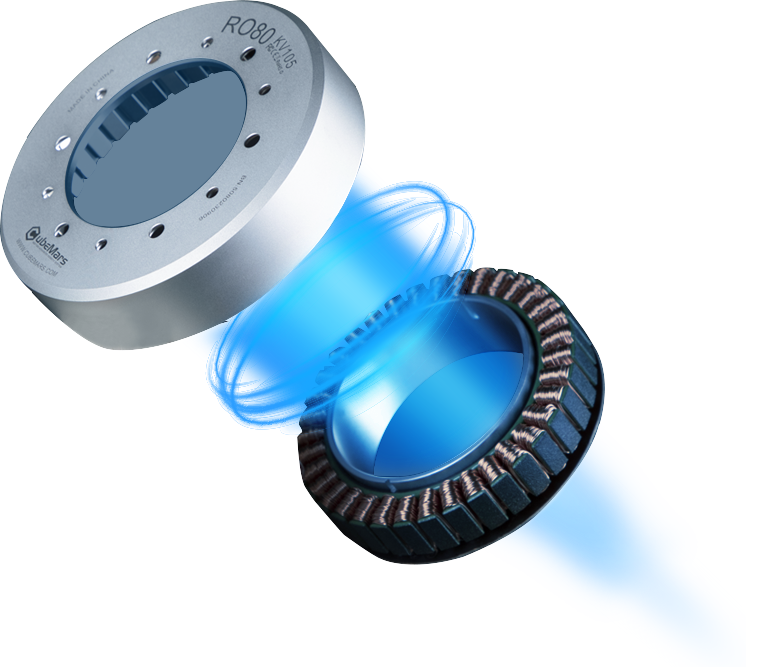

#### LARGE HOLLOW THROUGH-HOLE DESIGN

Featuring a reserved large-diameter hollow through-hole, providing flexible and versatile usage Simply replace the shaft to meet different hollow requirements, achieving a one-motor-multiple-uses scenario

![](https://img.cubemars.com/products/ro100_80_60/images/section-3-ro80.png)

#### HIGH EFFICIENCY STABLE & RELIABLE

The RO series utilizes high-grade magnets for peak motor efficiency, reaching up to 92.6% Enhanced temperature adaptability, improved operational stability, and extended lifespan

![stability](https://img.cubemars.com/products/ro100_80_60/images/stability-icon.png)stability![lifespan](https://img.cubemars.com/products/ro100_80_60/images/lifespan-icon.png)lifespan

#### RO Lite

Streamlined Engineering for Lightweight Performance

#### BUILT-IN TEMPERATURE HALL SENSORS

Real-time monitoring of motor temperature providing precise rotor position and speed information, ensuring precise motor control

![temperature](https://img.cubemars.com/products/ro100_80_60/images/temperature-icon.png)temperature![orientation](https://img.cubemars.com/products/ro100_80_60/images/orientation-icon.png)orientation

The CubeMars [**RO series brushless DC outer rotor torque motor**](https://www.cubemars.com/category-136-RO+Series+Frameless+Outrunner+Torque+Motor.html) is introduced to meet diverse market demands, catering to applications in exoskeleton robotics, collaborative robotic arms, as well as medical and aviation fields. After a year of market research and meticulous engineering, the RO series has been launched in December 2023.As the new favorite across the entire series, based on the foundation of the [**R series**](https://www.cubemars.com/category-127-R+Series+Outrunner+Torque+Motor.html), the RO series has undergone careful upgrades to address challenges in robot joint design. It successfully tackles issues related to limited internal installation space within joints and increased torque requirements.

**Product Features:1. Ultra-Low Cogging Torque:** The RO series motor exhibits 50% lower tooth count torque compared to the R series, ensuring smoother operation at low speeds.

**2. Large Hollow Through-Hole:** In comparison to the [**GL series**](https://www.cubemars.com/category-131-GL+Series+Outrunner+Gimbal+Motor.html), the RO series motor boasts a larger hollow diameter, adapting flexibly to various diameter requirements, allowing for versatile applications with a simple shaft replacement.

**3. Integrated Temperature and Hall Sensors:** Real-time monitoring of motor temperature prevents damage due to abnormal temperatures, and precise positioning control is provided through Hall sensors.

**4. Aluminum Alloy Housing:** The rotor of the RO series adopts an aluminum alloy housing, enhancing impact resistance, corrosion resistance, and providing various customization possibilities for appearance. This also improves transparency in controlling raw material costs.

**5. Easy Installation:** Stator features pin holes for easy assembly, and the product is equipped with magnetic pins and screws, greatly simplifying the installation process.

**CubeMars RO80 Motor Specifications:- Rated Voltage:** 48V

**- Rated Current:** 15A

**- Rated Torque:** 1.3N.m

**- Peak Torque:** 4N.m

**- Rated Speed:** 3600rpm

**- Motor Weight:** 352g

For more details and parameters about the RO80, please consult our online customer service. Lastly, thank you for your strong support of CubeMars!

**the entirely redesigned RO Series**

#### UNVEILING A

### NEW ICON

![High Adaptability](https://img.cubemars.com/products/ro100_80_60/images/setting-icon.png)High Adaptability![Large Hollow](https://img.cubemars.com/products/ro100_80_60/images/circle-icon.png)Large Hollow

#### ULTRA-LOW COGGING TORQUE

A 50% reduction in cogging torque compared to products of the same level offering a silky-smooth new experience

50![compass-circle](https://img.cubemars.com/products/ro100_80_60/images/compass-circle.png)![compass](https://img.cubemars.com/products/ro100_80_60/images/compass.png)![arrow-down-icon](https://img.cubemars.com/products/ro100_80_60/images/arrow-down.png)

#### LARGE HOLLOW THROUGH-HOLE DESIGN

Featuring a reserved large-diameter hollow through-hole, providing flexible and versatile usage Simply replace the shaft to meet different hollow requirements, achieving a one-motor-multiple-uses scenario

![](https://img.cubemars.com/products/ro100_80_60/images/section-3-ro80.png)

#### HIGH EFFICIENCY STABLE & RELIABLE

The RO series utilizes high-grade magnets for peak motor efficiency, reaching up to 92.6% Enhanced temperature adaptability, improved operational stability, and extended lifespan

![stability](https://img.cubemars.com/products/ro100_80_60/images/stability-icon.png)stability![lifespan](https://img.cubemars.com/products/ro100_80_60/images/lifespan-icon.png)lifespan

#### RO Lite

Streamlined Engineering for Lightweight Performance

#### BUILT-IN TEMPERATURE HALL SENSORS

Real-time monitoring of motor temperature providing precise rotor position and speed information, ensuring precise motor control

![temperature](https://img.cubemars.com/products/ro100_80_60/images/temperature-icon.png)temperature![orientation](https://img.cubemars.com/products/ro100_80_60/images/orientation-icon.png)orientation

Technical Drawing

|                             |
| --------------------------- |
| RO80 KV105 Standard Version |
| ro80\_all.png               |

|                         |
| ----------------------- |
| RO80 KV105 Lite Version |
| ro80\_en.png            |

Specification

|                               |                                        |                         |                                                                            |
| ----------------------------- | -------------------------------------- | ----------------------- | -------------------------------------------------------------------------- |
| RO80 KV105 Standard Version   |                                        |                         |                                                                            |
| Application                   | Cobot Arm                              | Insulation Class        | F                                                                          |
| Driving Way                   | FOC                                    | Insulation High-Voltage | 500V                                                                       |
| Operation Ambient Temperature | -20?\~50?                              | Insulation Resistance   | 10MΩ                                                                       |
| Winding Type                  | delta                                  | Cogging Torque          | 24N.mm                                                                     |
| Pole Pairs                    | 21                                     | Inertia                 | 2612gcm²                                                                   |
| Maximum Torque Weight Ratio   | 11.36Nm/kg                             | Weight                  | 352g                                                                       |
| Rotor Weight                  | 148g                                   | Stator Weight           | 204g                                                                       |
| Hall Temperature Sensor Wire  | 30#AWSilicone Wire100±5mm Tinning5±2mm | Lead-Out                | Three-Phase Motor Lead-Out: Enameled Wire Straight Out 100±5mm Tinned5±2mm |
| Three-Phasewire               | 3.5mm                                  |                         |                                                                            |

|                                      |           |                         |                                                                             |
| ------------------------------------ | --------- | ----------------------- | --------------------------------------------------------------------------- |
| RO80 KV105 Lite Version              |           |                         |                                                                             |
| Application                          | CobotArm  | Insulation Class        | F                                                                           |
| Driving Way                          | FOC       | Insulation High-Voltage | 500V                                                                        |
| Operation Ambient Temperature        | -20?\~50? | Insulation Resistance   | 10MΩ                                                                        |
| Winding Type                         | delta     | Cogging Torque          | 24N.mm                                                                      |
| Pole Pairs                           | 21        | Inertia                 | 1600gcm²                                                                    |
| Rotor Weight                         | 85g       | Weight                  | 265g                                                                        |
| Maximum Height of Enameled WireBulge | 6mm       | Stator Weight           | 180g                                                                        |
| Three-Phasewire                      | 3.5mm     | Lead-Out                | Three-Phase Motor Lead-Out: Enameled Wire Straight Out 100±5mm Tinned 5±2mm |

|                     |          |                           |            |
| ------------------- | -------- | ------------------------- | ---------- |
| Electric Parameters |          |                           |            |
| Rated Voltage       | 48V      | Ke                        | 9.07V/krpm |
| No-Load Speed       | 5040rpm  | Phase To Phase Resistance | 120mΩ      |
| Rated Torque        | 1.3Nm    | Phase To Phase Inductance | 103μH      |
| Rated Speed         | 3600rpm  | Km                        | 0.25Nm/√W  |
| Rated Current       | 15ADC    | Mechanical Time Constant  | 2.95ms     |
| Peak Torque         | 4Nm      | Electrical Time Constant  | 0.86ms     |
| Peak Current        | 50ADC    | Kt                        | 0.087Nm/A  |
| Kv                  | 105rpm/V |                           |            |

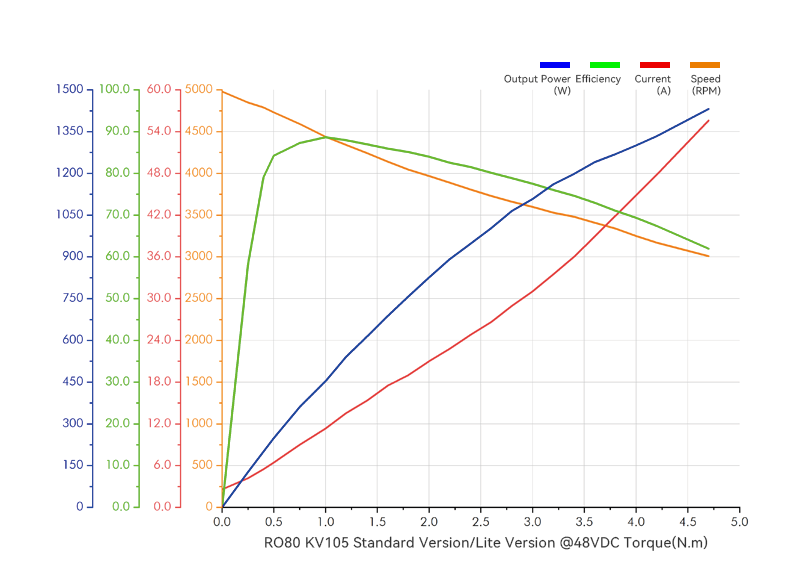

Analysis Chart

![y.png](https://store.tmotor.com/images/202412/101733801807639128.png)

## Downloads:

![](https://www.cubemars.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[RO80 drawing.pdf](https://github.com/Premium-Modellbau/premium-modellbau-docs/blob/main/images/file/20231228/1703733328554703.pdf)

![](https://www.cubemars.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_rar.gif)[RO80\_KV105.zip](https://github.com/Premium-Modellbau/premium-modellbau-docs/blob/main/images/file/20231228/1703733349441822.zip)

![](https://www.cubemars.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[RO80-KV105-lite.pdf](https://github.com/Premium-Modellbau/premium-modellbau-docs/blob/main/images/file/20240417/1713321069346175.pdf)

![](https://www.cubemars.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_rar.gif)[RO80-KV105-lite.zip](https://www.cubemars.com/images/file/20240407/1712469933768915.zip)

## Vergleich aller Cube Mars RO Motoren:

Product Comparison

| category  | Model                         | Rated Voltage (V) | ????W | Rated Torque (Nm) | Rated Current (A) | Rated Speed (RPM) | Peak Torque (Nm) | Peak Current (A) | No-load Speed (RPM) | Phase to Phase Resistance (mΩ) | Phase to Phase Inductance (μH) | Pole Pairs | Weight (G) | Size (diameter \*length) MM | Hall Sensor | Temperature Sensor |
| --------- | ----------------------------- | ----------------- | ----- | ----------------- | ----------------- | ----------------- | ---------------- | ---------------- | ------------------- | ------------------------------ | ------------------------------ | ---------- | ---------- | --------------------------- | ----------- | ------------------ |
| RO Series | RO100 KV55-Standard-with-hall | 48                | 837   | 4                 | 20                | 2000              | 12               | 62               | 2550                | 143                            | 1137                           | 21         | 710        | ?113.5\*36.2                | Yes         | Yes                |
| RO Series | RO60 KV115 Lite without hall  | 48                | 351   | 0.8               | 8.5               | 4200              | 2.4              | 40               | 5520                | 300                            | 395                            | 14         | 195        | ?70.5\*15                   | No          | No                 |
| RO Series | RO80 KV105 Lite without hall  | 48                | 490   | 1.3               | 15                | 3600              | 4                | 50               | 5040                | 120                            | 103                            | 21         | 265        | ?88.6\*17.7                 | No          | No                 |
| RO Series | RO100 KV55 Lite without hall  | 48                | 837   | 4                 | 20                | 2000              | 12               | 62               | 2550                | 143                            | 1137                           | 21         | 525        | ?108.3\*28                  | No          | No                 |
| RO Series | RO80 KV105-Standard-with-hall | 48                | 490   | 1.3               | 15                | 3600              | 4                | 50               | 5040                | 120                            | 103                            | 21         | 352        | ?92.6\*26.4                 | Yes         | Yes                |
| RO Series | RO60 KV115-Standard-with-hall | 48                | 351   | 0.8               | 8.5               | 4200              | 2.4              | 40               | 5520                | 300                            | 395                            | 14         | 248        | ?73.8\*23                   | Yes         | Yes                |

***

## CubeMars RO80 Standard 105kv Framless Außenläufer Motor Hallsensor 48V 352g

**Artikelnr.:** PM-7163 | **HAN:** RO80-105kv-Hall

[Zum Premium-Modellbau Shop](https://www.premium-modellbau.de/search?sSearch=PM-7163)

![CubeMars RO80 Standard 105kv Framless Außenläufer Motor Hallsensor 48V 352g](https://img.cubemars.com/products/ro100_80_60/images/setting-icon.png)

• Rated voltage 48V - KV105

• Ultra-low cogging torque

• Increased large hollow through-hole design

• High adaptability, switch the shaft for versatile usage

• Rated torque 1.3Nm

• Equipped with Hall (nur bei Standard Version) and temperature sensors

• Mainly used in exoskeleton robots, collaborative robotic arms, as well as in medical and aerospace fields.

###

### Angeboten wird hier die Standard-Version mit Hallsensor

The CubeMars RO series brushless DC outer rotor torque motor is introduced to meet diverse market demands, catering to applications in exoskeleton robotics, collaborative robotic arms, as well as medical and aviation fields. After a year of market research and meticulous engineering, the RO series has been launched in December 2023.As the new favorite across the entire series, based on the foundation of the R series, the RO series has undergone careful upgrades to address challenges in robot joint design. It successfully tackles issues related to limited internal installation space within joints and increased torque requirements.

**Product Features:1. Ultra-Low Cogging Torque:** The RO series motor exhibits 50% lower tooth count torque compared to the R series, ensuring smoother operation at low speeds.

**2. Large Hollow Through-Hole:** In comparison to the GL series, the RO series motor boasts a larger hollow diameter, adapting flexibly to various diameter requirements, allowing for versatile applications with a simple shaft replacement.

**3. Integrated Temperature and Hall Sensors:** Real-time monitoring of motor temperature prevents damage due to abnormal temperatures, and precise positioning control is provided through Hall sensors.

**4. Aluminum Alloy Housing:** The rotor of the RO series adopts an aluminum alloy housing, enhancing impact resistance, corrosion resistance, and providing various customization possibilities for appearance. This also improves transparency in controlling raw material costs.

**5. Easy Installation:** Stator features pin holes for easy assembly, and the product is equipped with magnetic pins and screws, greatly simplifying the installation process.

**the entirely redesigned RO Series**

#### UNVEILING A

### NEW ICON

![High Adaptability](https://img.cubemars.com/products/ro100_80_60/images/setting-icon.png)High Adaptability![Large Hollow](https://img.cubemars.com/products/ro100_80_60/images/circle-icon.png)Large Hollow

#### ULTRA-LOW COGGING TORQUE

A 50% reduction in cogging torque compared to products of the same level offering a silky-smooth new experience

50![compass-circle](https://img.cubemars.com/products/ro100_80_60/images/compass-circle.png)![compass](https://img.cubemars.com/products/ro100_80_60/images/compass.png)![arrow-down-icon](https://img.cubemars.com/products/ro100_80_60/images/arrow-down.png)

#### LARGE HOLLOW THROUGH-HOLE DESIGN

Featuring a reserved large-diameter hollow through-hole, providing flexible and versatile usage Simply replace the shaft to meet different hollow requirements, achieving a one-motor-multiple-uses scenario

![](https://img.cubemars.com/products/ro100_80_60/images/section-3-ro80.png)

#### HIGH EFFICIENCY STABLE & RELIABLE

The RO series utilizes high-grade magnets for peak motor efficiency, reaching up to 92.6% Enhanced temperature adaptability, improved operational stability, and extended lifespan

![stability](https://img.cubemars.com/products/ro100_80_60/images/stability-icon.png)stability![lifespan](https://img.cubemars.com/products/ro100_80_60/images/lifespan-icon.png)lifespan

#### RO Lite

Streamlined Engineering for Lightweight Performance

#### BUILT-IN TEMPERATURE HALL SENSORS

Real-time monitoring of motor temperature providing precise rotor position and speed information, ensuring precise motor control

![temperature](https://img.cubemars.com/products/ro100_80_60/images/temperature-icon.png)temperature![orientation](https://img.cubemars.com/products/ro100_80_60/images/orientation-icon.png)orientation

The CubeMars [**RO series brushless DC outer rotor torque motor**](https://www.cubemars.com/category-136-RO+Series+Frameless+Outrunner+Torque+Motor.html) is introduced to meet diverse market demands, catering to applications in exoskeleton robotics, collaborative robotic arms, as well as medical and aviation fields. After a year of market research and meticulous engineering, the RO series has been launched in December 2023.As the new favorite across the entire series, based on the foundation of the [**R series**](https://www.cubemars.com/category-127-R+Series+Outrunner+Torque+Motor.html), the RO series has undergone careful upgrades to address challenges in robot joint design. It successfully tackles issues related to limited internal installation space within joints and increased torque requirements.

**Product Features:1. Ultra-Low Cogging Torque:** The RO series motor exhibits 50% lower tooth count torque compared to the R series, ensuring smoother operation at low speeds.

**2. Large Hollow Through-Hole:** In comparison to the [**GL series**](https://www.cubemars.com/category-131-GL+Series+Outrunner+Gimbal+Motor.html), the RO series motor boasts a larger hollow diameter, adapting flexibly to various diameter requirements, allowing for versatile applications with a simple shaft replacement.

**3. Integrated Temperature and Hall Sensors:** Real-time monitoring of motor temperature prevents damage due to abnormal temperatures, and precise positioning control is provided through Hall sensors.

**4. Aluminum Alloy Housing:** The rotor of the RO series adopts an aluminum alloy housing, enhancing impact resistance, corrosion resistance, and providing various customization possibilities for appearance. This also improves transparency in controlling raw material costs.

**5. Easy Installation:** Stator features pin holes for easy assembly, and the product is equipped with magnetic pins and screws, greatly simplifying the installation process.

**CubeMars RO80 Motor Specifications:- Rated Voltage:** 48V

**- Rated Current:** 15A

**- Rated Torque:** 1.3N.m

**- Peak Torque:** 4N.m

**- Rated Speed:** 3600rpm

**- Motor Weight:** 352g

For more details and parameters about the RO80, please consult our online customer service. Lastly, thank you for your strong support of CubeMars!

**the entirely redesigned RO Series**

#### UNVEILING A

### NEW ICON

![High Adaptability](https://img.cubemars.com/products/ro100_80_60/images/setting-icon.png)High Adaptability![Large Hollow](https://img.cubemars.com/products/ro100_80_60/images/circle-icon.png)Large Hollow

#### ULTRA-LOW COGGING TORQUE

A 50% reduction in cogging torque compared to products of the same level offering a silky-smooth new experience

50![compass-circle](https://img.cubemars.com/products/ro100_80_60/images/compass-circle.png)![compass](https://img.cubemars.com/products/ro100_80_60/images/compass.png)![arrow-down-icon](https://img.cubemars.com/products/ro100_80_60/images/arrow-down.png)

#### LARGE HOLLOW THROUGH-HOLE DESIGN

Featuring a reserved large-diameter hollow through-hole, providing flexible and versatile usage Simply replace the shaft to meet different hollow requirements, achieving a one-motor-multiple-uses scenario

![](https://img.cubemars.com/products/ro100_80_60/images/section-3-ro80.png)

#### HIGH EFFICIENCY STABLE & RELIABLE

The RO series utilizes high-grade magnets for peak motor efficiency, reaching up to 92.6% Enhanced temperature adaptability, improved operational stability, and extended lifespan

![stability](https://img.cubemars.com/products/ro100_80_60/images/stability-icon.png)stability![lifespan](https://img.cubemars.com/products/ro100_80_60/images/lifespan-icon.png)lifespan

#### RO Lite

Streamlined Engineering for Lightweight Performance

#### BUILT-IN TEMPERATURE HALL SENSORS

Real-time monitoring of motor temperature providing precise rotor position and speed information, ensuring precise motor control

![temperature](https://img.cubemars.com/products/ro100_80_60/images/temperature-icon.png)temperature![orientation](https://img.cubemars.com/products/ro100_80_60/images/orientation-icon.png)orientation

Technical Drawing

|                             |
| --------------------------- |
| RO80 KV105 Standard Version |
| ro80\_all.png               |

|                         |
| ----------------------- |
| RO80 KV105 Lite Version |
| ro80\_en.png            |

Specification

|                               |                                        |                         |                                                                            |
| ----------------------------- | -------------------------------------- | ----------------------- | -------------------------------------------------------------------------- |
| RO80 KV105 Standard Version   |                                        |                         |                                                                            |
| Application                   | Cobot Arm                              | Insulation Class        | F                                                                          |
| Driving Way                   | FOC                                    | Insulation High-Voltage | 500V                                                                       |
| Operation Ambient Temperature | -20?\~50?                              | Insulation Resistance   | 10MΩ                                                                       |
| Winding Type                  | delta                                  | Cogging Torque          | 24N.mm                                                                     |
| Pole Pairs                    | 21                                     | Inertia                 | 2612gcm²                                                                   |
| Maximum Torque Weight Ratio   | 11.36Nm/kg                             | Weight                  | 352g                                                                       |
| Rotor Weight                  | 148g                                   | Stator Weight           | 204g                                                                       |
| Hall Temperature Sensor Wire  | 30#AWSilicone Wire100±5mm Tinning5±2mm | Lead-Out                | Three-Phase Motor Lead-Out: Enameled Wire Straight Out 100±5mm Tinned5±2mm |
| Three-Phasewire               | 3.5mm                                  |                         |                                                                            |

|                                      |           |                         |                                                                             |
| ------------------------------------ | --------- | ----------------------- | --------------------------------------------------------------------------- |
| RO80 KV105 Lite Version              |           |                         |                                                                             |
| Application                          | CobotArm  | Insulation Class        | F                                                                           |
| Driving Way                          | FOC       | Insulation High-Voltage | 500V                                                                        |
| Operation Ambient Temperature        | -20?\~50? | Insulation Resistance   | 10MΩ                                                                        |
| Winding Type                         | delta     | Cogging Torque          | 24N.mm                                                                      |
| Pole Pairs                           | 21        | Inertia                 | 1600gcm²                                                                    |
| Rotor Weight                         | 85g       | Weight                  | 265g                                                                        |
| Maximum Height of Enameled WireBulge | 6mm       | Stator Weight           | 180g                                                                        |
| Three-Phasewire                      | 3.5mm     | Lead-Out                | Three-Phase Motor Lead-Out: Enameled Wire Straight Out 100±5mm Tinned 5±2mm |

|                     |          |                           |            |
| ------------------- | -------- | ------------------------- | ---------- |
| Electric Parameters |          |                           |            |
| Rated Voltage       | 48V      | Ke                        | 9.07V/krpm |
| No-Load Speed       | 5040rpm  | Phase To Phase Resistance | 120mΩ      |
| Rated Torque        | 1.3Nm    | Phase To Phase Inductance | 103μH      |
| Rated Speed         | 3600rpm  | Km                        | 0.25Nm/√W  |
| Rated Current       | 15ADC    | Mechanical Time Constant  | 2.95ms     |
| Peak Torque         | 4Nm      | Electrical Time Constant  | 0.86ms     |
| Peak Current        | 50ADC    | Kt                        | 0.087Nm/A  |
| Kv                  | 105rpm/V |                           |            |

Analysis Chart

![y.png](https://store.tmotor.com/images/202412/101733801807639128.png)

## Downloads:

![](https://www.cubemars.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[RO80 drawing.pdf](https://github.com/Premium-Modellbau/premium-modellbau-docs/blob/main/images/file/20231228/1703733328554703.pdf)

![](https://www.cubemars.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_rar.gif)[RO80\_KV105.zip](https://github.com/Premium-Modellbau/premium-modellbau-docs/blob/main/images/file/20231228/1703733349441822.zip)

![](https://www.cubemars.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[RO80-KV105-lite.pdf](https://github.com/Premium-Modellbau/premium-modellbau-docs/blob/main/images/file/20240417/1713321069346175.pdf)

![](https://www.cubemars.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_rar.gif)[RO80-KV105-lite.zip](https://www.cubemars.com/images/file/20240407/1712469933768915.zip)

## Vergleich aller Cube Mars RO Motoren:

Product Comparison

| category  | Model                         | Rated Voltage (V) | ????W | Rated Torque (Nm) | Rated Current (A) | Rated Speed (RPM) | Peak Torque (Nm) | Peak Current (A) | No-load Speed (RPM) | Phase to Phase Resistance (mΩ) | Phase to Phase Inductance (μH) | Pole Pairs | Weight (G) | Size (diameter \*length) MM | Hall Sensor | Temperature Sensor |
| --------- | ----------------------------- | ----------------- | ----- | ----------------- | ----------------- | ----------------- | ---------------- | ---------------- | ------------------- | ------------------------------ | ------------------------------ | ---------- | ---------- | --------------------------- | ----------- | ------------------ |
| RO Series | RO100 KV55-Standard-with-hall | 48                | 837   | 4                 | 20                | 2000              | 12               | 62               | 2550                | 143                            | 1137                           | 21         | 710        | ?113.5\*36.2                | Yes         | Yes                |
| RO Series | RO60 KV115 Lite without hall  | 48                | 351   | 0.8               | 8.5               | 4200              | 2.4              | 40               | 5520                | 300                            | 395                            | 14         | 195        | ?70.5\*15                   | No          | No                 |
| RO Series | RO80 KV105 Lite without hall  | 48                | 490   | 1.3               | 15                | 3600              | 4                | 50               | 5040                | 120                            | 103                            | 21         | 265        | ?88.6\*17.7                 | No          | No                 |
| RO Series | RO100 KV55 Lite without hall  | 48                | 837   | 4                 | 20                | 2000              | 12               | 62               | 2550                | 143                            | 1137                           | 21         | 525        | ?108.3\*28                  | No          | No                 |
| RO Series | RO80 KV105-Standard-with-hall | 48                | 490   | 1.3               | 15                | 3600              | 4                | 50               | 5040                | 120                            | 103                            | 21         | 352        | ?92.6\*26.4                 | Yes         | Yes                |
| RO Series | RO60 KV115-Standard-with-hall | 48                | 351   | 0.8               | 8.5               | 4200              | 2.4              | 40               | 5520                | 300                            | 395                            | 14         | 248        | ?73.8\*23                   | Yes         | Yes                |
