# Holybro Pixhawk 6x Solo Flightcontroller - ICM-45686 - 11073

![Holybro Pixhawk 6x Solo Flightcontroller - ICM-45686  - 11073](https://bilder.premium-modellbau.de/bilder/produkte/wasserzeichen/Pixhawk6X-ICM-45686-Promo-1.jpg)

## Shop

[Holybro Pixhawk 6x Solo Flightcontroller - ICM-45686 - 11073 bei Premium-Modellbau kaufen](https://www.premium-modellbau.de/search?sSearch=11073)

## Technische Daten

| Eigenschaft                  | Wert    |
| ---------------------------- | ------- |
| **Hersteller**               | Holybro |
| **Hersteller-Artikelnummer** | 11073   |
| **PM Artikelnummer**         | PM-6415 |

Holybro Pixhawk 6x Solo Flightcontroller - ICM-45686  - 11073

Die Pixhawk 6x mit ICM-45686 IMU ist der neueste Version des Flightcontroller von Holybro (Juni  2024) mit M7 Prozessor, 2MB Speicher und 1MB RAM.

\*\*Achtung! Sie benötigen zum Betrieb zwingend ein passendes 6X Carrier Board. Passende GPS Module finden Sie in unseren anderen Angeboten (z.B. Holybro M9N, M10, Holybro F9P, uvm.).

## Lieferumfang

Pixhawk 6X Flight Controller Module

## Ausführliche Informationen und Technische Daten:

## Key Design Points

```
- Redundancy: 3x ICM-45686 IMU sensors (±32g) with BalancedGyro™ technology & 2x Barometer sensors
- High performance STM32H753 Processor with clock speed up to 480 MHz

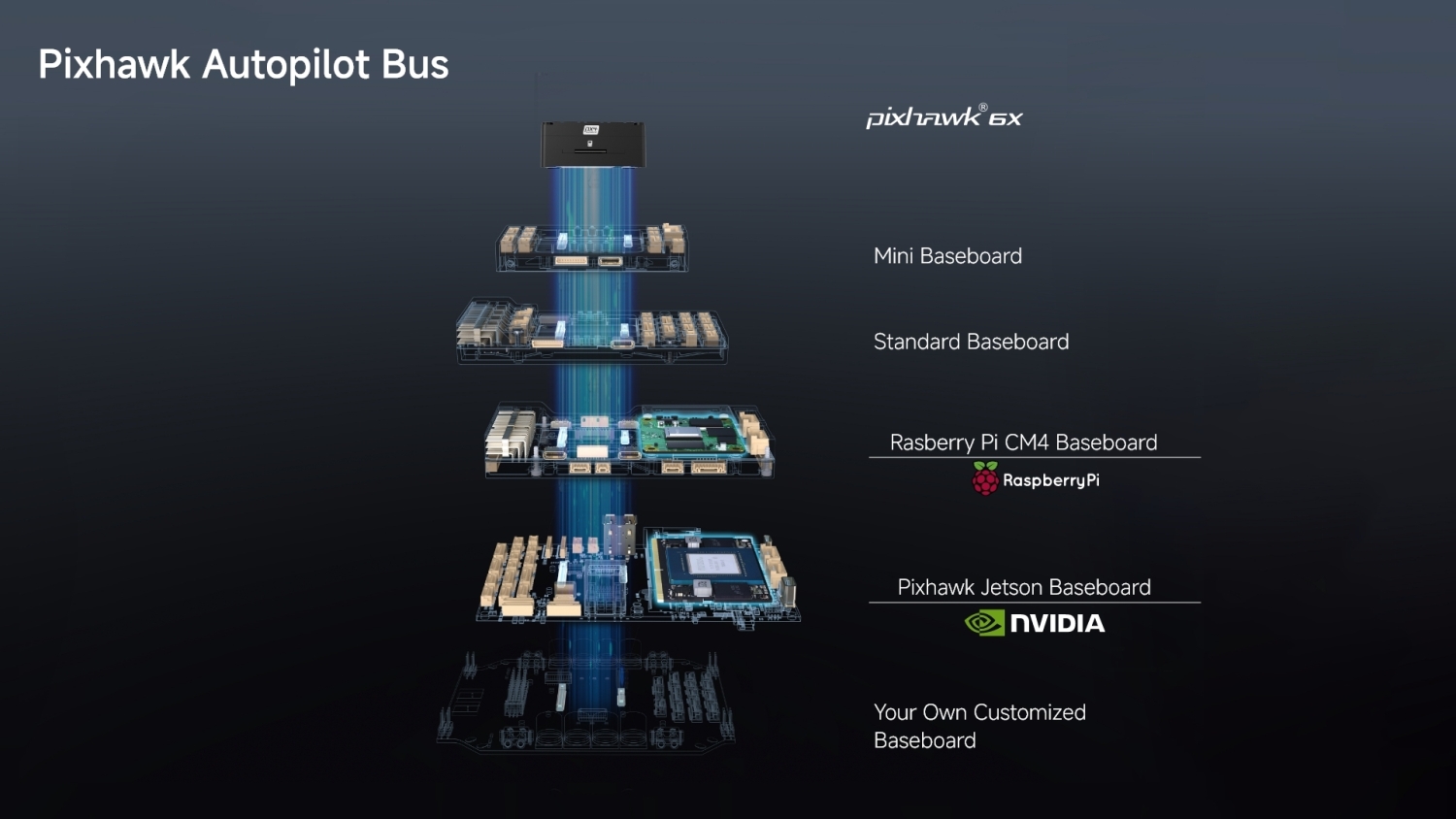

- Modular flight controller: separated IMU, FMU, and Base system connected by a 100-pin & a 50-pin Pixhawk® Autopilot Bus connector.
- Triple redundancy domains: Completely isolated sensor domains with separate buses and separate power control
- All New advanced durable vibration isolation material with resonance frequency in the higher spectrum
- Ethernet interface for high-speed mission computer integration
- Temperature-controlled IMU board, allowing optimum working temperature of IMUs
```

Note: - The Rev 8 Version is support in PX4 1.14.3 release and later. Ardupilot 4.5.0 stable release and later. Ardupilot firmware can be flash via Mission Planner or QGroundControl. - [Power module comparison chart](https://docs.holybro.com/power-module-and-pdb/power-module-comparison)

## Specification

\*\*Processors & Sensors - FMU Processor: STM32H753 32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM - IO Processor: STM32F103 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM - On-board sensors (Shipping Currently, Rev8) Accel/Gyro: 3x ICM-45686 (with BalancedGyro™ Technology) - Barometer: ICP20100 & BMP388 - Mag: BMM150 - On-board sensors (Previous Revision, Rev 3/4) Accel/Gyro: BMI088/ICM-20649 - Accel/Gyro: ICM-42688-P - Accel/Gyro: ICM-42670-P - Mag: BMM150 - Barometer: 2x BMP388

\*\*Electrical data - Voltage Ratings: Max input voltage: 6V - USB Power Input: 4.75~~5.25V - Servo Rail Input: 0~~36V - Current Ratings: Telem1 output current limiter: 1.5A - All other port combined output current limiter: 1.5A

\*\*Mechanical data - Dimensions Flight Controller Module: 38.8 x 31.8 x 16.8mm - Weight Flight Controller Module: 31.3g
