Holybro Pixhawk 6X Pro Standard Set v2A 20262 bei Premium-Modellbau kaufen

Technische Daten

Eigenschaft	Wert
Hersteller	Holybro
Hersteller-Artikelnummer	20262
PM Artikelnummer	PM-7015

Holybro Pixhawk 6X Pro Standard Set - 20262 mit v2A Carrier Board

Die Pixhawk 6x PRO mit mit ADIS16470 IMU ist der neueste Version PRO Version des Flightcontroller von Holybro (Juni 2024) mit M7 Prozessor, 2MB Speicher und 1MB RAM.

Passende GPS Module finden Sie in unseren anderen Angeboten (z.B. Holybro M9N, M10, Holybro F9P, uvm.).

Lieferumfang

Pixhawk 6X Pro Flight Controller Module

Pixhawk v2a Baseboard

PM02D HV Power Module

Cable Set

Ausführliche Informationen und Technische Daten:

Key Design Point

- High-performance ADIS16470 Industrial IMU with high accelerometer dynamic range (±40 g), perfect for accurate motion sensing in demanding UAV applications

- All New advanced durable vibration isolation material with resonance frequency in the higher spectrum, ideal for industrial and commercial drone applications

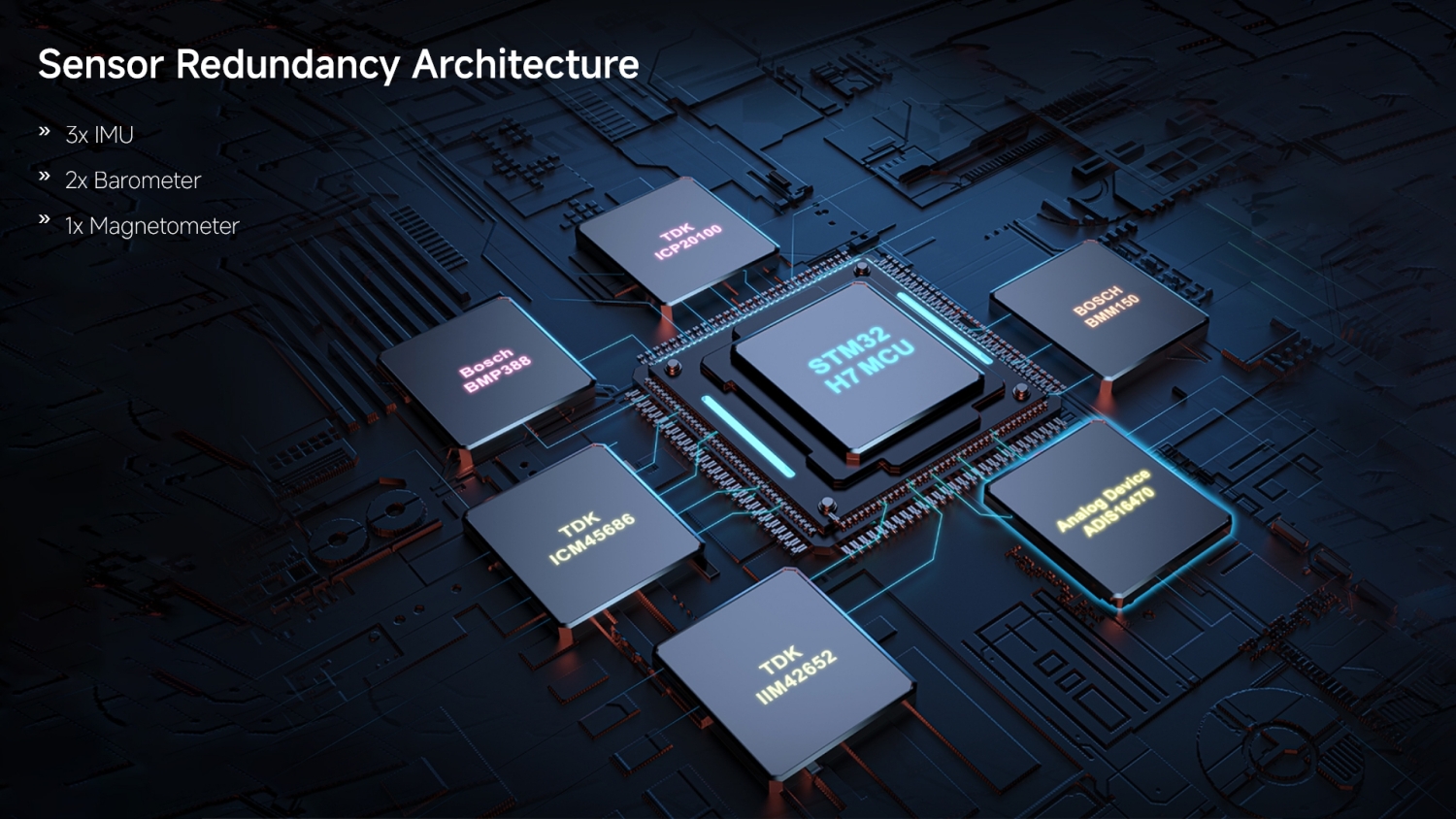

- Triple redundant IMU & double redundant barometer on separate buses

- High performance STM32H753 Processor

- Modular flight controller: separated IMU, FMU, and Base system

- Safety-driven design incorporates sensors from different manufacturers and model lineups

- Independent LDO powers every sensor with independent power control.

- Ethernet interface for high-speed mission computer integration

- Temperature-controlled IMU board, allowing optimum working temperature of IMUs

All new Vibration Isolation Design

This new vibration isolation design uses a custom-formulated durabile silicone-based isolation material in place of the traditional foam design. Backed by extensive R&D and testing, it offers optimal IMU damping characteristics with resonance frequency in the higher spectrum, perfect for industrial and commercial drone

**Note: - FC Module + a baseboard is required for this product to function. A FC Module or a Baseboard by itself will not function.

Specification

**Processors & Sensors - FMU Processor: STM32H753

	32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM



- IO Processor: STM32F103

	32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM



- On-board sensors

	Accel/Gyro: ADIS16470

		±40g, Vibration Isolated, Industrial IMU



	- Accel/Gyro: IIM-42652

		±16g, Vibration Isolated, Industrial IMU



	- Accel/Gyro: ICM-45686 with BalancedGyro™ Technology

		±32g, Hard Mounted



	- Barometer: ICP20100

	- Barometer: BMP388

	- Mag: BMM150

**Electrical data - Voltage Ratings:

	Max input voltage: 6V

	- USB Power Input: 4.75~5.25V

	- Servo Rail Input: 0~36V



- Current Ratings:

	Telem1 output current limiter: 1.5A

	- All other port combined output current limiter: 1.5A

**Mechanical data - Dimensions

	Flight Controller Module: 38.8 x 31.8 x 30.1mm

	- Standard Baseboard: 52.4 x 102 x 16.7mm  (Aluminum)

	- Mini Baseboard: 43.4 x 72.8 x 14.2 mm



- Weight

	Flight Controller Module: 50g

	- Standard Baseboard: 72.5g  (Aluminum)

	- Mini Baseboard: 26.5g
