# F9P Helical GPS RTK Modul - 12018

## Link zum Premium-Modellbau Shop

{% embed url="<https://www.premium-modellbau.de/holybro-h-rtk-f9p-helical-gps-rtk-modul-fuer-pixhawk-4-12018-v2>" %}
Holybro H-RTK F9P Helical GPS RTK Modul für Pixhawk 4 - 12018 - V2 im Premium-Modellbau Shop
{% endembed %}

GNSS RTK Modul mit Ublox F9P Chip, Helical Antenne und IST8310 Kompass von Holbyro.

Das Modul kann wahlweise als RTK Rover oder Basis eingesetzt werden (Auch eine Kombination mit den anderen Modellen von Holybro (F9P Rover Lite & RTK F9P Basis) sind möglich.

{% hint style="info" %}
**Es handelt sich um die neue Revision (Mai 2022) welche nun über einen zweiten herausgeführten UART Port verfügt.**&#x20;
{% endhint %}

Das Modul kommt mit zwei Anschlusskabeln (ca. 150mm / ca. 400mm) welche mit der Pixhawk 4 kompatibel sind (GH1.25 10pin) **sowie einem Anschlusskabel (ca. 300)mm für den Cube Orange.**

(Für den Cube Orange haben wir auch ein 420mm Adapterkabel im Angebot: **Cable-Helical-JST-GH8** )

**Abmessungen:** 34,8 x 52,8 x 12mm

**Gewicht:** ca. 49g

### **Lieferumfang**&#x20;

&#x20;H-RTK F9P \*1\
– High Precision GNSS Antenna(CH7604A) \*1\
– Fixed Carbon Fiber GPS mount(29mm) \*1\
– GH 10P cable 150mm\*1\
– GH 10P cable 400mm\*1\
– USB type-c cable \*1

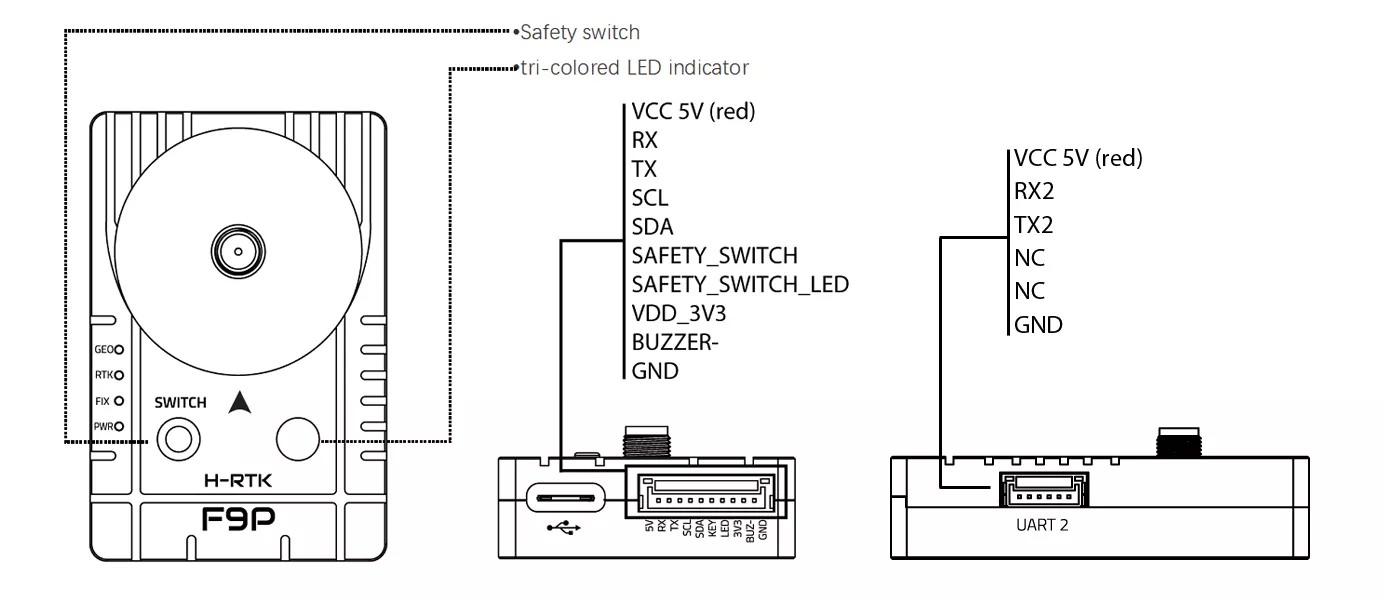

<figure><img src="/files/mY7ou8lVucNXxuqhlzcV" alt=""><figcaption></figcaption></figure>


---
