# 2nd GPS Modul NEO M8N - 12014

## Link zum Premium-Modellbau Shop

{% embed url="<https://www.premium-modellbau.de/holybro-2nd-gps-modul-neo-m8n-fuer-pixhawk-4-zweites-gps-modul>" %}
Holybro 2nd GPS Modul NEO-M8N für Pixhawk 4 - zweites GPS Modul im Premium-Modellbau Shop
{% endembed %}

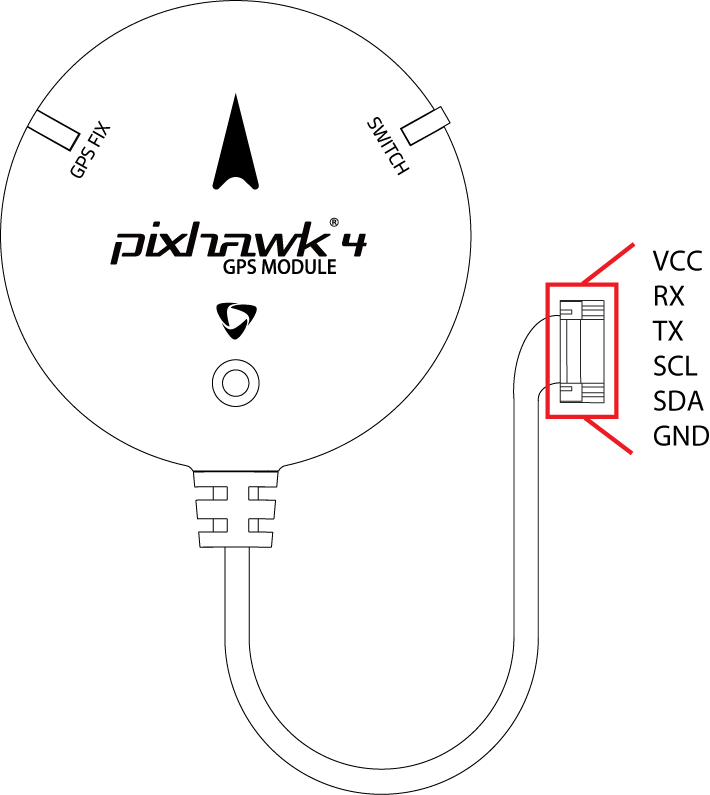

**!Bitte beachten Sie die Steckerbelegung und die Abbildungen. Dieses Modul ist als zweites GPS gedacht und daher entsprechend mit einem anderern Stecker und anderer Belegung ausgelegt.**

Das Modul hat einen IST8310 Kompass sowie eine LED und einen Arming-Schalter verbaut.

(Die Pixhawk 4 ist nur zu Demonstrationszwecken mit abgebildet und nicht Teil des Lieferumfanges...)

### **Lieferumfang**&#x20;

\- NEO-M8 with compass module \*1\
\- ‘X’ type folding pedestal mount \*1\
\- Carbon rod 70mm & 140mm \*1

### **Ausführliche Informationen und Technische Daten:**&#x20;

**Descriptions：** \
We empoldered this new GPS for you to work with PIXHAWK4. It has UBLOX M8N module on it, as well as IST8310 compass and tri-colored LED indicator. Also the Safety switch on it will make the connection more convenient and simple.

This module ships with a baud rate of 38400 5Hz

**Features and Specifications:**\
\- Ublox Neo-M8N module\
\- Industry leading –167 dBm navigation sensitivity\
\- Cold starts: 26s\
\- LNA MAX2659ELT+\
\- 25 x 25 x 4 mm ceramic patch antenna\
\- Rechargeable Farah capacitance\
\- Low noise 3.3V regulator\
\- Fix indicator LEDs\
\- Protective case\
\- 26cm Pixhawk4 compatible 10-pin cable included\
\- Diameter 50mm total size, 32 grams with case.

<figure><img src="/files/nv2EMCK9AbKUF5n6TquC" alt=""><figcaption></figcaption></figure>


---
