Holybro H-RTK NEO-F9P Modul - DroneCAN (CAN Port) / Vertical Array Patch / 40cm - 12071 bei Premium-Modellbau kaufen

Technische Daten

Eigenschaft	Wert
Hersteller	Holybro
Hersteller-Artikelnummer	12071
Variante	DroneCAN (CAN Port) / Vertical Array Patch / 40cm
PM Artikelnummer	PM-7285

Overview

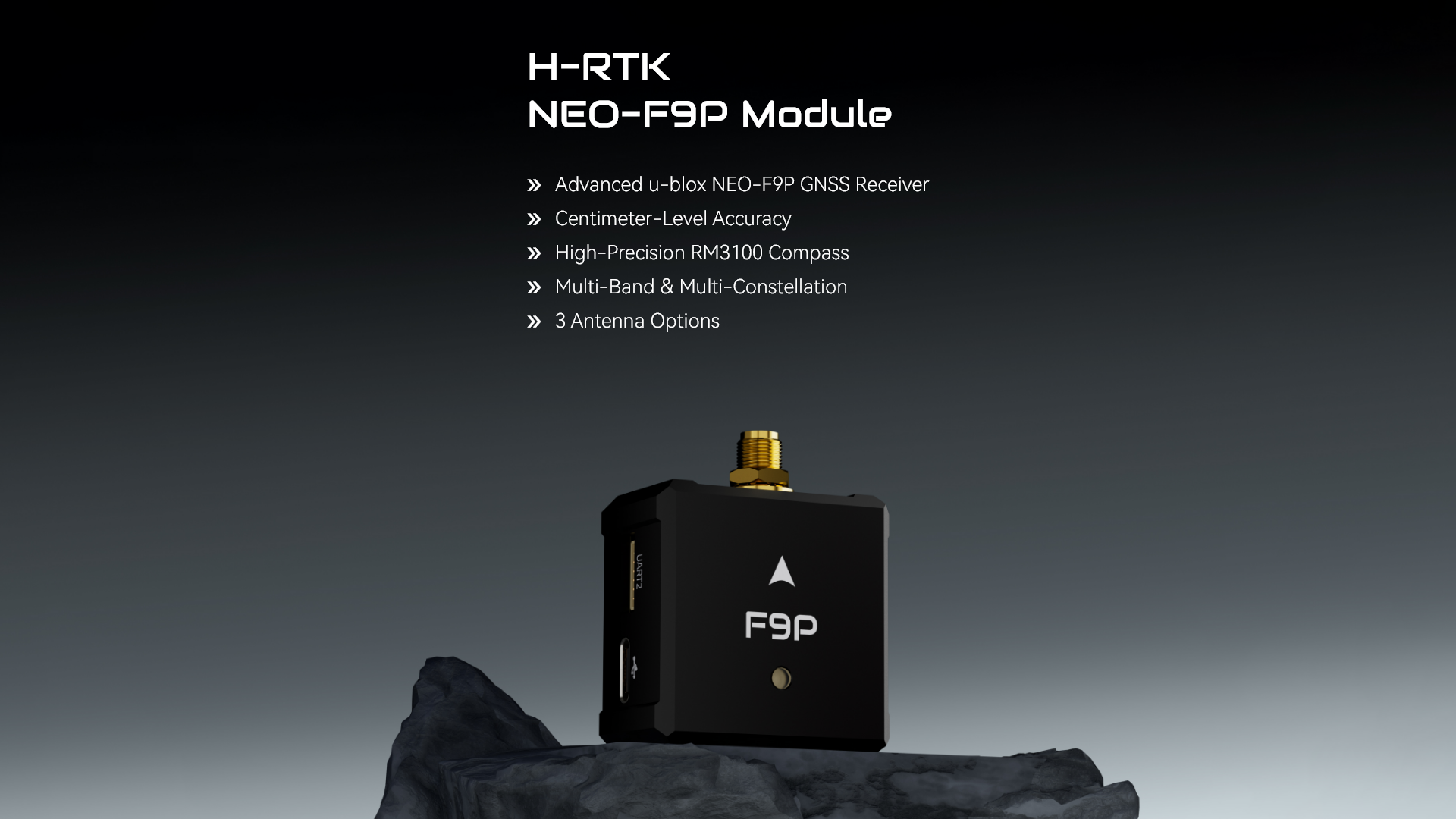

The H-RTK NEO-F9P GPS integrates the advanced u-blox NEO-F9P GNSS receiver, high-precision RM3100 compass, and a tri-color LED indicator. This high-precision system delivers multi-band RTK capabilities with rapid convergence times, reliable performance, and fast update rates, making it ideal for highly dynamic, high-volume applications that require centimeter-level accuracy. Multiple antenna options are available to suit diverse use cases.

Supporting concurrent reception of GPS (L1 & L5), GLONASS, Galileo, BeiDou, and QZSS signals, it offers flexible connectivity in both UART and DroneCAN options. The DroneCAN version includes an MCU, IMU, and barometer, enabling robust communication and seamless integration for advanced UAV systems.

The high-precision PNI RM3100 compass ensures accurate orientation and stability with exceptional reliability, making it perfect for demanding UAV applications. It features high resolution, low power consumption, strong noise immunity, a broad dynamic range, and high sampling rates. Measurements are stable across temperatures and inherently free from offset drift.

Features

**Advanced GNSS Receiver: **High-precision u-blox NEO-F9P GNSS receiver with reliable and stable centimeter-level positioning

**Integrated RM3100 Compass: **Accurate and stable orientation data

**Rapid RTK Convergence: **Advanced multi-frequency DGNSS algorithms enable a quick RTK Fix

High-Gain Antenna: Enhanced signal reception across GNSS frequencies

**Advanced Filtering & Amplification: **Hybrid Coupler, SAW filter, and LNA architecture deliver exceptional signal strength and effective interference rejection

**Versatile Installation: **Multiple antenna options offer flexibility for various situations

**DroneCAN Option: **Offers MCU, IMU, barometer, and robust communication for advanced UAV systems

Specification

Product Model	H-RTK NEO-F9P w/ Helical Antenna	H-RTK NEO-F9P w/ Vertical Array Patch Antenna	H-RTK NEO-F9P w/ Base Station Antenna
Recommended Application	• Rover Station (UAV, Marine, Land Vehicle, etc.)	• Rover Station (UAV, Marine, Land Vehicle, etc.) • Base Station	** • **Rover Station (Marine, Land Vehicle, etc.) • Base Station
GNSS Receiver	u-blox NEO-F9P	u-blox NEO-F9P	u-blox NEO-F9P
Processor	STM32G473 (Available in DroneCAN Version Only)	N/A
IMU & Barometer	ICM42688 & ICP20100 (Available in DroneCAN Version Only)	N/A
Antenna	Helical Antenna	High Precision Vertical Array Patch Antenna	High-Gain Ceramic Antenna
Antennas Peak Gain	L1: 2dBi L5: 2dBi	L1: 3.5dBi L5: 3.5dBi	L1: 5.5dBi L5: 4dBi
Antennas LNA Gain	33 ± 2dB	33 ± 2dB	40 ± 2dB
Magnetometer	High Precision PNI RM3100
GNSS	BeiDou, Galileo, GLONASS, GPS / QZSS
GNSS Band	GPS: L1C/A and L5 GLONASS: L1OF Galileo: E1-B/C and E5a BeiDou: B1I and B2a QZSS: L1C/A, L1S and L5 SBAS: L1C/A
Number of Concurrent GNSS	4
Dynamic Heading Accuracy	0.3 degrees
Horizontal Positioning Accuracy	PVT: 1.5 m CEP SBAS: 1.0 m CEP RTK: 0.01 m +1 ppm CEP
Vertical Positioning Accuracy	PVT: 2.0 m R50 SBAS: 1.5 m R50 RTK: 0.01 m +1 ppm R51
Communication Protocol	UART or DroneCAN 1 Mbit/s
GNSS Protocol	NMEA UBX binary RTCM 3.3 SPARTN 2.0.1
Time-To-First Fix	Hot Start: 3 s Aided Starts: 4 s Cold Starts: 27 s
Navigation Update Rate	GPS+GLO+GAL+BDS: RTK: 7 Hz Max PVT: 7 Hz Max RAW: 10 Hz
Anti-Spoofing	Advanced anti-spoofing algorithms
Operational Limits	Dynamics: ? 4 g Altitude: 80,000 m Velocity: 500 m/s
Antenna Connection Type	Board: SMA female Antenna: SMA male
Working Voltage	4.75 V ~ 5.25 V
Operating Temperature	-25? to 85?
Current Consumption	~250 mA
Antenna Cable Length (Contact us for customization)	40 cm (default)	40 or 80 cm	500 cm
Dimensions	Module: 43.1×44.1×22 mm Antenna Diameter: 27.5 mm Antenna Height: 59 mm	Module: 43.1×44.1×22 mm Antenna: 75×75×26 mm	Module: 43.1×44.1×22 mm Antenna Diameter: 152 mm Antenna Height: 62.2 mm
Module Weight	UART: 40 g DroneCAN: 40.5 g
Antenna Weight	18 g	168 g	343 g

Sample Wiring DiagramReference Links

User Guide: Setup & Getting Started (Ardupilot)

User Guide: Setup & Getting Started (PX4)

• GPS Heading/Yaw (Aka Moving baseline) Guide

• Pinout

• Dimensions

• Downloads

• Spec Comparison With Different Antennas

**Package Included: 1x NEO F9P module 1x Antenna 1x Antenna Coaxial Cable 1x Model-specific cable set 1x Fixed Carbon Fiber Antenna mount (Base version does not come with any mounting hardware)
