# Holybro High Precision DroneCAN Airspeed Sensor - DLVR - PT60 Pitotrohr Solo - 31227

![Holybro High Precision DroneCAN Airspeed Sensor - DLVR - PT60 Pitotrohr Solo - 31227](https://bilder.premium-modellbau.de/bilder/produkte/Holybro/31227/Bilder/31227-Detail-01.png)

## Shop

[Holybro High Precision DroneCAN Airspeed Sensor - DLVR - PT60 Pitotrohr Solo - 31227 bei Premium-Modellbau kaufen](https://www.premium-modellbau.de/search?sSearch=31227)

## Technische Daten

| Eigenschaft                  | Wert                 |
| ---------------------------- | -------------------- |
| **Hersteller**               | Holybro              |
| **Hersteller-Artikelnummer** | 31227                |
| **Variante**                 | PT60 Pitot Tube Only |
| **PM Artikelnummer**         | PM-7288              |

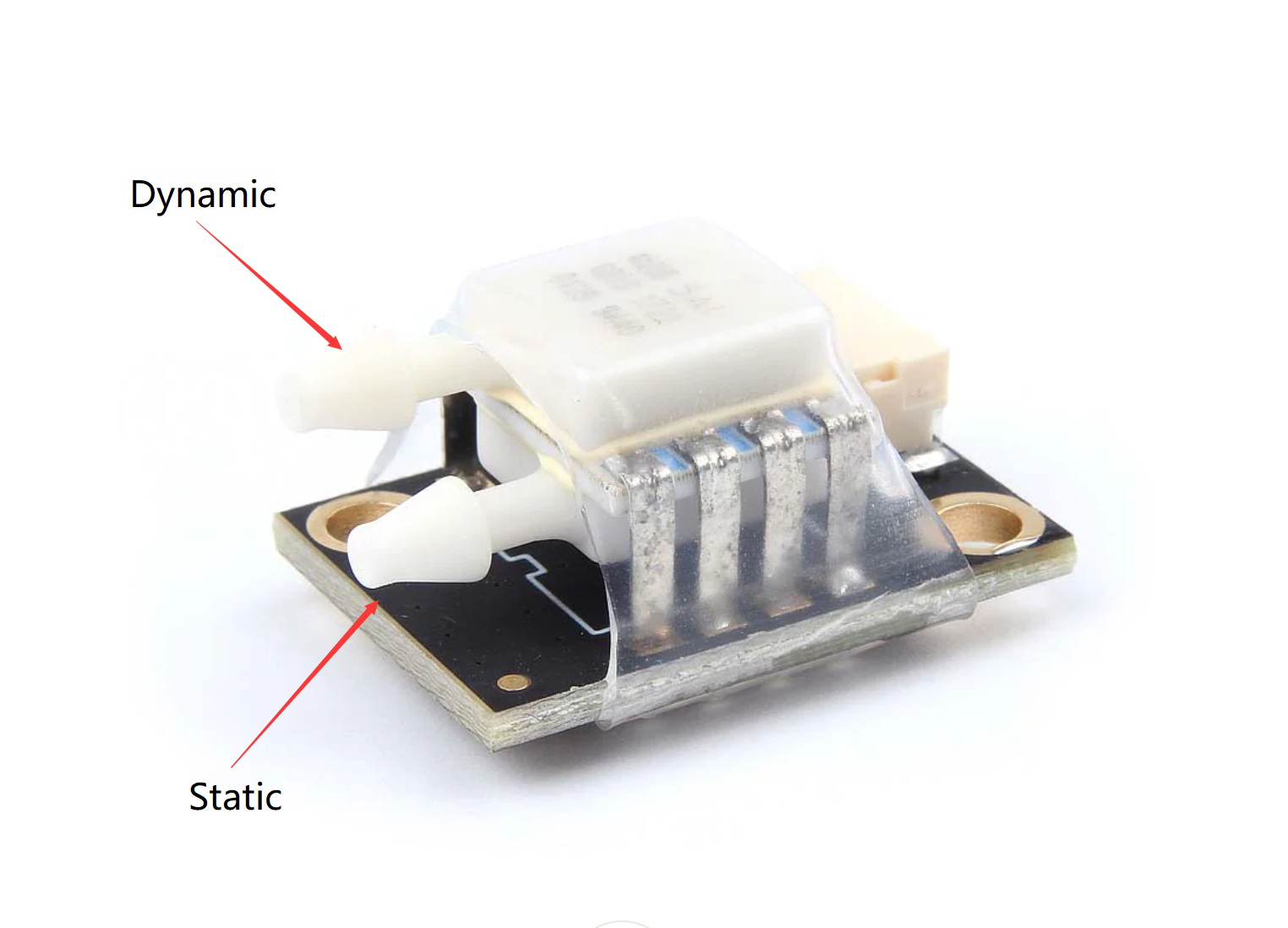

The Holybro Digital Airspeed Sensor has a very low offset, a high resolution, and best of all, does not suffer from the noise induced by long cables and offsets in the ratio-metric output on other airspeed sensors. Supported on all Holybro Flight Controller Boards with Ardupilot & PX4.

Featuring a Measurement Specialties 4525DO sensor, with 1 psi pressure differential measurement range (roughly up to 100 m/s or 360 km/h or 223 mp/h), the Airspeed Sensor Kit enables a resolution of 0.84 Pa with a 14-bit ADC. It also measures temperature to allow calculation of true airspeed from indicated airspeed using the static pressure sensor on the Flight Controller. Not influenced by the heat of nearby processing components, it is much closer to the air temperature than with previous analog sensor setups. Supported on all Pixhawk Flight Controllers, this kit comes with M3 / 6-32 mounting holes.

Sensor Model Number: MS4525DO-DS5AI001DP I2C Address?0x28H

## SKU19003 Package Includes:

1x Digital Air Speed Sensor 1x PT40 Pitot Tube 1x Rubber tubing 40cm 1x GH 4P Cable

## SKU19008 Package Includes:

1x Digital Air Speed Sensor 1x PT60 Pitot Tube 1x Rubber tubing 100cm 1x GH 4P Cable

## Datasheet:

[MS4525DO Datasheet](https://cdn.shopify.com/s/files/1/0604/5905/7341/files/Air_Speed_Sensor_Datasheet_MS4525DO_2dfe378d-497f-4939-a20b-be4da4578c9b.pdf?v=1665393813%20)

## Hersteller Produktseite

[Holybro Produktseite](https://holybro.com/products/digital-air-speed-sensor-ms4525do?variant=43348112900285)


---
