# Holybro High Precision DroneCAN Airspeed Sensor - DLVR - Sensor Board - 19012

![Holybro High Precision DroneCAN Airspeed Sensor - DLVR - Sensor Board - 19012](https://bilder.premium-modellbau.de/bilder/produkte/Holybro/19012/Bilder/19012-Detail-01.png)

## Shop

[Holybro High Precision DroneCAN Airspeed Sensor - DLVR - Sensor Board - 19012 bei Premium-Modellbau kaufen](https://www.premium-modellbau.de/search?sSearch=19012)

## Technische Daten

| Eigenschaft                  | Wert              |
| ---------------------------- | ----------------- |
| **Hersteller**               | Holybro           |
| **Hersteller-Artikelnummer** | 19012             |
| **Variante**                 | Sensor Board Only |
| **PM Artikelnummer**         | PM-7289           |

## Overview

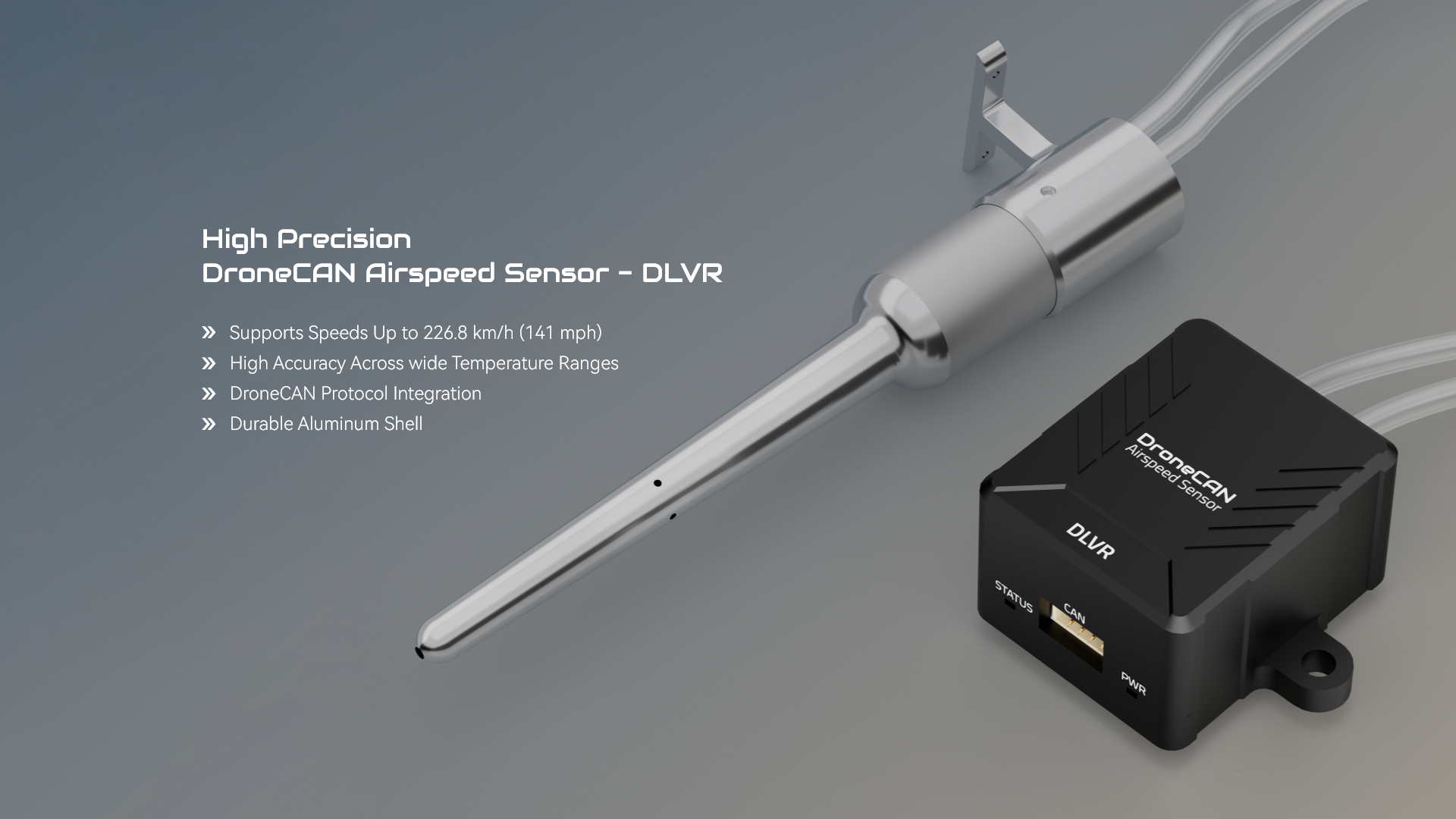

The Holybro DroneCAN Airspeed is an industrial-grade differential pressure measurement module designed for precision airspeed measurement in various UAVs, including planes, VTOLs, and other vehicles. Equipped with the [DLVR-L10D](https://cdn.shopify.com/s/files/1/0604/5905/7341/files/DLVR-L10D_Datasheet.pdf?v=1726381403) Digital Pressure Sensor and running ArduPilot AP-Periph Firmware, this module ensures accurate and reliable airspeed data across different flight conditions.

## Features

```
- Wide Pressure Range: Supports up to 2500 Pa and 226.8 km/h (141 mph) airspeed measurement.

- High-Precision  [DLVR-L10D ](https://cdn.shopify.com/s/files/1/0604/5905/7341/files/DLVR-L10D_Datasheet.pdf?v=1726381403)Sensor: Based on ALLSENSORS® DLVR with CoBeam technology, providing high precision and low temperature drift.

- High Accuracy: Achieves better than 1% accuracy across a wide temperature range, ensuring reliable and accurate readings in demanding applications.

- DroneCAN Protocol: Compatible with both PX4 and ArduPilot platforms.

- Aluminum Shell: Durable and reliable construction

- [Software toggle for CAN termination resistance](https://docs.holybro.com/can-termination-resistance-software-toggle)
```

## ## Specifications

```
- MCU: STM32G473CE, 170 MHz, 128KB RAM, 512KB Flash

- Sensor:  [DLVR-L10D](https://cdn.shopify.com/s/files/1/0604/5905/7341/files/DLVR-L10D_Datasheet.pdf?v=1726381403)

- Pressure Range: 2500 Pa

- Burst Pressure: 75 kPa

- Airspeed Measurement: 0-226.8 km/h

- Accuracy: <1.0% Error

- Firmware: AP-Periph DroneCAN

- Communication Protocol: DroneCAN

- Compatible Flight Controllers: Any flight controller with a CAN interface running  PX4 or Ardupilot firmware

- Working Voltage: 4.75~5.25V

- Current Consumption: ~100mA

- Dimensions: 29 x 35.5 x 16.5 mm (module), 91.5 x 28 x 30 mm (Pitot tube)

- Weight: 38.3g (Includes Pitot tube and tubing)

- Operating Temperature: -20 to 85?
```

## Dimensions

## Pinout

## SKU19012 Package Includes:

```
- 1x DroneCAN Airspeed Sensor-DLVR

- 1x Rubber tubing 100cm

- 1x GH 4P Cable
```

## SKU19013 Package Includes:

```
- 1x DroneCAN Airspeed Sensor-DLVR

- 1x PT40 Pitot Tube

- 1x Rubber tubing 100cm

- 1x GH 4P Cable
```

## SKU19014 Package Includes:

```
- 1x DroneCAN Airspeed Sensor-DLVR

- 1x PT60 Pitot Tube

- 1x Rubber tubing 100cm

- 1x GH 4P Cable
```

## Quick Start Guide:

<https://docs.holybro.com/peripherals/dronecan-airspeed/quick-start-guide>

## Datasheet:

[DLVR-L10D Datasheet](https://cdn.shopify.com/s/files/1/0604/5905/7341/files/DLVR-L10D_Datasheet.pdf?v=1726381403)

## Hersteller Produktseite

[Holybro Produktseite](https://holybro.com/products/high-precision-dronecan-airspeed-sensor-dlvr?variant=44438283780285)
