# SVPDB-8S

## Link zum Premium-Modellbau Shop

{% embed url="<https://www.premium-modellbau.de/matek-servo-pdb-bec-5.5-36-v-zu-5v-8.2v-einstellbar-svpdb-8s>" %}
Matek Servo PDB + BEC 5.5-36 V zu 5V-8.2V einstellbar - SVPDB-8S  im Premium-Modellbau Shop
{% endembed %}

### **Montage und Inbetriebnahme:**

Bitte beachten Sie unbedingt den angegebenen Spannungsbereich für das jeweilige Board. Eine zu hohe Spannung wird die angeschlossenen Komponenten beschädigen.

Achten Sie beim Anschluss der Kabel am Akku immer auf korrekte Polung (und isolieren Sie die Leitungen entsprechend mit Schrumpfschlauch.

Matek Servo PDB mit BEC

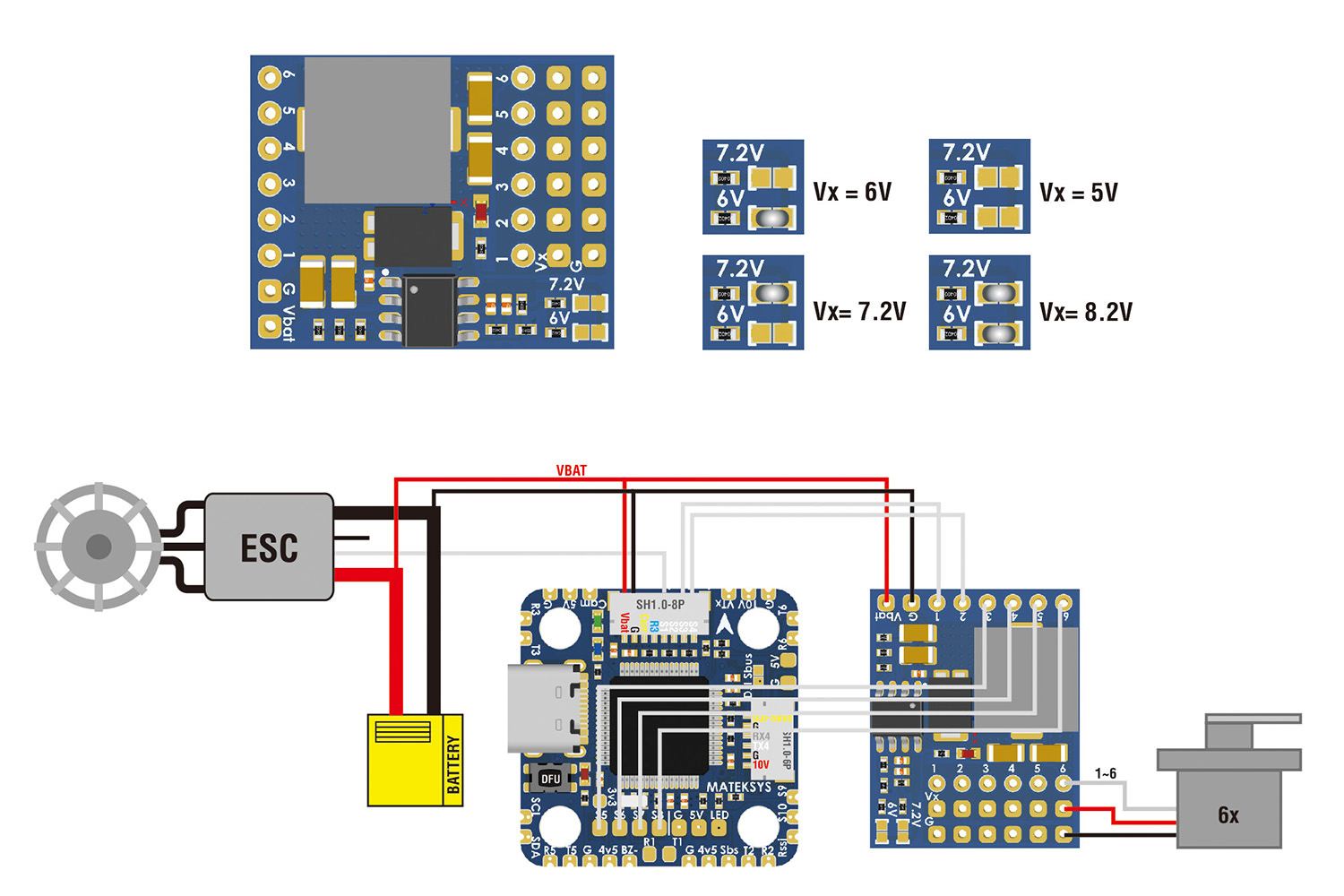

Das BEC kann über  Lötpunkte zwischen 5V, 6V und 7,2V und 8,2V umgeschaltet werden. (Die Eingangsspannung muss immer entsprechend höher sein. Also z.B. 3S [Lipo](https://www.premium-modellbau.de/lexikon-lipo-akku/) für 7,2V oder 8,2V).

Gewicht: **ca. 4g**

Abmessungen: **26 x 21 x 5 mm**

Eingangsspannung:  **(5.5-36V)**

Ausgangsspannung: **5V-8,2V (4A Dauer, 7A Burst)**

#### **Specifications**

* 5.5V to 36V Operating Input Range
* Vx for servos, 5V, 6V, 7.2V, 8.2V Adj. Default is 5V.
* 4A Continuous load current, 7A Burst
* Maximum Duty Cycle: 100%, when input voltage< setting value, Regulator output voltage = Input voltage
* Output Short-circuit tolerant (3 seconds)
* No protection for reversed input polarity
* Pins distance: 2.54mm
* Size & Weight: 26 x 21 x 5mm, 4g
* Packing: 1x SVPDB-8S, Dupont 2.54mm pins

#### **Applications**

* Flight controllers without dedicated BEC for servos
* Reduces circuit loss and voltage drop on servo power wires for big scale RC Airplane

<figure><img src="/files/1zGuY0LxHcWUCPN4RW8M" alt=""><figcaption></figcaption></figure>


---
