Matek AP_PERIPH CAN NODE G474 für Ardupilot AP Periph - CAN-G474

Matek AP_PERIPH CAN NODE G474 für Ardupilot AP Periph - CAN-G474

CAN Node für die Integration von UART / I2C Zubehörkomponenten (Lidar, GPS, etc.) in den Ardupilot CAN BUS.

Weitere Informationen finden Sie auch hier:

https://ardupilot.org/dev/docs/ap-peripheral-landing-page.htmlarrow-up-right

Ausführliche Informationen und Technische Daten:

  • CAN-G474 is an Adapter Node based on ArudPilot AP_Periph firmware.

  • with 5Mbit/s CAN transceiver and STM32G474 MCU, CAN-G474 is capable of CANFD.

  • With this board, you can easily utilize the ArduPilot driver library to convert ArduPilot supported GNSS, Compass, Barometer, Airspeed sensor, Rangefinder, Proximity sensor, Electronic Fuel Injectors and GPIO based (PWM, LED notify) peripherals to DroneCAN bus peripherals.

Specifications

  • MCU: STM32G474CE, 512KB Flash

  • CAN transceiver data rates up to 5Mbit/s

  • 2x CAN bus

  • 4x UARTs

  • for peripheral GNSS, Rangefinder, Proximity, EFI, RC input(receiver)

  • support GNSS, Compass, Barometer sensors over MSP protocol. MSP is enable on TX3 by default.

  • 2x I2C bus

  • for peripheral I2C Airspeed sensor, Barometer, Compass

  • 1x SPI

  • for peripheral RM3100

  • SPI pads for RM3100 are on bottom side, with “CS, MOSI, MISO, SCK” silkprint

  • 11x PWM outputs

  • for Servos and ESC, all PWMs support DMA/DShot

  • PWM1-10 on DuPont 2.54mm holes

  • PWM11 pad is on bottom side, with “11” silkprint

  • ST debug, SWC & SWD(on bottom side)

  • UART1(TX1,RX1) support firmware update in DFU mode

  • LED

  • Blue, Fast blinking, Booting

  • Blue, Slow blinking, communicating with flight controller

  • Red, 3.3V indicator

  • Input voltage range: 4.5~5.5V @5V pad/pin

  • Power consumption: 62mA

  • Operating Temperatures: -30~85 °C

Physical

  • 5x JST-GH-4P(SM04B-GHS-TB) for CAN1, CAN2, I2C1, UART1 and UART4

  • 1x JST-GH-6P(SM06B-GHS-TB) for UART3+I2C2

  • 18x DuPont 2.54mm holes

  • Board Size: 36mm*36mm*6mm. 5.2g,

  • Mounting: 30.5mm 4x Dia.3mm

Packing

  • 1x CAN-G474 board

  • 2x JST-GH-4P to JST-GH-4P 20cm silicon wire

  • 1x JST-GH-6P to JST-GH-6P 20cm silicon wire

Firmware

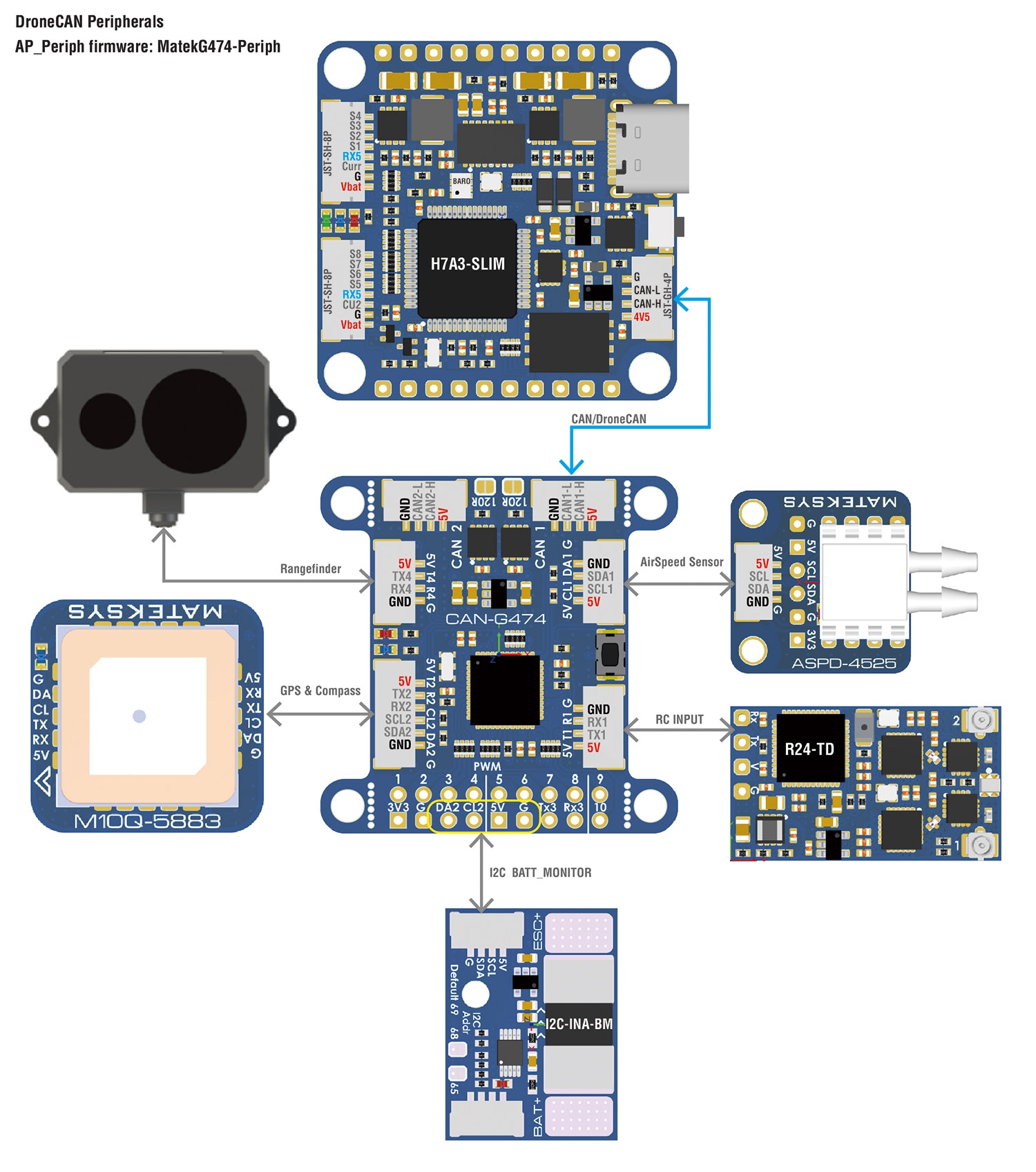

  • ArduPilot AP_Peripharrow-up-right MatekG474-Periph for peripheral sensors

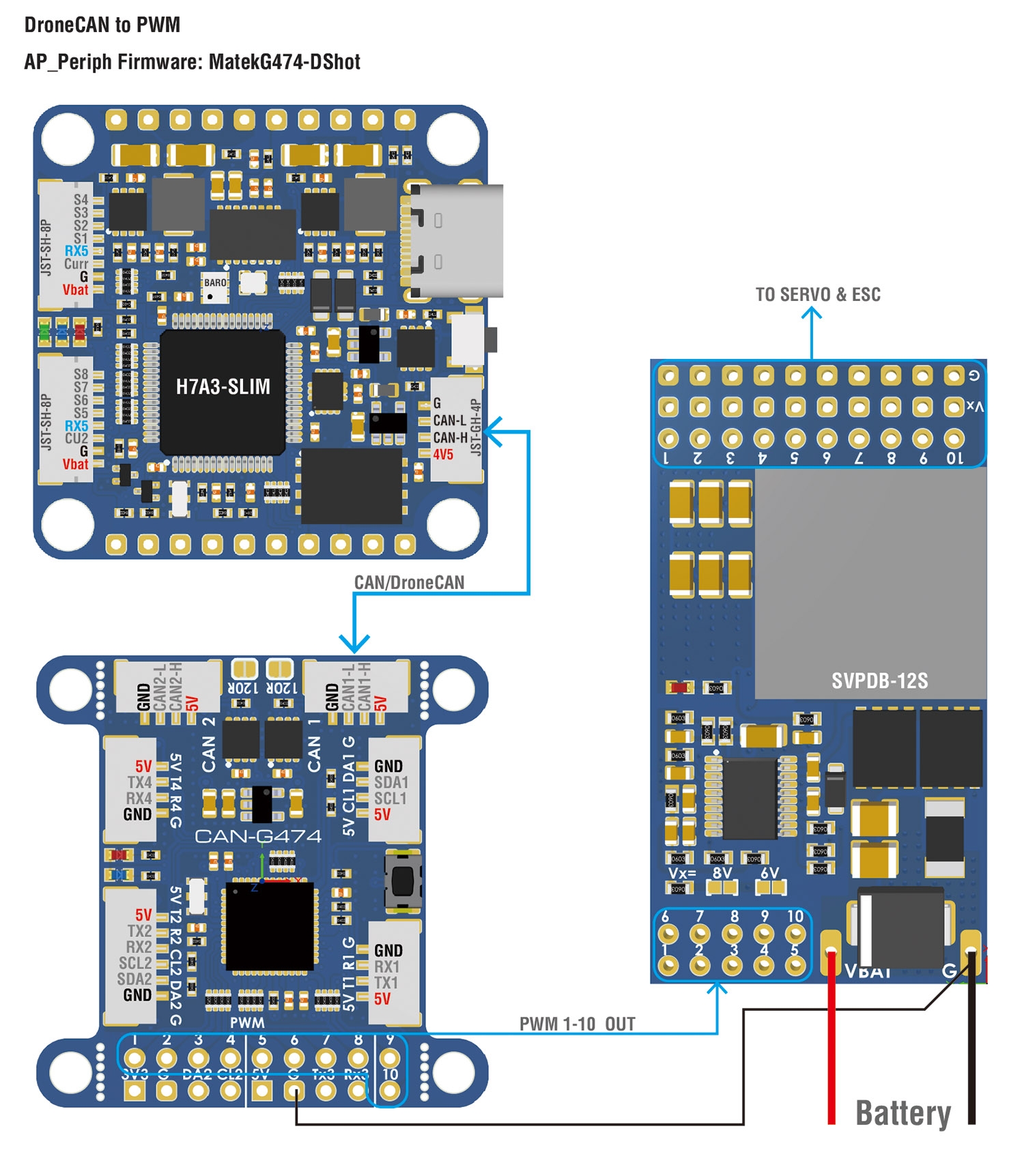

  • ArduPilot AP_Peripharrow-up-right MatekG474-DShot for DroneCAN-PWM output

  • Update via DroneCAN GUI Tool or Mission Planner–DroneCAN Tab, load “AP_Periph.bin

  • Update via STM32CubeProgrammer in DFU mode, connect USB-TTL module to UART1, Plug USB while holding the DFU button in, load “AP_Periph_with_bl.hex“.

Note

  • Just need to connect either one CAN bus to flight controller, or connect both to FC for redundancy.

  • SWC/SWD share MCU pins with SDA1/SCL1

  • Other MCU pins not specified are useless for now.

  • CAN-G474 support 1Mbit ~ 5Mbit CAN/CANFD, CAN-L431 works with 1Mbit CAN.

MatekG474-Periph

MatekG474-DShot

CAN Node parameters

AP_Periph fw MatekG474-Periph

CAN

CAN1-H / CAN1-L

CAN1

CAN1_PROTOCOL

1

CAN2-H / CAN2-L

CAN2

CAN2_PROTOCOL

1

UART

TX1 / RX1

USART1 DMA

Serial PORT 1

RC_PORT

1

TX2 / RX2

USART2 DMA

Serial PORT 2

GPS_PORT

2

TX3 / RX3

USART3 NODMA

Serial PORT 3

MSP_PORT

3

TX4 / RX4

UART4 DMA

Serial PORT 4

RNGFND_PORT

4

PRX_PORT

-1

EFI_PORT

-1

I2C

CL1 / DA1 CL2 / DA2

I2C1 I2C2

BUS0 BUS1

BATT_MONITOR BATT_I2C_BUS

21 0

ARSPD_TYPE

0 (none) 1 (MS4525) 9 (I2C-DLVR-10)

COMPASS_ENABLE COMPASS_DISBLMSK

1 0

SPI

CS /MOSI /MISO /SCK

RM3100

Disable GPS

GPS_PORT

-1

Disable compass

COMPASS_ENABLE

0

Disable Battery monitor

BATT_MONITOR

0

Disable MSP

MSP_PORT

-1

*

*

*

*

*

*

AP_Periph fw MatekG474-Dshot

PWM

1

Group 1

TIM2_CH1

OUT1_FUNCTION

33

2

TIM2_CH2

OUT2_FUNCTION

34

3

TIM2_CH3

OUT3_FUNCTION

35

4

TIM2_CH4

OUT4_FUNCTION

36

5

Group 2

TIM3_CH1

OUT5_FUNCTION

51

6

TIM3_CH2

OUT6_FUNCTION

52

7

TIM3_CH3

OUT7_FUNCTION

53

8

TIM3_CH4

OUT8_FUNCTION

54

9

Group 3

TIM8_CH1

OUT9_FUNCTION

55

10

TIM8_CH2

OUT10_FUNCTION

56

11

Group 4

TIM5_CH1

OUT11_FUNCTION

57

ESC_TELEM_PORT

3

ESC_PWM_TYPE

7

OUT_BLH_OTYPE

6

OUT_BLH_MAS

15

Flight controller Parameters for sensors

  • CAN_D*_PROTOCOL = 1

  • CAN_P*_DRIVER = 1

  • GPS*_TYPE = 9 DroneCAN

  • COMPASS_TYPEMASK = 0 (DroneCAN Unchecked)

  • ARSPD*_TYPE = 8 (DroneCAN)

  • BATT*_MONITOR = 8 (DroneCAN)

  • RNGFND*_TYPE = 24 (DroneCAN)

  • EFI*_TYPE = 5 (DroneCAN)

  • PRX*_TYPE = 14 (DroneCAN)

Flight controller Parameters for PWM
