# Air Unit HDMI Input Converter - AU-HDMI-IN

## Link zum Premium-Modellbau Shop

{% embed url="<https://www.premium-modellbau.de/siyi-mk15/hm30-air-unit-hdmi-adapter-au-hdmi-in>" %}
SIYI MK15 / HM30 Air Unit HDMI Adapter - AU-HDMI-IN
{% endembed %}

HDMI auf Ethernet Adapter passend für SIYI MK15 / SIYI HM30 / SIYI MK32

Dieser Adapter ermöglicht eine HDMI Quelle an der SIYI Air Unit anzuschließen.

### Technische Daten HDMI Air Unit Adapter (aktuellste Version 01-2023):&#x20;

* Micro HDMI Eingang
* Ethernet Ausgang (SIYI Air Unit kompatibel)
* Abmessungen: (LxBxH) = 42 x 41 x 11mm
* Gewicht: ca. 26g
* Working Voltage: 12 V
* Power Consumption: 3 W
* TF Card Recording Resolution: 1080P (1920\*1080) @ 30 fps, 720p (1280 x 720) @ 30 fps
* Video Storage Bitrate: 12 Mbps
* File Storage Format: FAT32
* Video Format: H.265
* Supported MicroSD Cards: MicroSD Class10, Max 32GB
* Working Temperature: -10 to 50℃

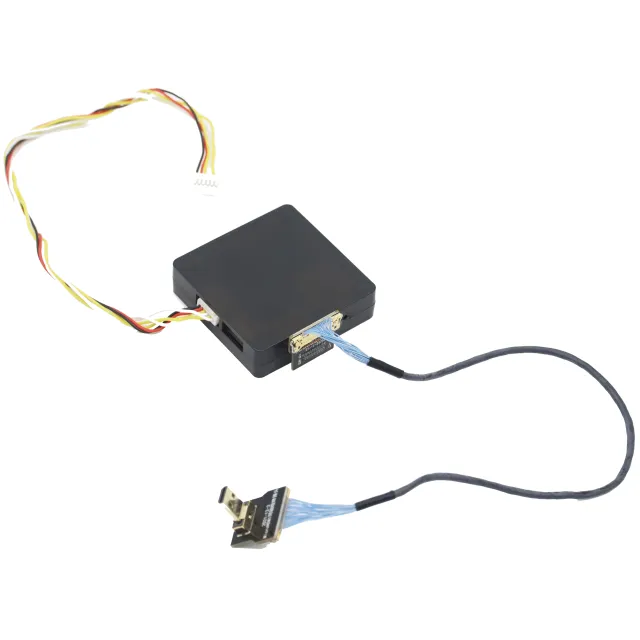

<figure><img src="/files/9eS6bYlWA2ftFgiHLqkw" alt=""><figcaption></figcaption></figure>

### PDF Datenblatt SIYI HDMI Input Converter:

{% file src="/files/ELG0q4OJ9cqJSXyc6x2W" %}
