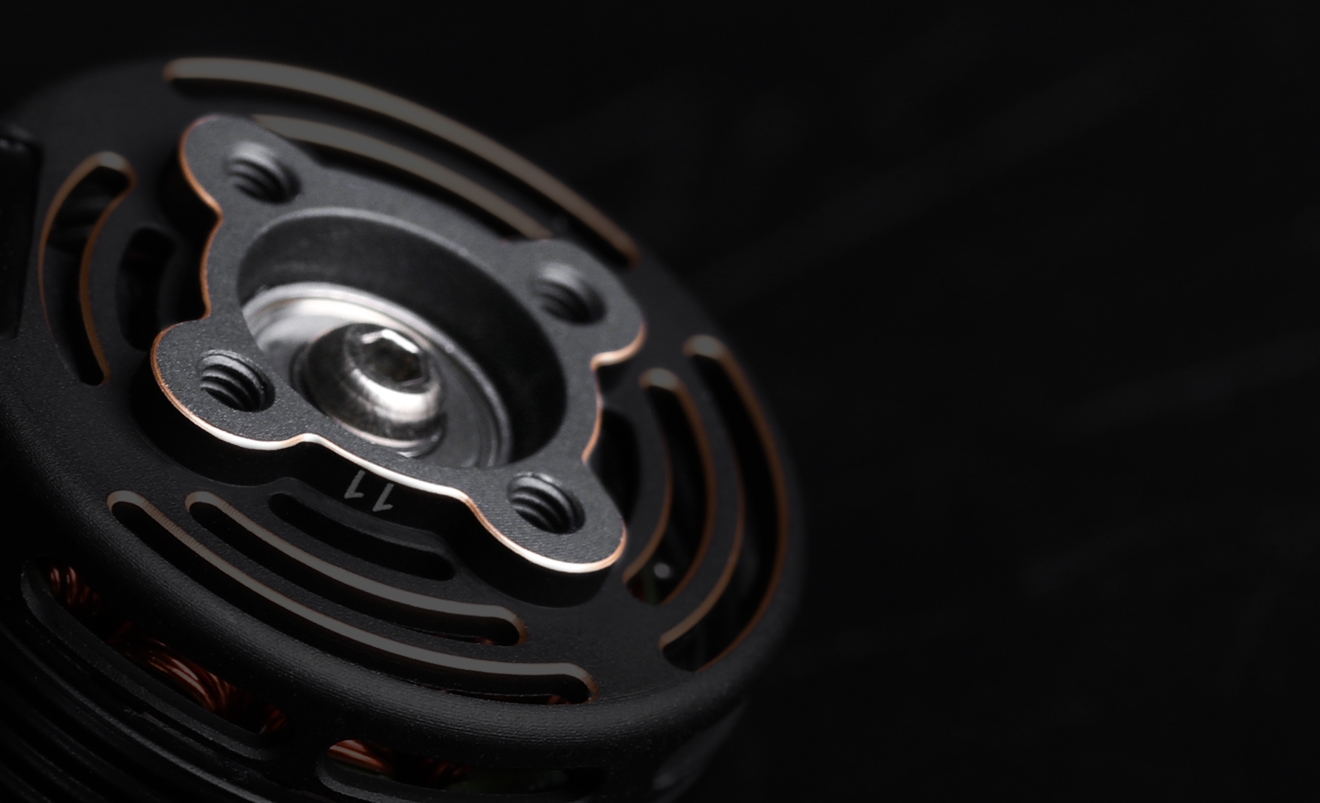

# Cine35 **Artikelnr.:** PM-7237 | **HAN:** Cine35 [Zum Premium-Modellbau Shop](https://www.premium-modellbau.de/search?sSearch=PM-7237) ![T-Motor Cine35 FPV Cinewhoop Brushless Motor 6S 3.5" 19,6g](https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine35/Cine35-Produktbeschreibung-02.jpg) .fontBlod { font-weight: bold; } .textCenter { text-align: center; } .lineHeight12 { line-height: 1.2; } .lineHeight15 { line-height: 1.5; } .lineHeight18 { line-height: 1.8; } .fontSize16 { font-size: clamp(12px, 1.599vw, 16px); } .fontSize20 { font-size: clamp(14px, 1.999vw, 20px); } .fontSize22 { font-size: clamp(14px, 2.199vw, 22px); } .fontSize24 { font-size: clamp(16px, 2.399vw, 24px); } .fontSize44 { font-size: clamp(24px, 4.399vw, 44px); } .fontSize48 { font-size: clamp(36px, 4.799vw, 48px); } .marginTop05 { margin-top: clamp(4px, 0.999vw, 5px); } .marginTop10 { margin-top: clamp(8px, 1.999vw, 10px); } .marginTop15 { margin-top: clamp(12px, 2.999vw, 15px); } .marginTop20 { margin-top: clamp(16px, 3.999vw, 20px); } .marginTop30 { margin-top: clamp(24px, 5.999vw, 30px); } .marginTop40 { margin-top: clamp(32px, 7.999vw, 40px); } .marginTop60 { margin-top: clamp(48px, 11.999vw, 60px); } .colorFFFFFF { color: #ffffff; } .color000000 { color: #000000; } .colorababab { color: #ababab; } .slideInDownInit { -webkit-transform: translateY(32px); transform: translateY(32px); -webkit-transition: all 0.5s ease; transition: all 0.5s ease; opacity: 0; transition-delay: 0.2s; } .slideInDown { opacity: 1 !important; -webkit-transform: translateY(0) !important; transform: translateY(0) !important; } .scaleInit { -webkit-transform: scale(0); transform: scale(0); -webkit-transition: all 0.5s ease; transition: all 0.5s ease; opacity: 0; } /\* å?¾ç??æ ·å¼ \*/ .goods-section img { width: 100% !important; margin: 0 !important; } .backgroundPicture { width: 100%; } .progress { display: none !important; } .section-1 { background-color: #273449; } .section-2 { background-color: #000000; } .section-3 { background-color: #000000; } .section-4 { background-color: #000000; } .goods-section { background-size: cover; line-height: normal; position: relative; overflow: hidden; } .section-con { position: absolute; z-index: 4; top: 0; width: 100%; height: 100%; padding: 0 5%; } .text-gradient { background: linear-gradient(to bottom, #edb556, #fcef88); -webkit-background-clip: text; background-clip: text; -webkit-text-fill-color: transparent; color: transparent; } .section-1 .section-con { display: flex; flex-direction: column; align-items: center; padding-top: 6vw; } .section-1 .bottom\_icon{ display: flex; width: 90%; text-align: center; background: linear-gradient(to bottom, #010102, #242424); border-radius: 10px; justify-content: space-around; padding: 2vw 0; position: absolute; bottom: 10vw; } .section-1 .bottom\_icon .icon\_item { display: grid; justify-items: center; } .section-1 .bottom\_icon img { max-width: 56px; max-height: 56px; border-radius: 10px; border: 1px solid #ffffff; padding: 10px; } .section-2 .section-con { position: relative; display: flex; flex-direction: column; align-items: center; padding: 3vw 5%; align-items: center; } .section-3 .section-con { display: flex; flex-direction: column; left: 50%; width: 45%; top: 12%; padding: 0; } .section-4 .section-con { position: relative; display: flex; flex-direction: column; align-items: center; margin: 3.5vw 0; align-items: center; } .section-4 .recommendGoods { display: flex; gap: 3vw; width: 80%; align-items: center; justify-content: center; text-align: center; } .recommendGoodsItem { width: 250px; background-color: #141414; display: flex; align-items: center; justify-content: center; overflow: hidden; flex-direction: column; padding: 0.5vw 1vw; } .recommendGoodsItem img { height: 100px; object-fit: contain; } @media (max-width: 768px) { .section-1 .backgroundPicture img { width: 180% !important; margin-left: -40% !important; } .section-1 .section-con { padding-top: 20vw; } .section-1 .bottom\_icon{ display: grid; grid-template-columns: repeat(2, 1fr); width: 90%; text-align: center; background: linear-gradient(to bottom, #010102, #242424); border-radius: 10px; justify-content: space-around; padding: 4vw 0; bottom: 20vw; gap: 4vw; } .section-1 .bottom\_iconimg { max-width: 28px; max-height: 28px; border-radius: 10px; border: 0px solid #ffffff; padding: 0px; } .section-2 .section-con { padding: 20vw 5%; } .section-3 .backgroundPicture img { width: 150% !important; margin-left: -25% !important; } .section-3 .section-con { left: 0%; width: 100%; top: 12vw; padding: 0 5%; align-items: center; text-align: center; } .recommendGoodsItem { padding: 2vw 1vw; } .section-4 .section-con{ margin: 10vw 0; } .section-4 .recommendGoods .recommendGoodsItem .img-wrapper { width: 80px; height: 80px; display: flex; justify-content: center; align-items: center; border-radius: 10px; transition: transform 0.3s ease; } } /\* === SHOP-OVERRIDES === \*/ .slideInDownInit, .slide-in-down-init { opacity: 1 !important; transform: none !important; transition: none !important; } .scaleInit { opacity: 1 !important; transform: none !important; transition: none !important; } #parameter { display: block !important; padding: 20px 5%; background: #fff; color: #333; } #parameter .mainBox { margin-bottom: 30px; } #parameter .tableTitle { font-size: 20px; font-weight: bold; padding: 15px 0; border-bottom: 2px solid #333; } #parameter table { width: 100%; border-collapse: collapse; margin: 10px 0; } #parameter td, #parameter th { border: 1px solid #ddd; padding: 8px; font-size: 14px; } #parameter img { max-width: 100%; height: auto; } ![cine](https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine35/Cine35-Produktbeschreibung-02.jpg) COMPREHENSIVE PROTECTION FOR SECURE FLIGHT The integrated protective design effectively prevents sand, gravel, and dust from entering the motor during filming and take off/landing operations. The iron core undergoes electrophoretic coating treatment and has passed 72-hour salt spray test certification, ensuring reliable performance in moisture, dusty, and corrosive environments. ![Corrosion resistant](https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine35/Cine35-Produktbeschreibung-03.png) CORROSION RESISTANT ![Sand resistant](https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine35/Cine35-Produktbeschreibung-04.png) SAND RESISTANT ![Dust resistant](https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine35/Cine35-Produktbeschreibung-05.png) DUST RESISTANT ![All-environment reliability](https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine35/Cine35-Produktbeschreibung-06.png) ALL-ENVIRONMENT RELIABILITY MASTERY OF COMPACT SPACE With high responsiveness enabling flexible control in confined spaces and dense obstacle environments, it easily enhances high-speed close-range shots.It maintains strong output and efficiency even when carrying payloads up to 60g (like naked GOPRO), achieving a single-flight duration of 3-6 minutes. ![](https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine35/Cine35-Produktbeschreibung-07.png) ![cine](https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine35/Cine35-Produktbeschreibung-09.jpg) MULTI-FRAME COMPATIBLE BASE DESIGN The non-protruding shaft screw configuration ensures compatibility with various frame types, allowing the motor to demonstrate exceptional performance across different application scenarios and frame configurations. RECOMMENDED \[![](https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine35/Cine35-Produktbeschreibung-10.png) CINE35]\(]\() F7 45A AIO]\() Technical Drawing ![cine\_35\_draw\_01.jpg](https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine35/Cine35-Technische-Daten-01.jpg) Specification Export to Excel | | | | | | ------------------------------------- | ----------------------- | ------------------------- | --------------------------- | | Type | Cine35 | Motor Dimension | Φ24.69\*20.7mm | | Magnet | Nickel platedarc magnet | Coil insulation test | 200V withstand voltage test | | Waterproof anddustproof class | IP45 | Configuration | 12N14P | | Dynamic balancerequirements standards | ≤5mg | Bearings | Imported 683ZZ | | Shaft Diameter | 1.5mm | Lead | 24AWG\*150mm | | Screw Diameter | Φ12-M2-4 | Prop Adapter Shaft Thread | Φ5-M2-4 | | Packing Size | 65\*65\*55mm | Packing Weight | 30g (1pcs)/135g (4pcs) | | | | | | | -------------------- | ---- | ------------------- | ----- | | Tech Specs | | | | | Recommended Voltage | 6S | Idle Current(10V) | 0.8A | | Max Power(1s) | 316W | Internal Resistance | 140mΩ | | Rated Voltage (Lipo) | 24V | Peak Current(1s) | 18A | | Max Thrust | 858g | Weight (incl.cable) | 19.6g | | | | | | | ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ | -------------------------------- | ------------ | | Recommended | | | | | Motor | Cine35 6S | Frame Type | Cinewhoop X4 | | Prop | HQ T90-3 | Lipo Cells | 6S | | ESC | F7 45A AIO 6S | Recommended takeoff weight range | Within 800g | | FC | F7 45A AIO 7S | Max Takeoff Weight | 1200g | | Test Data: | 1、1350mah 6s battery (216g), load weight 160g, AUW 680g, flight time 10 minutes. 2、1350mah 6s battery (216g), without payload, AUW 520g, flight time 15 minutes. 3、3000mah 6s battery (330g), without payload, AUW 634g, flight time 28 minutes. | | | | Note: Recommend BL32 ESC settings: Startup power: 50%, Timing: AUTO, PWM frequency: 32-BYRPM, Demag compensation: low, for best efficiency and flight time experience (improper settings may cause desync) | | | | Test Data Export to Excel | | | | | | | | | | | | | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ | ----------------------------- | ----------- | ------------ | ----------- | ---- | ---------- | --------- | ------------------------------ | ------------- | ------------------------- | | Type | Propeller | Voltage (V) | Throttle (%) | Current (A) | RPM | Thrust (g) | Power (W) | Efficiency (g/W) | Torque (N\*m) | Operating Temperature (℃) | | Cine35 6s | HQ T90-3 | 24.04 | 10% | 0.12 | 5029 | 15 | 3 | 5.33 | 0.00 | | | 24.04 | 20% | 0.50 | 9851 | 60 | 12 | 5.01 | 0.01 | 93 (Ambient temperature: 25℃) | | | | 24.03 | 30% | 1.22 | 14051 | 126 | 29 | 4.30 | 0.01 | | | | | 24.01 | 40% | 2.46 | 18111 | 215 | 59 | 3.65 | 0.02 | | | | | 23.98 | 50% | 4.28 | 21895 | 320 | 103 | 3.11 | 0.03 | | | | | 23.95 | 60% | 6.64 | 25472 | 432 | 159 | 2.72 | 0.04 | | | | | 23.90 | 70% | 9.81 | 28802 | 554 | 235 | 2.36 | 0.06 | | | | | 23.86 | 80% | 13.11 | 31503 | 665 | 313 | 2.13 | 0.07 | | | | | 23.80 | 90% | 16.97 | 33848 | 763 | 404 | 1.89 | 0.08 | | | | | 23.73 | 100% | 21.38 | 36002 | 868 | 507 | 1.71 | 0.09 | | | | | Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.) | | | | | | | | | | | | Cine35 6s | HQ T90-3 (With Oddity frame) | 24.02 | 10% | 0.11 | 5169 | 15 | 3 | 5.42 | 0.00 | | | 24.01 | 20% | 0.48 | 10016 | 61 | 12 | 5.28 | 0.01 | 87 (Ambient temperature: 25℃) | | | | 24.00 | 30% | 1.19 | 14280 | 131 | 28 | 4.61 | 0.01 | | | | | 23.97 | 40% | 2.34 | 18379 | 219 | 56 | 3.90 | 0.02 | | | | | 23.92 | 50% | 4.04 | 22221 | 325 | 97 | 3.37 | 0.03 | | | | | 23.87 | 60% | 6.18 | 25819 | 436 | 148 | 2.95 | 0.04 | | | | | 23.79 | 70% | 9.02 | 29104 | 558 | 215 | 2.60 | 0.05 | | | | | 23.71 | 80% | 11.90 | 31839 | 668 | 282 | 2.37 | 0.06 | | | | | 23.62 | 90% | 15.41 | 34161 | 768 | 364 | 2.11 | 0.07 | | | | | 23.53 | 100% | 19.05 | 36317 | 867 | 448 | 1.94 | 0.08 | | | | | Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.) | | | | | | | | | | | | Cine35 6s | GF D90-3 | 24.04 | 10% | 0.14 | 4874 | 14 | 3 | 4.40 | 0.00 | | | 24.04 | 20% | 0.53 | 9579 | 60 | 13 | 4.74 | 0.01 | 95 (Ambient temperature: 25℃) | | | | 24.02 | 30% | 1.27 | 13997 | 126 | 31 | 4.14 | 0.01 | | | | | 24.01 | 40% | 2.48 | 18114 | 213 | 60 | 3.57 | 0.02 | | | | | 23.98 | 50% | 4.21 | 21988 | 315 | 101 | 3.12 | 0.03 | | | | | 23.95 | 60% | 6.49 | 25697 | 425 | 155 | 2.74 | 0.04 | | | | | 23.91 | 70% | 9.41 | 29206 | 546 | 225 | 2.43 | 0.05 | | | | | 23.87 | 80% | 12.39 | 32197 | 652 | 296 | 2.21 | 0.06 | | | | | 23.82 | 90% | 15.96 | 34924 | 756 | 380 | 1.99 | 0.07 | | | | | 23.75 | 100% | 20.03 | 37527 | 863 | 476 | 1.81 | 0.08 | | | | | Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.) | | | | | | | | | | | | Cine35 6s | GF D90-3 (With Oddity frame) | 24.02 | 10% | 0.11 | 5172 | 14 | 3 | 5.23 | 0.00 | | | 24.01 | 20% | 0.48 | 10028 | 62 | 11 | 5.41 | 0.01 | 89 (Ambient temperature: 25℃) | | | | 24.00 | 30% | 1.15 | 14347 | 129 | 28 | 4.68 | 0.01 | | | | | 23.97 | 40% | 2.23 | 18534 | 218 | 54 | 4.07 | 0.02 | | | | | 23.93 | 50% | 3.77 | 22529 | 320 | 90 | 3.55 | 0.03 | | | | | 23.88 | 60% | 5.72 | 26394 | 433 | 137 | 3.17 | 0.04 | | | | | 23.82 | 70% | 8.15 | 30096 | 555 | 194 | 2.86 | 0.05 | | | | | 23.75 | 80% | 10.59 | 33205 | 663 | 252 | 2.63 | 0.05 | | | | | 23.67 | 90% | 13.52 | 36289 | 775 | 320 | 2.42 | 0.06 | | | | | 23.59 | 100% | 16.69 | 39162 | 883 | 394 | 2.24 | 0.07 | | | | | Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.) | | | | | | | | | | | | Cine35 6S | GF DT90-5 | 24.04 | 10% | 0.12 | 4732 | 18 | 3 | 6.08 | 0.00 | | | 24.03 | 20% | 0.56 | 9216 | 68 | 13 | 5.08 | 0.01 | 152 (Ambient temperature: 25℃) | | | | 24.02 | 30% | 1.50 | 13395 | 148 | 36 | 4.09 | 0.02 | | | | | 24.00 | 40% | 3.03 | 17247 | 243 | 73 | 3.35 | 0.03 | | | | | 23.96 | 50% | 5.28 | 20735 | 355 | 127 | 2.80 | 0.04 | | | | | 23.92 | 60% | 8.20 | 23731 | 474 | 196 | 2.42 | 0.06 | | | | | 23.87 | 70% | 11.87 | 26572 | 592 | 283 | 2.09 | 0.07 | | | | | 23.82 | 80% | 15.88 | 28763 | 694 | 378 | 1.84 | 0.08 | | | | | 23.76 | 90% | 19.76 | 30529 | 776 | 470 | 1.65 | 0.09 | | | | | 23.69 | 100% | 24.32 | 31728 | 843 | 576 | 1.46 | 0.09 | | | | | Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.) | | | | | | | | | | | | Cine35 6s | GF DT90-5 (With Oddity frame) | 24.02 | 10% | 0.12 | 4908 | 18 | 3 | 5.98 | 0.00 | | | 24.01 | 20% | 0.53 | 9468 | 67 | 13 | 5.33 | 0.01 | 148 (Ambient temperature: 25℃) | | | | 23.99 | 30% | 1.39 | 13752 | 147 | 33 | 4.41 | 0.02 | | | | | 23.95 | 40% | 2.78 | 17653 | 244 | 67 | 3.66 | 0.03 | | | | | 23.90 | 50% | 4.77 | 21231 | 355 | 114 | 3.12 | 0.04 | | | | | 23.84 | 60% | 7.28 | 24502 | 472 | 173 | 2.72 | 0.05 | | | | | 23.76 | 70% | 10.32 | 27472 | 587 | 245 | 2.39 | 0.06 | | | | | 23.67 | 80% | 13.56 | 29922 | 687 | 321 | 2.14 | 0.07 | | | | | 23.58 | 90% | 17.00 | 31940 | 780 | 401 | 1.95 | 0.08 | | | | | 23.48 | 100% | 20.89 | 33454 | 851 | 490 | 1.74 | 0.08 | | | | | Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.) | | | | | | | | | | | Analysis Chart ![](https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine35/Cine35-Technische-Daten-02.jpg) ![](https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine35/Cine35-Technische-Daten-03.jpg) Packing List ![cine\_35\_en\_pack.jpg](https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine35/Cine35-Technische-Daten-04.jpg)
