Cine99

Dual Protection For Every Shot

Cine99 features IP45 protection with a sealed top cover and dust screen to block debris, protecting your valuable gear. Its electroplated iron core and black- nickel magnets resist corrosion and wear, ensuring worry-free performance during filming, takeoff, and transport in all conditions.

WATER-RESISTANTSAND-RESISTANT

Cine99

Strong Thrust Heavy Payload

Each motor delivers over 8kg of maximum thrust with ample power redundancy, easily supporting 4–10kg of cinematic gear.Built to meet the demanding requirements of high- mobility FPV cinematic flights.

4-10kg

Effortless Carry

Cine99

Instant Response, Seamless Tracking

With optimized electromagnetic design and an active cooling system, Cine99 delivers fast response and stable performance under heavy loads—ideal for sharp turns and high-speed tracking with dynamic, cinematic shots.

Cine99

Zero Desync, Safer Flight

Cine99 delivers stable and desync-free performance even during rapid flight changes, ensuring safe and reliable operation in dynamic shooting scenarios.

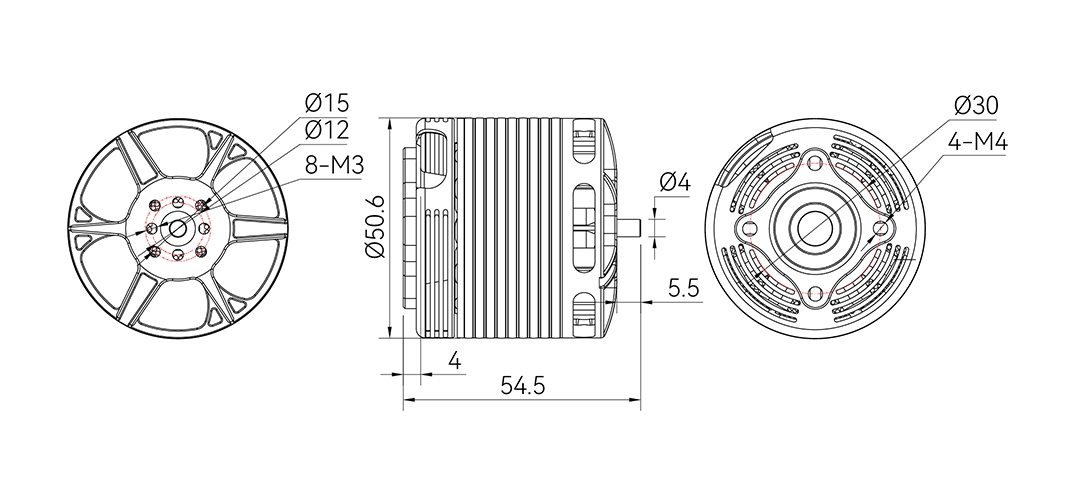

Technical Drawing

Specification Export to Excel

Type

Cine99

Motor Dimension

Φ50.6*54.5mm

Magnet

Nickel Plated Arc Magnet

Coil InsulationTest

500V Withstand Voltage Test

Waterproof And Dustproof Class

IP45

Configuration

12N14P

Dynamic Balance Requirements Standards

≤5mg

Bearings

Imported 626-ZZ

Shaft Diameter

4mm

Lead

14AWG*600mm

Screw Diameter

Φ30-M4-4

Prop Adapter Shaft Thread

φ15/φ12-M3-4Holes/M6 (With Prop Adapter)

Packing Size

100*100*70mm

Packing Weight

400g

Tech Specs

Recommended Voltage

KV350

Idle Current (10V)

1.7A

Max Power

5670W

Internal Resistance

46mΩ

Rated Voltage (LiPo)

12S

Peak Current

126A

Max Thrust

8867g

Weight (Incl.cable)

355g

Recommended

Motor

Cine99

Frame Type

15-Inch X4 Frame

Prop

Cine1510

LiPo Cells

12S

ESC

C80A, 5~12S,Separate Type

Recommended Takeoff Weight Range

Within 18kg

F7 PRO+12S To≤ 8S BEC

Max Takeoff Weight

26kg

Test Data

1. With an 8000mAh 12S battery (2.2kg), the drone carries a 5kg payload, has a takeoff weight of 12.2kg, and achieves a 10-minute cruise flight time. 2. With a 16000mAh 12S battery (4.4kg), the drone carries a 5kg payload, has a takeoff weight of 14.4kg, and achieves an 18-minute cruise flight time. 3. With an 11000mAh 12S battery (3.8kg), the drone carries an 8kg payload, has a takeoff weight of 16.8kg, and achieves a 9-minute cruise flight time.

Test Data Export to Excel

Type

Propeller

Voltage (V)

Throttle

Current (A)

RPM

Thrust (g)

Power (W)

Efficiency (g/W)

Torque (N.m)

Operating Temperature (℃)

Cine99 KV350

T-HOBBY Cine 1510

32.1

10%

0.3

944

7.86

0.04

37 (Ambient Temperature: 25)

32.0

20%

1.4

1945

416

9.28

0.13

32.0

30%

3.7

2872

971

120

8.13

0.27

31.9

40%

7.7

3726

1656

247

6.71

0.46

31.7

50%

13.3

4490

2421

423

5.72

0.66

31.5

60%

21.8

5251

3310

688

4.81

0.91

31.3

70%

31.9

5905

4209

999

4.21

1.15

31.0

80%

42.3

6449

5010

1313

3.82

1.38

30.7

90%

56.3

6986

5884

1728

3.41

1.62

30.4

100%

69.8

7424

6661

2119

3.14

1.84

Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)

Cine99 KV350

T-HOBBY P20*6

32.1

10%

0.4

945

101

7.71

0.04

43 (Ambient Temperature: 25)

32.0

20%

1.4

1958

491

11.06

0.12

32.0

30%

3.5

2890

1143

113

10.12

0.26

31.9

40%

7.3

3767

1974

234

8.45

0.43

31.8

50%

12.5

4548

2899

397

7.31

0.62

31.6

60%

20.4

5318

3998

644

6.21

0.85

31.3

70%

30.0

6000

5136

939

5.47

1.09

31.1

80%

41.5

6618

6279

1288

4.87

1.34

30.8

90%

53.2

7116

7313

1637

4.47

1.56

30.4

100%

66.6

7565

8333

2026

4.11

1.79

Cine99 KV350

T-HOBBY Cine 1310

48.1

10%

0.4

1423

112

6.18

0.04

67 (Ambient Temperature: 25)

48.0

20%

1.6

2928

531

6.98

0.14

48.0

30%

4.1

4295

1208

197

6.14

0.30

47.9

40%

8.2

5538

2033

394

5.17

0.49

47.7

50%

14.4

6703

2997

687

4.36

0.72

47.5

60%

24.1

7887

4164

1142

3.65

1.01

47.2

70%

37.1

8981

5422

1748

3.10

1.32

46.8

80%

50.3

9857

6559

2357

2.78

1.61

46.4

90%

66.0

10594

7647

3064

2.50

1.89

46.0

100%

83.8

11221

8587

3853

2.23

2.17

Cine99 KV350

T-HOBBY Cine 1312

48.1

10%

0.4

1402

116

6.02

0.04

82 (Ambient Temperature: 25)

48.0

20%

1.7

2892

583

7.03

0.16

48.0

30%

4.5

4226

1261

215

5.86

0.34

47.8

40%

9.1

5438

2102

437

4.81

0.56

47.7

50%

15.6

6490

3015

745

4.05

0.80

47.4

60%

26.8

7687

4250

1272

3.34

1.14

47.1

70%

41.3

8692

5459

1945

2.81

1.48

46.7

80%

56.6

9498

6545

2643

2.48

1.79

46.2

90%

74.0

10146

7525

3424

2.20

2.08

45.7

100%

94.1

10673

8354

4304

1.94

2.33

Cine99 KV350

T-HOBBY Cine 1508

48.1

10%

0.4

1376

156

7.92

0.05

132 (Ambient Temperature: 25)

48.0

20%

2.0

2817

758

7.99

0.20

47.9

30%

5.3

4101

1683

255

6.60

0.42

47.8

40%

10.8

5230

2780

514

5.41

0.69

47.6

50%

18.8

6258

4033

896

4.50

0.99

47.3

60%

32.4

7347

5624

1529

3.68

1.39

46.9

70%

47.1

8160

6995

2212

3.16

1.73

46.4

80%

68.9

8863

8328

3193

2.61

2.07

45.9

90%

88.8

9300

9232

4074

2.27

2.31

45.3

100%

112.1

9547

9764

5076

1.92

2.45

Cine99 KV350

T-HOBBY Cine 1510

48.1

10%

0.5

1341

181

8.35

0.07

127 (Ambient Temperature: 25)

48.0

20%

2.3

2749

887

111

7.99

0.25

47.9

30%

6.3

3960

1879

301

6.25

0.52

47.8

40%

12.5

5021

3042

597

5.09

0.83

47.5

50%

21.9

5984

4344

1043

4.16

1.19

47.1

60%

38.3

7004

5936

1808

3.28

1.63

46.7

70%

55.5

7674

7155

2591

2.76

1.98

46.2

80%

75.0

8218

8192

3466

2.36

2.28

45.6

90%

101.3

8441

8659

4615

1.88

2.42

44.9

100%

126.2

8460

8706

5671

1.54

2.43

Cine99 KV350

T-HOBBY P15*5

48.0

10%

0.3

1469

5.59

0.02

45 (Ambient Temperature: 25)

48.0

20%

1.2

3051

430

7.63

0.08

48.0

30%

2.9

4505

1028

140

7.32

0.19

47.9

40%

5.8

5881

1809

279

6.48

0.32

47.8

50%

10.1

7154

2715

484

5.61

0.48

47.6

60%

18.1

8605

3987

861

4.63

0.70

47.4

70%

26.2

9723

5176

1241

4.17

0.91

47.2

80%

35.9

10732

6395

1693

3.78

1.13

46.9

90%

47.4

11651

7641

2222

3.44

1.37

46.6

100%

60.6

12468

8867

2821

3.14

1.61

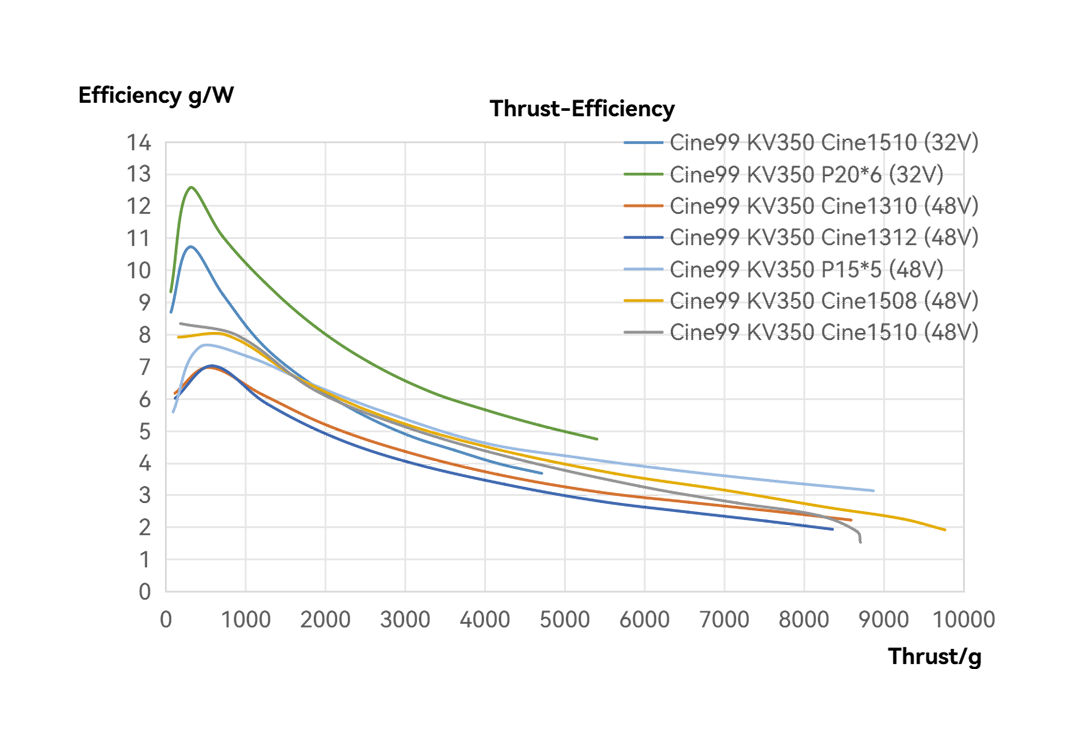

Analysis Chart

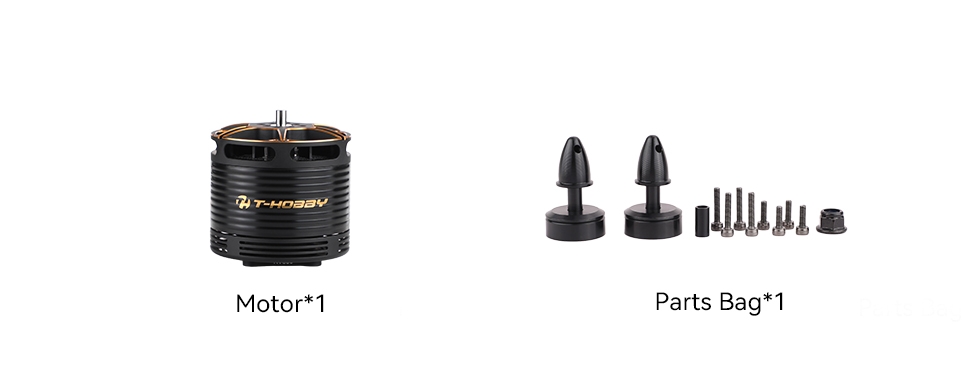

Packing List
