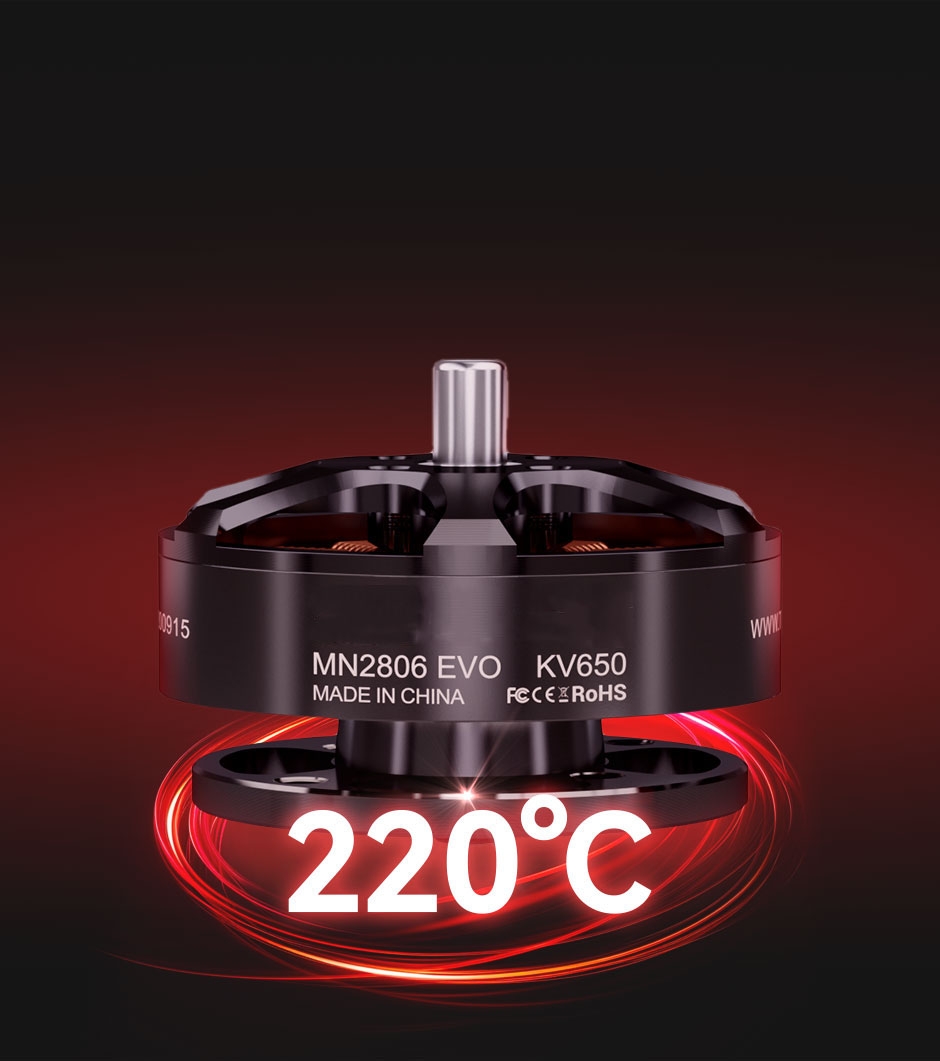

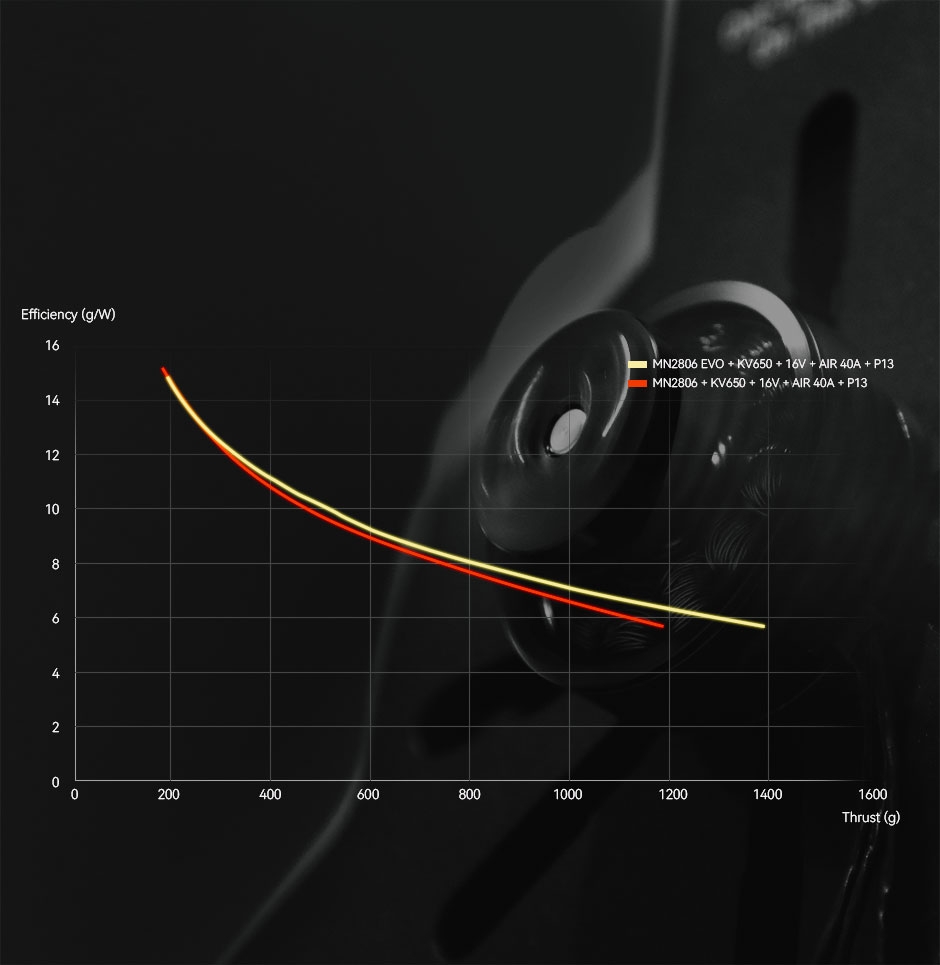

# MN2806 *** ## T-Motor Antigravity Brushless Motor MN2806 EVO 650kv **Artikelnr.:** PM-7085 | **HAN:** MN2806-650kv-EVO [Zum Premium-Modellbau Shop](https://www.premium-modellbau.de/search?sSearch=PM-7085) ![T-Motor Antigravity Brushless Motor MN2806 EVO 650kv](https://img.tmotor.com/products/mn2806_evo/images/section_940_01.jpg) \_x000D\_ • Maximum pull increased by 16% \_x000D\_ • Efficiency improved by 0.3g/W at the same pull (over 400g) \_x000D\_ • Upgraded to arc magnets and 220°C high-temperature wire\_x000D\_ \_x000D\_ \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ \_x000D\_\* Detail information \_x000D\_\* Specifications \_x000D\_ \_x000D\_ #### Hot Products \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ **About T-MOTOR Antigravity MN2806 EVO KV650** T-MOTOR has advanced the Antigravity MN2806 to the latest Antigravity MN2806 EVO KV650, featuring arc-shaped magnets that tightly conform to the steel ring, effectively reducing the air gap with the stator. This design enhances the uniformity of magnetic flux distribution, minimizes magnetic leakage, and optimizes both magnetic field efficiency and motor performance. The enameled wire has been upgraded to withstand temperatures of up to 220?, ensuring the motor maintains stability under extreme conditions, including high RPM, heavy loads, and elevated temperatures. This significantly reduces the risk of motor failures and damage due to wire breakage, thereby enhancing reliability and lifespan. The new Antigravity MN2806 EVO KV650 boasts a 16% increase in maximum thrust to 1390g, with an efficiency improvement of over 0.3g/W at similar thrust levels (above 400g). Antigravity MN2806 EVO KV650 Highlights\*\*:\*\* • Upgraded with arc-shaped magnets for optimal fit to the steel ring, precisely minimizing the stator air gap, optimizing magnetic flux distribution, and improving motor efficiency. • High-temperature resistant enameled wire rated for 220?, reducing the likelihood of motor failures and enhancing reliability and longevity. • Maximum thrust increased by 16% to 1390g. • Efficiency improvement of over 0.3g/W at similar thrust levels (above 400g). ## **Packing List Includes:** * Package Dimensions: 85\*71\*35mm; * Antigravity MN2806 EVO KV650 motor ×1; * f20\*M6\*26mm propeller mount ×1; * M6\*1 bullet head ×1; * f20\*f4\*2.4mm cover plate ×1; * M3\*5mm cup head hex screw ×4; * M3\*8 cup head hex screw ×2; ## **Matching Guide:** * AIR40A 6S ESC; * P12\*4 polished integrated carbon fiber propeller; * P13\*4.4 polished integrated carbon fiber propeller. \_x000D\_\_x000D\_ ![T-MOTOR MN2806 EVO](https://img.tmotor.com/products/mn2806_evo/images/section_940_01.jpg) NEW UPGRADE MN2806 EVO Higher force efficiency greater pulling force ![T-MOTOR MN2806 EVO](https://img.tmotor.com/products/mn2806_evo/images/section_940_02.jpg) 0.3g/W Higher force efficiency higher force under the same pulling force of 400g+ 16% Greater pulling force increased maximum pulling force ![T-MOTOR MN2806 EVO](https://img.tmotor.com/products/mn2806_evo/images/section_940_03.jpg) HIGHER TEMPERATURE-RESISTANT MATERIALS ARE USED \_x000D\_ \_x000D\_\_x000D\_\_x000D\_\_x000D\_ Technical Drawing\_x000D\_\_x000D\_ ![???-3.jpg](https://store.tmotor.com/images/202501/081736322820947847.jpg) \_x000D\_\_x000D\_\_x000D\_\_x000D\_ Specification\_x000D\_\_x000D\_ | | | | | | -------------- | ---------------------------------------- | -------------------- | -------------------------------- | | Motor Size | F34\*26mm | Magnet Level | 150? high temperature resistance | | Stator | 180? high temperature-resisting coatings | Lead | Enameled Wire 50mm | | Configuration | 12N14P | Copper Wire | 220? high temperature resistance | | Shaft Diameter | IN:4mm,OUT:4mm | Coil Insulation Test | 500V | | Bearing | Imported 694ZZ\*2 | Package Size | 91\*73\*41mm | | | | | | | ------------------- | ----- | ------------------------ | --------------- | | KV | 650 | Rated Voltage (LiPo) | 4S | | Idle Current(10V) | 0.45A | ESC Recommendation | AIR40A 6S | | Peak Current(180s) | 16A | Propeller Recommendation | P12\*4/P13\*4.4 | | Max. Power(180s) | 160W | Weight (Incl. Cable) | 45g | | Internal Resistance | 201mO | Package Weight | 105g | \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ Test Data\_x000D\_\_x000D\_ | Type | Propeller | Throttle | Voltage (V) | Thrust (g) | Torque (N\*m) | Current (A) | RPM | Power (W) | Efficiency (g/W) | Operating Temperature (?) | | --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | --------- | -------- | ----------- | ---------- | ------------- | ----------- | ----- | --------- | ---------------- | ------------------------- | | MN2806 EVO | P12 | 30% | 16.04 | 161.96 | 0.03 | 0.69 | 2620 | 11.03 | 14.68 | / | | 35% | 16.03 | 214.53 | 0.04 | 0.99 | 2990 | 15.91 | 13.49 | | | | | 40% | 16.02 | 288.66 | 0.05 | 1.49 | 3445 | 23.88 | 12.09 | | | | | 45% | 16.01 | 358.77 | 0.06 | 2.04 | 3824 | 32.72 | 10.99 | | | | | 50% | 16.00 | 431.93 | 0.07 | 2.65 | 4184 | 42.42 | 10.18 | | | | | 55% | 15.99 | 510.53 | 0.08 | 3.38 | 4542 | 54.03 | 9.45 | | | | | 60% | 15.97 | 593.18 | 0.10 | 4.19 | 4887 | 66.88 | 8.87 | | | | | 65% | 15.95 | 680.02 | 0.11 | 5.16 | 5236 | 82.25 | 8.27 | | | | | 70% | 15.93 | 766.48 | 0.12 | 6.19 | 5558 | 98.66 | 7.77 | | | | | 75% | 15.91 | 854.42 | 0.14 | 7.31 | 5863 | 116.21 | 7.35 | | | | | 80% | 15.88 | 947.68 | 0.15 | 8.57 | 6164 | 136.05 | 6.97 | | | | | 85% | 15.86 | 1036.95 | 0.17 | 9.90 | 6448 | 157.02 | 6.60 | | | | | 90% | 15.83 | 1126.54 | 0.18 | 11.32 | 6716 | 179.17 | 6.29 | | | | | 95% | 15.80 | 1212.80 | 0.19 | 12.77 | 6958 | 201.86 | 6.01 | | | | | 100% | 15.78 | 1275.96 | 0.20 | 13.95 | 7131 | 220.12 | 5.80 | | | | | Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.) | | | | | | | | | | | | MN2806 EVO | P13 | 30% | 16.04 | 186.98 | 0.03 | 0.78 | 2563 | 12.48 | 15.00 | / | | 35% | 16.03 | 247.73 | 0.04 | 1.15 | 2911 | 18.50 | 13.40 | | | | | 40% | 16.02 | 335.22 | 0.06 | 1.75 | 3343 | 28.05 | 11.96 | | | | | 45% | 16.00 | 419.61 | 0.07 | 2.40 | 3711 | 38.41 | 10.93 | | | | | 50% | 15.99 | 501.17 | 0.08 | 3.08 | 4046 | 49.26 | 10.18 | | | | | 55% | 15.97 | 591.89 | 0.10 | 3.97 | 4393 | 63.44 | 9.33 | | | | | 60% | 15.96 | 678.03 | 0.11 | 4.85 | 4699 | 77.42 | 8.76 | | | | | 65% | 15.94 | 775.62 | 0.13 | 5.93 | 5016 | 94.49 | 8.21 | | | | | 70% | 15.91 | 867.18 | 0.14 | 7.06 | 5307 | 112.34 | 7.72 | | | | | 75% | 15.89 | 961.47 | 0.16 | 8.33 | 5582 | 132.37 | 7.26 | | | | | 80% | 15.86 | 1058.89 | 0.17 | 9.74 | 5845 | 154.44 | 6.86 | | | | | 85% | 15.83 | 1153.05 | 0.19 | 11.20 | 6092 | 177.27 | 6.50 | | | | | 90% | 15.80 | 1244.47 | 0.20 | 12.73 | 6320 | 201.21 | 6.18 | | | | | 95% | 15.77 | 1332.54 | 0.22 | 14.30 | 6530 | 225.59 | 5.91 | | | | | 100% | 15.75 | 1389.45 | 0.23 | 15.48 | 6679 | 243.81 | 5.70 | | | | | Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.) | | | | | | | | | | | \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ Packing List\_x000D\_\_x000D\_ ![?.jpg](https://store.tmotor.com/images/202501/091736385027707025.jpg) \_x000D\_\_x000D\_\_x000D\_ \_x000D\_ \_x000D\_\_x000D\_ \_x000D\_ \_x000D\_ \_x000D\_\_x000D\_ \_x000D\_\_x000D\_ \_x000D\_ *** ## T-Motor Antigravity MN2806 400kv Multicopter Brushless Motor 4-6S 46g **Artikelnr.:** PM-5945 | **HAN:** MN2806-400kv [Zum Premium-Modellbau Shop](https://www.premium-modellbau.de/search?sSearch=PM-5945) ![T-Motor Antigravity MN2806 400kv Multicopter Brushless Motor 4-6S 46g](https://bilder.premium-modellbau.de/bilder/produkte/wasserzeichen/MN2806-Promo-1.jpg) ## **T-Motor Antigravity MN2806 400kv Multicopter Brushless Motor 4-6S 46g** Sehr hochwertig gefertigter Außenläufer Brushless Motor von T-Motor aus der Antigravity Serie. Die MN2806 Motoren wurden lange erwartet und ergänzen nun endlich die beliebten 4004 / 4006 Motoren um eine kleine und leichtere Version. **Der Motor wurde von Grund auf für Multicopter-Anwendungen entwickelt, was einem hohen Wirkungsgrad und einer langen Lebensdauer zu Gute kommt. Auf Grund der hohen Effizienz lassen sich auch mit relativ kleinen und leichten Motoren bereits hervorragende Schubwerte erzielen.Die Motoren der Antigravity Serie sind die neueste Entwicklung von T-Motor und verfügen über eine neue, gewichtsoptimierte Bauform welche gleichzeitig für eine gute Kühlung und sehr hohe Effizienz sorgt.Als Regler empfehlen wir den T-Motor Air 40A** ## **Technische Daten des T-Motor MN2806 400kv Motors:KV:** 400kv **Konfiguration:** 12N14P **Abmessungen:** Φ35x26mm **Gewicht:** 46g (inkl. Kabel) **Zellenzahl:** 4S-6S Lipo **Max Ampere (180s):** 9,4A **Max Watt (180s):** 216W **Empfohlene Propeller:** 12-13 Zoll **Innenwiderstand:** 645m? ![](https://bilder.premium-modellbau.de/bilder/produkte/wasserzeichen/MN2806-Promo-1.jpg) ![](https://bilder.premium-modellbau.de/bilder/produkte/wasserzeichen/MN2806-Promo-2.jpg) ![](https://bilder.premium-modellbau.de/bilder/produkte/wasserzeichen/MN2806-Promo-3.jpg) ![](https://bilder.premium-modellbau.de/bilder/produkte/wasserzeichen/MN2806-Promo-5.jpg) ![](https://bilder.premium-modellbau.de/bilder/produkte/wasserzeichen/MN2806-Specs-1.jpg) ![](https://bilder.premium-modellbau.de/bilder/produkte/wasserzeichen/MN2806-Specs-2.jpg) ![](https://bilder.premium-modellbau.de/bilder/produkte/wasserzeichen/MN2806-Specs-3.jpg) ![](https://bilder.premium-modellbau.de/bilder/produkte/wasserzeichen/MN2806-Specs-4.jpg) ![](https://bilder.premium-modellbau.de/bilder/produkte/wasserzeichen/MN2806-Specs-5.jpg) *** ## T-Motor Antigravity MN2806 650kv Multicopter Brushless Motor 4S 46g **Artikelnr.:** PM-5946 | **HAN:** MN2806-650kv [Zum Premium-Modellbau Shop](https://www.premium-modellbau.de/search?sSearch=PM-5946) ![T-Motor Antigravity MN2806 650kv Multicopter Brushless Motor 4S 46g](https://bilder.premium-modellbau.de/bilder/produkte/wasserzeichen/MN2806-Promo-1.jpg) ## **T-Motor Antigravity MN2806 650kv Multicopter Brushless Motor 4S 46g** Sehr hochwertig gefertigter Außenläufer Brushless Motor von T-Motor aus der Antigravity Serie. Die MN2806 Motoren wurden lange erwartet und ergänzen nun endlich die beliebten 4004 / 4006 Motoren um eine kleine und leichtere Version. **Der Motor wurde von Grund auf für Multicopter-Anwendungen entwickelt, was einem hohen Wirkungsgrad und einer langen Lebensdauer zu Gute kommt. Auf Grund der hohen Effizienz lassen sich auch mit relativ kleinen und leichten Motoren bereits hervorragende Schubwerte erzielen.Die Motoren der Antigravity Serie sind die neueste Entwicklung von T-Motor und verfügen über eine neue, gewichtsoptimierte Bauform welche gleichzeitig für eine gute Kühlung und sehr hohe Effizienz sorgt.Als Regler empfehlen wir den T-Motor Air 40A** ## **Technische Daten des T-Motor MN2806 650kv Motors:KV:** 650kv **Konfiguration:** 12N14P **Abmessungen:** Φ35x26mm **Gewicht:** 46g (inkl. Kabel) **Zellenzahl:** 4S Lipo **Max Ampere (180s):** 12,3A **Max Watt (180s):** 187W **Empfohlene Propeller:** 12-13 Zoll **Innenwiderstand:** 275m? ![](https://bilder.premium-modellbau.de/bilder/produkte/wasserzeichen/MN2806-Promo-1.jpg) ![](https://bilder.premium-modellbau.de/bilder/produkte/wasserzeichen/MN2806-Promo-2.jpg) ![](https://bilder.premium-modellbau.de/bilder/produkte/wasserzeichen/MN2806-Promo-3.jpg) ![](https://bilder.premium-modellbau.de/bilder/produkte/wasserzeichen/MN2806-Promo-5.jpg) ![](https://bilder.premium-modellbau.de/bilder/produkte/wasserzeichen/MN2806-Specs-1.jpg) ![](https://bilder.premium-modellbau.de/bilder/produkte/wasserzeichen/MN2806-Specs-2.jpg) ![](https://bilder.premium-modellbau.de/bilder/produkte/wasserzeichen/MN2806-Specs-3.jpg) ![](https://bilder.premium-modellbau.de/bilder/produkte/wasserzeichen/MN2806-Specs-4.jpg) ![](https://bilder.premium-modellbau.de/bilder/produkte/wasserzeichen/MN2806-Specs-5.jpg)
