# Flame 200A

**Artikelnr.:** PM-6049 | **HAN:** Flame-200A-14S

[Zum Premium-Modellbau Shop](https://www.premium-modellbau.de/search?sSearch=PM-6049)

![T-Motor Flame 200A HV Brushless Regler 6S-14S Multicopter ESC](https://bilder.premium-modellbau.de/bilder/produkte/wasserzeichen/Flame-200A-HV-14S-2022-4.jpg)

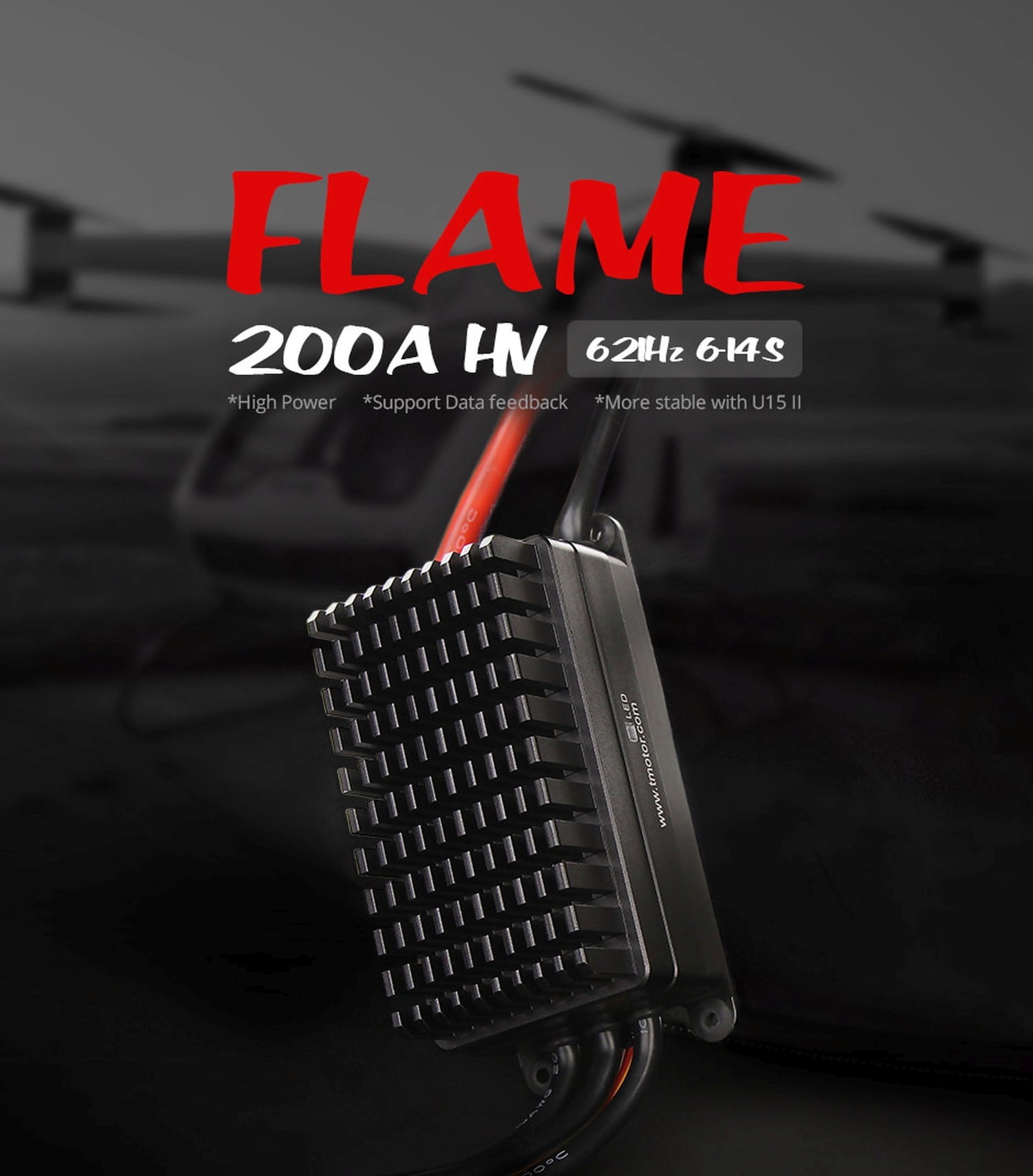

## T-Motor Flame 200A HV Brushless Regler 6S-14S Multicopter ESC

Sehr hochwertiger T-Motor Brushless Regler für 6S-14S Lipo aus der Flame Serie.

**Der Regler ist speziell für den professionellen Multicopter Einsatz geeignet und z.B. eine sehr gute Kombination mit dem U15 II**

## **Technische Daten des Flame 200A HV 14S Reglers:Spannung:**  18V-58,8V (6S-14S Lipo)

**Ampere:** 200A (240A für 10 sec.)

**BEC:** Nein

**Gewicht:** 558g

**Zellenzahl:** 6S-14S Lipo

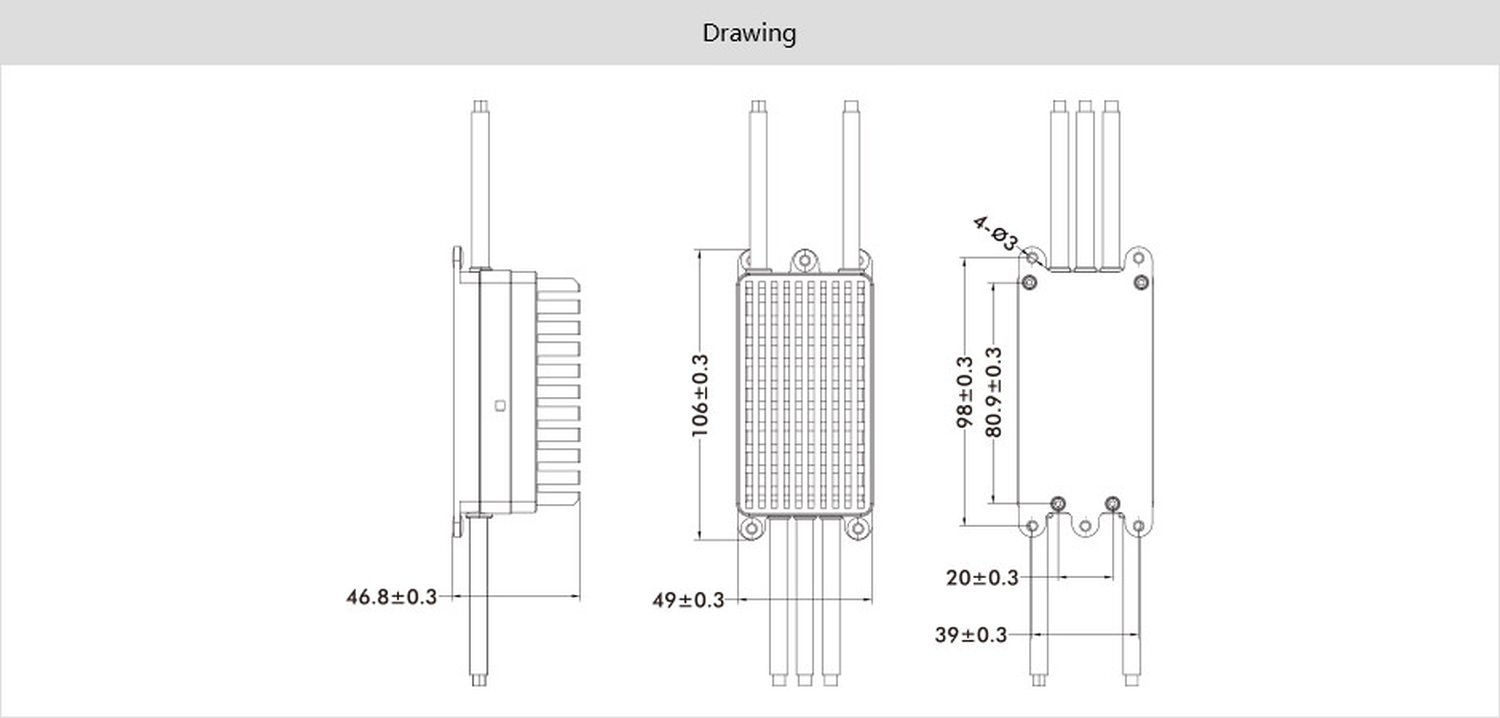

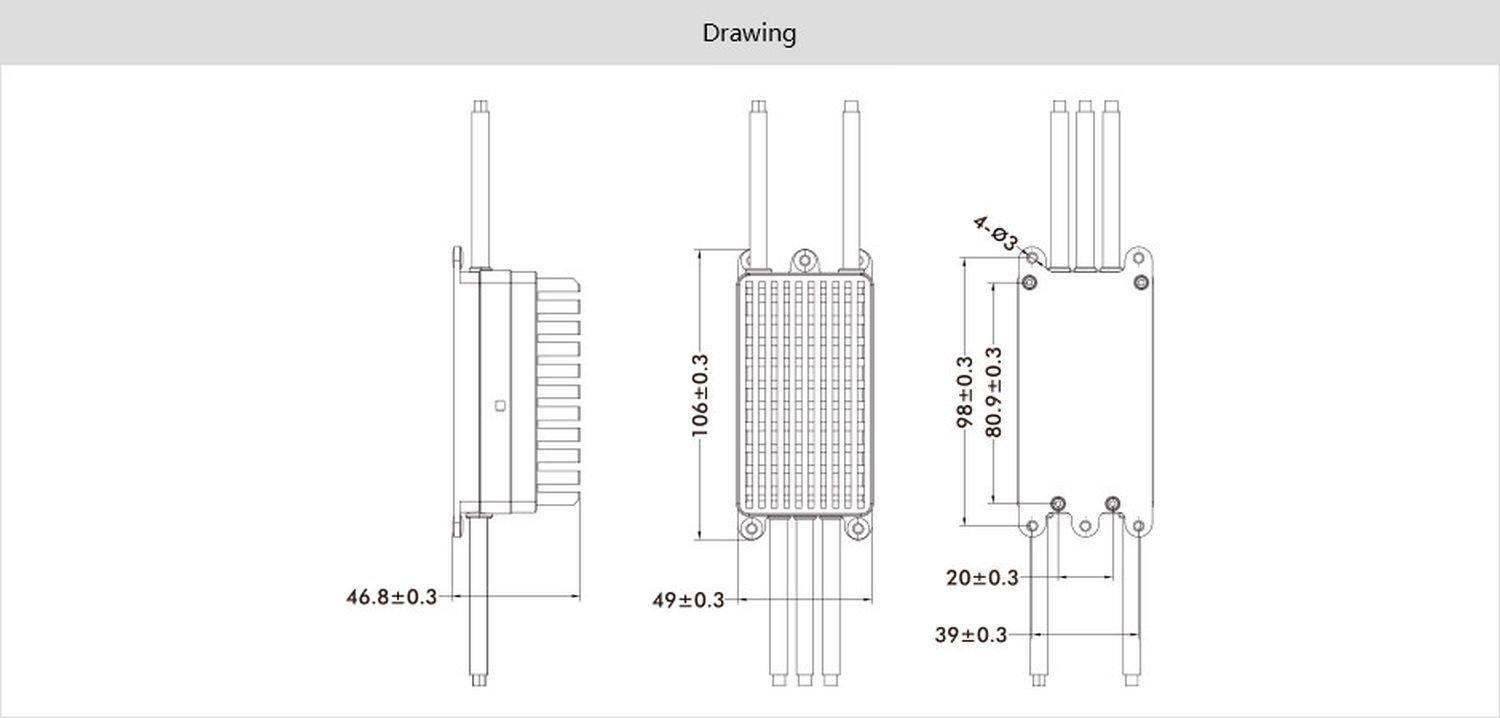

**Abmessungen:** LxBxH: 106x 50 x 48,5 mm

![](https://bilder.premium-modellbau.de/bilder/produkte/wasserzeichen/Flame-200A-HV-14S-2022-4.jpg) ![](https://bilder.premium-modellbau.de/bilder/produkte/wasserzeichen/Flame-200A-HV-14S-2022-5.jpg) ![](https://bilder.premium-modellbau.de/bilder/produkte/wasserzeichen/Flame-200A-HV-14S-2022-6.jpg) ![](https://bilder.premium-modellbau.de/bilder/produkte/wasserzeichen/Flame-200A-HV-14S-2022-7.jpg) ![](https://bilder.premium-modellbau.de/bilder/produkte/wasserzeichen/Flame-200A-HV-14S-2022-8.jpg)


---
