# Flame 70A

**Artikelnr.:** PM-4380 | **HAN:** T-Flame-70A-LV

[Zum Premium-Modellbau Shop](https://www.premium-modellbau.de/search?sSearch=PM-4380)

![T-Motor Flame 70A Brushless Regler 4S-6S OPTO Multicopter 500Hz](https://bilder.premium-modellbau.de/bilder/produkte/klein/T-Motor-Flame-70A-LV-2.jpg)

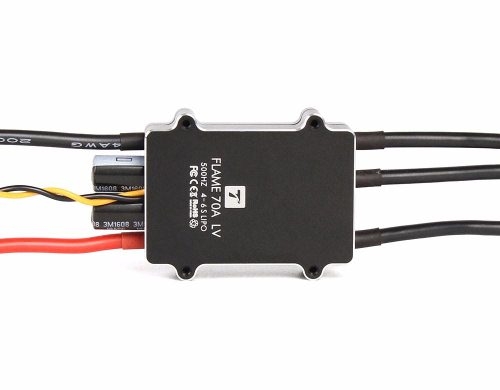

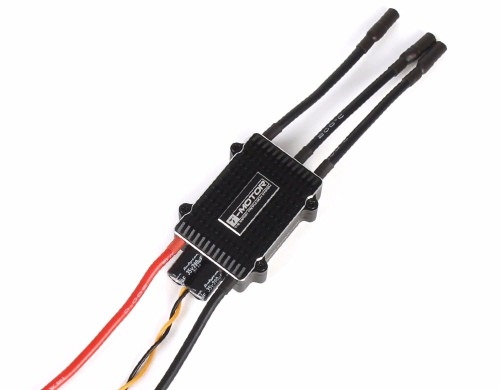

## **T-Motor Flame 70A Brushless Regler 4S-6S OPTO Multicopter 500Hz**

Hochwertiger T-Motor Brushless Regler für bis zu 6S Lipo .

**Der Regler ist speziell für den Multicopter Einsatz geeignet und kann Signale bis zu 500Hz verarbeiten.Es handelt sich um ein OPTO Modell ohne BEC zum Betrieb an bis zu 6S.**

## **Technische Daten des T-Motor Flame 70A Reglers:Spannung:**  14,8V-22,2V (4S-6S)

**Ampere:** 70A (80A für 10 sec.)

**BEC:** Nein (OPTO)

**Gewicht:** 55g

**Zellenzahl:** 4S-6S

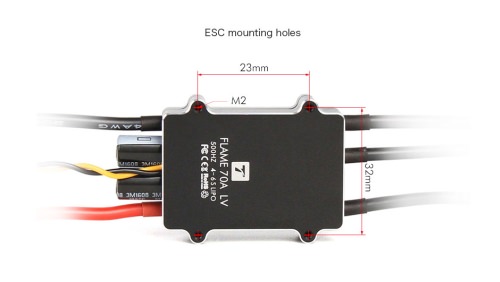

**Abmessungen:** LxBxH: 56,6x 36,4x 16,1mm

**Ansteuerfrequenz:** bis zu 500Hz

![](https://bilder.premium-modellbau.de/bilder/produkte/klein/T-Motor-Flame-70A-LV-2.jpg)

![](https://bilder.premium-modellbau.de/bilder/produkte/klein/T-Motor-Flame-70A-LV-3.jpg)

![](https://bilder.premium-modellbau.de/bilder/produkte/klein/T-Motor-Flame-70A-LV-4.jpg)

![](https://bilder.premium-modellbau.de/bilder/produkte/klein/T-Motor-Flame-70A-LV-5.jpg)

![](https://bilder.premium-modellbau.de/bilder/produkte/klein/T-Motor-Flame-70A-LV-6.jpg)


---
