Cine Cinematic

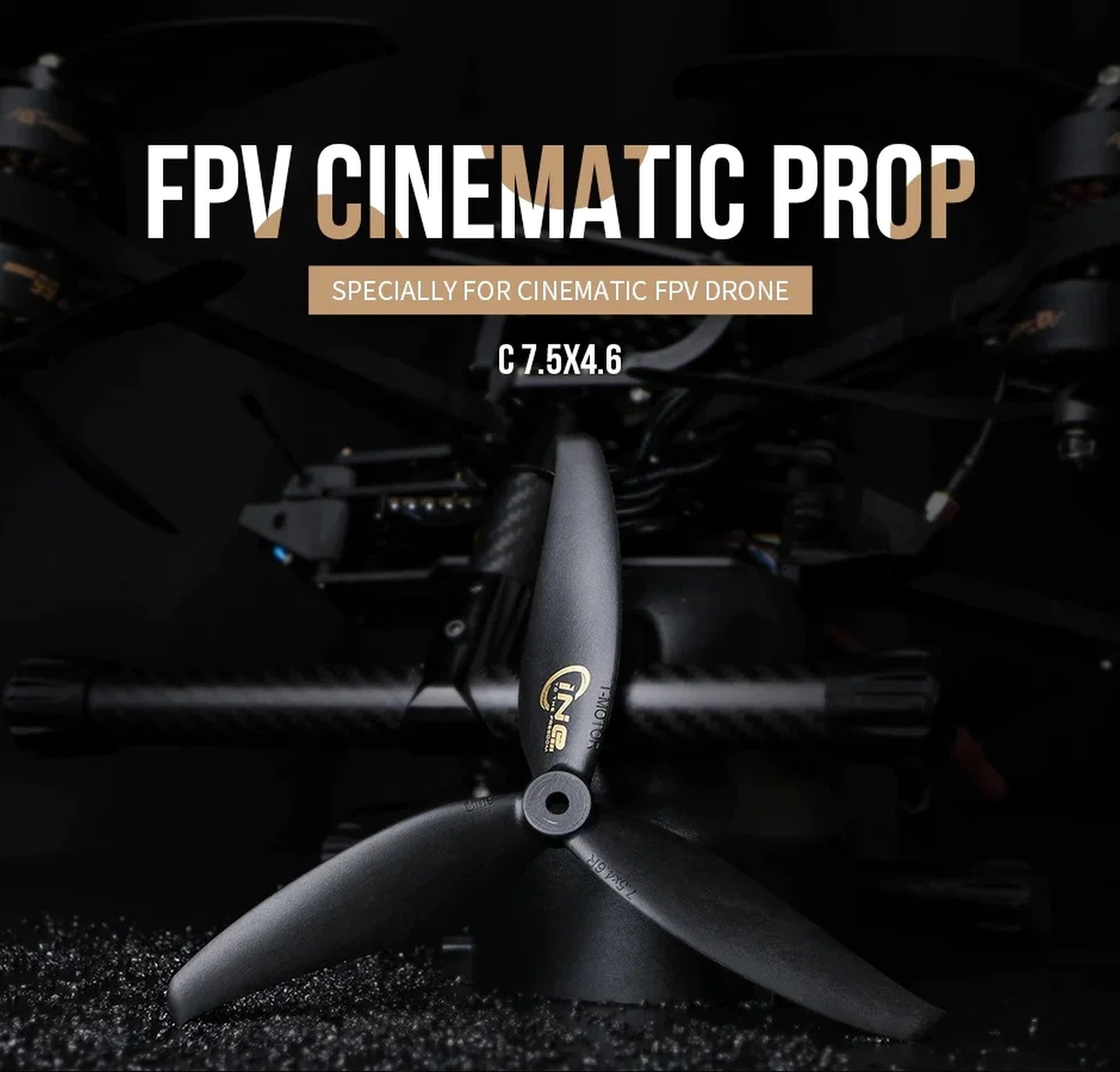

C7.5x4.6 T-Motor 3-Blatt FPV Cinematic Propeller 1xL 1xR 7.5x4.6
Artikelnr.: PM-6361 | HAN: C7.5x4.6
C7.5x4.6 T-Motor 3-Blatt FPV Cinematic Propeller 1xL 1xR 7.5x4.6Durchmesser: 7.5 Zoll
Steigung: 4.6 Zoll
Bohrung: 5mm
Gewicht: ca. 12g (je)
Inhalt: 1x R + 1x L

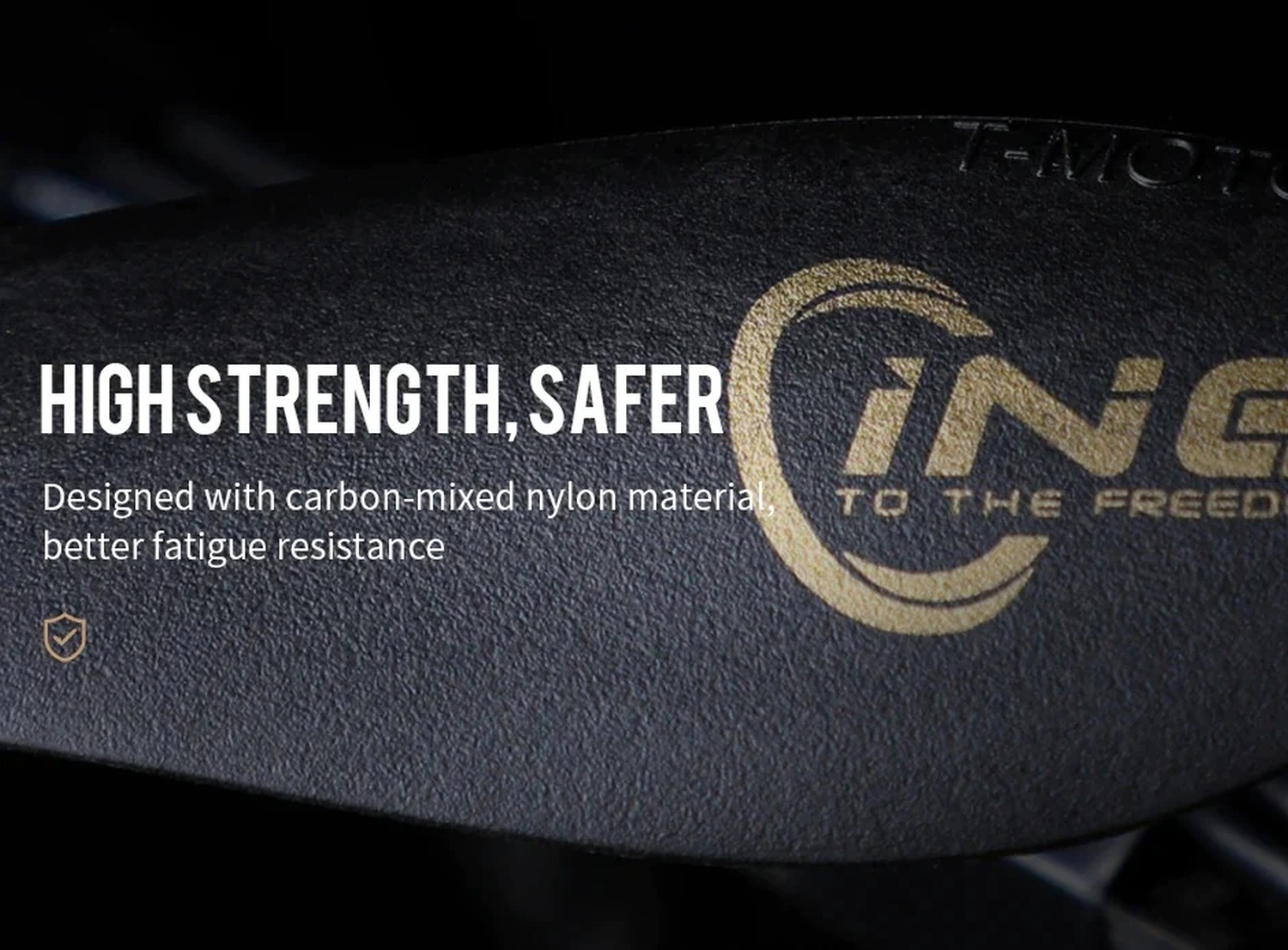

Material: Carbon-Nylon Mix
T-Motor 10x5 T-Motor 3-Blatt FPV Cinematic Propeller 1xL 1xR Cine 10.5x5
Artikelnr.: PM-7242 | HAN: Cine10x5
#product_desc { padding: 0; } .slide-in-down-init { -webkit-transform: translateY(-16px); transform: translateY(-16px); -webkit-transition: all 0.5s ease; transition: all 0.5s ease; opacity: 0; } .slide-in-down { opacity: 1 !important; -webkit-transform: translateY(0) !important; transform: translateY(0) !important; } .parameter-fade-in { border-color: #d40404 !important; background-color: #2d2d2d !important; -webkit-transition: all 2s ease; transition: all 2s ease; } .pointer { display: -webkit-box; display: -ms-flexbox; display: flex; } .pointer.black span { background-color: #000; } .pointer.white span { background-color: #fff; } .pointer span { display: block; width: 6px; height: 6px; border-radius: 50%; margin-right: 6px; } .pointer span:nth-child(1) { opacity: 1; } .pointer span:nth-child(2) { opacity: 0.7; } .pointer span:nth-child(3) { opacity: 0.4; } .goods-section { position: relative; background-repeat: no-repeat; background-size: cover; overflow: hidden; } .goods-section .section-con { margin: 0 auto; max-width: 100%; padding: 0 20px; } @media screen and (min-width: 991px) { .goods-section .section-con { width: 100%; max-width: 1600px; padding: 0 40px; } } .section-1 { height: 0; padding-bottom: calc(100% * 1088 / 940); background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine10x5/Cine10x5-Produktbeschreibung-01.jpg); } @media screen and (min-width: 991px) { .section-1 { height: 0; padding-bottom: calc(100% * 950 / 1920); background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine10x5/Cine10x5-Produktbeschreibung-02.jpg); } } .section-1 .section-con { padding-top: calc(15% * 950 / 1920); } @media screen and (min-width: 991px) { .section-1 .section-con { padding-top: calc(35% * 950 / 1920); } } .section-1 .section-con h4 { font-size: 5.1063829787vw; font-weight: 700; color: #161616; line-height: 1.25; text-align: center; margin-bottom: 3.1914893617vw; } @media screen and (min-width: 991px) { .section-1 .section-con h4 { font-size: 3.125vw; margin-left: -0.2083333333vw; text-align: left; margin-bottom: 2.0833333333vw; } } .section-1 .section-con p { font-size: 2.5531914894vw; color: #000000; text-align: center; width: 62.7659574468vw; margin: 0 auto; line-height: 1.5; } @media screen and (min-width: 991px) { .section-1 .section-con p { margin: 0; text-align: left; font-size: 1.25vw; line-height: 2.25; } } .section-1 .section-con p strong { color: #f41314; font-size: 5.1063829787vw; font-weight: 700; } @media screen and (min-width: 991px) { .section-1 .section-con p strong { font-size: 3.125vw; display: inline-block; line-height: 0.74; height: 2.5vw; } } .section-2 { height: 0; padding-bottom: calc(100% * 1088 / 940); background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine10x5/Cine10x5-Produktbeschreibung-03.jpg); } @media screen and (min-width: 991px) { .section-2 { height: 0; padding-bottom: calc(100% * 950 / 1920); background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine10x5/Cine10x5-Produktbeschreibung-04.jpg); } } .section-2 .section-con { position: absolute; left: 0; right: 0; bottom: calc(15% * 1088 / 940); display: flex; flex-direction: column; align-items: flex-end; } .section-2 .section-con > * { width: 45%; } @media screen and (min-width: 991px) { .section-2 .section-con { bottom: calc(20% * 950 / 1920); } .section-2 .section-con > * { width: 31.25%; } } .section-2 h4 { font-size: 6.3829787234vw; font-weight: 700; line-height: 1.25 !important; color: #fff; margin-bottom: 3.1914893617vw; } @media screen and (min-width: 991px) { .section-2 h4 { font-size: 3.125vw; margin-bottom: 2.0833333333vw; } } .section-2 p { font-size: 3.1914893617vw; line-height: 1.5; color: #fff; } @media screen and (min-width: 991px) { .section-2 p { font-size: 1.25vw; } } .section-2 p span:first-child { color: #f41314; } .section-3 { height: 0; padding-bottom: calc(100% * 1088 / 940); background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine10x5/Cine10x5-Produktbeschreibung-05.jpg); } .section-3 .section-con { position: absolute; left: 0; right: 0; top: calc(10% * 1088 / 940); display: flex; flex-direction: column; align-items: flex-end; } .section-3 .section-con > * { width: 100%; } @media screen and (min-width: 991px) { .section-3 { padding-bottom: calc(100% * 950 / 1920); background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine10x5/Cine10x5-Produktbeschreibung-06.jpg); } .section-3 .section-con { top: calc(40% * 950 / 1920); } .section-3 .section-con > * { width: 31.25%; } :lang(en).section-3 .section-con > * { width: 37.25%; } } .section-3 h4 { font-size: 6.3829787234vw; font-weight: 700; color: #000; text-align: center; margin-bottom: 3.1914893617vw; } @media screen and (min-width: 991px) { .section-3 h4 { font-size: 3.125vw; margin-bottom: 2.0833333333vw; margin-left: -0.2083333333vw; line-height: 1.25; text-align: left; } } .section-3 p { font-size: 3.1914893617vw; color: #000; text-align: center; line-height: 1.5; } @media screen and (min-width: 991px) { .section-3 p { text-align: left; width: auto; font-size: 1.25vw; } } .section-3 p span:first-child { color: #f41314; } .section-4 { height: 0; padding-bottom: calc(100% * 1088 / 940); background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine10x5/Cine10x5-Produktbeschreibung-07.jpg); } @media screen and (min-width: 991px) { .section-4 { padding-bottom: calc(100% * 950 / 1920); background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine10x5/Cine10x5-Produktbeschreibung-08.jpg); } } .section-4 .section-con { position: absolute; left: 0; right: 0; top: calc(10% * 1088 / 940); display: flex; flex-direction: column; align-items: flex-start; } @media screen and (min-width: 991px) { .section-4 .section-con { top: calc(36% * 950 / 1920); } } .section-4 h4 { font-size: 6.3829787234vw; font-weight: 700; color: #ffffff; margin-bottom: 3.1914893617vw; width: 42.5531914894vw; line-height: 1.25; } @media screen and (min-width: 991px) { .section-4 h4 { font-size: 3.125vw; margin-bottom: 2.0833333333vw; line-height: 1.25; } } .section-4 p { font-size: 3.1914893617vw; color: #ffffff; width: 63.829787234vw; line-height: 1.5; } @media screen and (min-width: 991px) { .section-4 p { width: 34.375vw; font-size: 1.25vw; } } .section-4 p span:first-child { color: #f41314; } .section-5 { display: none; height: 58.3333333333vw; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine10x5/Cine10x5-Produktbeschreibung-09.jpg); } @media screen and (min-width: 991px) { .section-5 { display: block; } } .section-5 .section-con { padding-top: 3.8541666667vw; max-width: 72.9166666667vw !important; } .section-5 h4 { font-size: 3.125vw; line-height: 1.25; color: #fff; font-weight: 700; text-align: center; width: 31.25vw; margin: 0 auto; margin-bottom: 3.125vw; } .section-5 .parameter { display: -webkit-box; display: -ms-flexbox; display: flex; -webkit-box-pack: justify; -ms-flex-pack: justify; justify-content: space-between; } .section-5 .parameter .parameter-item { width: calc((100% - 80px) / 3); border-width: 2px; border-style: solid; border-color: transparent; border-radius: 4px; background-color: transparent; padding-top: 30px; padding-bottom: 30px; } .section-5 .parameter .parameter-item .parameter-list .parameter-cell { height: 2.6041666667vw; border-bottom: 1px solid #3c3c3c; -webkit-box-sizing: border-box; box-sizing: border-box; display: -webkit-box; display: -ms-flexbox; display: flex; -webkit-box-align: center; -ms-flex-align: center; align-items: center; -webkit-box-pack: justify; -ms-flex-pack: justify; justify-content: space-between; padding: 0 1.5625vw; padding-right: 0.4166666667vw; font-size: 1.1458333333vw; color: #d4d3d3; } .section-5 .parameter .parameter-item .parameter-list .parameter-cell i { font-size: 0.8333333333vw; } .section-5 .parameter .parameter-item .parameter-list .parameter-cell .small { font-size: 0.9375vw; } .section-5 .parameter .parameter-item .parameter-list .parameter-cell .mini { font-size: 0.7291666667vw; } .section-5 .parameter .parameter-item .parameter-list .parameter-cell span:last-child { display: block; width: 4.6875vw; color: #ffffff; } .section-5 .parameter .parameter-item p { font-size: 1.25vw; padding: 0 1.5625vw; padding-top: 0.625vw; } .section-5 .parameter .parameter-item p span:first-child { color: #d4d3d3; } .section-5 .parameter .parameter-item p span:last-child { color: #fff; } .pointer { display: none; margin-top: 60px; } @media screen and (min-width: 991px) { .pointer { display: -webkit-box; display: -ms-flexbox; display: flex; } } :lang(de).section-4 .section-con h4 { width: 57.4468085106vw; } @media screen and (min-width: 991px) { :lang(ja).section-5 { display: none; } } @media screen and (min-width: 941px) { .w940 .pointer { display: none; } .w940 .goods-section { position: relative; background-repeat: no-repeat; background-size: cover; overflow: hidden; } .w940 .goods-section .section-con { margin: 0 auto; max-width: 100%; } .w940 .section-1 { height: 1090px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine10x5/Cine10x5-Produktbeschreibung-01.jpg); } .w940 .section-1 .section-con { padding-top: 64px; } .w940 .section-1 .section-con h4 { font-size: 48px; height: auto; font-weight: 700; line-height: 1.5; color: #161616; text-align: center; margin-bottom: 30px; } .w940 .section-1 .section-con p { font-size: 24px; color: #000000; text-align: center; width: 590px; margin: 0 auto; line-height: 1.5; } .w940 .section-1 .section-con p strong { color: #f41314; font-size: 48px; font-weight: 700; } .w940 .section-2 { height: 1010px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine10x5/Cine10x5-Produktbeschreibung-03.jpg); } .w940 .section-2 h4 { font-size: 60px; height: auto !important; line-height: 1.25; font-weight: 700; color: #fff; margin-bottom: 30px; } .w940 .section-2 p { font-size: 30px; color: #fff; line-height: 1.5; } .w940 .section-2 p span:first-child { color: #f41314; } .w940 .section-3 { height: 1100px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine10x5/Cine10x5-Produktbeschreibung-05.jpg); } .w940 .section-3 h4 { font-size: 60px; font-weight: 700; height: auto !important; line-height: 1.25; color: #000; margin-bottom: 30px; } .w940 .section-3 p span:first-child { color: #f41314; } .w940 .section-4 { height: 1122px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine10x5/Cine10x5-Produktbeschreibung-07.jpg); } .w940 .section-4 h4 { font-size: 60px; font-weight: 700; height: auto !important; line-height: 1.25; color: #ffffff; margin-bottom: 30px; width: 400px; } .w940 .section-4 p { font-size: 30px; color: #ffffff; width: 620px; line-height: 1.5; } .w940 .section-4 p span:first-child { color: #f41314; } .w940 .section-5 { display: none; } :lang(en).w940 { width: 940px; } :lang(en).w940 .pointer { display: none; } :lang(en).w940 .goods-section { position: relative; background-repeat: no-repeat; background-size: cover; overflow: hidden; } :lang(en).w940 .goods-section .section-con { margin: 0 auto; max-width: 100%; } :lang(en).w940 .section-1 { height: 1090px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine10x5/Cine10x5-Produktbeschreibung-01.jpg); } :lang(en).w940 .section-1 .section-con { padding-top: 64px; } :lang(en).w940 .section-1 .section-con h4 { font-size: 48px; height: 48px; font-weight: 700; line-height: 1; color: #161616; text-align: center; margin-bottom: 44px; } :lang(en).w940 .section-1 .section-con p { font-size: 24px; color: #000000; text-align: center; width: 590px; margin: 0 auto; line-height: 1.5; } :lang(en).w940 .section-1 .section-con p strong { color: #f41314; font-size: 48px; font-weight: 700; } :lang(en).w940 .section-2 { height: 1010px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine10x5/Cine10x5-Produktbeschreibung-03.jpg); } :lang(en).w940 .section-2 h4 { font-size: 60px; height: 60px; line-height: 1; font-weight: 700; color: #fff; margin-bottom: 30px; } :lang(en).w940 .section-2 p { font-size: 30px; color: #fff; line-height: 1.5; } :lang(en).w940 .section-2 p span:first-child { color: #f41314; } :lang(en).w940 .section-3 { height: 1100px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine10x5/Cine10x5-Produktbeschreibung-05.jpg); } :lang(en).w940 .section-3 h4 { font-size: 60px; font-weight: 700; height: 60px; line-height: 1; color: #000; margin-bottom: 30px; } :lang(en).w940 .section-3 p span:first-child { color: #f41314; } :lang(en).w940 .section-4 { height: 1122px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine10x5/Cine10x5-Produktbeschreibung-07.jpg); } :lang(en).w940 .section-4 h4 { font-size: 60px; font-weight: 700; height: 60px; line-height: 1; color: #ffffff; margin-bottom: 30px; width: 400px; } :lang(en).w940 .section-4 p { font-size: 30px; color: #ffffff; width: 600px; line-height: 1.5; } :lang(en).w940 .section-4 p span:first-child { color: #f41314; } :lang(en).w940 .section-5 { display: none; } :lang(ja).w940 { width: 940px; } :lang(ja).w940 .pointer { display: none; } :lang(ja).w940 .goods-section { position: relative; background-repeat: no-repeat; background-size: cover; overflow: hidden; } :lang(ja).w940 .goods-section .section-con { margin: 0 auto; max-width: 100%; } :lang(ja).w940 .section-1 { height: 1090px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine10x5/Cine10x5-Produktbeschreibung-01.jpg); } :lang(ja).w940 .section-1 .section-con { padding-top: 64px; } :lang(ja).w940 .section-1 .section-con h4 { font-size: 48px; height: 48px; font-weight: 700; line-height: 1; color: #161616; text-align: center; margin-bottom: 30px; } :lang(ja).w940 .section-1 .section-con p { font-size: 24px; color: #000000; text-align: center; width: 590px; margin: 0 auto; line-height: 1.5; } :lang(ja).w940 .section-1 .section-con p strong { color: #f41314; font-size: 48px; font-weight: 700; } :lang(ja).w940 .section-2 { height: 1010px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine10x5/Cine10x5-Produktbeschreibung-03.jpg); } :lang(ja).w940 .section-2 h4 { font-size: 60px; height: 60px; line-height: 1; font-weight: 700; color: #fff; margin-bottom: 30px; } :lang(ja).w940 .section-2 p { font-size: 30px; color: #fff; line-height: 1.5; } :lang(ja).w940 .section-2 p span:first-child { color: #f41314; } :lang(ja).w940 .section-3 { height: 1100px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine10x5/Cine10x5-Produktbeschreibung-05.jpg); } :lang(ja).w940 .section-3 h4 { font-size: 60px; font-weight: 700; height: 60px; line-height: 1; color: #000; margin-bottom: 30px; } :lang(ja).w940 .section-3 p span:first-child { color: #f41314; } :lang(ja).w940 .section-4 { height: 1122px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine10x5/Cine10x5-Produktbeschreibung-07.jpg); } :lang(ja).w940 .section-4 h4 { font-size: 60px; font-weight: 700; height: 60px; line-height: 1; color: #ffffff; margin-bottom: 30px; width: 400px; } :lang(ja).w940 .section-4 p { font-size: 30px; color: #ffffff; width: 600px; line-height: 1.5; } :lang(ja).w940 .section-4 p span:first-child { color: #f41314; } :lang(ja).w940 .section-5 { display: none; } :lang(de).w940 { width: 940px; } :lang(de).w940 .pointer { display: none; } :lang(de).w940 .goods-section { position: relative; background-repeat: no-repeat; background-size: cover; overflow: hidden; } :lang(de).w940 .goods-section .section-con { margin: 0 auto; max-width: 100%; } :lang(de).w940 .section-1 { height: 1090px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine10x5/Cine10x5-Produktbeschreibung-01.jpg); } :lang(de).w940 .section-1 .section-con { padding-top: 64px; } :lang(de).w940 .section-1 .section-con h4 { font-size: 48px; height: 48px; font-weight: 700; line-height: 1; color: #161616; text-align: center; margin-bottom: 30px; } :lang(de).w940 .section-1 .section-con p { font-size: 24px; color: #000000; text-align: center; width: 590px; margin: 0 auto; line-height: 1.5; } :lang(de).w940 .section-1 .section-con p strong { color: #f41314; font-size: 48px; font-weight: 700; } :lang(de).w940 .section-2 { height: 1010px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine10x5/Cine10x5-Produktbeschreibung-03.jpg); } :lang(de).w940 .section-2 h4 { font-size: 60px; height: 60px; line-height: 1; font-weight: 700; color: #fff; margin-bottom: 30px; } :lang(de).w940 .section-2 p { font-size: 30px; color: #fff; line-height: 1.5; } :lang(de).w940 .section-2 p span:first-child { color: #f41314; } :lang(de).w940 .section-3 { height: 1100px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine10x5/Cine10x5-Produktbeschreibung-05.jpg); } :lang(de).w940 .section-3 h4 { font-size: 60px; font-weight: 700; height: 60px; line-height: 1; color: #000; margin-bottom: 30px; } :lang(de).w940 .section-3 p span:first-child { color: #f41314; } :lang(de).w940 .section-4 { height: 1122px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine10x5/Cine10x5-Produktbeschreibung-07.jpg); } :lang(de).w940 .section-4 h4 { font-size: 60px; font-weight: 700; height: 60px; line-height: 1; color: #ffffff; margin-bottom: 30px; width: 400px; } :lang(de).w940 .section-4 p { font-size: 30px; color: #ffffff; width: 600px; line-height: 1.5; } :lang(de).w940 .section-4 p span:first-child { color: #f41314; } :lang(de).w940 .section-5 { display: none; } } /* === SHOP-OVERRIDES === */ .slideInDownInit, .slide-in-down-init { opacity: 1 !important; transform: none !important; transition: none !important; } .scaleInit { opacity: 1 !important; transform: none !important; transition: none !important; } #parameter { display: block !important; padding: 20px 5%; background: #fff; color: #333; } #parameter .mainBox { margin-bottom: 30px; } #parameter .tableTitle { font-size: 20px; font-weight: bold; padding: 15px 0; border-bottom: 2px solid #333; } #parameter table { width: 100%; border-collapse: collapse; margin: 10px 0; } #parameter td, #parameter th { border: 1px solid #ddd; padding: 8px; font-size: 14px; } #parameter img { max-width: 100%; height: auto; }
LARGE THRUST
load weight1-4kg,take-off weight4-9kg no pressure on loaded shooting equipment
SMALL VIBRATION
Reasonable structural design less power loss, and longer flight time
HIGH EFFICIENCY
The blades are not easily deformed parameter adjustment is simple, perfect for fpv cinematic
QUALITY MATERIALS
Imported glass fiber nylon material, stable signal, brings high-definition picture quality, and visual impact, allowing you to capture high-quality video easily
SPEC RECOMMENDED
ModelC8.5X5
Includes1x CCW Prop 1x CW Prop
Prop Disc Diameter216
MaterialGlass fiber nylon
Center thickness(mm)8
Hub Diameter(mm)10.4
Weight(g)14.8
Hub Inner Diameter(mm)5
Pitch(inch)5
Blades3
Maximum blade width(mm)21.5
Recommended Power Combo CINE66 1155KV/F7PRO/ C-55A 8IN1
ModelC9.5X5
Includes1x CCW Prop 1x CW Prop
Prop Disc Diameter242
MaterialGlass fiber nylon
Center thickness(mm)9
Hub Diameter(mm)12.2
Weight(g)21.29
Hub Inner Diameter(mm)5
Pitch(inch)5
Blades3
Maximum blade width(mm)25.5
Recommended Power Combo V3115 1050KV/F7PRO/ C-80A 4IN1
ModelC10.5X5
Includes1x CCW Prop 1x CW Prop
Prop Disc Diameter267
MaterialGlass fiber nylon
Center thickness(mm)10
Hub Diameter(mm)13.6
Weight(g)26.48
Hub Inner Diameter(mm)5
Pitch(inch)5
Blades3
Maximum blade width(mm)26.5
Recommended Power Combo V3120 500KV/F7PRO/ C-80A 12S

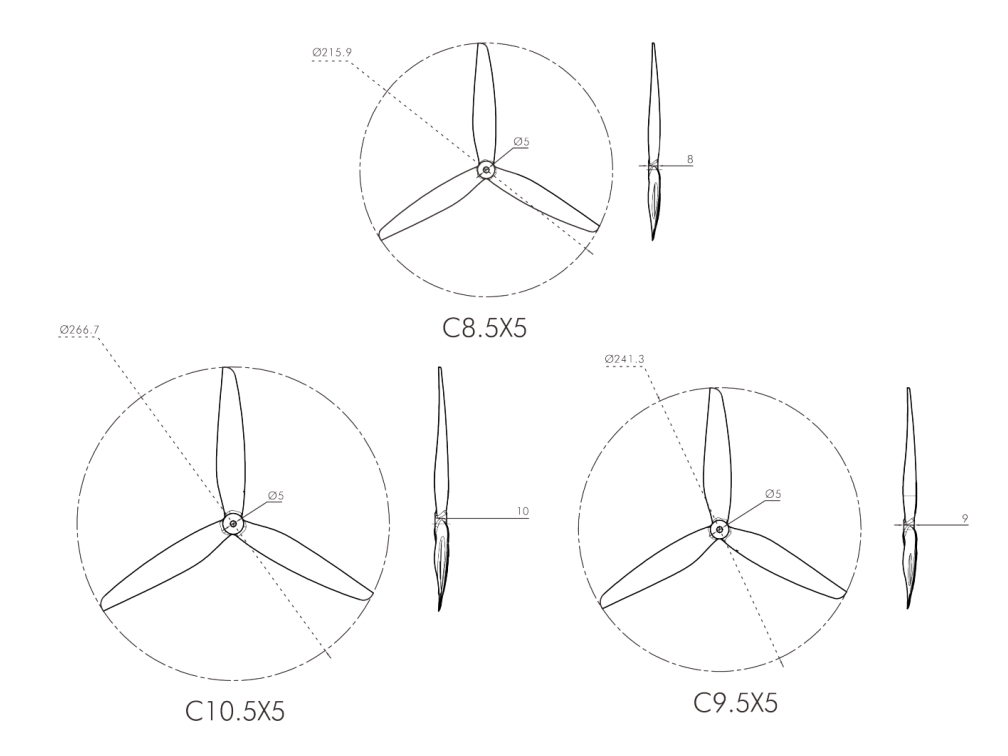

Technical Drawing
Specification Export to Excel
Model
C8.5X5
Hub Diameter
10.4mm
Includes
1x CCW Prop 1x CW Prop
Center thickness
8mm
Blades
3
Hub Inner Diameter
5mm
Material
Glass fiber nylon
Maximum blade width
21.5mm
Pitch
5in
Weight
14.8g
Prop Disc Diameter
216mm
Recommended Power Combo
CINE66 1155KV/F7PRO/C-55A 8IN1
Model
C9.5X5
Hub Diameter
12.2mm
Includes
1x CCW Prop 1x CW Prop
Center thickness
9mm
Blades
3
Hub Inner Diameter
5mm
Material
Glass fiber nylon
Maximum blade width
25.5mm
Pitch
5in
Weight
21.3g
Prop Disc Diameter
242mm
Recommended Power Combo
V3115 1050KV/F7PRO/C-80A 4IN1
Model
C10.5X5
Hub Diameter
13.6mm
Includes
1x CCW Prop 1x CW Prop
Center thickness
10mm
Blades
3
Hub Inner Diameter
5mm
Material
Glass fiber nylon
Maximum blade width
26.5mm
Pitch
5in
Weight
26.5g
Prop Disc Diameter
267mm
Recommended Power Combo
V3120 500KV/F7PRO/C-80A 12S
Test Data Export to Excel
Motor
Propeller
Throttle
Voltage (V)
Current (A)
Power (W)
RPM
Thrust (g)
Torque (N*m)
Efficiency (g/W)
Temperature (℃)
V2812 1155KV
C8.5X5X3
10%
24.07
0.73
17.6
2938
93.21
0.01
5.29
/
20%
24.04
2.68
64.4
5492
354.55
0.05
5.50
30%
24.00
5.53
132.8
7246
652.46
0.10
4.91
40%
23.93
9.30
222.5
8800
983.40
0.15
4.42
50%
23.81
16.24
386.8
10513
1423.35
0.22
3.68
60%
23.71
23.10
547.6
12141
1914.80
0.29
3.50
70%
23.56
33.75
795.0
13728
2464.25
0.38
3.10
80%
23.39
45.54
1065.1
14990
2932.56
0.45
2.75
90%
23.18
59.21
1372.7
16099
3391.62
0.53
2.47
100%
22.97
73.56
1689.7
17030
3800.57
0.60
2.25
CINE66 1155KV
C8.5X5X3
10%
24.07
0.72
17.2
2878
78.25
0.03
4.55
/
20%
24.04
2.63
63.1
5506
366.01
0.06
5.80
30%
24.00
5.32
127.8
7232
670.39
0.11
5.25
40%
23.93
9.40
224.9
8757
1009.50
0.16
4.49
50%
23.81
16.14
384.3
10434
1434.66
0.22
3.73
60%
23.71
22.86
542.0
12023
1919.69
0.30
3.54
70%
23.57
33.02
778.2
13599
2446.34
0.38
3.14
80%
23.40
44.28
1036.2
14814
2922.48
0.45
2.82
90%
23.20
57.92
1343.7
15904
3380.00
0.53
2.52
100%
22.99
72.13
1657.9
16876
3807.15
T-Motor 8x5 T-Motor 3-Blatt FPV Cinematic Propeller 1xL 1xR Cine 8.5x5
Artikelnr.: PM-7241 | HAN: Cine8x5
#product_desc { padding: 0; } .slide-in-down-init { -webkit-transform: translateY(-16px); transform: translateY(-16px); -webkit-transition: all 0.5s ease; transition: all 0.5s ease; opacity: 0; } .slide-in-down { opacity: 1 !important; -webkit-transform: translateY(0) !important; transform: translateY(0) !important; } .parameter-fade-in { border-color: #d40404 !important; background-color: #2d2d2d !important; -webkit-transition: all 2s ease; transition: all 2s ease; } .pointer { display: -webkit-box; display: -ms-flexbox; display: flex; } .pointer.black span { background-color: #000; } .pointer.white span { background-color: #fff; } .pointer span { display: block; width: 6px; height: 6px; border-radius: 50%; margin-right: 6px; } .pointer span:nth-child(1) { opacity: 1; } .pointer span:nth-child(2) { opacity: 0.7; } .pointer span:nth-child(3) { opacity: 0.4; } .goods-section { position: relative; background-repeat: no-repeat; background-size: cover; overflow: hidden; } .goods-section .section-con { margin: 0 auto; max-width: 100%; padding: 0 20px; } @media screen and (min-width: 991px) { .goods-section .section-con { width: 100%; max-width: 1600px; padding: 0 40px; } } .section-1 { height: 0; padding-bottom: calc(100% * 1088 / 940); background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine8x5/Cine8x5-Produktbeschreibung-01.jpg); } @media screen and (min-width: 991px) { .section-1 { height: 0; padding-bottom: calc(100% * 950 / 1920); background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine8x5/Cine8x5-Produktbeschreibung-02.jpg); } } .section-1 .section-con { padding-top: calc(15% * 950 / 1920); } @media screen and (min-width: 991px) { .section-1 .section-con { padding-top: calc(35% * 950 / 1920); } } .section-1 .section-con h4 { font-size: 5.1063829787vw; font-weight: 700; color: #161616; line-height: 1.25; text-align: center; margin-bottom: 3.1914893617vw; } @media screen and (min-width: 991px) { .section-1 .section-con h4 { font-size: 3.125vw; margin-left: -0.2083333333vw; text-align: left; margin-bottom: 2.0833333333vw; } } .section-1 .section-con p { font-size: 2.5531914894vw; color: #000000; text-align: center; width: 62.7659574468vw; margin: 0 auto; line-height: 1.5; } @media screen and (min-width: 991px) { .section-1 .section-con p { margin: 0; text-align: left; font-size: 1.25vw; line-height: 2.25; } } .section-1 .section-con p strong { color: #f41314; font-size: 5.1063829787vw; font-weight: 700; } @media screen and (min-width: 991px) { .section-1 .section-con p strong { font-size: 3.125vw; display: inline-block; line-height: 0.74; height: 2.5vw; } } .section-2 { height: 0; padding-bottom: calc(100% * 1088 / 940); background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine8x5/Cine8x5-Produktbeschreibung-03.jpg); } @media screen and (min-width: 991px) { .section-2 { height: 0; padding-bottom: calc(100% * 950 / 1920); background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine8x5/Cine8x5-Produktbeschreibung-04.jpg); } } .section-2 .section-con { position: absolute; left: 0; right: 0; bottom: calc(15% * 1088 / 940); display: flex; flex-direction: column; align-items: flex-end; } .section-2 .section-con > * { width: 45%; } @media screen and (min-width: 991px) { .section-2 .section-con { bottom: calc(20% * 950 / 1920); } .section-2 .section-con > * { width: 31.25%; } } .section-2 h4 { font-size: 6.3829787234vw; font-weight: 700; line-height: 1.25 !important; color: #fff; margin-bottom: 3.1914893617vw; } @media screen and (min-width: 991px) { .section-2 h4 { font-size: 3.125vw; margin-bottom: 2.0833333333vw; } } .section-2 p { font-size: 3.1914893617vw; line-height: 1.5; color: #fff; } @media screen and (min-width: 991px) { .section-2 p { font-size: 1.25vw; } } .section-2 p span:first-child { color: #f41314; } .section-3 { height: 0; padding-bottom: calc(100% * 1088 / 940); background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine8x5/Cine8x5-Produktbeschreibung-05.jpg); } .section-3 .section-con { position: absolute; left: 0; right: 0; top: calc(10% * 1088 / 940); display: flex; flex-direction: column; align-items: flex-end; } .section-3 .section-con > * { width: 100%; } @media screen and (min-width: 991px) { .section-3 { padding-bottom: calc(100% * 950 / 1920); background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine8x5/Cine8x5-Produktbeschreibung-06.jpg); } .section-3 .section-con { top: calc(40% * 950 / 1920); } .section-3 .section-con > * { width: 31.25%; } :lang(en).section-3 .section-con > * { width: 37.25%; } } .section-3 h4 { font-size: 6.3829787234vw; font-weight: 700; color: #000; text-align: center; margin-bottom: 3.1914893617vw; } @media screen and (min-width: 991px) { .section-3 h4 { font-size: 3.125vw; margin-bottom: 2.0833333333vw; margin-left: -0.2083333333vw; line-height: 1.25; text-align: left; } } .section-3 p { font-size: 3.1914893617vw; color: #000; text-align: center; line-height: 1.5; } @media screen and (min-width: 991px) { .section-3 p { text-align: left; width: auto; font-size: 1.25vw; } } .section-3 p span:first-child { color: #f41314; } .section-4 { height: 0; padding-bottom: calc(100% * 1088 / 940); background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine8x5/Cine8x5-Produktbeschreibung-07.jpg); } @media screen and (min-width: 991px) { .section-4 { padding-bottom: calc(100% * 950 / 1920); background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine8x5/Cine8x5-Produktbeschreibung-08.jpg); } } .section-4 .section-con { position: absolute; left: 0; right: 0; top: calc(10% * 1088 / 940); display: flex; flex-direction: column; align-items: flex-start; } @media screen and (min-width: 991px) { .section-4 .section-con { top: calc(36% * 950 / 1920); } } .section-4 h4 { font-size: 6.3829787234vw; font-weight: 700; color: #ffffff; margin-bottom: 3.1914893617vw; width: 42.5531914894vw; line-height: 1.25; } @media screen and (min-width: 991px) { .section-4 h4 { font-size: 3.125vw; margin-bottom: 2.0833333333vw; line-height: 1.25; } } .section-4 p { font-size: 3.1914893617vw; color: #ffffff; width: 63.829787234vw; line-height: 1.5; } @media screen and (min-width: 991px) { .section-4 p { width: 34.375vw; font-size: 1.25vw; } } .section-4 p span:first-child { color: #f41314; } .section-5 { display: none; height: 58.3333333333vw; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine8x5/Cine8x5-Produktbeschreibung-09.jpg); } @media screen and (min-width: 991px) { .section-5 { display: block; } } .section-5 .section-con { padding-top: 3.8541666667vw; max-width: 72.9166666667vw !important; } .section-5 h4 { font-size: 3.125vw; line-height: 1.25; color: #fff; font-weight: 700; text-align: center; width: 31.25vw; margin: 0 auto; margin-bottom: 3.125vw; } .section-5 .parameter { display: -webkit-box; display: -ms-flexbox; display: flex; -webkit-box-pack: justify; -ms-flex-pack: justify; justify-content: space-between; } .section-5 .parameter .parameter-item { width: calc((100% - 80px) / 3); border-width: 2px; border-style: solid; border-color: transparent; border-radius: 4px; background-color: transparent; padding-top: 30px; padding-bottom: 30px; } .section-5 .parameter .parameter-item .parameter-list .parameter-cell { height: 2.6041666667vw; border-bottom: 1px solid #3c3c3c; -webkit-box-sizing: border-box; box-sizing: border-box; display: -webkit-box; display: -ms-flexbox; display: flex; -webkit-box-align: center; -ms-flex-align: center; align-items: center; -webkit-box-pack: justify; -ms-flex-pack: justify; justify-content: space-between; padding: 0 1.5625vw; padding-right: 0.4166666667vw; font-size: 1.1458333333vw; color: #d4d3d3; } .section-5 .parameter .parameter-item .parameter-list .parameter-cell i { font-size: 0.8333333333vw; } .section-5 .parameter .parameter-item .parameter-list .parameter-cell .small { font-size: 0.9375vw; } .section-5 .parameter .parameter-item .parameter-list .parameter-cell .mini { font-size: 0.7291666667vw; } .section-5 .parameter .parameter-item .parameter-list .parameter-cell span:last-child { display: block; width: 4.6875vw; color: #ffffff; } .section-5 .parameter .parameter-item p { font-size: 1.25vw; padding: 0 1.5625vw; padding-top: 0.625vw; } .section-5 .parameter .parameter-item p span:first-child { color: #d4d3d3; } .section-5 .parameter .parameter-item p span:last-child { color: #fff; } .pointer { display: none; margin-top: 60px; } @media screen and (min-width: 991px) { .pointer { display: -webkit-box; display: -ms-flexbox; display: flex; } } :lang(de).section-4 .section-con h4 { width: 57.4468085106vw; } @media screen and (min-width: 991px) { :lang(ja).section-5 { display: none; } } @media screen and (min-width: 941px) { .w940 .pointer { display: none; } .w940 .goods-section { position: relative; background-repeat: no-repeat; background-size: cover; overflow: hidden; } .w940 .goods-section .section-con { margin: 0 auto; max-width: 100%; } .w940 .section-1 { height: 1090px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine8x5/Cine8x5-Produktbeschreibung-01.jpg); } .w940 .section-1 .section-con { padding-top: 64px; } .w940 .section-1 .section-con h4 { font-size: 48px; height: auto; font-weight: 700; line-height: 1.5; color: #161616; text-align: center; margin-bottom: 30px; } .w940 .section-1 .section-con p { font-size: 24px; color: #000000; text-align: center; width: 590px; margin: 0 auto; line-height: 1.5; } .w940 .section-1 .section-con p strong { color: #f41314; font-size: 48px; font-weight: 700; } .w940 .section-2 { height: 1010px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine8x5/Cine8x5-Produktbeschreibung-03.jpg); } .w940 .section-2 h4 { font-size: 60px; height: auto !important; line-height: 1.25; font-weight: 700; color: #fff; margin-bottom: 30px; } .w940 .section-2 p { font-size: 30px; color: #fff; line-height: 1.5; } .w940 .section-2 p span:first-child { color: #f41314; } .w940 .section-3 { height: 1100px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine8x5/Cine8x5-Produktbeschreibung-05.jpg); } .w940 .section-3 h4 { font-size: 60px; font-weight: 700; height: auto !important; line-height: 1.25; color: #000; margin-bottom: 30px; } .w940 .section-3 p span:first-child { color: #f41314; } .w940 .section-4 { height: 1122px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine8x5/Cine8x5-Produktbeschreibung-07.jpg); } .w940 .section-4 h4 { font-size: 60px; font-weight: 700; height: auto !important; line-height: 1.25; color: #ffffff; margin-bottom: 30px; width: 400px; } .w940 .section-4 p { font-size: 30px; color: #ffffff; width: 620px; line-height: 1.5; } .w940 .section-4 p span:first-child { color: #f41314; } .w940 .section-5 { display: none; } :lang(en).w940 { width: 940px; } :lang(en).w940 .pointer { display: none; } :lang(en).w940 .goods-section { position: relative; background-repeat: no-repeat; background-size: cover; overflow: hidden; } :lang(en).w940 .goods-section .section-con { margin: 0 auto; max-width: 100%; } :lang(en).w940 .section-1 { height: 1090px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine8x5/Cine8x5-Produktbeschreibung-01.jpg); } :lang(en).w940 .section-1 .section-con { padding-top: 64px; } :lang(en).w940 .section-1 .section-con h4 { font-size: 48px; height: 48px; font-weight: 700; line-height: 1; color: #161616; text-align: center; margin-bottom: 44px; } :lang(en).w940 .section-1 .section-con p { font-size: 24px; color: #000000; text-align: center; width: 590px; margin: 0 auto; line-height: 1.5; } :lang(en).w940 .section-1 .section-con p strong { color: #f41314; font-size: 48px; font-weight: 700; } :lang(en).w940 .section-2 { height: 1010px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine8x5/Cine8x5-Produktbeschreibung-03.jpg); } :lang(en).w940 .section-2 h4 { font-size: 60px; height: 60px; line-height: 1; font-weight: 700; color: #fff; margin-bottom: 30px; } :lang(en).w940 .section-2 p { font-size: 30px; color: #fff; line-height: 1.5; } :lang(en).w940 .section-2 p span:first-child { color: #f41314; } :lang(en).w940 .section-3 { height: 1100px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine8x5/Cine8x5-Produktbeschreibung-05.jpg); } :lang(en).w940 .section-3 h4 { font-size: 60px; font-weight: 700; height: 60px; line-height: 1; color: #000; margin-bottom: 30px; } :lang(en).w940 .section-3 p span:first-child { color: #f41314; } :lang(en).w940 .section-4 { height: 1122px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine8x5/Cine8x5-Produktbeschreibung-07.jpg); } :lang(en).w940 .section-4 h4 { font-size: 60px; font-weight: 700; height: 60px; line-height: 1; color: #ffffff; margin-bottom: 30px; width: 400px; } :lang(en).w940 .section-4 p { font-size: 30px; color: #ffffff; width: 600px; line-height: 1.5; } :lang(en).w940 .section-4 p span:first-child { color: #f41314; } :lang(en).w940 .section-5 { display: none; } :lang(ja).w940 { width: 940px; } :lang(ja).w940 .pointer { display: none; } :lang(ja).w940 .goods-section { position: relative; background-repeat: no-repeat; background-size: cover; overflow: hidden; } :lang(ja).w940 .goods-section .section-con { margin: 0 auto; max-width: 100%; } :lang(ja).w940 .section-1 { height: 1090px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine8x5/Cine8x5-Produktbeschreibung-01.jpg); } :lang(ja).w940 .section-1 .section-con { padding-top: 64px; } :lang(ja).w940 .section-1 .section-con h4 { font-size: 48px; height: 48px; font-weight: 700; line-height: 1; color: #161616; text-align: center; margin-bottom: 30px; } :lang(ja).w940 .section-1 .section-con p { font-size: 24px; color: #000000; text-align: center; width: 590px; margin: 0 auto; line-height: 1.5; } :lang(ja).w940 .section-1 .section-con p strong { color: #f41314; font-size: 48px; font-weight: 700; } :lang(ja).w940 .section-2 { height: 1010px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine8x5/Cine8x5-Produktbeschreibung-03.jpg); } :lang(ja).w940 .section-2 h4 { font-size: 60px; height: 60px; line-height: 1; font-weight: 700; color: #fff; margin-bottom: 30px; } :lang(ja).w940 .section-2 p { font-size: 30px; color: #fff; line-height: 1.5; } :lang(ja).w940 .section-2 p span:first-child { color: #f41314; } :lang(ja).w940 .section-3 { height: 1100px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine8x5/Cine8x5-Produktbeschreibung-05.jpg); } :lang(ja).w940 .section-3 h4 { font-size: 60px; font-weight: 700; height: 60px; line-height: 1; color: #000; margin-bottom: 30px; } :lang(ja).w940 .section-3 p span:first-child { color: #f41314; } :lang(ja).w940 .section-4 { height: 1122px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine8x5/Cine8x5-Produktbeschreibung-07.jpg); } :lang(ja).w940 .section-4 h4 { font-size: 60px; font-weight: 700; height: 60px; line-height: 1; color: #ffffff; margin-bottom: 30px; width: 400px; } :lang(ja).w940 .section-4 p { font-size: 30px; color: #ffffff; width: 600px; line-height: 1.5; } :lang(ja).w940 .section-4 p span:first-child { color: #f41314; } :lang(ja).w940 .section-5 { display: none; } :lang(de).w940 { width: 940px; } :lang(de).w940 .pointer { display: none; } :lang(de).w940 .goods-section { position: relative; background-repeat: no-repeat; background-size: cover; overflow: hidden; } :lang(de).w940 .goods-section .section-con { margin: 0 auto; max-width: 100%; } :lang(de).w940 .section-1 { height: 1090px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine8x5/Cine8x5-Produktbeschreibung-01.jpg); } :lang(de).w940 .section-1 .section-con { padding-top: 64px; } :lang(de).w940 .section-1 .section-con h4 { font-size: 48px; height: 48px; font-weight: 700; line-height: 1; color: #161616; text-align: center; margin-bottom: 30px; } :lang(de).w940 .section-1 .section-con p { font-size: 24px; color: #000000; text-align: center; width: 590px; margin: 0 auto; line-height: 1.5; } :lang(de).w940 .section-1 .section-con p strong { color: #f41314; font-size: 48px; font-weight: 700; } :lang(de).w940 .section-2 { height: 1010px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine8x5/Cine8x5-Produktbeschreibung-03.jpg); } :lang(de).w940 .section-2 h4 { font-size: 60px; height: 60px; line-height: 1; font-weight: 700; color: #fff; margin-bottom: 30px; } :lang(de).w940 .section-2 p { font-size: 30px; color: #fff; line-height: 1.5; } :lang(de).w940 .section-2 p span:first-child { color: #f41314; } :lang(de).w940 .section-3 { height: 1100px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine8x5/Cine8x5-Produktbeschreibung-05.jpg); } :lang(de).w940 .section-3 h4 { font-size: 60px; font-weight: 700; height: 60px; line-height: 1; color: #000; margin-bottom: 30px; } :lang(de).w940 .section-3 p span:first-child { color: #f41314; } :lang(de).w940 .section-4 { height: 1122px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine8x5/Cine8x5-Produktbeschreibung-07.jpg); } :lang(de).w940 .section-4 h4 { font-size: 60px; font-weight: 700; height: 60px; line-height: 1; color: #ffffff; margin-bottom: 30px; width: 400px; } :lang(de).w940 .section-4 p { font-size: 30px; color: #ffffff; width: 600px; line-height: 1.5; } :lang(de).w940 .section-4 p span:first-child { color: #f41314; } :lang(de).w940 .section-5 { display: none; } } /* === SHOP-OVERRIDES === */ .slideInDownInit, .slide-in-down-init { opacity: 1 !important; transform: none !important; transition: none !important; } .scaleInit { opacity: 1 !important; transform: none !important; transition: none !important; } #parameter { display: block !important; padding: 20px 5%; background: #fff; color: #333; } #parameter .mainBox { margin-bottom: 30px; } #parameter .tableTitle { font-size: 20px; font-weight: bold; padding: 15px 0; border-bottom: 2px solid #333; } #parameter table { width: 100%; border-collapse: collapse; margin: 10px 0; } #parameter td, #parameter th { border: 1px solid #ddd; padding: 8px; font-size: 14px; } #parameter img { max-width: 100%; height: auto; }
LARGE THRUST
load weight1-4kg,take-off weight4-9kg no pressure on loaded shooting equipment
SMALL VIBRATION
Reasonable structural design less power loss, and longer flight time
HIGH EFFICIENCY
The blades are not easily deformed parameter adjustment is simple, perfect for fpv cinematic
QUALITY MATERIALS
Imported glass fiber nylon material, stable signal, brings high-definition picture quality, and visual impact, allowing you to capture high-quality video easily
SPEC RECOMMENDED
ModelC8.5X5
Includes1x CCW Prop 1x CW Prop
Prop Disc Diameter216
MaterialGlass fiber nylon
Center thickness(mm)8
Hub Diameter(mm)10.4
Weight(g)14.8
Hub Inner Diameter(mm)5
Pitch(inch)5
Blades3
Maximum blade width(mm)21.5
Recommended Power Combo CINE66 1155KV/F7PRO/ C-55A 8IN1
ModelC9.5X5
Includes1x CCW Prop 1x CW Prop
Prop Disc Diameter242
MaterialGlass fiber nylon
Center thickness(mm)9
Hub Diameter(mm)12.2
Weight(g)21.29
Hub Inner Diameter(mm)5
Pitch(inch)5
Blades3
Maximum blade width(mm)25.5
Recommended Power Combo V3115 1050KV/F7PRO/ C-80A 4IN1
ModelC10.5X5
Includes1x CCW Prop 1x CW Prop
Prop Disc Diameter267
MaterialGlass fiber nylon
Center thickness(mm)10
Hub Diameter(mm)13.6
Weight(g)26.48
Hub Inner Diameter(mm)5
Pitch(inch)5
Blades3
Maximum blade width(mm)26.5
Recommended Power Combo V3120 500KV/F7PRO/ C-80A 12S
Technical Drawing
Specification Export to Excel
Model
C8.5X5
Hub Diameter
10.4mm
Includes
1x CCW Prop 1x CW Prop
Center thickness
8mm
Blades
3
Hub Inner Diameter
5mm
Material
Glass fiber nylon
Maximum blade width
21.5mm
Pitch
5in
Weight
14.8g
Prop Disc Diameter
216mm
Recommended Power Combo
CINE66 1155KV/F7PRO/C-55A 8IN1
Model
C9.5X5
Hub Diameter
12.2mm
Includes
1x CCW Prop 1x CW Prop
Center thickness
9mm
Blades
3
Hub Inner Diameter
5mm
Material
Glass fiber nylon
Maximum blade width
25.5mm
Pitch
5in
Weight
21.3g
Prop Disc Diameter
242mm
Recommended Power Combo
V3115 1050KV/F7PRO/C-80A 4IN1
Model
C10.5X5
Hub Diameter
13.6mm
Includes
1x CCW Prop 1x CW Prop
Center thickness
10mm
Blades
3
Hub Inner Diameter
5mm
Material
Glass fiber nylon
Maximum blade width
26.5mm
Pitch
5in
Weight
26.5g
Prop Disc Diameter
267mm
Recommended Power Combo
V3120 500KV/F7PRO/C-80A 12S
Test Data Export to Excel
Motor
Propeller
Throttle
Voltage (V)
Current (A)
Power (W)
RPM
Thrust (g)
Torque (N*m)
Efficiency (g/W)
Temperature (℃)
V2812 1155KV
C8.5X5X3
10%
24.07
0.73
17.6
2938
93.21
0.01
5.29
/
20%
24.04
2.68
64.4
5492
354.55
0.05
5.50
30%
24.00
5.53
132.8
7246
652.46
0.10
4.91
40%
23.93
9.30
222.5
8800
983.40
0.15
4.42
50%
23.81
16.24
386.8
10513
1423.35
0.22
3.68
60%
23.71
23.10
547.6
12141
1914.80
0.29
3.50
70%
23.56
33.75
795.0
13728
2464.25
0.38
3.10
80%
23.39
45.54
1065.1
14990
2932.56
0.45
2.75
90%
23.18
59.21
1372.7
16099
3391.62
0.53
2.47
100%
22.97
73.56
1689.7
17030
3800.57
0.60
2.25
CINE66 1155KV
C8.5X5X3
10%
24.07
0.72
17.2
2878
78.25
0.03
4.55
/
20%
24.04
2.63
63.1
5506
366.01
0.06
5.80
30%
24.00
5.32
127.8
7232
670.39
0.11
5.25
40%
23.93
9.40
224.9
8757
1009.50
0.16
4.49
50%
23.81
16.14
384.3
10434
1434.66
0.22
3.73
60%
23.71
22.86
542.0
12023
1919.69
0.30
3.54
70%
23.57
33.02
778.2
13599
2446.34
0.38
3.14
80%
23.40
44.28
1036.2
14814
2922.48
0.45
2.82
90%
23.20
57.92
1343.7
15904
3380.00
0.53
2.52
100%
22.99
72.13
1657.9
16876
3807.15
0.60
2.30
V3
T-Motor 9x5 T-Motor 3-Blatt FPV Cinematic Propeller 1xL 1xR Cine 9.5x5
Artikelnr.: PM-7240 | HAN: Cine9x5
#product_desc { padding: 0; } .slide-in-down-init { -webkit-transform: translateY(-16px); transform: translateY(-16px); -webkit-transition: all 0.5s ease; transition: all 0.5s ease; opacity: 0; } .slide-in-down { opacity: 1 !important; -webkit-transform: translateY(0) !important; transform: translateY(0) !important; } .parameter-fade-in { border-color: #d40404 !important; background-color: #2d2d2d !important; -webkit-transition: all 2s ease; transition: all 2s ease; } .pointer { display: -webkit-box; display: -ms-flexbox; display: flex; } .pointer.black span { background-color: #000; } .pointer.white span { background-color: #fff; } .pointer span { display: block; width: 6px; height: 6px; border-radius: 50%; margin-right: 6px; } .pointer span:nth-child(1) { opacity: 1; } .pointer span:nth-child(2) { opacity: 0.7; } .pointer span:nth-child(3) { opacity: 0.4; } .goods-section { position: relative; background-repeat: no-repeat; background-size: cover; overflow: hidden; } .goods-section .section-con { margin: 0 auto; max-width: 100%; padding: 0 20px; } @media screen and (min-width: 991px) { .goods-section .section-con { width: 100%; max-width: 1600px; padding: 0 40px; } } .section-1 { height: 0; padding-bottom: calc(100% * 1088 / 940); background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine9x5/Cine9x5-Produktbeschreibung-01.jpg); } @media screen and (min-width: 991px) { .section-1 { height: 0; padding-bottom: calc(100% * 950 / 1920); background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine9x5/Cine9x5-Produktbeschreibung-02.jpg); } } .section-1 .section-con { padding-top: calc(15% * 950 / 1920); } @media screen and (min-width: 991px) { .section-1 .section-con { padding-top: calc(35% * 950 / 1920); } } .section-1 .section-con h4 { font-size: 5.1063829787vw; font-weight: 700; color: #161616; line-height: 1.25; text-align: center; margin-bottom: 3.1914893617vw; } @media screen and (min-width: 991px) { .section-1 .section-con h4 { font-size: 3.125vw; margin-left: -0.2083333333vw; text-align: left; margin-bottom: 2.0833333333vw; } } .section-1 .section-con p { font-size: 2.5531914894vw; color: #000000; text-align: center; width: 62.7659574468vw; margin: 0 auto; line-height: 1.5; } @media screen and (min-width: 991px) { .section-1 .section-con p { margin: 0; text-align: left; font-size: 1.25vw; line-height: 2.25; } } .section-1 .section-con p strong { color: #f41314; font-size: 5.1063829787vw; font-weight: 700; } @media screen and (min-width: 991px) { .section-1 .section-con p strong { font-size: 3.125vw; display: inline-block; line-height: 0.74; height: 2.5vw; } } .section-2 { height: 0; padding-bottom: calc(100% * 1088 / 940); background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine9x5/Cine9x5-Produktbeschreibung-03.jpg); } @media screen and (min-width: 991px) { .section-2 { height: 0; padding-bottom: calc(100% * 950 / 1920); background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine9x5/Cine9x5-Produktbeschreibung-04.jpg); } } .section-2 .section-con { position: absolute; left: 0; right: 0; bottom: calc(15% * 1088 / 940); display: flex; flex-direction: column; align-items: flex-end; } .section-2 .section-con > * { width: 45%; } @media screen and (min-width: 991px) { .section-2 .section-con { bottom: calc(20% * 950 / 1920); } .section-2 .section-con > * { width: 31.25%; } } .section-2 h4 { font-size: 6.3829787234vw; font-weight: 700; line-height: 1.25 !important; color: #fff; margin-bottom: 3.1914893617vw; } @media screen and (min-width: 991px) { .section-2 h4 { font-size: 3.125vw; margin-bottom: 2.0833333333vw; } } .section-2 p { font-size: 3.1914893617vw; line-height: 1.5; color: #fff; } @media screen and (min-width: 991px) { .section-2 p { font-size: 1.25vw; } } .section-2 p span:first-child { color: #f41314; } .section-3 { height: 0; padding-bottom: calc(100% * 1088 / 940); background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine9x5/Cine9x5-Produktbeschreibung-05.jpg); } .section-3 .section-con { position: absolute; left: 0; right: 0; top: calc(10% * 1088 / 940); display: flex; flex-direction: column; align-items: flex-end; } .section-3 .section-con > * { width: 100%; } @media screen and (min-width: 991px) { .section-3 { padding-bottom: calc(100% * 950 / 1920); background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine9x5/Cine9x5-Produktbeschreibung-06.jpg); } .section-3 .section-con { top: calc(40% * 950 / 1920); } .section-3 .section-con > * { width: 31.25%; } :lang(en).section-3 .section-con > * { width: 37.25%; } } .section-3 h4 { font-size: 6.3829787234vw; font-weight: 700; color: #000; text-align: center; margin-bottom: 3.1914893617vw; } @media screen and (min-width: 991px) { .section-3 h4 { font-size: 3.125vw; margin-bottom: 2.0833333333vw; margin-left: -0.2083333333vw; line-height: 1.25; text-align: left; } } .section-3 p { font-size: 3.1914893617vw; color: #000; text-align: center; line-height: 1.5; } @media screen and (min-width: 991px) { .section-3 p { text-align: left; width: auto; font-size: 1.25vw; } } .section-3 p span:first-child { color: #f41314; } .section-4 { height: 0; padding-bottom: calc(100% * 1088 / 940); background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine9x5/Cine9x5-Produktbeschreibung-07.jpg); } @media screen and (min-width: 991px) { .section-4 { padding-bottom: calc(100% * 950 / 1920); background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine9x5/Cine9x5-Produktbeschreibung-08.jpg); } } .section-4 .section-con { position: absolute; left: 0; right: 0; top: calc(10% * 1088 / 940); display: flex; flex-direction: column; align-items: flex-start; } @media screen and (min-width: 991px) { .section-4 .section-con { top: calc(36% * 950 / 1920); } } .section-4 h4 { font-size: 6.3829787234vw; font-weight: 700; color: #ffffff; margin-bottom: 3.1914893617vw; width: 42.5531914894vw; line-height: 1.25; } @media screen and (min-width: 991px) { .section-4 h4 { font-size: 3.125vw; margin-bottom: 2.0833333333vw; line-height: 1.25; } } .section-4 p { font-size: 3.1914893617vw; color: #ffffff; width: 63.829787234vw; line-height: 1.5; } @media screen and (min-width: 991px) { .section-4 p { width: 34.375vw; font-size: 1.25vw; } } .section-4 p span:first-child { color: #f41314; } .section-5 { display: none; height: 58.3333333333vw; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine9x5/Cine9x5-Produktbeschreibung-09.jpg); } @media screen and (min-width: 991px) { .section-5 { display: block; } } .section-5 .section-con { padding-top: 3.8541666667vw; max-width: 72.9166666667vw !important; } .section-5 h4 { font-size: 3.125vw; line-height: 1.25; color: #fff; font-weight: 700; text-align: center; width: 31.25vw; margin: 0 auto; margin-bottom: 3.125vw; } .section-5 .parameter { display: -webkit-box; display: -ms-flexbox; display: flex; -webkit-box-pack: justify; -ms-flex-pack: justify; justify-content: space-between; } .section-5 .parameter .parameter-item { width: calc((100% - 80px) / 3); border-width: 2px; border-style: solid; border-color: transparent; border-radius: 4px; background-color: transparent; padding-top: 30px; padding-bottom: 30px; } .section-5 .parameter .parameter-item .parameter-list .parameter-cell { height: 2.6041666667vw; border-bottom: 1px solid #3c3c3c; -webkit-box-sizing: border-box; box-sizing: border-box; display: -webkit-box; display: -ms-flexbox; display: flex; -webkit-box-align: center; -ms-flex-align: center; align-items: center; -webkit-box-pack: justify; -ms-flex-pack: justify; justify-content: space-between; padding: 0 1.5625vw; padding-right: 0.4166666667vw; font-size: 1.1458333333vw; color: #d4d3d3; } .section-5 .parameter .parameter-item .parameter-list .parameter-cell i { font-size: 0.8333333333vw; } .section-5 .parameter .parameter-item .parameter-list .parameter-cell .small { font-size: 0.9375vw; } .section-5 .parameter .parameter-item .parameter-list .parameter-cell .mini { font-size: 0.7291666667vw; } .section-5 .parameter .parameter-item .parameter-list .parameter-cell span:last-child { display: block; width: 4.6875vw; color: #ffffff; } .section-5 .parameter .parameter-item p { font-size: 1.25vw; padding: 0 1.5625vw; padding-top: 0.625vw; } .section-5 .parameter .parameter-item p span:first-child { color: #d4d3d3; } .section-5 .parameter .parameter-item p span:last-child { color: #fff; } .pointer { display: none; margin-top: 60px; } @media screen and (min-width: 991px) { .pointer { display: -webkit-box; display: -ms-flexbox; display: flex; } } :lang(de).section-4 .section-con h4 { width: 57.4468085106vw; } @media screen and (min-width: 991px) { :lang(ja).section-5 { display: none; } } @media screen and (min-width: 941px) { .w940 .pointer { display: none; } .w940 .goods-section { position: relative; background-repeat: no-repeat; background-size: cover; overflow: hidden; } .w940 .goods-section .section-con { margin: 0 auto; max-width: 100%; } .w940 .section-1 { height: 1090px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine9x5/Cine9x5-Produktbeschreibung-01.jpg); } .w940 .section-1 .section-con { padding-top: 64px; } .w940 .section-1 .section-con h4 { font-size: 48px; height: auto; font-weight: 700; line-height: 1.5; color: #161616; text-align: center; margin-bottom: 30px; } .w940 .section-1 .section-con p { font-size: 24px; color: #000000; text-align: center; width: 590px; margin: 0 auto; line-height: 1.5; } .w940 .section-1 .section-con p strong { color: #f41314; font-size: 48px; font-weight: 700; } .w940 .section-2 { height: 1010px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine9x5/Cine9x5-Produktbeschreibung-03.jpg); } .w940 .section-2 h4 { font-size: 60px; height: auto !important; line-height: 1.25; font-weight: 700; color: #fff; margin-bottom: 30px; } .w940 .section-2 p { font-size: 30px; color: #fff; line-height: 1.5; } .w940 .section-2 p span:first-child { color: #f41314; } .w940 .section-3 { height: 1100px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine9x5/Cine9x5-Produktbeschreibung-05.jpg); } .w940 .section-3 h4 { font-size: 60px; font-weight: 700; height: auto !important; line-height: 1.25; color: #000; margin-bottom: 30px; } .w940 .section-3 p span:first-child { color: #f41314; } .w940 .section-4 { height: 1122px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine9x5/Cine9x5-Produktbeschreibung-07.jpg); } .w940 .section-4 h4 { font-size: 60px; font-weight: 700; height: auto !important; line-height: 1.25; color: #ffffff; margin-bottom: 30px; width: 400px; } .w940 .section-4 p { font-size: 30px; color: #ffffff; width: 620px; line-height: 1.5; } .w940 .section-4 p span:first-child { color: #f41314; } .w940 .section-5 { display: none; } :lang(en).w940 { width: 940px; } :lang(en).w940 .pointer { display: none; } :lang(en).w940 .goods-section { position: relative; background-repeat: no-repeat; background-size: cover; overflow: hidden; } :lang(en).w940 .goods-section .section-con { margin: 0 auto; max-width: 100%; } :lang(en).w940 .section-1 { height: 1090px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine9x5/Cine9x5-Produktbeschreibung-01.jpg); } :lang(en).w940 .section-1 .section-con { padding-top: 64px; } :lang(en).w940 .section-1 .section-con h4 { font-size: 48px; height: 48px; font-weight: 700; line-height: 1; color: #161616; text-align: center; margin-bottom: 44px; } :lang(en).w940 .section-1 .section-con p { font-size: 24px; color: #000000; text-align: center; width: 590px; margin: 0 auto; line-height: 1.5; } :lang(en).w940 .section-1 .section-con p strong { color: #f41314; font-size: 48px; font-weight: 700; } :lang(en).w940 .section-2 { height: 1010px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine9x5/Cine9x5-Produktbeschreibung-03.jpg); } :lang(en).w940 .section-2 h4 { font-size: 60px; height: 60px; line-height: 1; font-weight: 700; color: #fff; margin-bottom: 30px; } :lang(en).w940 .section-2 p { font-size: 30px; color: #fff; line-height: 1.5; } :lang(en).w940 .section-2 p span:first-child { color: #f41314; } :lang(en).w940 .section-3 { height: 1100px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine9x5/Cine9x5-Produktbeschreibung-05.jpg); } :lang(en).w940 .section-3 h4 { font-size: 60px; font-weight: 700; height: 60px; line-height: 1; color: #000; margin-bottom: 30px; } :lang(en).w940 .section-3 p span:first-child { color: #f41314; } :lang(en).w940 .section-4 { height: 1122px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine9x5/Cine9x5-Produktbeschreibung-07.jpg); } :lang(en).w940 .section-4 h4 { font-size: 60px; font-weight: 700; height: 60px; line-height: 1; color: #ffffff; margin-bottom: 30px; width: 400px; } :lang(en).w940 .section-4 p { font-size: 30px; color: #ffffff; width: 600px; line-height: 1.5; } :lang(en).w940 .section-4 p span:first-child { color: #f41314; } :lang(en).w940 .section-5 { display: none; } :lang(ja).w940 { width: 940px; } :lang(ja).w940 .pointer { display: none; } :lang(ja).w940 .goods-section { position: relative; background-repeat: no-repeat; background-size: cover; overflow: hidden; } :lang(ja).w940 .goods-section .section-con { margin: 0 auto; max-width: 100%; } :lang(ja).w940 .section-1 { height: 1090px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine9x5/Cine9x5-Produktbeschreibung-01.jpg); } :lang(ja).w940 .section-1 .section-con { padding-top: 64px; } :lang(ja).w940 .section-1 .section-con h4 { font-size: 48px; height: 48px; font-weight: 700; line-height: 1; color: #161616; text-align: center; margin-bottom: 30px; } :lang(ja).w940 .section-1 .section-con p { font-size: 24px; color: #000000; text-align: center; width: 590px; margin: 0 auto; line-height: 1.5; } :lang(ja).w940 .section-1 .section-con p strong { color: #f41314; font-size: 48px; font-weight: 700; } :lang(ja).w940 .section-2 { height: 1010px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine9x5/Cine9x5-Produktbeschreibung-03.jpg); } :lang(ja).w940 .section-2 h4 { font-size: 60px; height: 60px; line-height: 1; font-weight: 700; color: #fff; margin-bottom: 30px; } :lang(ja).w940 .section-2 p { font-size: 30px; color: #fff; line-height: 1.5; } :lang(ja).w940 .section-2 p span:first-child { color: #f41314; } :lang(ja).w940 .section-3 { height: 1100px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine9x5/Cine9x5-Produktbeschreibung-05.jpg); } :lang(ja).w940 .section-3 h4 { font-size: 60px; font-weight: 700; height: 60px; line-height: 1; color: #000; margin-bottom: 30px; } :lang(ja).w940 .section-3 p span:first-child { color: #f41314; } :lang(ja).w940 .section-4 { height: 1122px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine9x5/Cine9x5-Produktbeschreibung-07.jpg); } :lang(ja).w940 .section-4 h4 { font-size: 60px; font-weight: 700; height: 60px; line-height: 1; color: #ffffff; margin-bottom: 30px; width: 400px; } :lang(ja).w940 .section-4 p { font-size: 30px; color: #ffffff; width: 600px; line-height: 1.5; } :lang(ja).w940 .section-4 p span:first-child { color: #f41314; } :lang(ja).w940 .section-5 { display: none; } :lang(de).w940 { width: 940px; } :lang(de).w940 .pointer { display: none; } :lang(de).w940 .goods-section { position: relative; background-repeat: no-repeat; background-size: cover; overflow: hidden; } :lang(de).w940 .goods-section .section-con { margin: 0 auto; max-width: 100%; } :lang(de).w940 .section-1 { height: 1090px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine9x5/Cine9x5-Produktbeschreibung-01.jpg); } :lang(de).w940 .section-1 .section-con { padding-top: 64px; } :lang(de).w940 .section-1 .section-con h4 { font-size: 48px; height: 48px; font-weight: 700; line-height: 1; color: #161616; text-align: center; margin-bottom: 30px; } :lang(de).w940 .section-1 .section-con p { font-size: 24px; color: #000000; text-align: center; width: 590px; margin: 0 auto; line-height: 1.5; } :lang(de).w940 .section-1 .section-con p strong { color: #f41314; font-size: 48px; font-weight: 700; } :lang(de).w940 .section-2 { height: 1010px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine9x5/Cine9x5-Produktbeschreibung-03.jpg); } :lang(de).w940 .section-2 h4 { font-size: 60px; height: 60px; line-height: 1; font-weight: 700; color: #fff; margin-bottom: 30px; } :lang(de).w940 .section-2 p { font-size: 30px; color: #fff; line-height: 1.5; } :lang(de).w940 .section-2 p span:first-child { color: #f41314; } :lang(de).w940 .section-3 { height: 1100px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine9x5/Cine9x5-Produktbeschreibung-05.jpg); } :lang(de).w940 .section-3 h4 { font-size: 60px; font-weight: 700; height: 60px; line-height: 1; color: #000; margin-bottom: 30px; } :lang(de).w940 .section-3 p span:first-child { color: #f41314; } :lang(de).w940 .section-4 { height: 1122px; background-image: url(https://bilder.premium-modellbau.de/bilder/produkte/T-Motor/Cine9x5/Cine9x5-Produktbeschreibung-07.jpg); } :lang(de).w940 .section-4 h4 { font-size: 60px; font-weight: 700; height: 60px; line-height: 1; color: #ffffff; margin-bottom: 30px; width: 400px; } :lang(de).w940 .section-4 p { font-size: 30px; color: #ffffff; width: 600px; line-height: 1.5; } :lang(de).w940 .section-4 p span:first-child { color: #f41314; } :lang(de).w940 .section-5 { display: none; } } /* === SHOP-OVERRIDES === */ .slideInDownInit, .slide-in-down-init { opacity: 1 !important; transform: none !important; transition: none !important; } .scaleInit { opacity: 1 !important; transform: none !important; transition: none !important; } #parameter { display: block !important; padding: 20px 5%; background: #fff; color: #333; } #parameter .mainBox { margin-bottom: 30px; } #parameter .tableTitle { font-size: 20px; font-weight: bold; padding: 15px 0; border-bottom: 2px solid #333; } #parameter table { width: 100%; border-collapse: collapse; margin: 10px 0; } #parameter td, #parameter th { border: 1px solid #ddd; padding: 8px; font-size: 14px; } #parameter img { max-width: 100%; height: auto; }
LARGE THRUST
load weight1-4kg,take-off weight4-9kg no pressure on loaded shooting equipment
SMALL VIBRATION
Reasonable structural design less power loss, and longer flight time
HIGH EFFICIENCY
The blades are not easily deformed parameter adjustment is simple, perfect for fpv cinematic
QUALITY MATERIALS
Imported glass fiber nylon material, stable signal, brings high-definition picture quality, and visual impact, allowing you to capture high-quality video easily
SPEC RECOMMENDED
ModelC8.5X5
Includes1x CCW Prop 1x CW Prop
Prop Disc Diameter216
MaterialGlass fiber nylon
Center thickness(mm)8
Hub Diameter(mm)10.4
Weight(g)14.8
Hub Inner Diameter(mm)5
Pitch(inch)5
Blades3
Maximum blade width(mm)21.5
Recommended Power Combo CINE66 1155KV/F7PRO/ C-55A 8IN1
ModelC9.5X5
Includes1x CCW Prop 1x CW Prop
Prop Disc Diameter242
MaterialGlass fiber nylon
Center thickness(mm)9
Hub Diameter(mm)12.2
Weight(g)21.29
Hub Inner Diameter(mm)5
Pitch(inch)5
Blades3
Maximum blade width(mm)25.5
Recommended Power Combo V3115 1050KV/F7PRO/ C-80A 4IN1
ModelC10.5X5
Includes1x CCW Prop 1x CW Prop
Prop Disc Diameter267
MaterialGlass fiber nylon
Center thickness(mm)10
Hub Diameter(mm)13.6
Weight(g)26.48
Hub Inner Diameter(mm)5
Pitch(inch)5
Blades3
Maximum blade width(mm)26.5
Recommended Power Combo V3120 500KV/F7PRO/ C-80A 12S
Technical Drawing
Specification Export to Excel
Model
C8.5X5
Hub Diameter
10.4mm
Includes
1x CCW Prop 1x CW Prop
Center thickness
8mm
Blades
3
Hub Inner Diameter
5mm
Material
Glass fiber nylon
Maximum blade width
21.5mm
Pitch
5in
Weight
14.8g
Prop Disc Diameter
216mm
Recommended Power Combo
CINE66 1155KV/F7PRO/C-55A 8IN1
Model
C9.5X5
Hub Diameter
12.2mm
Includes
1x CCW Prop 1x CW Prop
Center thickness
9mm
Blades
3
Hub Inner Diameter
5mm
Material
Glass fiber nylon
Maximum blade width
25.5mm
Pitch
5in
Weight
21.3g
Prop Disc Diameter
242mm
Recommended Power Combo
V3115 1050KV/F7PRO/C-80A 4IN1
Model
C10.5X5
Hub Diameter
13.6mm
Includes
1x CCW Prop 1x CW Prop
Center thickness
10mm
Blades
3
Hub Inner Diameter
5mm
Material
Glass fiber nylon
Maximum blade width
26.5mm
Pitch
5in
Weight
26.5g
Prop Disc Diameter
267mm
Recommended Power Combo
V3120 500KV/F7PRO/C-80A 12S
Test Data Export to Excel
Motor
Propeller
Throttle
Voltage (V)
Current (A)
Power (W)
RPM
Thrust (g)
Torque (N*m)
Efficiency (g/W)
Temperature (℃)
V2812 1155KV
C8.5X5X3
10%
24.07
0.73
17.6
2938
93.21
0.01
5.29
/
20%
24.04
2.68
64.4
5492
354.55
0.05
5.50
30%
24.00
5.53
132.8
7246
652.46
0.10
4.91
40%
23.93
9.30
222.5
8800
983.40
0.15
4.42
50%
23.81
16.24
386.8
10513
1423.35
0.22
3.68
60%
23.71
23.10
547.6
12141
1914.80
0.29
3.50
70%
23.56
33.75
795.0
13728
2464.25
0.38
3.10
80%
23.39
45.54
1065.1
14990
2932.56
0.45
2.75
90%
23.18
59.21
1372.7
16099
3391.62
0.53
2.47
100%
22.97
73.56
1689.7
17030
3800.57
0.60
2.25

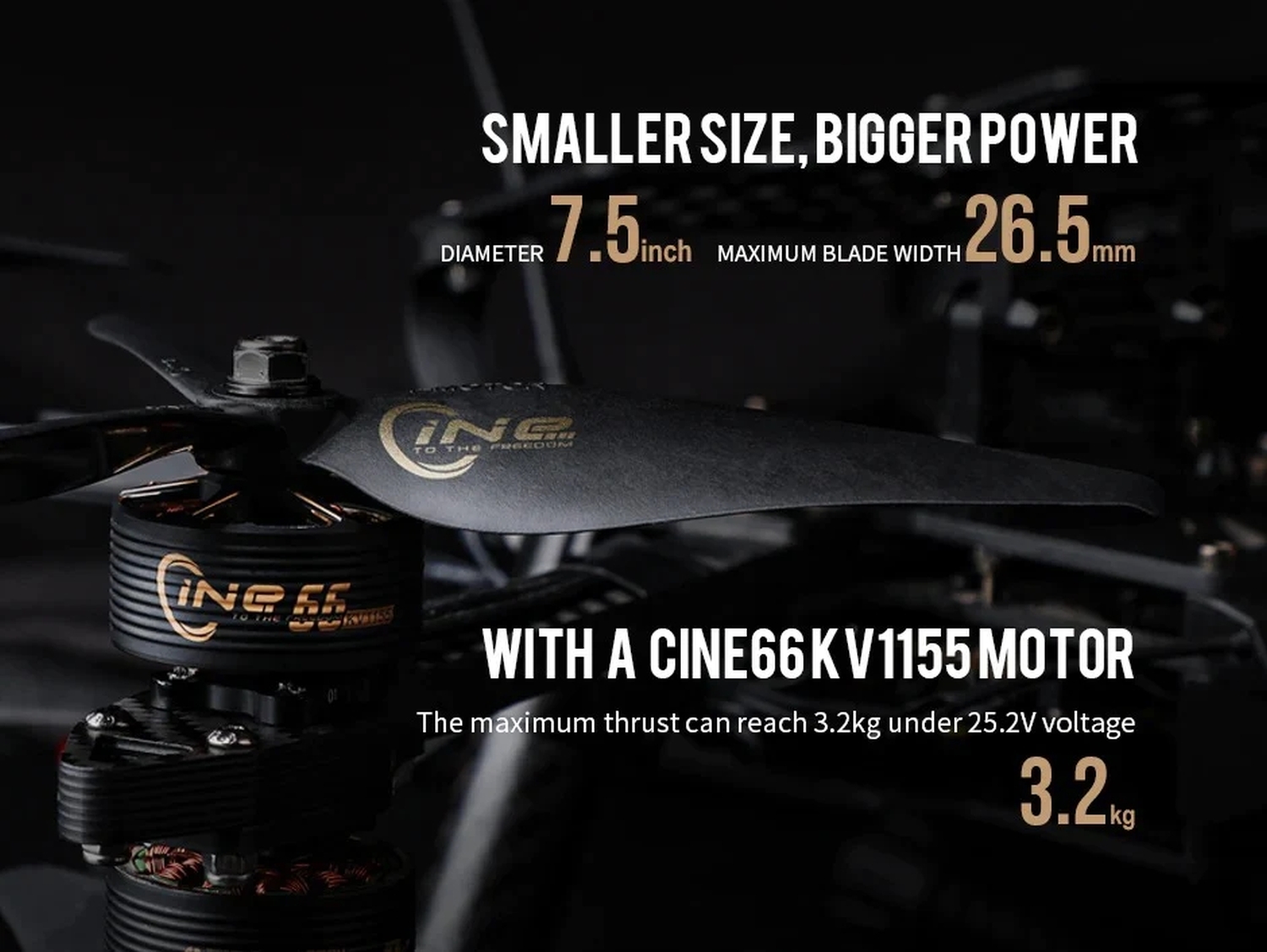

CINE66 1155KV
C8.5X5X3
10%
24.07
0.72
17.2
2878
78.25
0.03
4.55
/
20%
24.04
2.63
63.1
5506
366.01
0.06
5.80
30%
24.00
5.32
127.8
7232
670.39
0.11
5.25
40%
23.93
9.40
224.9
8757
1009.50
0.16
4.49
50%
23.81
16.14
384.3
10434
1434.66
0.22
3.73
60%
23.71
22.86
542.0
12023
1919.69
0.30
3.54
70%
23.57
33.02
778.2
13599
2446.34
0.38
3.14
80%
23.40
44.28
1036.2
14814
2922.48
0.45
2.82
90%
23.20
57.92
1343.7
15904
3380.00
0.53
2.52
100%
22.99
72.13
1657.9
16876
3807.15
0.60
2.30
V3
Last updated
