Polymer Propeller


T-Motor 12x6 X-Carbon Propeller Luftschraube T12x6

Artikelnr.: PM-7248 | HAN: T12x6

Zum Premium-Modellbau Shoparrow-up-right

T-Motor 12x6 X-Carbon Propeller Luftschraube T12x6

/* === SHOP-OVERRIDES === */ .slideInDownInit, .slide-in-down-init { opacity: 1 !important; transform: none !important; transition: none !important; } .scaleInit { opacity: 1 !important; transform: none !important; transition: none !important; } #parameter { display: block !important; padding: 20px 5%; background: #fff; color: #333; } #parameter .mainBox { margin-bottom: 30px; } #parameter .tableTitle { font-size: 20px; font-weight: bold; padding: 15px 0; border-bottom: 2px solid #333; } #parameter table { width: 100%; border-collapse: collapse; margin: 10px 0; } #parameter td, #parameter th { border: 1px solid #ddd; padding: 8px; font-size: 14px; } #parameter img { max-width: 100%; height: auto; }

About T-MOTOR T12*6 Black CW Outdoor Plane Polymer Material Propeller

T12*6 is a polymer material propeller for 1-1.3m wingspan fixed wing airplanes. The silent design of the paddle realizes interference-free flight, easy to install and fly as you like. Recommended with 28-35 series/AM480 motor.

T12*6 Highlights:

1.CW polymer black carbon fiber propeller. It's lighter?stronger and easier to reach the target

2.Propeller mute design to realize non-interference flight. You can hear only the airflow across the propeller sound

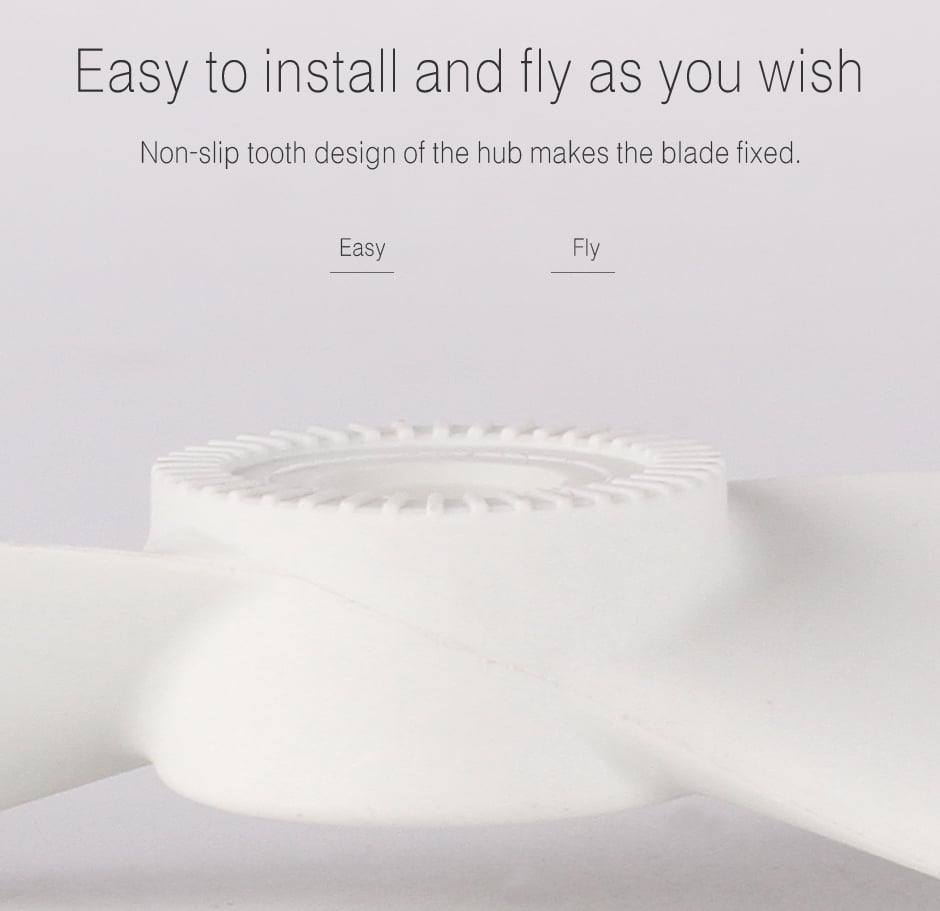

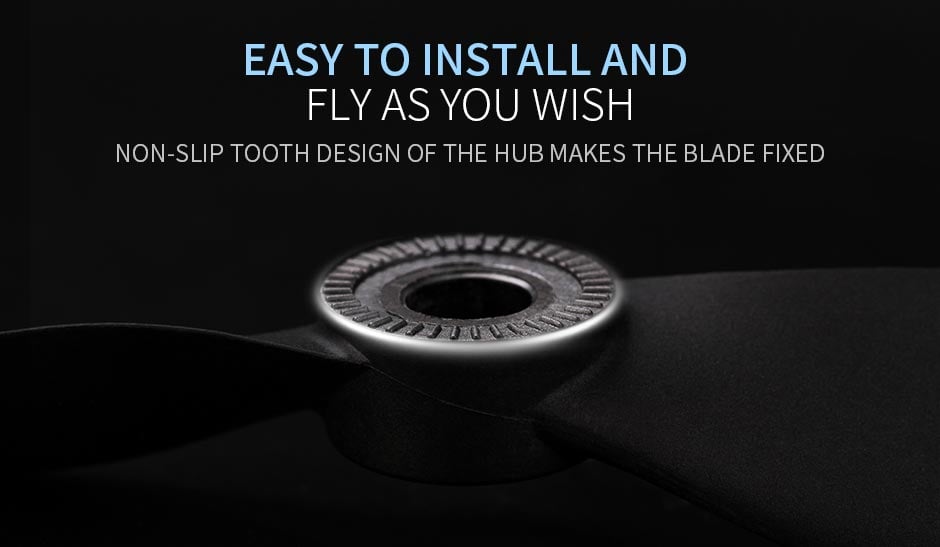

3.Easy to install?easy to fly?the bottom of the propeller non-slip teeth design?propeller fixed stronger

Packing List Includes:

1x T-MOTOR T12*6 Carbon Propeller

Matching Guide:

AM480 Motorarrow-up-right / AM66A ESCarrow-up-right

stronger faster and easier to fly

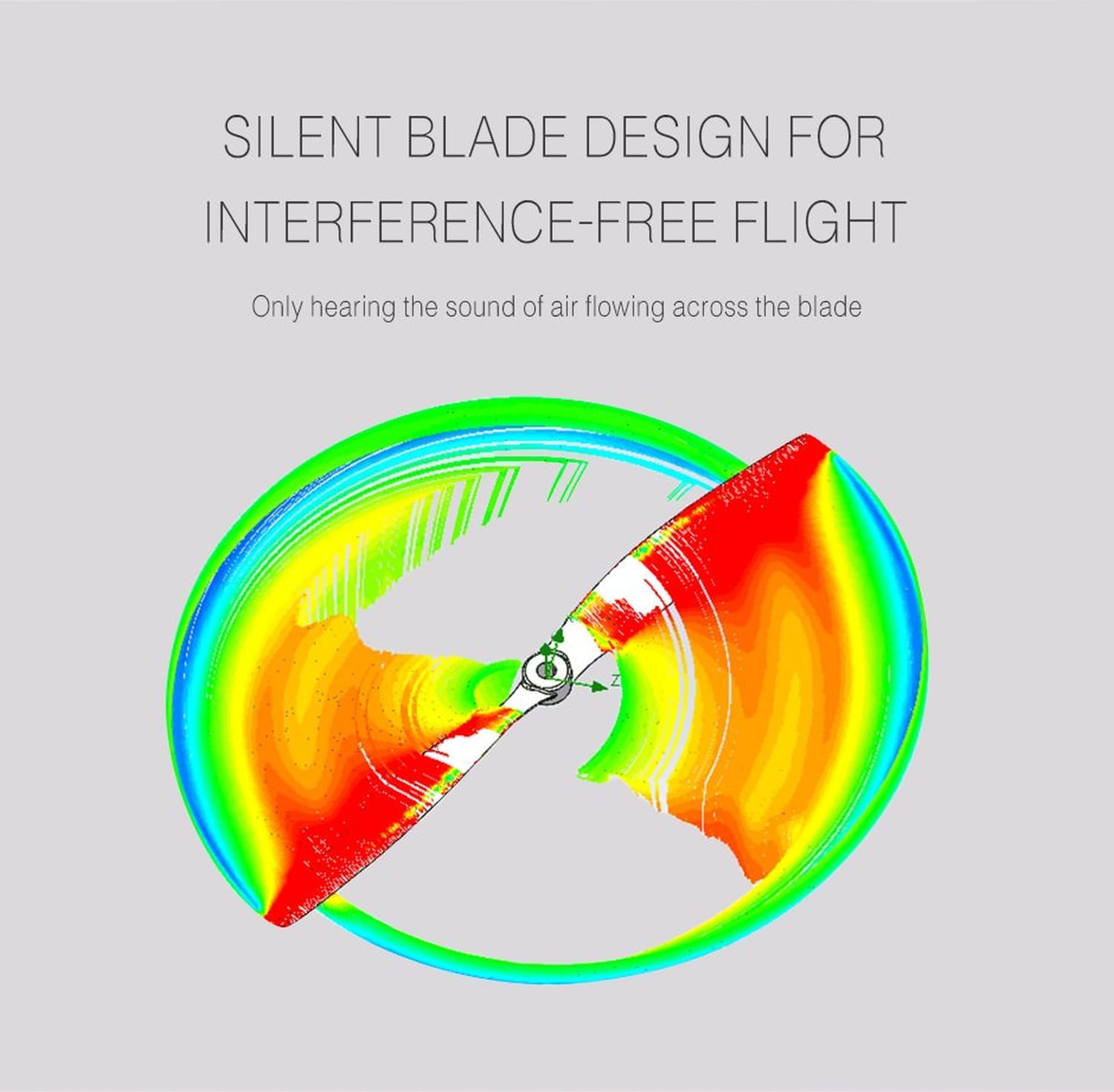

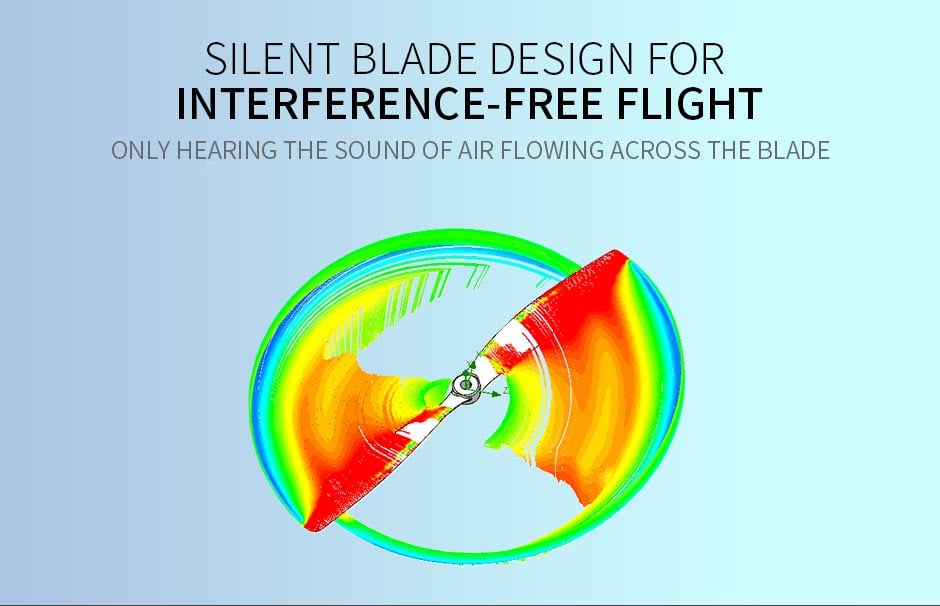

silent blade design for interference-free flight
easy to install

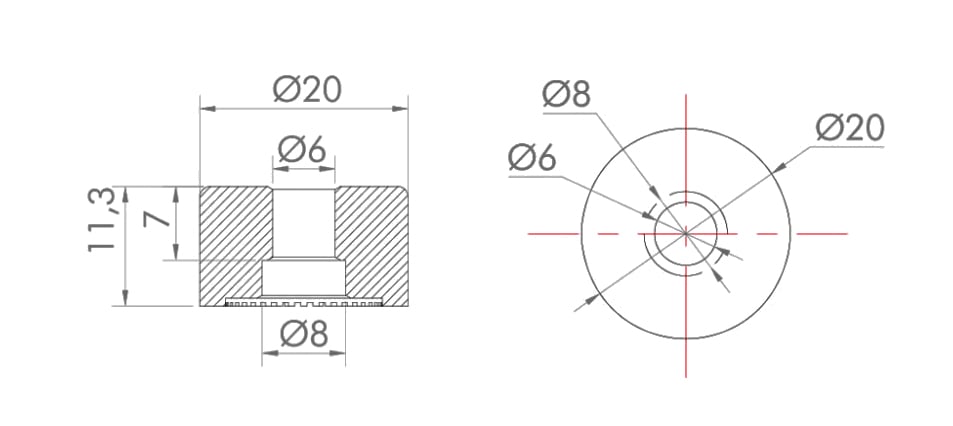

Technical Drawing


Specification Export to Excel

Model NO.

12*6 CW&CCW BLACK

T-MOTOR Series

Fixed-wing

Weight

18.3g

Package Weight

116.5g

Diameter

12inch (304.8mm)

Package Size

361*56*19.7mm

Pitch

6inch (152mm)

Material

Polymer + Carbon Fiber

Max Thrust

20000RPM

Storage Temp/Humidity

-10℃~50℃/<85%

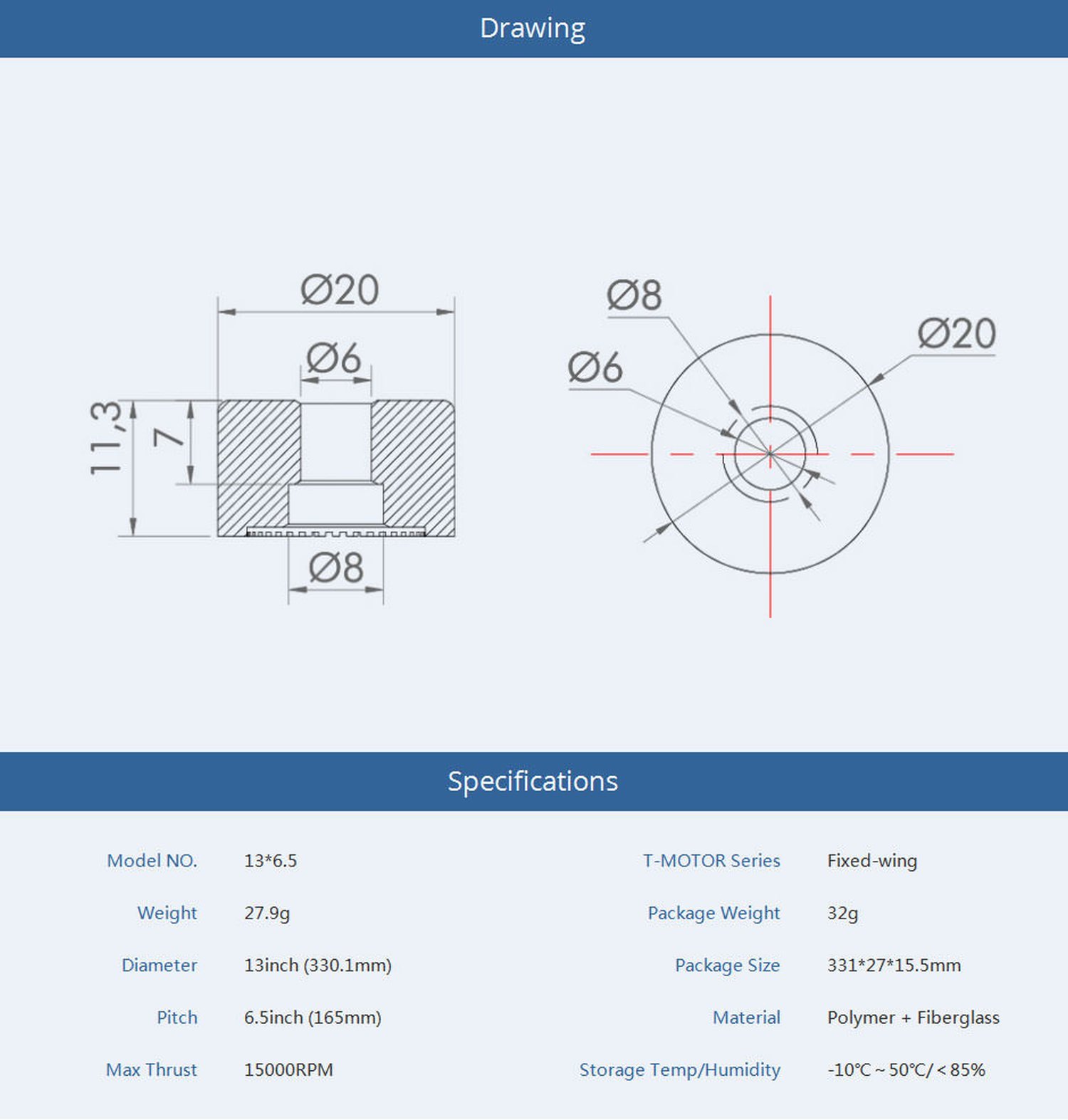

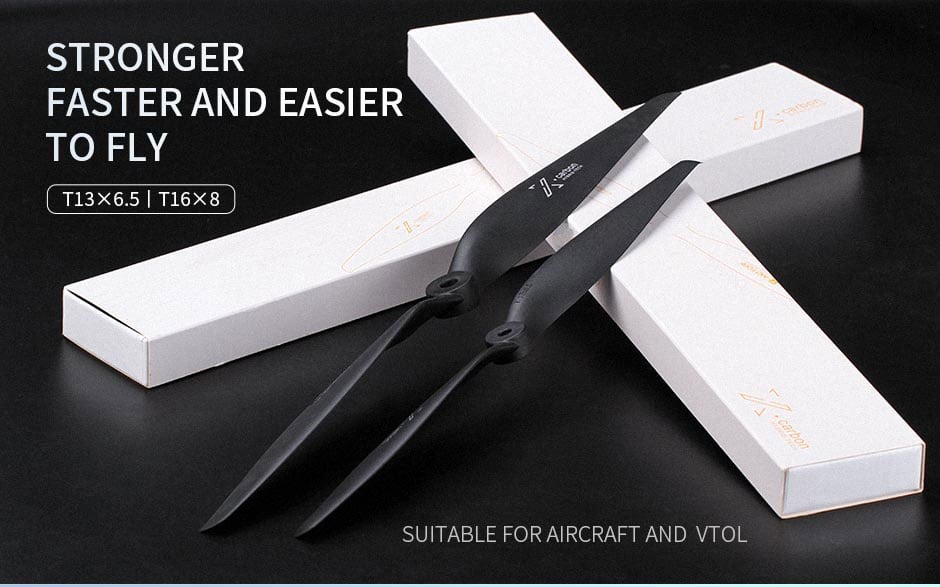

T-Motor 13x6.5 Propeller Polymer Luftschraube AM13x6.5

Artikelnr.: PM-5930 | HAN: AM13x6.5

Zum Premium-Modellbau Shoparrow-up-right

T-Motor 13x6.5 Propeller Polymer Luftschraube AM13x6.5

T-Motor 13x6.5 Propeller Polymer Luftschraube AM13x6.5


T-Motor 16x8 Propeller Polymer Luftschraube AM16x8

Artikelnr.: PM-5931 | HAN: AM16x8

Zum Premium-Modellbau Shoparrow-up-right

T-Motor 16x8 Propeller Polymer Luftschraube AM16x8

T-Motor 16x8 Propeller Polymer Luftschraube AM16x8

Passend für 8mm Wellen.


T-Motor MS1101 11 Zoll Carbon Polymer Propeller 1x CW 1x CCW

Artikelnr.: PM-5120 | HAN: MS1101

Zum Premium-Modellbau Shoparrow-up-right

T-Motor MS1101 11 Zoll Carbon Polymer Propeller 1x CW 1x CCW

T-Motor MS1101 11 Zoll Carbon Polymer Propeller 1x CW 1x CCW

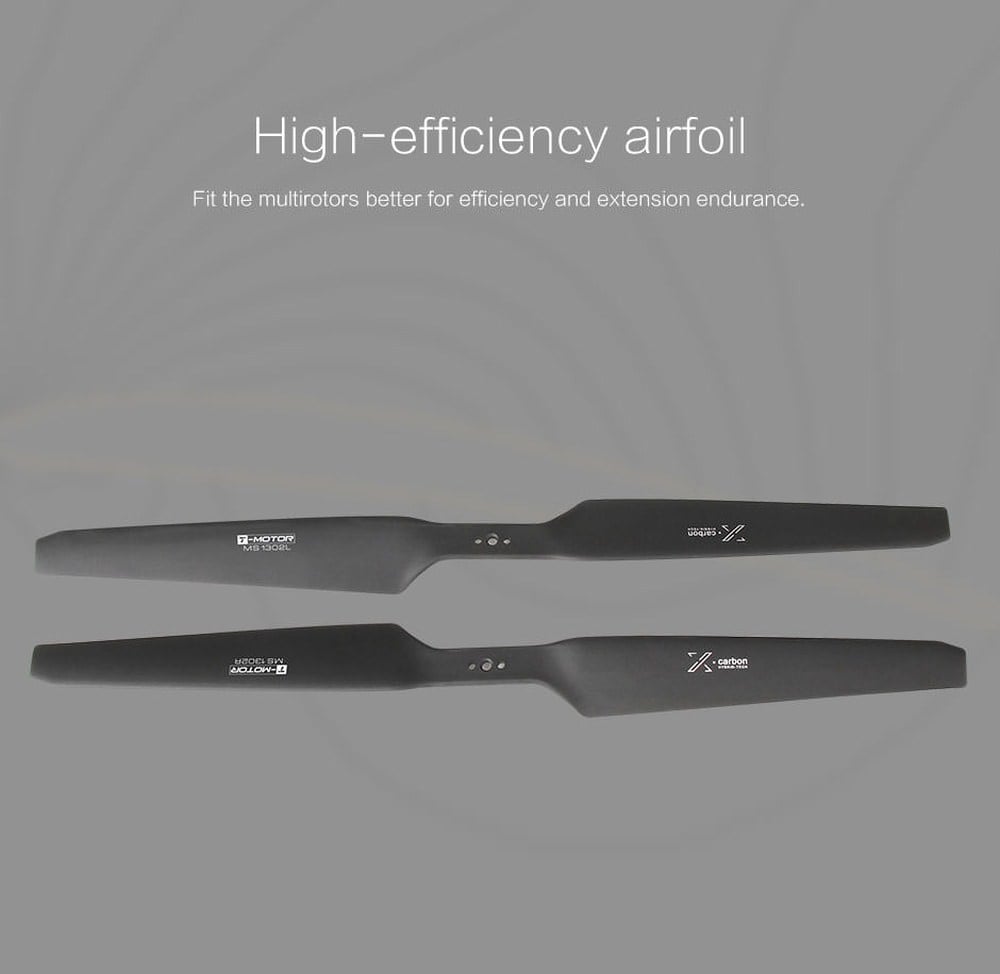

Sehr hochwertige Carbon Polymer Propeller von T-Motor aus der neuen MS-Serie.

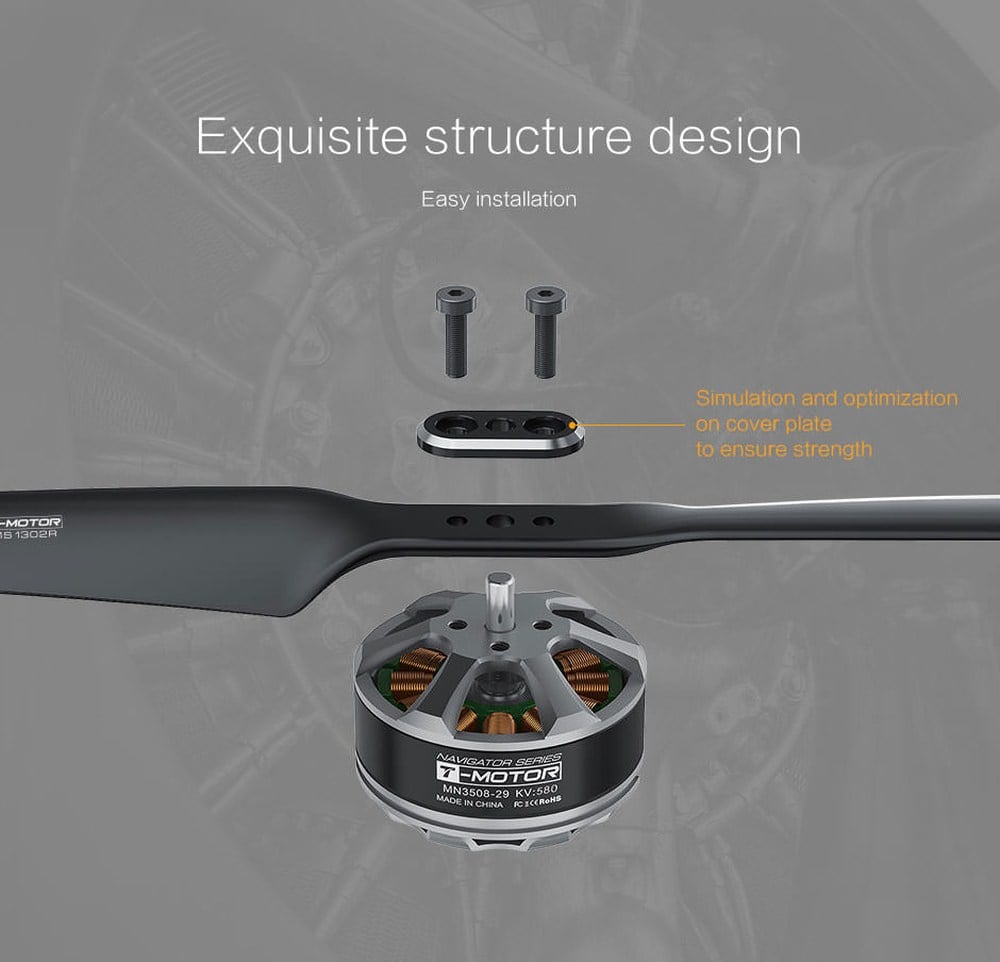

Nach langer Forschungszeit bringt T-Motor nun die Revolution im Multicopter-Propeller-Sektor auf den Markt. Der Carbon Polymer Materialmix ermöglicht sehr stabile und haltbare Propeller welche gleichzeitig sehr effizient sind.Die Propeller sind bereits ausgewuchtet und werden als Paar ausgeliefert (1x CW, 1x CCW). Für einen Quad werden also zwei Sets, für einen Hexacopter drei Sets benötigt.Die Propeller passen perfekt für alle Motoren mit Direktmontage wie z.B. die T-Motor MN, P oder U Serie. Natürlich ist auch eine Kombination mit anderen Herstellern gewährleistet.

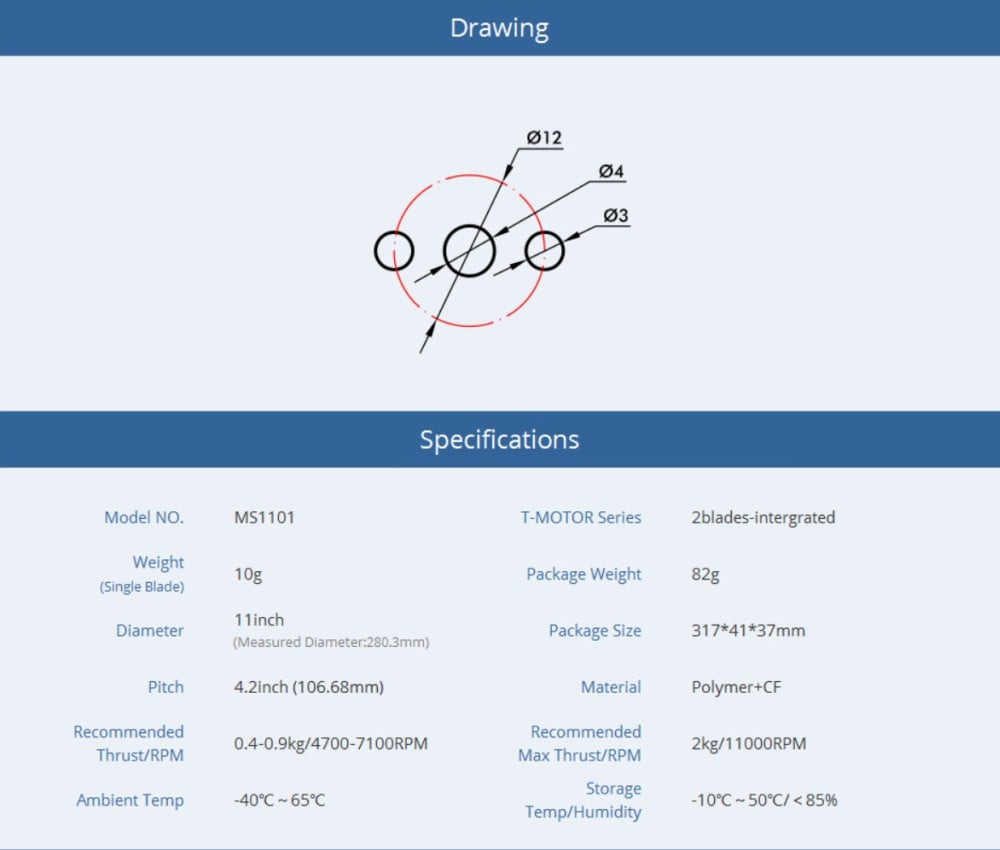

Technische Daten der T-Motor MS1101 Propeller:

  • Durchmesser: 11" (280,3mm)

  • Steigung: 4.2" (106,68mm)

  • Gewicht: 10g (Einzelblatt)

  • Material: Carbon Polymer Mix (Propeller)

  • Optimaler Schub / Drehzahl: 0,4- 0,9kg / 4700-7100RPM

  • Maximal Schub / Drehzahl: 2kg / 11000RPM

  • Lochkreis: 12mm (M3)

  • Bohrung: 4mm

  • Lieferumfang: 1x CW + 1x CCW Propeller


T-Motor MS1302 13 Zoll Carbon Polymer Propeller 1x CW 1x CCW

Artikelnr.: PM-4986 | HAN: MS1302

Zum Premium-Modellbau Shoparrow-up-right

T-Motor MS1302 13 Zoll Carbon Polymer Propeller 1x CW 1x CCW

T-Motor MS1302 13 Zoll Carbon Polymer Propeller 1x CW 1x CCW

Sehr hochwertige Carbon Polymer Propeller von T-Motor aus der neuen MS-Serie.

Nach langer Forschungszeit bringt T-Motor nun die Revolution im Multicopter-Propeller-Sektor auf den Markt. Der Carbon Polymer Materialmix ermöglicht sehr stabile und haltbare Propeller welche gleichzeitig sehr effizient sind.Die Propeller sind bereits ausgewuchtet und werden als Paar ausgeliefert (1x CW, 1x CCW). Für einen Quad werden also zwei Sets, für einen Hexacopter drei Sets benötigt.Die Propeller passen perfekt für alle Motoren mit Direktmontage wie z.B. die T-Motor MN, P oder U Serie. Natürlich ist auch eine Kombination mit anderen Herstellern gewährleistet.

Technische Daten der T-Motor MS1302 Propeller:

  • Durchmesser: 13" (331mm)

  • Steigung: 5" (127mm)

  • Gewicht: 16g (Einzelblatt)

  • Material: Carbon Polymer Mix (Propeller)

  • Optimaler Schub / Drehzahl: 0,7- 1,2kg / 4300-5600RPM

  • Maximal Schub / Drehzahl: 3.5kg / 9600RPM

  • Lochkreis: 12mm (M3)

  • Bohrung: 4mm

  • Lieferumfang: 1x CW + 1x CCW Propeller


T-Motor MS1503 15 Zoll Carbon Polymer Propeller 1x CW 1x CCW

Artikelnr.: PM-4987 | HAN: MS1503

Zum Premium-Modellbau Shoparrow-up-right

T-Motor MS1503 15 Zoll Carbon Polymer Propeller 1x CW 1x CCW

T-Motor MS1503 15 Zoll Carbon Polymer Propeller 1x CW 1x CCW

Sehr hochwertige Carbon Polymer Propeller von T-Motor aus der neuen MS-Serie.

Nach langer Forschungszeit bringt T-Motor nun die Revolution im Multicopter-Propeller-Sektor auf den Markt. Der Carbon Polymer Materialmix ermöglicht sehr stabile und haltbare Propeller welche gleichzeitig sehr effizient sind.Die Propeller sind bereits ausgewuchtet und werden als Paar ausgeliefert (1x CW, 1x CCW). Für einen Quad werden also zwei Sets, für einen Hexacopter drei Sets benötigt.Die Propeller passen perfekt für alle Motoren mit Direktmontage wie z.B. die T-Motor MN, P oder U Serie. Natürlich ist auch eine Kombination mit anderen Herstellern gewährleistet.

Technische Daten der T-Motor MS1503 Propeller:

  • Durchmesser: 15" (382mm)

  • Steigung: 5.6" (142,4mm)

  • Gewicht: 25g (Einzelblatt)

  • Material: Carbon Polymer Mix (Propeller)

  • Optimaler Schub / Drehzahl: 1- 1,5kg / 4100-5000RPM

  • Maximal Schub / Drehzahl: 4.5kg / 8400RPM

  • Lochkreis: 12mm (M3)

  • Bohrung: 4mm

  • Lieferumfang: 1x CW + 1x CCW Propeller


T-Motor MS1704 17 Zoll Carbon Polymer Propeller 1x CW 1x CCW

Artikelnr.: PM-4988 | HAN: MS1704

Zum Premium-Modellbau Shoparrow-up-right

T-Motor MS1704 17 Zoll Carbon Polymer Propeller 1x CW 1x CCW

T-Motor MS1704 17 Zoll Carbon Polymer Propeller 1x CW 1x CCW

Sehr hochwertige Carbon Polymer Propeller von T-Motor aus der neuen MS-Serie.

Nach langer Forschungszeit bringt T-Motor nun die Revolution im Multicopter-Propeller-Sektor auf den Markt. Der Carbon Polymer Materialmix ermöglicht sehr stabile und haltbare Propeller welche gleichzeitig sehr effizient sind.Die Propeller sind bereits ausgewuchtet und werden als Paar ausgeliefert (1x CW, 1x CCW). Für einen Quad werden also zwei Sets, für einen Hexacopter drei Sets benötigt.Die Propeller passen perfekt für alle Motoren mit Direktmontage wie z.B. die T-Motor MN, P oder U Serie. Natürlich ist auch eine Kombination mit anderen Herstellern gewährleistet.

Technische Daten der T-Motor MS1704 Propeller:

  • Durchmesser: 17" (433mm)

  • Steigung: 6.5" (165,1mm)

  • Gewicht: 34g (Einzelblatt)

  • Material: Carbon Polymer Mix (Propeller)

  • Optimaler Schub / Drehzahl: 1.2- 1,8kg / 3400-4100RPM

  • Maximal Schub / Drehzahl: 6kg / 7300RPM

  • Lochkreis: 12mm (M3)

  • Bohrung: 4mm

  • Lieferumfang: 1x CW + 1x CCW Propeller


T-Motor T12x6-3D Polymer Propeller 12x6

Artikelnr.: PM-7249 | HAN: T12x6-3D

Zum Premium-Modellbau Shoparrow-up-right

T-Motor T12x6-3D Polymer Propeller 12x6

/* === SHOP-OVERRIDES === */ .slideInDownInit, .slide-in-down-init { opacity: 1 !important; transform: none !important; transition: none !important; } .scaleInit { opacity: 1 !important; transform: none !important; transition: none !important; } #parameter { display: block !important; padding: 20px 5%; background: #fff; color: #333; } #parameter .mainBox { margin-bottom: 30px; } #parameter .tableTitle { font-size: 20px; font-weight: bold; padding: 15px 0; border-bottom: 2px solid #333; } #parameter table { width: 100%; border-collapse: collapse; margin: 10px 0; } #parameter td, #parameter th { border: 1px solid #ddd; padding: 8px; font-size: 14px; } #parameter img { max-width: 100%; height: auto; }

About T-MOTOR T12*6 White Outdoor Plane Polymer Material Propeller

T12*6 is a polymer material propeller for 1-1.3m wingspan fixed wing airplanes. The silent design of the paddle realizes interference-free flight, easy to install and fly as you like. Recommended with 28-35 series/AM480 motor.

T12*6 Highlights:

1.CW polymer black carbon fiber propeller. It's lighter?stronger and easier to reach the target

2.Propeller mute design to realize non-interference flight. You can hear only the airflow across the propeller sound

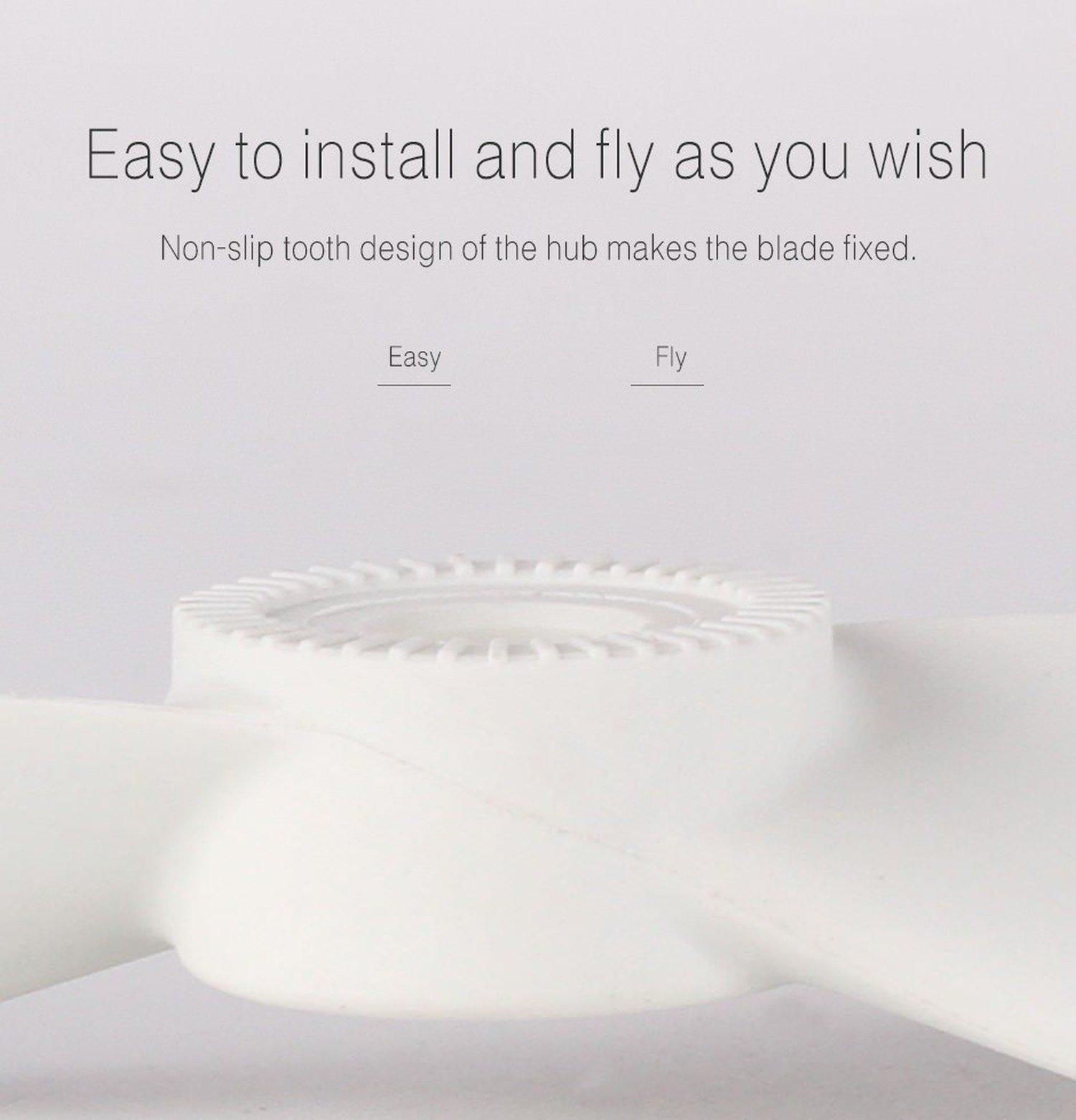

3.Easy to install?easy to fly?the bottom of the propeller non-slip teeth design?propeller fixed stronger

Packing List Includes:

1x T-MOTOR T12*6 Carbon Propeller

Matching Guide:

AM480 Motorarrow-up-right / AM66A ESCarrow-up-right

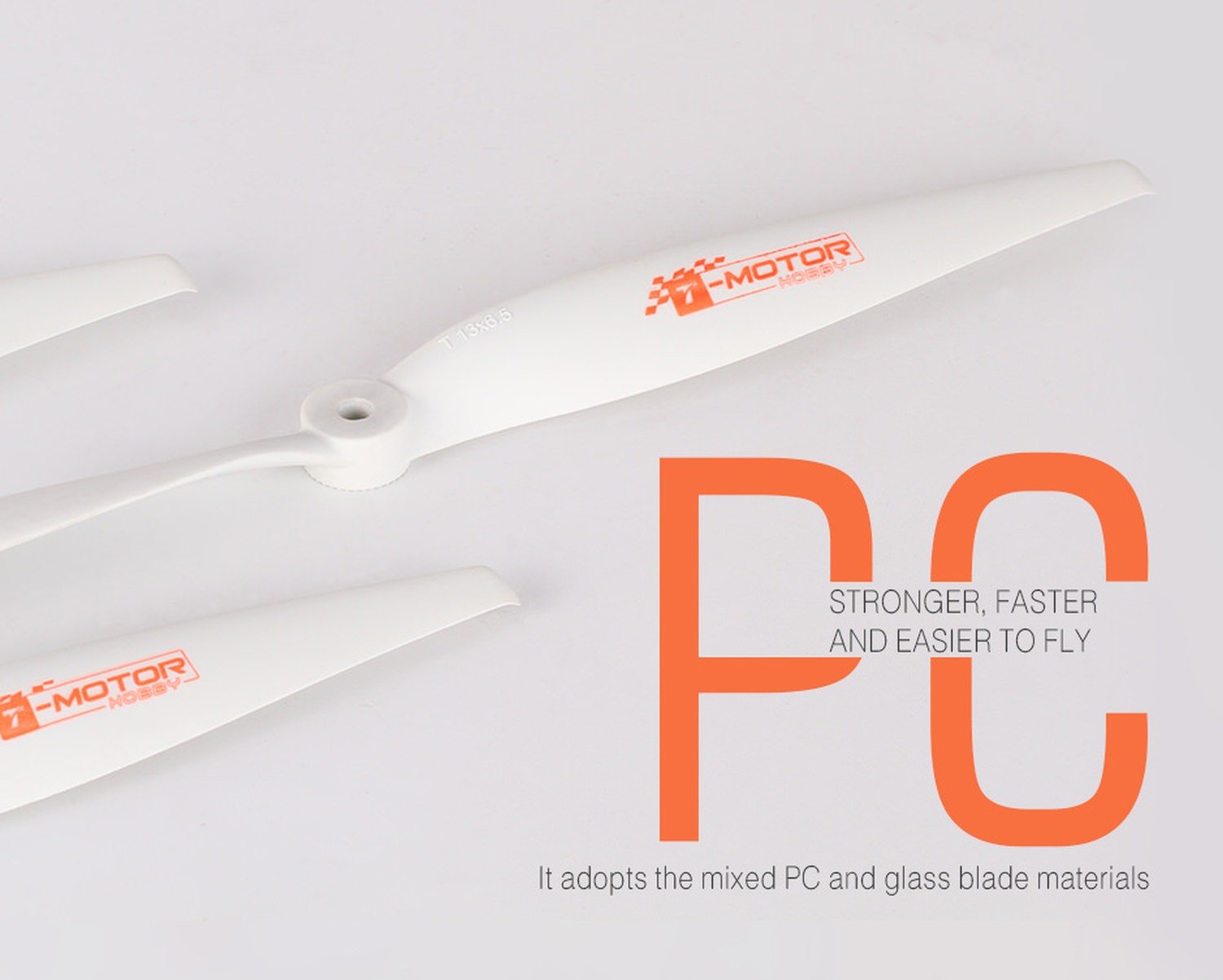

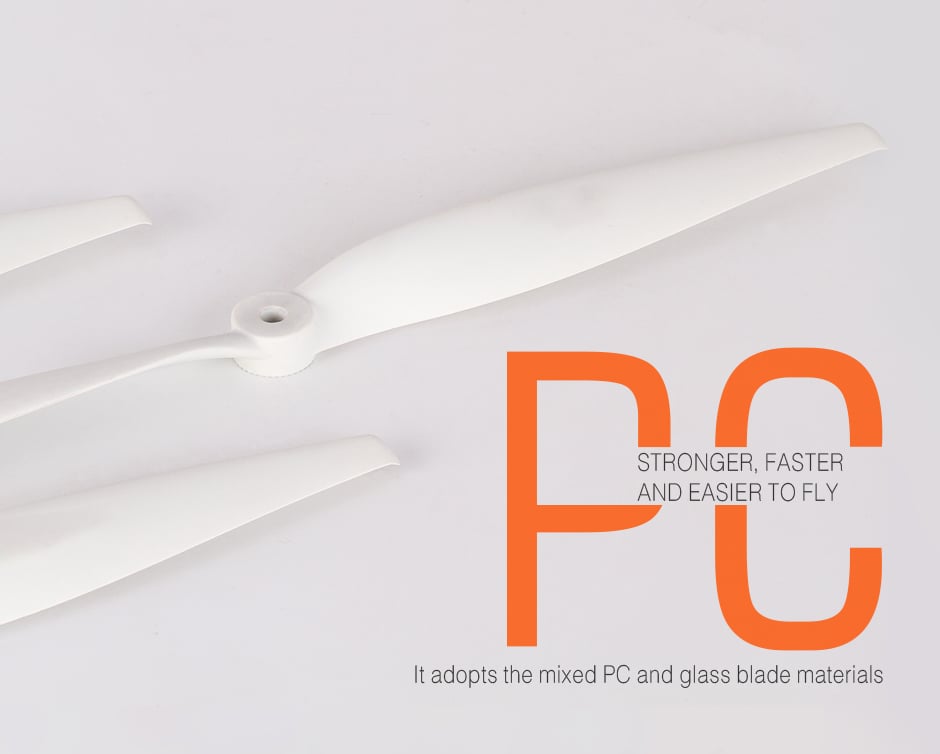

stronger faster and easier to fly

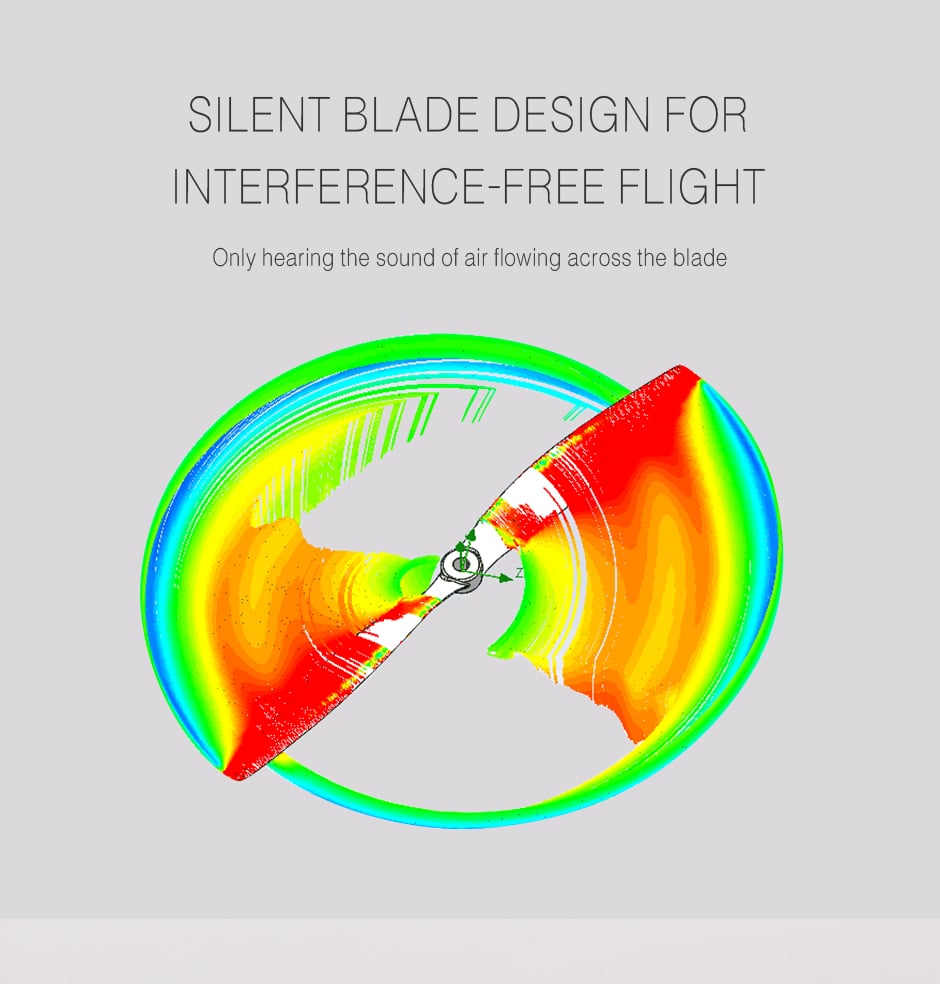

silent blade design for interference-free flight
easy to install

Technical Drawing


Specification Export to Excel

Model NO.

T12*6 CW&CCW WHITE

T-MOTOR Series

Fixed-wing

Weight

20.8g

Package Weight

119g

Diameter

12inch (304.8mm)

Package Size

361*56*19.7mm

Pitch

6inch (152mm)

Material

Polymer + Fiberglass

Max Thrust

18000RPM

Storage Temp/Humidity

-10℃~50℃/<85%
