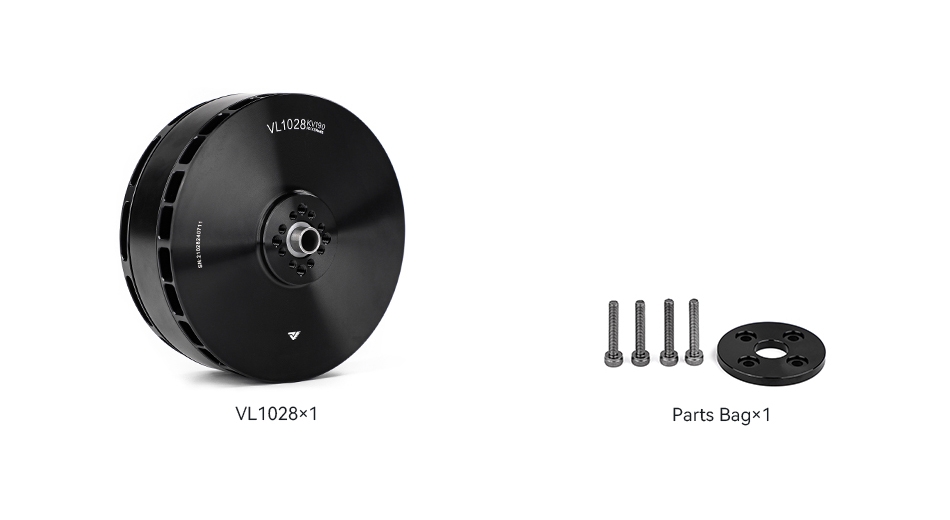

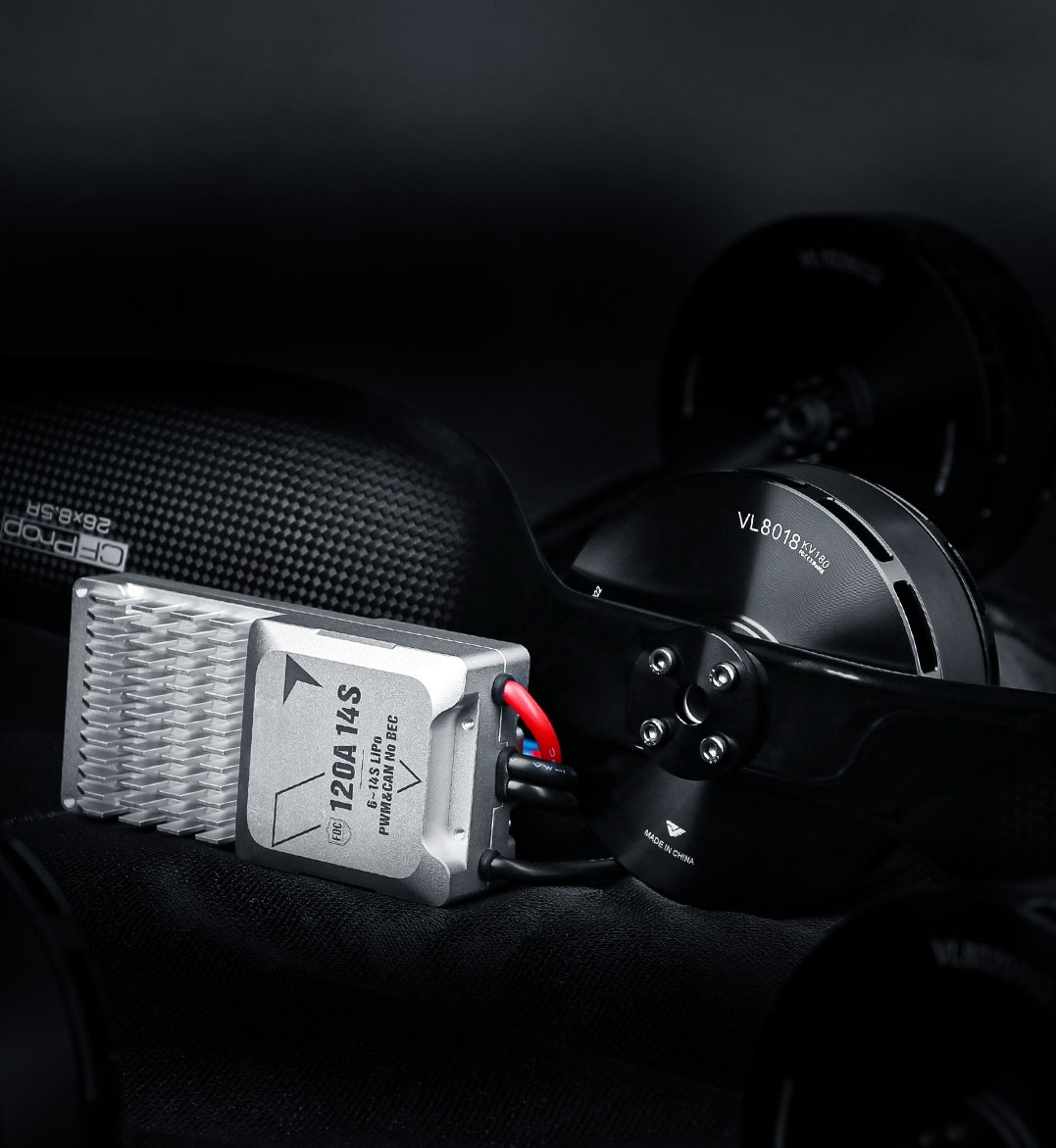

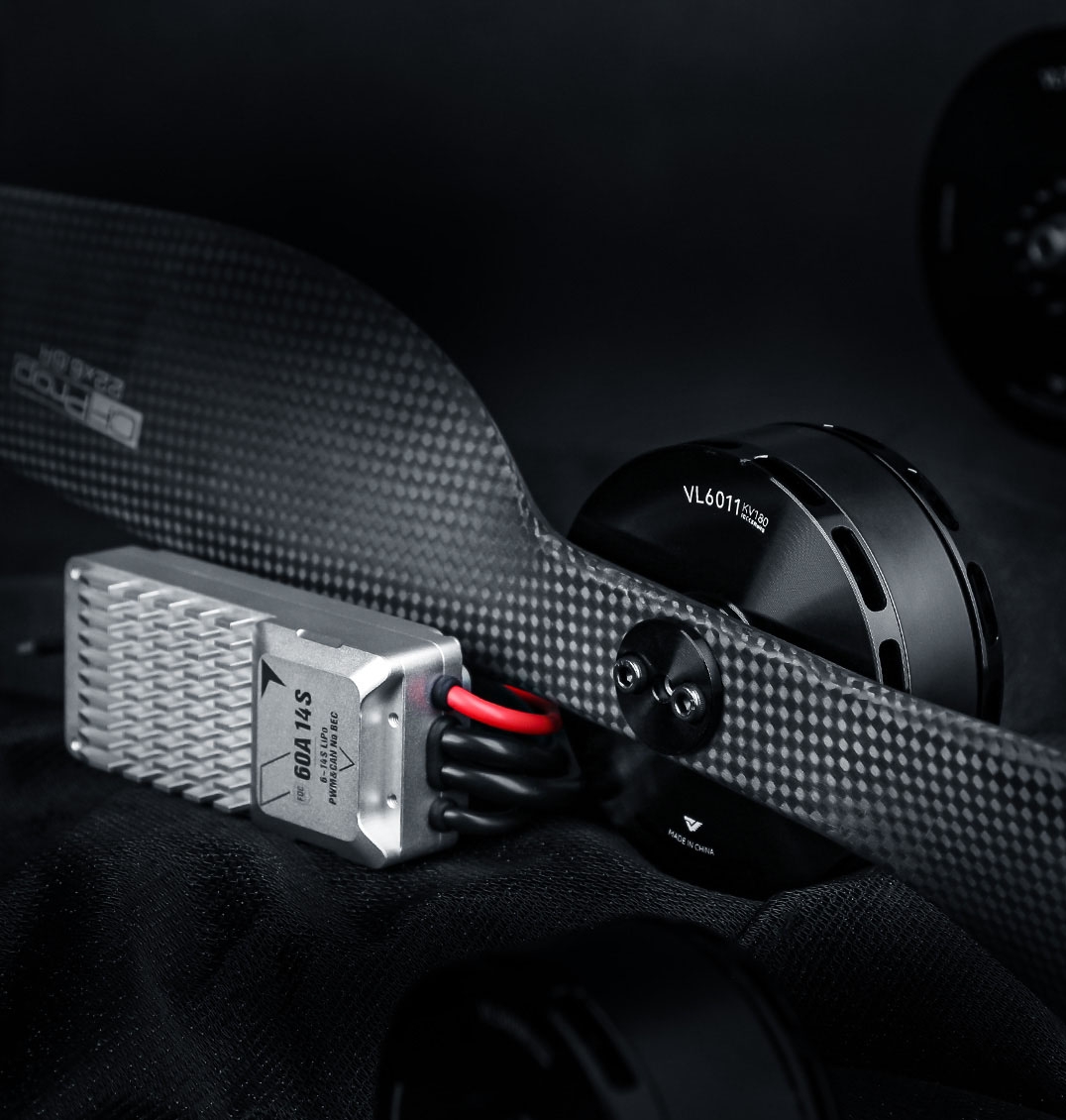

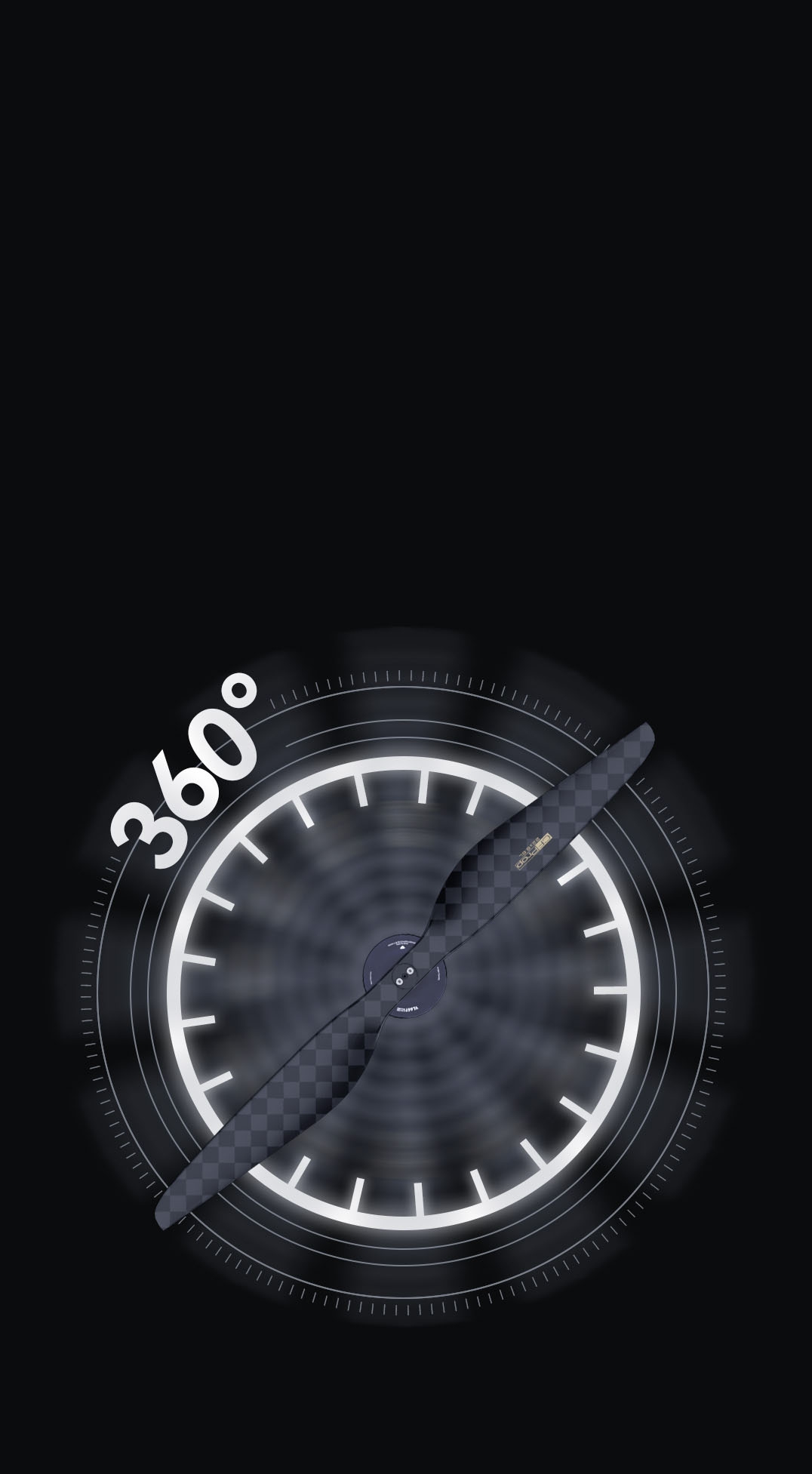

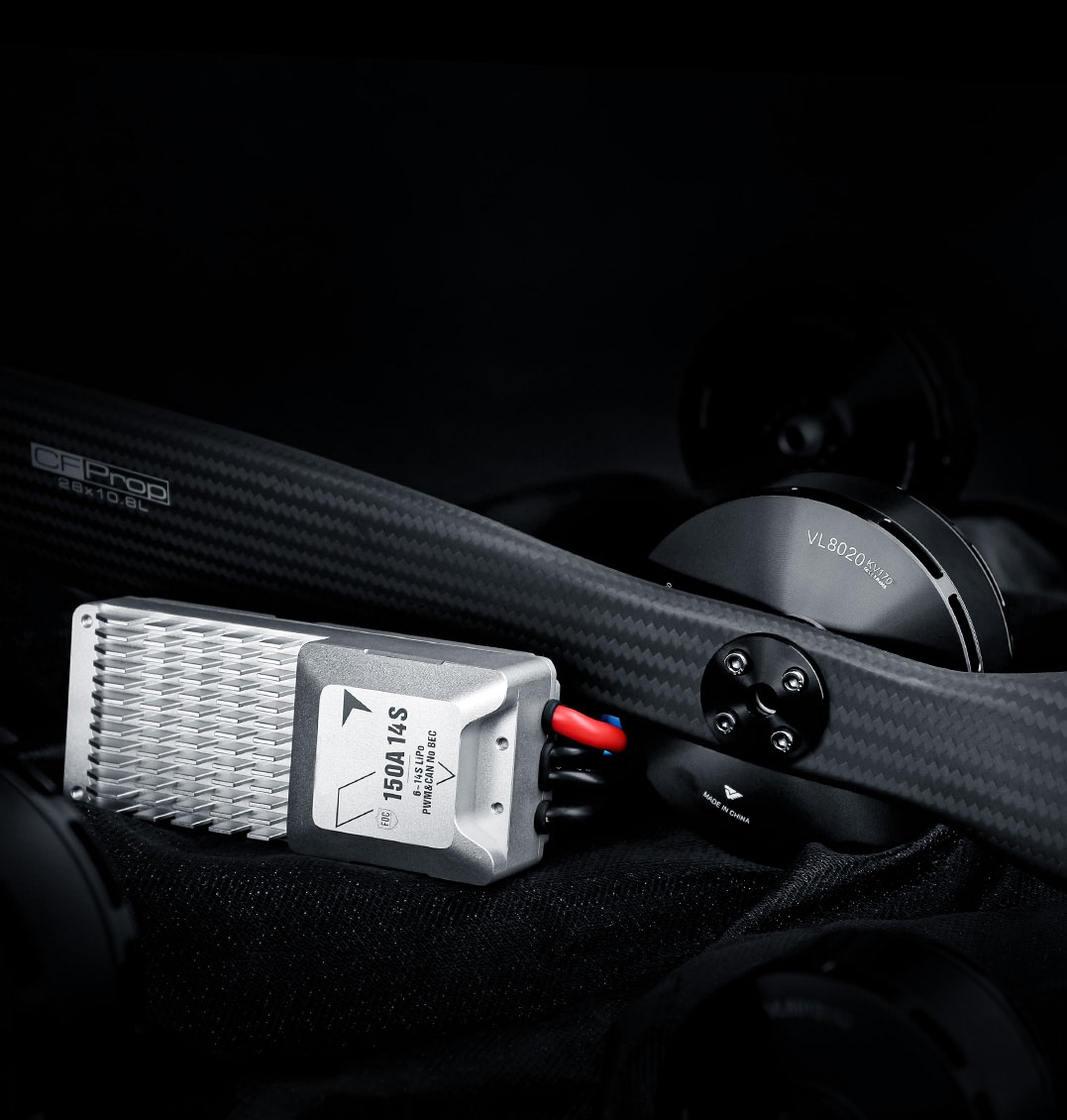

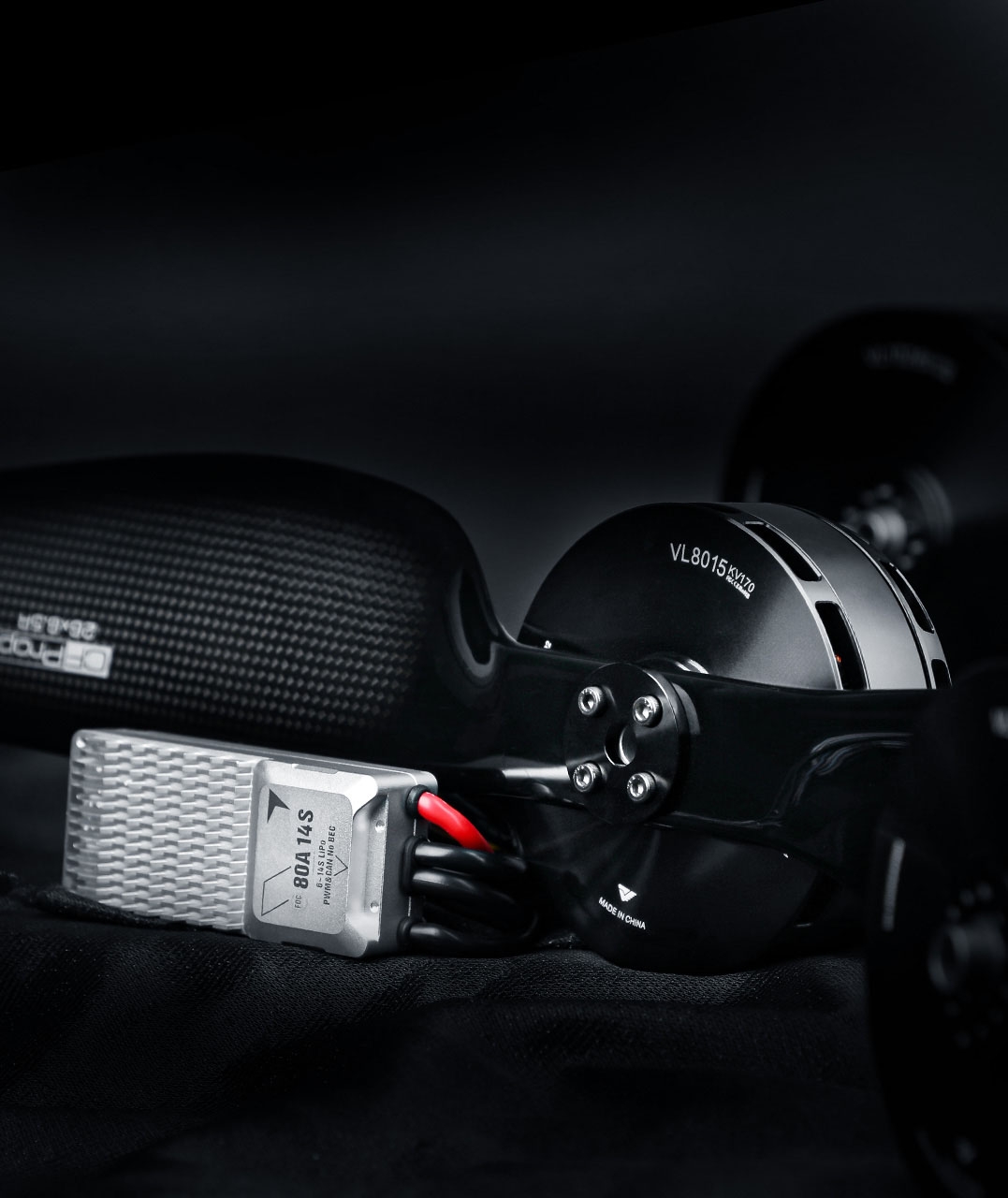

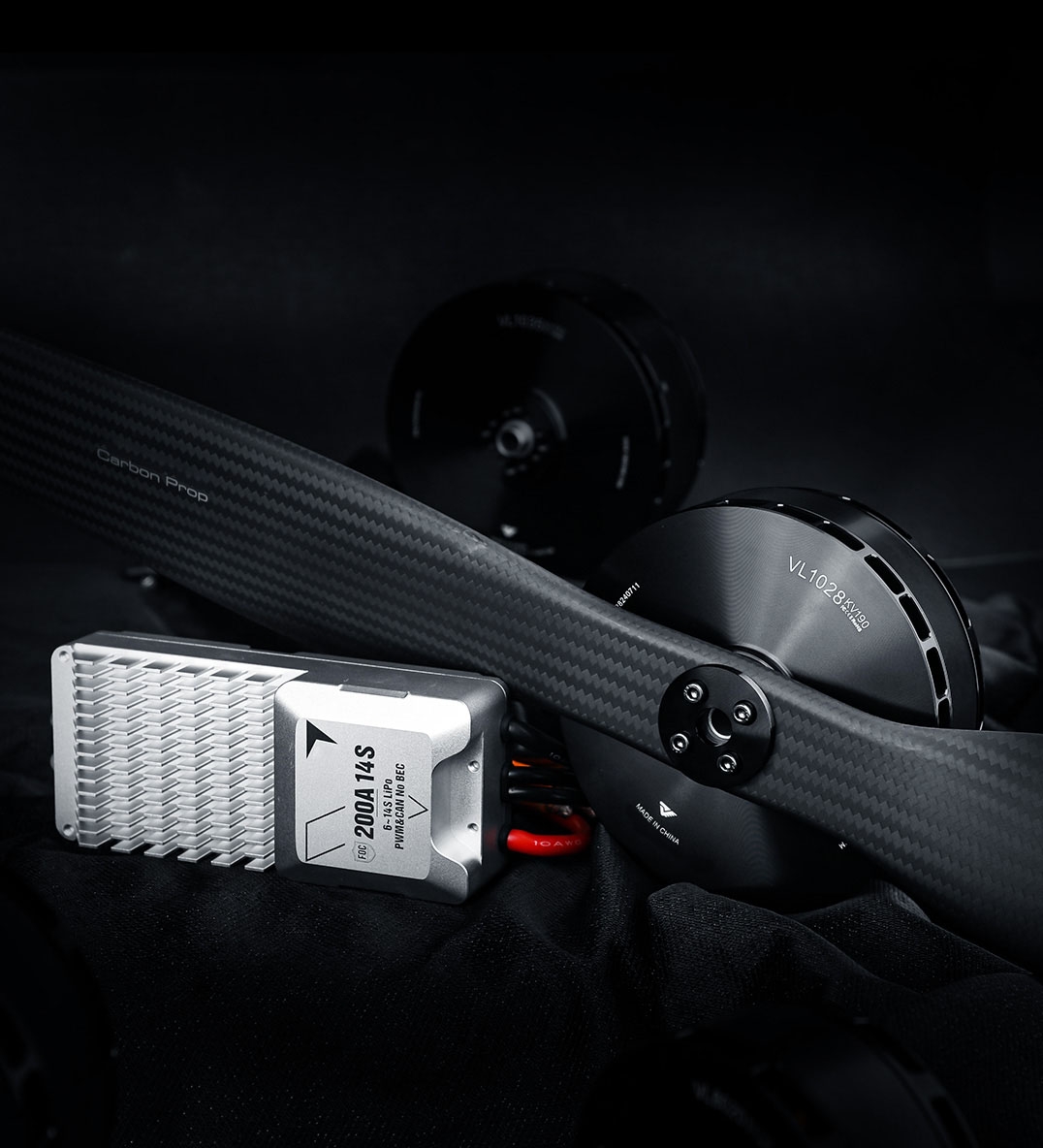

# VL SERIES *** ## T-Motor VTOL Brushless Motor VL1028 190kv - 940g 12S **Artikelnr.:** PM-7094 | **HAN:** VL1028 -190kv [Zum Premium-Modellbau Shop](https://www.premium-modellbau.de/search?sSearch=PM-7094) ![T-Motor VTOL Brushless Motor VL1028 190kv - 940g 12S](https://img.tmotor.com/products/vl-power-system/mobile_images/VL1028.jpg) #### T-Motor VTOL Brushless Motor aus der VL Serie \_x000D\_ Es handelt sich um den reinen Motor wie in der Packaging List beschrieben. \_x000D\_ Hier finden Sie zusätzlich die Empfehlung von T-Motor für eine passende Antriebskombination (alle Artikel sind bei uns bestellbar) sowie alle Technischen Daten der Komponenten: \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ ![T-MOTOR VL1028](https://img.tmotor.com/products/vl-power-system/mobile_images/VL1028.jpg) VL Series Propulsion System VL1028 KV190 MOTOR V200A ESC G29 PROPELLER ![T-MOTOR VL1028](https://img.tmotor.com/products/vl-power-system/mobile_images/section2.jpg) Fast and economical propeller locking Fast (Lock the propeller in seconds) The 360° custom angle propeller-locking can effectively avoid the turbulence caused by the rotation of the\_x000D\_ rotor and ensure that\_x000D\_ the aerodynamic layout of the fixed-wing aircraft is not affected,\_x000D\_ thereby improving flight safety Economical (Adaptive propeller locking) The ESC can automatically adjust the current to control the torque to\_x000D\_ lock the propeller as per the change of external force,\_x000D\_ reducing power consumption and heat to achieve energy saving Recommendation 12S Voltage 28kg Max Thrust/Arm 45\~50kg Recommended MTOW(Quad) \_x000D\_ \_x000D\_\_x000D\_\_x000D\_\_x000D\_ Technical Drawing\_x000D\_\_x000D\_ ![VL1028-V200A-G29x9.5?????.png](https://store.tmotor.com/images/202501/201737364311514616.png) \_x000D\_\_x000D\_\_x000D\_\_x000D\_ Specification\_x000D\_\_x000D\_ | | | | | | -------------------------- | ------------------------------------------ | ------------------------------ | ------------------- | | Model No. | VL1028 | Magnet Level | 180? | | Motor Size | F109.6\*52.5mm | Lead Cable | Enameled wire 150mm | | Stator | 150°C high temperature -resisting coatings | Copper Wire | 220? | | Configuration | 24N28P | Coil Insulation Test | 1000V/5s | | Shaft Diameter | IN: 12 OUT: 10 | Rotor Dynamic Balance Standard | =15mg | | Bearing | Imported 6901 | IP | IPX5 | | Centrifugal Cooling Design | YES | Package Size | 190\*140\*80mm | | | | | | | ------------------------ | ------ | -------------------------- | --------- | | Model No. | VL1028 | KV (RPM/V) | 190 | | Rated Voltage (LiPo) | 12S | Idle Current (15V) | 3.8A | | Internal Resistance(25?) | 8mO | Peak Current | 180A | | Continuous Power(180s) | 3200W | Ambient Temperature | -30?\~55? | | Max. Thrust | 25.6kg | Motor Weight (indl. Cable) | 940g | | | | | | | -------------------------- | ------------------------------------------------ | --------------------- | ------------------------------------------------------------------------------------ | | ESC specs. | | | | | Model No. | V200A | Control | PWM/CAN | | Max. Voltage | 60V | Protocol | DRONE CAN/UAV CAN | | Peak Current (10s) | 220A (Under certain heat dissipation conditions) | Propeller-locking | ElectronicPropeller -locking | | Continuous Current | 120A (Under certain heat dissipation conditions) | Encoder cables | Shielded cables-Black-24AWG-5C-450±10mm-M6 aviation connector | | Standby Consumption | =50mA | Output Cable | Silicone wire-orange-14AWG-250±10mm | | Throttle Pos. Range | 1100-1940us (fixed) | Input Cable | Silicone wire-red/black-12AWG-1200±10mm | | Throttle Refresh Frequency | 50\~500Hz | Signal Cable | Shielded cables-Black-OD4.2-5C-800±10mm-JP-3P\*2-Black blank white-green yellow gray | | Throttle Response Speed | 300ms | Weight (Incl. cables) | 495±10g | | | | | | | ----------- | ------------------------------ | --------------------- | ----- | | Prop specs. | | | | | Model No. | G29\*9.5 inch (736.6\*241.3mm) | Weight (Single Blade) | 95±5g | \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ Test Data\_x000D\_\_x000D\_ | Type | | Throttle | Voltage (V) | Thrust (g) | Torque (N\*m) | Current (A) | RPM | Power (W) | Effciency (g / W) | Operating Temperature (?) | | --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | ----- | -------- | ----------- | ---------- | ------------- | ----------- | ---- | --------- | ----------------- | ---------------------------- | | VL1028 KV190 + V200A 14S + G29\*9.5 | | 40% | 44.71 | 5565 | 1.82 | 14.61 | 2743 | 653 | 8.52 | 68 (Ambient Temperature: 25) | | 42% | 44.67 | 6080 | 1.98 | 16.62 | 2879 | 742 | 8.19 | | | | | 44% | 44.64 | 6664 | 2.18 | 18.92 | 3011 | 844 | 7.89 | | | | | 46% | 44.61 | 7279 | 2.37 | 21.37 | 3143 | 953 | 7.64 | | | | | 48% | 44.59 | 7893 | 2.56 | 24.00 | 3273 | 1070 | 7.37 | | | | | 50% | 44.57 | 8603 | 2.79 | 27.01 | 3398 | 1204 | 7.15 | | | | | 52% | 44.54 | 9236 | 3.01 | 30.10 | 3526 | 1341 | 6.89 | | | | | 54% | 44.51 | 9881 | 3.22 | 33.33 | 3649 | 1484 | 6.66 | | | | | 56% | 44.47 | 10574 | 3.45 | 36.82 | 3768 | 1637 | 6.46 | | | | | 58% | 44.42 | 11284 | 3.68 | 40.61 | 3885 | 1804 | 6.25 | | | | | 60% | 44.36 | 12071 | 3.93 | 44.66 | 3999 | 1981 | 6.09 | | | | | 62% | 44.30 | 12814 | 4.18 | 48.95 | 4107 | 2168 | 5.91 | | | | | 64% | 44.25 | 13501 | 4.40 | 53.14 | 4217 | 2351 | 5.75 | | | | | 66% | 44.18 | 14222 | 4.64 | 57.76 | 4324 | 2552 | 5.57 | | | | | 68% | 44.11 | 14949 | 4.89 | 62.59 | 4430 | 2761 | 5.41 | | | | | 70% | 44.04 | 15640 | 5.14 | 67.69 | 4532 | 2981 | 5.25 | | | | | 80% | 43.74 | 19280 | 6.35 | 96.45 | 5021 | 4219 | 4.57 | | | | | 90% | 43.88 | 22918 | 7.58 | 135.09 | 5466 | 5928 | 3.86 | | | | | 100% | 43.31 | 24564 | 8.13 | 177.33 | 5638 | 7679 | 3.20 | | | | | VL1028 KV190 + V200A 14S + G29\*9.5 | | 40% | 50.25 | 7075 | 2.31 | 18.25 | 3089 | 917 | 7.72 | 68 (Ambient Temperature: 25) | | 42% | 50.21 | 7766 | 2.54 | 20.91 | 3238 | 1050 | 7.39 | | | | | 44% | 50.16 | 8472 | 2.77 | 23.76 | 3384 | 1192 | 7.11 | | | | | 46% | 50.11 | 9199 | 3.01 | 26.89 | 3532 | 1348 | 6.82 | | | | | 48% | 50.07 | 10007 | 3.27 | 30.21 | 3672 | 1512 | 6.62 | | | | | 50% | 50.02 | 10786 | 3.53 | 33.84 | 3808 | 1693 | 6.37 | | | | | 52% | 49.97 | 11579 | 3.79 | 37.76 | 3944 | 1887 | 6.13 | | | | | 54% | 49.92 | 12431 | 4.07 | 41.97 | 4075 | 2095 | 5.93 | | | | | 56% | 49.85 | 13296 | 4.35 | 46.38 | 4203 | 2312 | 5.75 | | | | | 58% | 49.78 | 14139 | 4.63 | 51.02 | 4330 | 2540 | 5.56 | | | | | 60% | 49.72 | 14996 | 4.91 | 55.88 | 4452 | 2778 | 5.40 | | | | | 62% | 49.65 | 15826 | 5.20 | 60.98 | 4577 | 3028 | 5.23 | | | | | 64% | 49.59 | 16622 | 5.47 | 66.30 | 4693 | 3288 | 5.05 | | | | | 66% | 49.53 | 17552 | 5.77 | 72.19 | 4802 | 3575 | 4.91 | | | | | 68% | 49.46 | 18445 | 6.07 | 78.32 | 4910 | 3874 | 4.76 | | | | | 70% | 49.40 | 19313 | 6.36 | 84.64 | 5016 | 4181 | 4.62 | | | | | 80% | 49.07 | 23351 | 7.74 | 120.83 | 5495 | 5929 | 3.94 | | | | | 90% | 49.21 | 24306 | 8.11 | 152.31 | 5600 | 7495 | 3.24 | | | | | 100% | 49.23 | 25609 | 8.54 | 158.17 | 5735 | 7787 | 3.28 | | | | | Note:Temperatureinthechartisthebelltemperatureafterrunning\@75%throttle on 44.4V for10mins. (Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.) | | | | | | | | | | | \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ Packing List\_x000D\_\_x000D\_ ![VL1028??????.jpg](https://store.tmotor.com/images/202502/111739252487927609.jpg) \_x000D\_\_x000D\_ Before using this \_x000D\_ product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or \_x000D\_ leave message to " " in time.\_x000D\_\_x000D\_ \_x000D\_ \_x000D\_\_x000D\_ \_x000D\_\_x000D\_ ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_rar.gif)[VL1028 3D Diagram](https://en.tmotor.com/uploadfile/2024/1101/20241101042708792.rar) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[User Manual](https://en.tmotor.com/uploadfile/2024/1108/20241108085651236.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[TM\_UAVCAN\_V2 Communication Protocol](https://en.tmotor.com/uploadfile/2024/1108/20241108085704696.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[VL1028 Propulsion System Specifications.pdf](https://github.com/Premium-Modellbau/premium-modellbau-docs/blob/main/images/file/202502/131739428537350486.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_rar.gif)[TM-Link.exe Host Computer](https://en.tmotor.com/uploadfile/2024/1101/TM-Link.zip) \_x000D\_ \_x000D\_ \_x000D\_\_x000D\_ \_x000D\_\_x000D\_ \_x000D\_ *** ## T-Motor VTOL Brushless Motor VL1032 180kv - 1090g 12S **Artikelnr.:** PM-7095 | **HAN:** VL1032 -180kv [Zum Premium-Modellbau Shop](https://www.premium-modellbau.de/search?sSearch=PM-7095) ![T-Motor VTOL Brushless Motor VL1032 180kv - 1090g 12S](https://img.tmotor.com/products/vl-power-system/mobile_images/VL1032.jpg) #### T-Motor VTOL Brushless Motor aus der VL Serie \_x000D\_ Es handelt sich um den reinen Motor wie in der Packaging List beschrieben. \_x000D\_ Hier finden Sie zusätzlich die Empfehlung von T-Motor für eine passende Antriebskombination (alle Artikel sind bei uns bestellbar) sowie alle Technischen Daten der Komponenten: \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ ![T-MOTOR VL1032](https://img.tmotor.com/products/vl-power-system/mobile_images/VL1032.jpg) VL Series Propulsion System VL1032 KV180 MOTOR V200A ESC G30 PROPELLER ![T-MOTOR VL1032](https://img.tmotor.com/products/vl-power-system/mobile_images/section2.jpg) Fast and economical propeller locking Fast (Lock the propeller in seconds) The 360° custom angle propeller-locking can effectively avoid the turbulence caused by the rotation of the\_x000D\_ rotor and ensure that\_x000D\_ the aerodynamic layout of the fixed-wing aircraft is not affected,\_x000D\_ thereby improving flight safety Economical (Adaptive propeller locking) The ESC can automatically adjust the current to control the torque to\_x000D\_ lock the propeller as per the change of external force,\_x000D\_ reducing power consumption and heat to achieve energy saving Recommendation 12S Voltage 32kg Max Thrust/Arm 50\~55kg Recommended MTOW(Quad) \_x000D\_ \_x000D\_\_x000D\_\_x000D\_\_x000D\_ Technical Drawing\_x000D\_\_x000D\_ ![VL1032-V200A-G30x10.5?????.png](https://store.tmotor.com/images/202501/201737365510540230.png) \_x000D\_\_x000D\_\_x000D\_\_x000D\_ Specification\_x000D\_\_x000D\_ | | | | | | ------------------------- | ------------------------------------------ | ------------------------------ | ------------------- | | Model No. | VL1032 | Magnet Level | 180? | | Motor Size | F109.6\*56mm | Lead Cable | Enameled wire 150mm | | Stator | 150°C high temperature -resisting coatings | Copper Wire | 220? | | Configuration | 24N28P | Coil Insulation Test | 1000V/5s | | Shaft Diameter | IN: 12 OUT: 10 | Rotor Dynamic Balance Standard | =15mg | | Bearing | Imported 6901 | IP | IPX5 | | CentrifugalCooling Design | YES | Package Size | 190\*140\*80mm | | | | | | | ------------------------ | ------ | ------------------------- | --------- | | Model No. | VL1032 | KV (RPM/V) | 180 | | Rated Voltage (LiPo) | 12S | Idle Current (15V) | 4.6A | | Internal Resistance(25?) | 6.5mO | Peak Current | 200A | | Continuous Power(180s) | 3500W | Ambient Temperature | -30?\~55? | | Max. Thrust | 31.7kg | Motor Weight(indl. Cable) | 1090g | | | | | | | ------------------------- | ------------------------------------------------ | --------------------- | --------------------------------------------------------------------------------------- | | ESC specs. | | | | | Model No. | V200A | Control | PWM/CAN | | Max. Voltage | 60V | Protocol | DRONE CAN/UAV CAN | | Peak Current (10s) | 220A (Under certain heat dissipation conditions) | Propeller-locking | ElectronicPropeller -locking | | Continuous Current | 120A (Under certain heat dissipation conditions) | Encoder cables | Shielded cables-Black -24AWG-5C-450±10mm -M6 aviation connector | | Standby Consumption | =50mA | Output Cable | Silicone wire-orange -14AWG-250±10mm | | Throttle Pos. Range | 1100-1940us (fixed) | Input Cable | Silicone wire-red/black -12AWG-1200±10mm | | Throttle RefreshFrequency | 50\~500Hz | Signal Cable | Shielded cables-Black -OD4.2-5C-800±10mm -JP-3P\*2-Black blank white -green yellow gray | | Throttle ResponseSpeed | 300ms | Weight (Incl. cables) | 495±10g | | | | | | | ----------- | ----------------------------- | --------------------- | ----- | | Prop specs. | | | | | Model No. | G30\*10.5 inch (762\*266.7mm) | Weight (Single Blade) | 97±5g | \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ Test Data\_x000D\_\_x000D\_ | Type | | Throttle | Voltage (V) | Thrust (g) | Torque (N\*m) | Current (A) | RPM | Power (W) | Effciency (g / W) | Operating Temperature (?) | | --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | ----- | -------- | ----------- | ---------- | ------------- | ----------- | ---- | --------- | ----------------- | ---------------------------- | | VL1032 KV180 + V200A 14S + G30\*10.5 | | 40% | 45.00 | 5977 | 2.04 | 15.95 | 2628 | 718 | 8.33 | 77 (Ambient Temperature: 25) | | 42% | 44.95 | 6656 | 2.25 | 18.31 | 2754 | 823 | 8.09 | | | | | 44% | 44.90 | 7338 | 2.48 | 20.85 | 2881 | 936 | 7.84 | | | | | 46% | 44.86 | 7960 | 2.69 | 23.50 | 3009 | 1054 | 7.56 | | | | | 48% | 44.81 | 8696 | 2.94 | 26.50 | 3131 | 1188 | 7.32 | | | | | 50% | 44.78 | 9420 | 3.19 | 29.72 | 3249 | 1331 | 7.08 | | | | | 52% | 44.75 | 10124 | 3.43 | 33.02 | 3369 | 1478 | 6.85 | | | | | 54% | 44.71 | 10979 | 3.71 | 36.81 | 3483 | 1646 | 6.67 | | | | | 56% | 44.66 | 11696 | 3.96 | 40.50 | 3596 | 1809 | 6.47 | | | | | 58% | 44.61 | 12520 | 4.24 | 44.62 | 3706 | 1990 | 6.30 | | | | | 60% | 44.55 | 13324 | 4.51 | 48.96 | 3813 | 2181 | 6.11 | | | | | 62% | 44.49 | 14151 | 4.79 | 53.52 | 3918 | 2381 | 5.94 | | | | | 64% | 44.43 | 14906 | 5.07 | 58.12 | 4021 | 2582 | 5.78 | | | | | 66% | 44.36 | 15696 | 5.35 | 63.00 | 4120 | 2795 | 5.61 | | | | | 68% | 44.31 | 16490 | 5.62 | 68.11 | 4220 | 3018 | 5.46 | | | | | 70% | 44.25 | 17241 | 5.90 | 73.31 | 4318 | 3244 | 5.32 | | | | | 80% | 44.11 | 21279 | 7.33 | 103.16 | 4763 | 4550 | 4.68 | | | | | 90% | 44.63 | 25317 | 8.76 | 140.00 | 5157 | 6248 | 4.05 | | | | | 100% | 43.32 | 29275 | 10.21 | 192.07 | 5519 | 8321 | 3.52 | | | | | VL1032 KV180 + V200A 14S + G30\*10.5 | | 40% | 50.49 | 7686 | 2.61 | 20.02 | 2967 | 1011 | 7.61 | 77 (Ambient Temperature: 25) | | 42% | 50.45 | 8540 | 2.90 | 23.03 | 3107 | 1162 | 7.35 | | | | | 44% | 50.41 | 9311 | 3.16 | 26.11 | 3244 | 1316 | 7.07 | | | | | 46% | 50.37 | 10181 | 3.46 | 29.60 | 3381 | 1491 | 6.83 | | | | | 48% | 50.32 | 11078 | 3.76 | 33.33 | 3512 | 1677 | 6.61 | | | | | 50% | 50.27 | 12003 | 4.07 | 37.34 | 3641 | 1877 | 6.39 | | | | | 52% | 50.21 | 12854 | 4.37 | 41.44 | 3768 | 2081 | 6.18 | | | | | 54% | 50.15 | 13784 | 4.69 | 45.93 | 3891 | 2303 | 5.99 | | | | | 56% | 50.08 | 14711 | 5.01 | 50.66 | 4010 | 2537 | 5.80 | | | | | 58% | 49.99 | 15689 | 5.36 | 55.84 | 4131 | 2791 | 5.62 | | | | | 60% | 49.94 | 16654 | 5.67 | 61.00 | 4244 | 3046 | 5.47 | | | | | 62% | 49.88 | 17561 | 6.00 | 66.40 | 4357 | 3312 | 5.30 | | | | | 64% | 49.80 | 18478 | 6.32 | 71.95 | 4465 | 3583 | 5.16 | | | | | 66% | 49.74 | 19373 | 6.65 | 77.78 | 4570 | 3869 | 5.01 | | | | | 68% | 49.69 | 20350 | 6.99 | 84.05 | 4669 | 4176 | 4.87 | | | | | 70% | 49.65 | 21251 | 7.31 | 90.37 | 4767 | 4487 | 4.74 | | | | | 80% | 49.49 | 25745 | 8.93 | 125.79 | 5213 | 6225 | 4.14 | | | | | 90% | 49.52 | 29924 | 10.46 | 170.12 | 5588 | 8423 | 3.55 | | | | | 100% | 48.51 | 31766 | 11.11 | 201.10 | 5729 | 9756 | 3.26 | | | | | Note:Temperatureinthechartisthebelltemperatureafterrunning\@75%throttle on 44.4V for10mins. (Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.) | | | | | | | | | | | \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ Packing List\_x000D\_\_x000D\_ ![VL1032??????.jpg](https://store.tmotor.com/images/202502/111739252595669487.jpg) \_x000D\_\_x000D\_ Before using this \_x000D\_ product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or \_x000D\_ leave message to " " in time.\_x000D\_\_x000D\_ \_x000D\_ \_x000D\_\_x000D\_ \_x000D\_\_x000D\_ ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_rar.gif)[VL1032 3D Diagram](https://en.tmotor.com/uploadfile/2024/1101/20241101043046341.rar) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[User Manual](https://en.tmotor.com/uploadfile/2024/1108/20241108085651236.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[TM\_UAVCAN\_V2 Communication Protocol](https://en.tmotor.com/uploadfile/2024/1108/20241108085704696.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[VL1032 Propulsion System Specifications.pdf](https://github.com/Premium-Modellbau/premium-modellbau-docs/blob/main/images/file/202502/131739428677536713.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_rar.gif)[TM-Link.exe Host Computer](https://en.tmotor.com/uploadfile/2024/1101/TM-Link.zip) \_x000D\_ \_x000D\_ \_x000D\_\_x000D\_ \_x000D\_\_x000D\_ \_x000D\_ *** ## T-Motor VTOL Brushless Motor VL1035 150kv - 1205g 14S **Artikelnr.:** PM-7096 | **HAN:** VL1035 -150kv [Zum Premium-Modellbau Shop](https://www.premium-modellbau.de/search?sSearch=PM-7096) ![T-Motor VTOL Brushless Motor VL1035 150kv - 1205g 14S](https://img.tmotor.com/products/vl-power-system/mobile_images/VL1035.jpg) #### T-Motor VTOL Brushless Motor aus der VL Serie \_x000D\_ Es handelt sich um den reinen Motor wie in der Packaging List beschrieben. \_x000D\_ Hier finden Sie zusätzlich die Empfehlung von T-Motor für eine passende Antriebskombination (alle Artikel sind bei uns bestellbar) sowie alle Technischen Daten der Komponenten: \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ ![T-MOTOR VL1035](https://img.tmotor.com/products/vl-power-system/mobile_images/VL1035.jpg) VL Series Propulsion System VL1035 KV150 MOTOR V200A ESC PL32 PROPELLER ![T-MOTOR VL1035](https://img.tmotor.com/products/vl-power-system/mobile_images/section2.jpg) Fast and economical propeller locking Fast (Lock the propeller in seconds) The 360° custom angle propeller-locking can effectively avoid the turbulence caused by the rotation of the\_x000D\_ rotor and ensure that\_x000D\_ the aerodynamic layout of the fixed-wing aircraft is not affected,\_x000D\_ thereby improving flight safety Economical (Adaptive propeller locking) The ESC can automatically adjust the current to control the torque to\_x000D\_ lock the propeller as per the change of external force,\_x000D\_ reducing power consumption and heat to achieve energy saving Recommendation 12S Voltage 35kg Max Thrust/Arm 55\~60kg Recommended MTOW(Quad) \_x000D\_\_x000D\_\_x000D\_\_x000D\_ Technical Drawing\_x000D\_\_x000D\_ ![VL1035-V200A-PL32?????.png](https://store.tmotor.com/images/202501/211737429686121717.png) \_x000D\_\_x000D\_\_x000D\_\_x000D\_ Specification\_x000D\_\_x000D\_ | | | | | | ------------------------- | ------------------------------------------ | ------------------------------ | ------------------- | | Model No. | VL1035 | Magnet Level | 180? | | Motor Size | F109.6\*61mm | Lead Cable | Enameled wire 150mm | | Stator | 150°C high temperature -resisting coatings | Copper Wire | 220? | | Configuration | 24N28P | Coil Insulation Test | 1000V/5s | | Shaft Diameter | IN: 12 OUT: 10 | Rotor Dynamic Balance Standard | =15mg | | Bearing | Imported 6901 | IP | IPX5 | | CentrifugalCooling Design | YES | Package Size | 190\*140\*80mm | | | | | | | ------------------------ | ------ | ------------------------- | --------- | | Model No. | VL1035 | KV (RPM/V) | 150 | | Rated Voltage (LiPo) | 14S | Idle Current (15V) | 4.2A | | Internal Resistance(25?) | 8mO | Peak Current | 182A | | Continuous Power(180s) | 4000W | Ambient Temperature | -30?\~55? | | Max. Thrust | 36.1kg | Motor Weight(indl. Cable) | 1205g | | | | | | | ------------------------- | ------------------------------------------------ | --------------------- | --------------------------------------------------------------------------------------- | | ESC specs. | | | | | Model No. | V200A | Control | PWM/CAN | | Max. Voltage | 60V | Protocol | DRONE CAN/UAV CAN | | Peak Current (10s) | 220A (Under certain heat dissipation conditions) | Propeller-locking | ElectronicPropeller -locking | | Continuous Current | 120A (Under certain heat dissipation conditions) | Encoder cables | Shielded cables-Black -24AWG-5C-450±10mm -M6 aviation connector | | Standby Consumption | =50mA | Output Cable | Silicone wire-orange -14AWG-250±10mm | | Throttle Pos. Range | 1100-1940us (fixed) | Input Cable | Silicone wire-red/black -12AWG-1200±10mm | | Throttle RefreshFrequency | 50\~500Hz | Signal Cable | Shielded cables-Black -OD4.2-5C-800±10mm -JP-3P\*2-Black blank white -green yellow gray | | Throttle ResponseSpeed | 300ms | Weight (Incl. cables) | 495±10g | | | | | | | ----------- | ------------------------------ | --------------------- | ------ | | Prop specs. | | | | | Model No. | PL32\*11 inch (812.8\*279.4mm) | Weight (Single Blade) | 107±5g | \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ Test Data\_x000D\_\_x000D\_ | Type | | Throttle | Voltage (V) | Thrust (g) | Torque (N\*m) | Current (A) | RPM | Power (W) | Effciency (g / W) | Operating Temperature (?) | | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | ----- | -------- | ----------- | ---------- | ------------- | ----------- | ---- | --------- | ----------------- | ---------------------------- | | VL1035 KV150 + V200A 14S + PL32\*11 | | 40% | 50.43 | 6085 | 2.15 | 13.10 | 2350 | 661 | 9.21 | 97 (Ambient Temperature: 25) | | 42% | 50.39 | 6772 | 2.40 | 15.11 | 2470 | 761 | 8.89 | | | | | 44% | 50.36 | 7424 | 2.63 | 17.18 | 2586 | 865 | 8.58 | | | | | 46% | 50.32 | 8132 | 2.88 | 19.50 | 2700 | 981 | 8.29 | | | | | 48% | 50.28 | 8851 | 3.13 | 21.97 | 2814 | 1104 | 8.01 | | | | | 50% | 50.24 | 9663 | 3.41 | 24.74 | 2927 | 1243 | 7.78 | | | | | 52% | 50.21 | 10433 | 3.68 | 27.64 | 3036 | 1388 | 7.52 | | | | | 54% | 50.17 | 11261 | 3.97 | 30.76 | 3144 | 1543 | 7.30 | | | | | 56% | 50.13 | 12047 | 4.25 | 34.02 | 3253 | 1705 | 7.06 | | | | | 58% | 50.09 | 12793 | 4.52 | 37.33 | 3361 | 1870 | 6.84 | | | | | 60% | 50.04 | 13708 | 4.84 | 41.14 | 3465 | 2058 | 6.66 | | | | | 62% | 49.98 | 14553 | 5.15 | 45.04 | 3567 | 2251 | 6.47 | | | | | 64% | 49.93 | 15449 | 5.47 | 49.24 | 3666 | 2459 | 6.28 | | | | | 66% | 49.87 | 16358 | 5.81 | 53.68 | 3764 | 2677 | 6.11 | | | | | 68% | 49.81 | 17242 | 6.13 | 58.25 | 3860 | 2901 | 5.94 | | | | | 70% | 49.75 | 18136 | 6.45 | 62.96 | 3955 | 3132 | 5.79 | | | | | 80% | 49.47 | 22687 | 8.10 | 90.19 | 4409 | 4462 | 5.08 | | | | | 90% | 49.14 | 27481 | 9.90 | 125.48 | 4829 | 6166 | 4.46 | | | | | 100% | 48.83 | 33017 | 11.96 | 181.74 | 5264 | 8874 | 3.72 | | | | | VL1035 KV150 + V200A 14S + PL32\*11 | | 40% | 60.14 | 8863 | 3.11 | 18.47 | 2819 | 1111 | 7.98 | 97 (Ambient Temperature: 25) | | 42% | 60.10 | 9781 | 3.44 | 21.25 | 2954 | 1277 | 7.66 | | | | | 44% | 60.07 | 10690 | 3.76 | 24.15 | 3091 | 1451 | 7.37 | | | | | 46% | 60.01 | 11804 | 4.13 | 27.55 | 3222 | 1653 | 7.14 | | | | | 48% | 59.96 | 12821 | 4.49 | 31.01 | 3352 | 1859 | 6.90 | | | | | 50% | 59.90 | 13794 | 4.85 | 34.71 | 3480 | 2079 | 6.63 | | | | | 52% | 59.84 | 14873 | 5.24 | 38.83 | 3605 | 2324 | 6.40 | | | | | 54% | 59.78 | 15959 | 5.63 | 43.14 | 3728 | 2579 | 6.19 | | | | | 56% | 59.73 | 17056 | 6.03 | 47.68 | 3848 | 2848 | 5.99 | | | | | 58% | 59.66 | 18141 | 6.43 | 52.45 | 3966 | 3129 | 5.80 | | | | | 60% | 59.58 | 19320 | 6.85 | 57.73 | 4080 | 3439 | 5.62 | | | | | 62% | 59.51 | 20476 | 7.28 | 63.21 | 4192 | 3761 | 5.44 | | | | | 64% | 59.43 | 21585 | 7.71 | 68.96 | 4300 | 4098 | 5.27 | | | | | 66% | 59.35 | 22734 | 8.13 | 74.89 | 4408 | 4445 | 5.11 | | | | | 68% | 59.28 | 23867 | 8.54 | 80.98 | 4518 | 4800 | 4.97 | | | | | 70% | 59.19 | 25054 | 8.97 | 87.53 | 4621 | 5181 | 4.84 | | | | | 80% | 58.60 | 30871 | 11.16 | 125.47 | 5097 | 7353 | 4.20 | | | | | 90% | 58.67 | 34246 | 12.45 | 153.36 | 5350 | 8998 | 3.81 | | | | | 100% | 58.58 | 36173 | 13.19 | 174.95 | 5490 | 10248 | 3.53 | | | | | Note:Temperatureinthechartisthebelltemperatureafterrunning\@75%throttle on 50V for10mins. (Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.) | | | | | | | | | | | \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ Packing List\_x000D\_\_x000D\_ ![VL1035??????.jpg](https://store.tmotor.com/images/202502/111739252682118655.jpg) \_x000D\_\_x000D\_ Before using this \_x000D\_ product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or \_x000D\_ leave message to " " in time.\_x000D\_\_x000D\_ \_x000D\_ \_x000D\_\_x000D\_ \_x000D\_\_x000D\_ ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_rar.gif)[VL1035 3D Diagram](https://en.tmotor.com/uploadfile/2024/1101/20241101043332782.rar) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[User Manual](https://en.tmotor.com/uploadfile/2024/1108/20241108085651236.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[TM\_UAVCAN\_V2 Communication Protocol](https://en.tmotor.com/uploadfile/2024/1108/20241108085704696.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[VL1035 Propulsion System Specifications.pdf](https://github.com/Premium-Modellbau/premium-modellbau-docs/blob/main/images/file/202502/131739428849828483.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_rar.gif)[TM-Link.exe Host Computer](https://en.tmotor.com/uploadfile/2024/1101/TM-Link.zip) \_x000D\_ \_x000D\_\_x000D\_ \_x000D\_\_x000D\_ \_x000D\_ *** ## T-Motor VTOL Brushless Motor VL5009 275kv -280g 12S **Artikelnr.:** PM-7086 | **HAN:** VL5009-275kv [Zum Premium-Modellbau Shop](https://www.premium-modellbau.de/search?sSearch=PM-7086) ![T-Motor VTOL Brushless Motor VL5009 275kv -280g 12S](https://img.tmotor.com/products/vl-power-system/mobile_images/VL5009.jpg) #### T-Motor VTOL Brushless Motor aus der VL Serie \_x000D\_ Es handelt sich um den reinen Motor wie in der Packaging List beschrieben. \_x000D\_ Hier finden Sie zusätzlich die Empfehlung von T-Motor für eine passende Antriebskombination (alle Artikel sind bei uns bestellbar) sowie alle Technischen Daten der Komponenten: \_x000D\_\_x000D\_ \_x000D\_ \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ ![T-MOTOR VL5009](https://img.tmotor.com/products/vl-power-system/mobile_images/VL5009.jpg) VL Series Propulsion System VL5009 KV275 MOTOR V60A ESC DZ17 PROPELLER ![T-MOTOR VL5009](https://img.tmotor.com/products/vl-power-system/mobile_images/section2.jpg) Fast and economical propeller locking Fast (Lock the propeller in seconds) The 360° custom angle propeller-locking can effectively avoid the turbulence caused by the rotation of the\_x000D\_ rotor and ensure that\_x000D\_ the aerodynamic layout of the fixed-wing aircraft is not affected,\_x000D\_ thereby improving flight safety Economical (Adaptive propeller locking) The ESC can automatically adjust the current to control the torque to\_x000D\_ lock the propeller as per the change of external force,\_x000D\_ reducing power consumption and heat to achieve energy saving Recommendation 12S Voltage 8.5kg Max Thrust/Arm 12\~15kg Recommended MTOW(Quad) \_x000D\_ \_x000D\_ \_x000D\_\_x000D\_\_x000D\_ Technical Drawing\_x000D\_\_x000D\_ ![VL5009-V60A-DZ17?????.png](https://store.tmotor.com/images/202501/211737430387332910.png) \_x000D\_\_x000D\_\_x000D\_\_x000D\_ Specification\_x000D\_\_x000D\_ | | | | | | ------------------------- | ------------------------------------------ | ----------------------------- | ----------------------- | | Model No. | VL5009 | Magnet Level | 180? | | Motor Size | F55.6\*38.85mm | Lead Cable | Silicone wire 16# 600mm | | Stator | 150°C high temperature -resisting coatings | Copper Wire | 240? | | Configuration | 18N20P | Coil Insulation Test | 1000V/5s | | Shaft Diameter | IN: 6 OUT: 4 | Rotor Dynamic BalanceStandard | =10mg | | Bearing | Imported 696 | IP | IPX5 | | CentrifugalCooling Design | YES | Package Size | 135\*104\*50mm | | | | | | | ------------------------ | ------ | ------------------------- | --------- | | Model No. | VL5009 | KV (RPM/V) | 275 | | Rated Voltage (LiPo) | 12S | Idle Current (15V) | 1.1A | | Internal Resistance(25?) | 66mO | Peak Current | 52A | | Continuous Power(180s) | 930W | Ambient Temperature | -30?\~55? | | Max. Thrust | 8.5kg | Motor Weight(indl. Cable) | 280g | | | | | | | ------------------------- | ----------------------------------------------- | --------------------- | -------------------------------------------------------------------------------------- | | ESC specs. | | | | | Model No. | V60A | Control | PWM/CAN | | Max. Voltage | 60V | Protocol | DRONE CAN/UAV CAN | | Peak Current (10s) | 60A (Under certain heat dissipation conditions) | Propeller-locking | ElectronicPropeller -locking | | Continuous Current | 30A (Under certain heat dissipation conditions) | Encoder cables | Shielded cables-Black -24AWG-5C-300±10mm -M6 aviation connector | | Standby Consumption | =50mA | Output Cable | Silicone wire-orange -16AWG-60±10mm | | Throttle Pos. Range | 1100-1940us (fixed) | Input Cable | Silicone wire-red/black -14AWG-160±10mm | | Throttle RefreshFrequency | 50\~500Hz | Signal Cable | Shielded cables-Black -OD4.2-5C-300±10mm -JP-3P\*2-Black blank white-green yellow gray | | Throttle ResponseSpeed | 300ms | Weight (Incl. cables) | 85g | | | | | | | ----------- | -------------------------- | -------------------- | ----- | | Prop specs. | | | | | Model No. | DZ17\*6.2 (431.8\*157.5mm) | Weight(Single Blade) | 28±3g | \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ Test Data\_x000D\_\_x000D\_ | Type | | Throttle | Voltage (V) | Thrust (g) | Torque (N\*m) | Current (A) | RPM | Power (W) | Effciency (g / W) | Operating Temperature (?) | | --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | ----- | -------- | ----------- | ---------- | ------------- | ----------- | ---- | --------- | ----------------- | ----------------------------- | | VL5009 KV275 + V60A 14S + DZ17\*6.2 | | 40% | 45.11 | 1510 | 0.31 | 3.78 | 4225 | 170 | 8.72 | 74 (Ambient Temperature: 25?) | | 42% | 45.14 | 1678 | 0.34 | 4.36 | 4440 | 197 | 8.39 | | | | | 44% | 45.18 | 1857 | 0.38 | 5.00 | 4661 | 226 | 8.08 | | | | | 46% | 45.22 | 2038 | 0.41 | 5.71 | 4879 | 258 | 7.76 | | | | | 48% | 45.25 | 2218 | 0.45 | 6.43 | 5096 | 291 | 7.49 | | | | | 50% | 45.29 | 2437 | 0.49 | 7.31 | 5308 | 331 | 7.24 | | | | | 52% | 45.32 | 2659 | 0.53 | 8.22 | 5521 | 373 | 7.02 | | | | | 54% | 45.35 | 2876 | 0.58 | 9.21 | 5737 | 418 | 6.77 | | | | | 56% | 45.36 | 3094 | 0.62 | 10.27 | 5957 | 466 | 6.53 | | | | | 58% | 45.40 | 3333 | 0.67 | 11.45 | 6172 | 520 | 6.30 | | | | | 60% | 45.42 | 3572 | 0.72 | 12.65 | 6388 | 574 | 6.11 | | | | | 62% | 45.44 | 3823 | 0.77 | 13.98 | 6601 | 635 | 5.92 | | | | | 64% | 45.47 | 4078 | 0.81 | 15.41 | 6822 | 701 | 5.72 | | | | | 66% | 45.49 | 4366 | 0.87 | 17.07 | 7039 | 777 | 5.53 | | | | | 68% | 45.51 | 4643 | 0.93 | 18.78 | 7251 | 855 | 5.34 | | | | | 70% | 45.53 | 4922 | 0.99 | 20.57 | 7465 | 937 | 5.17 | | | | | 80% | 45.61 | 6711 | 1.35 | 33.29 | 8618 | 1518 | 4.35 | | | | | 90% | 45.65 | 8490 | 1.72 | 51.52 | 9628 | 2352 | 3.55 | | | | | 100% | 45.60 | 8624 | 1.76 | 51.70 | 9665 | 2357 | 3.60 | | | | | VL5009 KV275 + V60A 14S + DZ17\*6.2 | | 40% | 50.85 | 1890 | 0.39 | 4.74 | 4752 | 241 | 7.84 | 74 (Ambient Temperature: 25?) | | 42% | 50.90 | 2119 | 0.44 | 5.47 | 4999 | 278 | 7.61 | | | | | 44% | 50.94 | 2330 | 0.48 | 6.29 | 5245 | 320 | 7.27 | | | | | 46% | 50.98 | 2565 | 0.53 | 7.20 | 5485 | 367 | 6.99 | | | | | 48% | 51.02 | 2794 | 0.57 | 8.15 | 5729 | 416 | 6.72 | | | | | 50% | 51.04 | 3045 | 0.62 | 9.23 | 5974 | 471 | 6.46 | | | | | 52% | 51.08 | 3302 | 0.67 | 10.36 | 6220 | 529 | 6.24 | | | | | 54% | 51.12 | 3609 | 0.73 | 11.74 | 6466 | 600 | 6.01 | | | | | 56% | 51.15 | 3870 | 0.79 | 13.09 | 6708 | 670 | 5.78 | | | | | 58% | 51.17 | 4167 | 0.85 | 14.66 | 6951 | 750 | 5.56 | | | | | 60% | 51.20 | 4482 | 0.91 | 16.35 | 7201 | 837 | 5.35 | | | | | 62% | 51.22 | 4817 | 0.98 | 18.23 | 7441 | 934 | 5.16 | | | | | 64% | 51.24 | 5142 | 1.05 | 20.18 | 7688 | 1034 | 4.97 | | | | | 66% | 51.26 | 5432 | 1.11 | 22.14 | 7883 | 1135 | 4.79 | | | | | 68% | 51.27 | 5744 | 1.17 | 24.72 | 8099 | 1267 | 4.53 | | | | | 70% | 51.30 | 6342 | 1.29 | 27.98 | 8477 | 1435 | 4.42 | | | | | 80% | 51.34 | 8358 | 1.72 | 46.00 | 9599 | 2362 | 3.54 | | | | | 90% | 51.31 | 8443 | 1.75 | 46.25 | 9653 | 2373 | 3.56 | | | | | 100% | 51.28 | 8551 | 1.77 | 46.43 | 9689 | 2381 | 3.59 | | | | | Note:Temperatureinthechartisthebelltemperatureafterrunning\@75%throttle on 44.4V for10mins. (Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.) | | | | | | | | | | | \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ Packing List\_x000D\_\_x000D\_ ![VL5009??????.jpg](https://store.tmotor.com/images/202502/111739252775278448.jpg) \_x000D\_\_x000D\_\_x000D\_ \_x000D\_ \_x000D\_\_x000D\_ \_x000D\_ \_x000D\_ ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_rar.gif)[VL5009 3D Diagram](https://en.tmotor.com/uploadfile/2024/1108/20241108085627660.rar) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[User Manual](https://en.tmotor.com/uploadfile/2024/1108/20241108085651236.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[TM\_UAVCAN\_V2 Communication Protocol](https://en.tmotor.com/uploadfile/2024/1108/20241108085704696.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[VL5009 Propulsion System Specifications.pdf](https://github.com/Premium-Modellbau/premium-modellbau-docs/blob/main/images/file/202502/131739428952770802.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_rar.gif)[TM-Link.exe Host Computer](https://en.tmotor.com/uploadfile/2024/1101/TM-Link.zip) \_x000D\_ \_x000D\_\_x000D\_ \_x000D\_ *** ## T-Motor VTOL Brushless Motor VL6011 180kv - 300g 12S **Artikelnr.:** PM-7087 | **HAN:** VL6011-180kv [Zum Premium-Modellbau Shop](https://www.premium-modellbau.de/search?sSearch=PM-7087) ![T-Motor VTOL Brushless Motor VL6011 180kv - 300g 12S](https://img.tmotor.com/products/vl-power-system/mobile_images/VL6011.jpg) #### T-Motor VTOL Brushless Motor aus der VL Serie \_x000D\_ Es handelt sich um den reinen Motor wie in der Packaging List beschrieben. \_x000D\_ Hier finden Sie zusätzlich die Empfehlung von T-Motor für eine passende Antriebskombination (alle Artikel sind bei uns bestellbar) sowie alle Technischen Daten der Komponenten: \_x000D\_\_x000D\_ \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ ![T-MOTOR VL6011](https://img.tmotor.com/products/vl-power-system/mobile_images/VL6011.jpg) VL Series Propulsion System VL6011 KV180 MOTOR V60A ESC P22 PROPELLER ![T-MOTOR VL6011](https://img.tmotor.com/products/vl-power-system/mobile_images/section2.jpg) Fast and economical propeller locking Fast (Lock the propeller in seconds) The 360° custom angle propeller-locking can effectively avoid the turbulence caused by the rotation of the\_x000D\_ rotor and ensure that\_x000D\_ the aerodynamic layout of the fixed-wing aircraft is not affected,\_x000D\_ thereby improving flight safety Economical (Adaptive propeller locking) The ESC can automatically adjust the current to control the torque to\_x000D\_ lock the propeller as per the change of external force,\_x000D\_ reducing power consumption and heat to achieve energy saving Recommendation 12S Voltage 10.5kg Max Thrust/Arm 15\~18kg Recommended MTOW(Quad) \_x000D\_ \_x000D\_\_x000D\_\_x000D\_\_x000D\_ Technical Drawing\_x000D\_\_x000D\_ ![VL6011-V60A-P22?????.png](https://store.tmotor.com/images/202501/211737438879880670.png) \_x000D\_\_x000D\_\_x000D\_\_x000D\_ Specification\_x000D\_\_x000D\_ | | | | | | ------------------------- | ------------------------------------------ | ----------------------------- | ---------------------- | | Model No. | VL6011 | Magnet Level | 180? | | Motor Size | F67.2\*38.4mm | Lead Cable | Silicone wire16# 600mm | | Stator | 150°C high temperature -resisting coatings | Copper Wire | 220? | | Configuration | 24N28P | Coil Insulation Test | 1000V/5s | | Shaft Diameter | IN: 6 OUT: 4 | Rotor Dynamic BalanceStandard | =10mg | | Bearing | Imported 696 | IP | IPX5 | | CentrifugalCooling Design | YES | Package Size | 126\*103\*51mm | | | | | | | ------------------------ | ------ | ------------------------- | --------- | | Model No. | VL6011 | KV (RPM/V) | 180 | | Rated Voltage (LiPo) | 12S | Idle Current (15V) | 1.1A | | Internal Resistance(25?) | 80mO | Peak Current | 55A | | Continuous Power(180s) | 2450W | Ambient Temperature | -30?\~55? | | Max. Thrust | 10.1kg | Motor Weight(indl. Cable) | 300g | | | | | | | ------------------------- | ----------------------------------------------- | --------------------- | -------------------------------------------------------------------------------------- | | ESC specs. | | | | | Model No. | V60A | Control | PWM/CAN | | Max. Voltage | 60V | Protocol | DRONE CAN/UAV CAN | | Peak Current (10s) | 60A (Under certain heat dissipation conditions) | Propeller-locking | ElectronicPropeller -locking | | Continuous Current | 30A (Under certain heat dissipation conditions) | Encoder cables | Shielded cables-Black -24AWG-5C-300±10mm -M6 aviation connector | | Standby Consumption | =50mA | Output Cable | Silicone wire-orange -16AWG-60±10mm | | Throttle Pos. Range | 1100-1940us (fixed) | Input Cable | Silicone wire-red/black -14AWG-160±10mm | | Throttle RefreshFrequency | 50\~500Hz | Signal Cable | Shielded cables-Black -OD4.2-5C-300±10mm -JP-3P\*2-Black blank white-green yellow gray | | Throttle Response Speed | 300ms | Weight (Incl. cables) | 85g | | | | | | | ----------- | ------------------------------ | --------------------- | ----- | | Prop specs. | | | | | Model No. | P22\*6.6 inch (558.8\*167.6mm) | Weight (Single Blade) | 45±2g | \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ Test Data\_x000D\_\_x000D\_ | Type | | Throttle | Voltage (V) | Thrust (g) | Torque (N\*m) | Current (A) | RPM | Power (W) | Effciency (g / W) | Operating Temperature (?) | | --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | ----- | -------- | ----------- | ---------- | ------------- | ----------- | ----- | --------- | ----------------- | ---------------------------- | | VL6011 KV180 + V60A 14S + P22\*6.6 | | 40% | 44.41 | 1461 | 0.36 | 3.03 | 2738 | 135 | 10.84 | 51 (Ambient Temperature: 25) | | 42% | 44.40 | 1618 | 0.40 | 3.47 | 2880 | 154 | 10.49 | | | | | 44% | 44.40 | 1778 | 0.43 | 3.95 | 3019 | 175 | 10.14 | | | | | 46% | 44.39 | 1952 | 0.47 | 4.47 | 3161 | 199 | 9.83 | | | | | 48% | 44.38 | 2121 | 0.52 | 5.04 | 3298 | 224 | 9.48 | | | | | 50% | 44.37 | 2302 | 0.56 | 5.65 | 3438 | 251 | 9.18 | | | | | 52% | 44.36 | 2497 | 0.61 | 6.35 | 3583 | 282 | 8.86 | | | | | 54% | 44.35 | 2694 | 0.65 | 7.07 | 3718 | 314 | 8.59 | | | | | 56% | 44.34 | 2896 | 0.70 | 7.84 | 3853 | 348 | 8.33 | | | | | 58% | 44.33 | 3128 | 0.75 | 8.71 | 3995 | 386 | 8.10 | | | | | 60% | 44.32 | 3350 | 0.81 | 9.63 | 4133 | 427 | 7.85 | | | | | 62% | 44.30 | 3575 | 0.86 | 10.60 | 4270 | 470 | 7.61 | | | | | 64% | 44.29 | 3816 | 0.92 | 11.65 | 4408 | 516 | 7.40 | | | | | 66% | 44.27 | 4068 | 0.98 | 12.81 | 4550 | 567 | 7.17 | | | | | 68% | 44.26 | 4336 | 1.04 | 14.05 | 4686 | 622 | 6.97 | | | | | 70% | 44.24 | 4595 | 1.11 | 15.37 | 4823 | 680 | 6.76 | | | | | 80% | 44.13 | 6023 | 1.44 | 23.16 | 5497 | 1022 | 5.89 | | | | | 90% | 43.97 | 7800 | 1.88 | 34.85 | 6226 | 1532 | 5.09 | | | | | 100% | 43.70 | 9992 | 2.42 | 54.09 | 7011 | 2364 | 4.23 | | | | | VL6011 KV180 + V60A 14S + P22\*6.6 | | 40% | 49.95 | 1837 | 0.45 | 3.69 | 3062 | 184 | 9.98 | 51 (Ambient Temperature: 25) | | 42% | 49.94 | 2034 | 0.49 | 4.22 | 3220 | 211 | 9.65 | | | | | 44% | 49.93 | 2232 | 0.54 | 4.83 | 3377 | 241 | 9.26 | | | | | 46% | 49.92 | 2447 | 0.59 | 5.48 | 3531 | 274 | 8.94 | | | | | 48% | 49.91 | 2670 | 0.64 | 6.19 | 3686 | 309 | 8.64 | | | | | 50% | 49.90 | 2913 | 0.70 | 7.00 | 3846 | 349 | 8.34 | | | | | 52% | 49.89 | 3148 | 0.76 | 7.85 | 4001 | 392 | 8.04 | | | | | 54% | 49.88 | 3402 | 0.82 | 8.77 | 4156 | 437 | 7.78 | | | | | 56% | 49.86 | 3661 | 0.88 | 9.75 | 4310 | 486 | 7.53 | | | | | 58% | 49.85 | 3938 | 0.94 | 10.88 | 4471 | 542 | 7.26 | | | | | 60% | 49.83 | 4221 | 1.01 | 12.03 | 4624 | 600 | 7.04 | | | | | 62% | 49.81 | 4515 | 1.08 | 13.32 | 4782 | 663 | 6.81 | | | | | 64% | 49.80 | 4820 | 1.15 | 14.64 | 4935 | 729 | 6.61 | | | | | 66% | 49.77 | 5134 | 1.23 | 16.07 | 5090 | 800 | 6.42 | | | | | 68% | 49.75 | 5474 | 1.30 | 17.70 | 5248 | 880 | 6.22 | | | | | 70% | 49.73 | 5802 | 1.39 | 19.33 | 5402 | 961 | 6.04 | | | | | 80% | 49.58 | 7617 | 1.83 | 29.96 | 6185 | 1485 | 5.13 | | | | | 90% | 49.44 | 9072 | 2.19 | 39.96 | 6714 | 1976 | 4.59 | | | | | 100% | 49.33 | 10150 | 2.46 | 48.59 | 7045 | 2397 | 4.19 | | | | | Note:Temperatureinthechartisthebelltemperatureafterrunning\@75%throttle on 44.4V for10mins. (Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.) | | | | | | | | | | | \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ Packing List\_x000D\_\_x000D\_ ![VL6011??????.jpg](https://store.tmotor.com/images/202502/111739252856651379.jpg) \_x000D\_\_x000D\_ Before using this \_x000D\_ product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or \_x000D\_ leave message to " " in time.\_x000D\_\_x000D\_ \_x000D\_ \_x000D\_\_x000D\_ \_x000D\_\_x000D\_ ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_rar.gif)[VL6011 3D Diagram](https://en.tmotor.com/uploadfile/2024/1108/20241108091423522.rar) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[User Manual](https://en.tmotor.com/uploadfile/2024/1108/20241108085651236.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[TM\_UAVCAN\_V2 Communication Protocol](https://en.tmotor.com/uploadfile/2024/1108/20241108085704696.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[VL6011 Propulsion System Specifications.pdf](https://github.com/Premium-Modellbau/premium-modellbau-docs/blob/main/images/file/202502/131739429083778159.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_rar.gif)[TM-Link.exe Host Computer](https://en.tmotor.com/uploadfile/2024/1101/TM-Link.zip) \_x000D\_ \_x000D\_ \_x000D\_\_x000D\_ \_x000D\_\_x000D\_ \_x000D\_ *** ## T-Motor VTOL Brushless Motor VL6013 210kv - 388g 12S **Artikelnr.:** PM-7088 | **HAN:** VL6013-210kv [Zum Premium-Modellbau Shop](https://www.premium-modellbau.de/search?sSearch=PM-7088) ![T-Motor VTOL Brushless Motor VL6013 210kv - 388g 12S](https://img.tmotor.com/products/vl-power-system/mobile_images/VL6013.jpg) #### T-Motor VTOL Brushless Motor aus der VL Serie \_x000D\_ Es handelt sich um den reinen Motor wie in der Packaging List beschrieben. \_x000D\_ Hier finden Sie zusätzlich die Empfehlung von T-Motor für eine passende Antriebskombination (alle Artikel sind bei uns bestellbar) sowie alle Technischen Daten der Komponenten: \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ ![T-MOTOR VL6013](https://img.tmotor.com/products/vl-power-system/mobile_images/VL6013.jpg) VL Series Propulsion System VL6013 KV210 MOTOR V200A ESC P22 PROPELLER ![T-MOTOR VL6013](https://img.tmotor.com/products/vl-power-system/mobile_images/section2.jpg) Fast and economical propeller locking Fast (Lock the propeller in seconds) The 360° custom angle propeller-locking can effectively avoid the turbulence caused by the rotation of the\_x000D\_ rotor and ensure that\_x000D\_ the aerodynamic layout of the fixed-wing aircraft is not affected,\_x000D\_ thereby improving flight safety Economical (Adaptive propeller locking) The ESC can automatically adjust the current to control the torque to\_x000D\_ lock the propeller as per the change of external force,\_x000D\_ reducing power consumption and heat to achieve energy saving Recommendation 12S Voltage 13kg Max Thrust/Arm 20\~22kg Recommended MTOW(Quad) \_x000D\_ \_x000D\_\_x000D\_\_x000D\_\_x000D\_ Technical Drawing\_x000D\_\_x000D\_ ![VL6013-V80A-P22?????.png](https://store.tmotor.com/images/202501/211737440029325763.png) \_x000D\_\_x000D\_\_x000D\_\_x000D\_ Specification\_x000D\_\_x000D\_ | | | | | | ------------------------- | ------------------------------------------ | ----------------------------- | ---------------------- | | Model No. | VL6013 | Magnet Level | 180? | | Motor Size | F68.8\*39.4mm | Lead Cable | Silicone wire14# 600mm | | Stator | 150°C high temperature -resisting coatings | Copper Wire | 220? | | Configuration | 24N28P | Coil Insulation Test | 1000V/5s | | Shaft Diameter | IN: 6 OUT: 6 | Rotor Dynamic BalanceStandard | =10mg | | Bearing | Imported 626 | IP | IPX5 | | CentrifugalCooling Design | YES | Package Size | 135\*104\*50mm | | | | | | | ------------------------ | ------ | ------------------------- | --------- | | Model No. | VL6013 | KV (RPM/V) | 210 | | Rated Voltage (LiPo) | 12S | Idle Current (15V) | 1.5A | | Internal Resistance(25?) | 50mO | Peak Current | 70A | | Continuous Power(180s) | 13000W | Ambient Temperature | -30?\~55? | | Max. Thrust | 13.1kg | Motor Weight(indl. Cable) | 388g | | | | | | | ------------------------- | ----------------------------------------------- | --------------------- | -------------------------------------------------------------------------------------- | | ESC specs. | | | | | Model No. | V80A | Control | PWM/CAN | | Max. Voltage | 60V | Protocol | DRONE CAN/UAV CAN | | Peak Current (10s) | 80A (Under certain heat dissipation conditions) | Propeller-locking | ElectronicPropeller -locking | | Continuous Current | 40A (Under certain heat dissipation conditions) | Encoder cables | Shielded cables-Black -24AWG-5C-450±10mm -M6 aviation connector | | Standby Consumption | =50mA | Output Cable | Silicone wire-orange -14AWG-110±10mm | | Throttle Pos. Range | 1040\~1940us (fixed) | Input Cable | Silicone wire-red/black -12AWG-180±10mm | | Throttle RefreshFrequency | 50\~500Hz | Signal Cable | Shielded cables-Black -OD4.2-5C-450±10mm -JP-3P\*2-Black blank white-green yellow gray | | Throttle ResponseSpeed | 300ms | Weight (Incl. cables) | 110g | | | | | | | ----------- | ------------------------------ | --------------------- | ----- | | Prop specs. | | | | | Model No. | P22\*6.6 inch (558.8\*167.6mm) | Weight (Single Blade) | 45±2g | \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ Test Data\_x000D\_\_x000D\_ | Type | | Throttle | Voltage (V) | Thrust (g) | Torque (N\*m) | Current (A) | RPM | Power (W) | Effciency (g / W) | Operating Temperature (?) | | --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | ----- | -------- | ----------- | ---------- | ------------- | ----------- | ---- | --------- | ----------------- | ---------------------------- | | VL6013 KV210 + V80A 14S + P22\*6.6 | | 40% | 45.02 | 2384 | 0.60 | 5.76 | 3343 | 259 | 9.19 | 72 (Ambient Temperature: 25) | | 42% | 45.06 | 2649 | 0.67 | 6.66 | 3512 | 300 | 8.83 | | | | | 44% | 45.08 | 2950 | 0.74 | 7.65 | 3676 | 345 | 8.56 | | | | | 46% | 45.10 | 3228 | 0.80 | 8.67 | 3841 | 391 | 8.26 | | | | | 48% | 45.12 | 3562 | 0.88 | 9.87 | 4001 | 445 | 8.00 | | | | | 50% | 45.13 | 3841 | 0.95 | 11.06 | 4165 | 499 | 7.70 | | | | | 52% | 45.15 | 4203 | 1.03 | 12.45 | 4332 | 562 | 7.47 | | | | | 54% | 45.15 | 4551 | 1.12 | 13.92 | 4493 | 628 | 7.24 | | | | | 56% | 45.15 | 4907 | 1.21 | 15.49 | 4648 | 699 | 7.02 | | | | | 58% | 45.15 | 5250 | 1.29 | 17.14 | 4805 | 774 | 6.78 | | | | | 60% | 45.15 | 5624 | 1.39 | 18.97 | 4961 | 857 | 6.57 | | | | | 62% | 45.13 | 6022 | 1.48 | 20.96 | 5126 | 946 | 6.37 | | | | | 64% | 45.12 | 6411 | 1.58 | 22.99 | 5274 | 1037 | 6.18 | | | | | 66% | 45.12 | 6827 | 1.68 | 25.23 | 5423 | 1138 | 6.00 | | | | | 68% | 45.11 | 7241 | 1.78 | 27.58 | 5574 | 1244 | 5.82 | | | | | 70% | 45.09 | 7670 | 1.89 | 30.18 | 5730 | 1361 | 5.63 | | | | | 80% | 44.97 | 9973 | 2.47 | 45.95 | 6468 | 2066 | 4.83 | | | | | 90% | 44.62 | 12189 | 3.04 | 77.83 | 7113 | 3473 | 3.51 | | | | | 100% | 44.56 | 12517 | 3.13 | 77.35 | 7195 | 3447 | 3.63 | | | | | VL6013 KV210 + V80A 14S + P22\*6.6 | | 40% | 50.82 | 3099 | 0.76 | 7.28 | 3748 | 370 | 8.38 | 72 (Ambient Temperature: 25) | | 42% | 50.86 | 3431 | 0.84 | 8.39 | 3933 | 427 | 8.04 | | | | | 44% | 50.89 | 3810 | 0.93 | 9.68 | 4119 | 493 | 7.74 | | | | | 46% | 50.91 | 4174 | 1.02 | 10.98 | 4300 | 559 | 7.46 | | | | | 48% | 50.93 | 4547 | 1.11 | 12.42 | 4485 | 633 | 7.19 | | | | | 50% | 50.96 | 4939 | 1.20 | 14.00 | 4663 | 713 | 6.93 | | | | | 52% | 50.97 | 5363 | 1.31 | 15.79 | 4846 | 805 | 6.66 | | | | | 54% | 50.99 | 5805 | 1.42 | 17.65 | 5016 | 900 | 6.45 | | | | | 56% | 51.00 | 6233 | 1.52 | 19.61 | 5189 | 1000 | 6.23 | | | | | 58% | 51.00 | 6680 | 1.64 | 21.76 | 5360 | 1110 | 6.02 | | | | | 60% | 51.01 | 7163 | 1.75 | 24.08 | 5537 | 1228 | 5.83 | | | | | 62% | 51.01 | 7661 | 1.88 | 26.66 | 5711 | 1360 | 5.63 | | | | | 64% | 51.01 | 8139 | 1.99 | 29.28 | 5873 | 1493 | 5.45 | | | | | 66% | 50.99 | 8622 | 2.12 | 32.10 | 6041 | 1637 | 5.27 | | | | | 68% | 50.98 | 9179 | 2.25 | 35.38 | 6208 | 1803 | 5.10 | | | | | 70% | 50.97 | 9690 | 2.38 | 38.66 | 6371 | 1970 | 4.92 | | | | | 80% | 50.70 | 12526 | 3.12 | 61.65 | 7175 | 3125 | 4.01 | | | | | 90% | 50.71 | 12759 | 3.18 | 69.88 | 7224 | 3543 | 3.60 | | | | | 100% | 50.63 | 13084 | 3.27 | 69.90 | 7311 | 3539 | 3.70 | | | | | Note:Temperatureinthechartisthebelltemperatureafterrunning\@75%throttle on 44.4V for10mins. (Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.) | | | | | | | | | | | \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ Packing List\_x000D\_\_x000D\_ ![VL6013??????jpg.jpg](https://store.tmotor.com/images/202502/111739252935301276.jpg) \_x000D\_\_x000D\_\_x000D\_ \_x000D\_ \_x000D\_\_x000D\_ \_x000D\_\_x000D\_ ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_rar.gif)[VL6013 3D Diagram](https://en.tmotor.com/uploadfile/2024/1108/20241108091751909.rar) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[User Manual](https://en.tmotor.com/uploadfile/2024/1108/20241108085651236.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[TM\_UAVCAN\_V2 Communication Protocol](https://en.tmotor.com/uploadfile/2024/1108/20241108085704696.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[VL6013 Propulsion System Specifications.pdf](https://github.com/Premium-Modellbau/premium-modellbau-docs/blob/main/images/file/202502/131739429149904407.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_rar.gif)[TM-Link.exe Host Computer](https://en.tmotor.com/uploadfile/2024/1101/TM-Link.zip) \_x000D\_ \_x000D\_ \_x000D\_\_x000D\_ \_x000D\_\_x000D\_ \_x000D\_ *** ## T-Motor VTOL Brushless Motor VL7015 190kv - 540g 12S **Artikelnr.:** PM-7089 | **HAN:** VL7015 -190kv [Zum Premium-Modellbau Shop](https://www.premium-modellbau.de/search?sSearch=PM-7089) ![T-Motor VTOL Brushless Motor VL7015 190kv - 540g 12S](https://img.tmotor.com/products/vl-power-system/mobile_images/VL7015.jpg) #### T-Motor VTOL Brushless Motor aus der VL Serie \_x000D\_ Es handelt sich um den reinen Motor wie in der Packaging List beschrieben. \_x000D\_ Hier finden Sie zusätzlich die Empfehlung von T-Motor für eine passende Antriebskombination (alle Artikel sind bei uns bestellbar) sowie alle Technischen Daten der Komponenten: \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ ![T-MOTOR VL7015](https://img.tmotor.com/products/vl-power-system/mobile_images/VL7015.jpg) VL Series Propulsion System VL7015 KV190 MOTOR V80A ESC P24 PROPELLER ![T-MOTOR VL7015](https://img.tmotor.com/products/vl-power-system/mobile_images/section2.jpg) Fast and economical propeller locking Fast (Lock the propeller in seconds) The 360° custom angle propeller-locking can effectively avoid the turbulence caused by the rotation of the\_x000D\_ rotor and ensure that\_x000D\_ the aerodynamic layout of the fixed-wing aircraft is not affected,\_x000D\_ thereby improving flight safety Economical (Adaptive propeller locking) The ESC can automatically adjust the current to control the torque to\_x000D\_ lock the propeller as per the change of external force,\_x000D\_ reducing power consumption and heat to achieve energy saving Recommendation 12S Voltage 15kg Max Thrust/Arm 22\~24kg Recommended MTOW(Quad) \_x000D\_ \_x000D\_\_x000D\_\_x000D\_\_x000D\_ Technical Drawing\_x000D\_\_x000D\_ ![VL7015-V80A-P24x7.2?????.png](https://store.tmotor.com/images/202501/211737441708229960.png) \_x000D\_\_x000D\_\_x000D\_\_x000D\_ Specification\_x000D\_\_x000D\_ | | | | | | ------------------------- | ------------------------------------------ | ----------------------------- | ---------------------- | | Model No. | VL7015 | Magnet Level | 180? | | Motor Size | F79.2\*44.4mm | Lead Cable | Silicone wire14# 600mm | | Stator | 150°C high temperature -resisting coatings | Copper Wire | 220? | | Configuration | 24N28P | Coil Insulation Test | 1000V/5s | | Shaft Diameter | IN: 8 OUT: 8 | Rotor Dynamic BalanceStandard | =10mg | | Bearing | Imported 608 | IP | IP25 | | CentrifugalCooling Design | YES | Package Size | 158\*135\*64mm | | | | | | | ------------------------ | ------ | ------------------------- | --------- | | Model No. | VL7015 | KV (RPM/V) | 190 | | Rated Voltage (LiPo) | 12S | Idle Current (15V) | 2.0A | | Internal Resistance(25?) | 35mO | Peak Current | 85A | | Continuous Power(180s) | 1600W | Ambient Temperature | -30?\~55? | | Max. Thrust | 15.8kg | Motor Weight(indl. Cable) | 540g | | | | | | | ------------------------- | ----------------------------------------------- | --------------------- | -------------------------------------------------------------------------------------- | | ESC specs. | | | | | Model No. | V80A | Control | PWM/CAN | | Max. Voltage | 60V | Protocol | DRONE CAN/UAV CAN | | Peak Current (10s) | 80A (Under certain heat dissipation conditions) | Propeller-locking | ElectronicPropeller -locking | | Continuous Current | 40A (Under certain heat dissipation conditions) | Encoder cables | Shielded cables-Black -24AWG-5C-450±10mm -M6 aviation connector | | Standby Consumption | =50mA | Output Cable | Silicone wire-orange -14AWG-110±10mm | | Throttle Pos. Range | 1040\~1940us (fixed) | Input Cable | Silicone wire-red/black -12AWG-180±10mm | | Throttle RefreshFrequency | 50\~500Hz | Signal Cable | Shielded cables-Black -OD4.2-5C-450±10mm -JP-3P\*2-Black blank white-green yellow gray | | Throttle ResponseSpeed | 300ms | Weight (Incl. cables) | 110g | | | | | | | ----------- | ---------------------------- | --------------------- | ----- | | Prop specs. | | | | | Model No. | P24\*7.2 inch (610\*198.1mm) | Weight (Single Blade) | 60±5g | \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ Test Data\_x000D\_\_x000D\_ | Type | | Throttle | Voltage (V) | Thrust (g) | Torque (N\*m) | Current (A) | RPM | Power (W) | Effciency (g / W) | Operating Temperature (?) | | --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | ----- | -------- | ----------- | ---------- | ------------- | ----------- | ---- | --------- | ----------------- | ---------------------------- | | VL7015 KV190 + V80A 14S + P24\*7.2 | | 40% | 44.31 | 2639 | 0.71 | 6.70 | 2975 | 297 | 8.88 | 79 (Ambient Temperature: 25) | | 42% | 44.30 | 2915 | 0.78 | 7.64 | 3128 | 338 | 8.61 | | | | | 44% | 44.28 | 3232 | 0.86 | 8.72 | 3276 | 386 | 8.37 | | | | | 46% | 44.27 | 3547 | 0.95 | 9.89 | 3428 | 438 | 8.10 | | | | | 48% | 44.25 | 3867 | 1.03 | 11.13 | 3574 | 492 | 7.86 | | | | | 50% | 44.23 | 4227 | 1.12 | 12.53 | 3724 | 554 | 7.63 | | | | | 52% | 44.21 | 4591 | 1.21 | 13.97 | 3867 | 617 | 7.44 | | | | | 54% | 44.19 | 4936 | 1.31 | 15.51 | 4012 | 685 | 7.20 | | | | | 56% | 44.16 | 5310 | 1.40 | 17.20 | 4156 | 759 | 6.99 | | | | | 58% | 44.14 | 5685 | 1.50 | 18.95 | 4295 | 836 | 6.80 | | | | | 60% | 44.11 | 6054 | 1.59 | 20.77 | 4426 | 916 | 6.61 | | | | | 62% | 44.08 | 6454 | 1.70 | 22.79 | 4564 | 1005 | 6.42 | | | | | 64% | 44.06 | 6781 | 1.79 | 24.74 | 4702 | 1090 | 6.22 | | | | | 66% | 44.02 | 7210 | 1.90 | 27.06 | 4840 | 1191 | 6.05 | | | | | 68% | 43.99 | 7669 | 2.02 | 29.54 | 4979 | 1299 | 5.90 | | | | | 70% | 43.95 | 8130 | 2.13 | 32.14 | 5114 | 1413 | 5.75 | | | | | 80% | 43.73 | 10545 | 2.77 | 47.74 | 5783 | 2088 | 5.05 | | | | | 90% | 43.42 | 13234 | 3.49 | 69.14 | 6441 | 3002 | 4.41 | | | | | 100% | 43.32 | 13839 | 3.66 | 75.39 | 6584 | 3266 | 4.24 | | | | | VL7015 KV190 + V80A 14S + P24\*7.2 | | 40% | 49.89 | 3354 | 0.89 | 8.25 | 3337 | 412 | 8.15 | 79 (Ambient Temperature: 25) | | 42% | 49.87 | 3719 | 0.99 | 9.49 | 3509 | 473 | 7.86 | | | | | 44% | 49.85 | 4103 | 1.09 | 10.80 | 3675 | 539 | 7.62 | | | | | 46% | 49.83 | 4507 | 1.19 | 12.25 | 3844 | 610 | 7.38 | | | | | 48% | 49.81 | 4922 | 1.29 | 13.82 | 4008 | 688 | 7.15 | | | | | 50% | 49.78 | 5320 | 1.40 | 15.49 | 4173 | 771 | 6.90 | | | | | 52% | 49.76 | 5765 | 1.51 | 17.32 | 4333 | 862 | 6.69 | | | | | 54% | 49.73 | 6231 | 1.63 | 19.32 | 4494 | 961 | 6.49 | | | | | 56% | 49.70 | 6696 | 1.76 | 21.48 | 4656 | 1068 | 6.27 | | | | | 58% | 49.67 | 7186 | 1.88 | 23.71 | 4810 | 1178 | 6.10 | | | | | 60% | 49.63 | 7679 | 2.02 | 26.17 | 4970 | 1299 | 5.91 | | | | | 62% | 49.60 | 8114 | 2.13 | 28.52 | 5121 | 1415 | 5.74 | | | | | 64% | 49.56 | 8645 | 2.27 | 31.38 | 5274 | 1555 | 5.56 | | | | | 66% | 49.52 | 9163 | 2.41 | 34.23 | 5423 | 1695 | 5.41 | | | | | 68% | 49.47 | 9674 | 2.54 | 37.18 | 5570 | 1840 | 5.26 | | | | | 70% | 49.43 | 10167 | 2.67 | 40.28 | 5716 | 1991 | 5.11 | | | | | 80% | 49.15 | 13102 | 3.45 | 59.91 | 6408 | 2945 | 4.45 | | | | | 90% | 49.00 | 14024 | 3.76 | 69.49 | 6683 | 3405 | 4.18 | | | | | 100% | 48.79 | 15867 | 4.16 | 83.63 | 6988 | 4080 | 3.84 | | | | | Note:Temperatureinthechartisthebelltemperatureafterrunning\@75%throttle on 44.4V for10mins. (Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.) | | | | | | | | | | | \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ Packing List\_x000D\_\_x000D\_ ![VL7015??????.jpg](https://store.tmotor.com/images/202502/111739253030242727.jpg) \_x000D\_\_x000D\_\_x000D\_ \_x000D\_ \_x000D\_\_x000D\_ \_x000D\_\_x000D\_ ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_rar.gif)[VL7015 3D Diagram](https://en.tmotor.com/uploadfile/2024/1101/20241101033320257.rar) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[User Manual](https://en.tmotor.com/uploadfile/2024/1108/20241108085651236.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[TM\_UAVCAN\_V2 Communication Protocol](https://en.tmotor.com/uploadfile/2024/1108/20241108085704696.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[VL7015 Propulsion System Specifications.pdf](https://github.com/Premium-Modellbau/premium-modellbau-docs/blob/main/images/file/202502/131739429227488750.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_rar.gif)[TM-Link.exe Host Computer](https://en.tmotor.com/uploadfile/2024/1101/TM-Link.zip) \_x000D\_ \_x000D\_ \_x000D\_\_x000D\_ \_x000D\_\_x000D\_ \_x000D\_ *** ## T-Motor VTOL Brushless Motor VL8015 170kv - 610g 12S **Artikelnr.:** PM-7090 | **HAN:** VL8015 -170kv [Zum Premium-Modellbau Shop](https://www.premium-modellbau.de/search?sSearch=PM-7090) ![T-Motor VTOL Brushless Motor VL8015 170kv - 610g 12S](https://img.tmotor.com/products/vl-power-system/mobile_images/VL8015.jpg) #### T-Motor VTOL Brushless Motor aus der VL Serie \_x000D\_ Es handelt sich um den reinen Motor wie in der Packaging List beschrieben. \_x000D\_ Hier finden Sie zusätzlich die Empfehlung von T-Motor für eine passende Antriebskombination (alle Artikel sind bei uns bestellbar) sowie alle Technischen Daten der Komponenten: \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ ![T-MOTOR VL8015](https://img.tmotor.com/products/vl-power-system/mobile_images/VL8015.jpg) VL Series Propulsion System VL8015 KV170 MOTOR V80A ESC G26 PROPELLER ![T-MOTOR VL8015](https://img.tmotor.com/products/vl-power-system/mobile_images/section2.jpg) Fast and economical propeller locking Fast (Lock the propeller in seconds) The 360° custom angle propeller-locking can effectively avoid the turbulence caused by the rotation of the\_x000D\_ rotor and ensure that\_x000D\_ the aerodynamic layout of the fixed-wing aircraft is not affected,\_x000D\_ thereby improving flight safety Economical (Adaptive propeller locking) The ESC can automatically adjust the current to control the torque to\_x000D\_ lock the propeller as per the change of external force,\_x000D\_ reducing power consumption and heat to achieve energy saving Recommendation 12S Voltage 14.8kg Max Thrust/Arm 25kg Recommended MTOW(Quad) \_x000D\_ \_x000D\_\_x000D\_\_x000D\_\_x000D\_ Technical Drawing\_x000D\_\_x000D\_ ![VL8015-V80A-G26x8.5?????.png](https://store.tmotor.com/images/202501/211737443516709357.png) \_x000D\_\_x000D\_\_x000D\_\_x000D\_ Specification\_x000D\_\_x000D\_ | | | | | | ------------------------- | ------------------------------------------ | ----------------------------- | ----------------------- | | Model No. | VL8015 | Magnet Level | 180? | | Motor Size | F88.8\*42mm | Lead Cable | Silicone wire14# 1000mm | | Stator | 150°C high temperature -resisting coatings | Copper Wire | 220? | | Configuration | 24N28P | Coil Insulation Test | 1000V/5s | | Shaft Diameter | IN: 12 OUT: 10 | Rotor Dynamic BalanceStandard | =10mg | | Bearing | Imported 6901 | IP | IPX5 | | CentrifugalCooling Design | YES | Package Size | 150\*120\*57mm | | | | | | | ------------------------ | ------ | ------------------------- | --------- | | Model No. | VL8015 | KV (RPM/V) | 170 | | Rated Voltage (LiPo) | 12S | Idle Current (15V) | 1.9A | | Internal Resistance(25?) | 43mO | Peak Current | 74A | | Continuous Power(180s) | 1200W | Ambient Temperature | -30?\~55? | | Max. Thrust | 14.8g | Motor Weight(indl. Cable) | 610g | | | | | | | ------------------------- | ----------------------------------------------- | --------------------- | -------------------------------------------------------------------------------------- | | ESC specs. | | | | | Model No. | V80A | Control | PWM/CAN | | Max. Voltage | 60V | Protocol | DRONE CAN/UAV CAN | | Peak Current (10s) | 80A (Under certain heat dissipation conditions) | Propeller-locking | ElectronicPropeller -locking | | Continuous Current | 40A (Under certain heat dissipation conditions) | Encoder cables | Shielded cables-Black -24AWG-5C-450±10mm -M6 aviation connector | | Standby Consumption | =50mA | Output Cable | Silicone wire-orange -14AWG-110±10mm | | Throttle Pos. Range | 1040\~1940us (fixed) | Input Cable | Silicone wire-red/black -12AWG-180±10mm | | Throttle RefreshFrequency | 50\~500Hz | Signal Cable | Shielded cables-Black -OD4.2-5C-450±10mm -JP-3P\*2-Black blank white-green yellow gray | | Throttle ResponseSpeed | 300ms | Weight (Incl. cables) | 110g | | | | | | | ----------- | ------------------------------ | --------------------- | ----- | | Prop specs. | | | | | Model No. | G26\*8.5 inch (660.4\*215.9mm) | Weight (Single Blade) | 68±5g | \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ Test Data\_x000D\_\_x000D\_ | Type | | Throttle | Voltage (V) | Thrust (g) | Torque (N\*m) | Current (A) | RPM | Power (W) | Effciency (g / W) | Operating Temperature (?) | | --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | ----- | -------- | ----------- | ---------- | ------------- | ----------- | ---- | --------- | ----------------- | ---------------------------- | | VL8015 KV170 + V80A 14S + G26\*8.5 | | 40% | 44.59 | 2944 | 0.89 | 6.53 | 2450 | 291 | 10.11 | 63 (Ambient Temperature: 25) | | 42% | 44.60 | 3249 | 0.98 | 7.48 | 2575 | 334 | 9.74 | | | | | 44% | 44.60 | 3558 | 1.07 | 8.50 | 2696 | 379 | 9.38 | | | | | 46% | 44.60 | 3879 | 1.17 | 9.62 | 2817 | 429 | 9.04 | | | | | 48% | 44.61 | 4216 | 1.26 | 10.85 | 2935 | 484 | 8.72 | | | | | 50% | 44.61 | 4575 | 1.37 | 12.17 | 3052 | 543 | 8.43 | | | | | 52% | 44.62 | 4962 | 1.47 | 13.62 | 3167 | 608 | 8.16 | | | | | 54% | 44.62 | 5354 | 1.59 | 15.17 | 3278 | 677 | 7.91 | | | | | 56% | 44.64 | 5726 | 1.70 | 16.77 | 3391 | 748 | 7.65 | | | | | 58% | 44.64 | 6121 | 1.82 | 18.53 | 3503 | 827 | 7.40 | | | | | 60% | 44.63 | 6509 | 1.93 | 20.32 | 3617 | 907 | 7.18 | | | | | 62% | 44.62 | 6920 | 2.05 | 22.23 | 3726 | 992 | 6.98 | | | | | 64% | 44.61 | 7329 | 2.17 | 24.26 | 3835 | 1082 | 6.77 | | | | | 66% | 44.60 | 7762 | 2.29 | 26.47 | 3940 | 1180 | 6.58 | | | | | 68% | 44.59 | 8178 | 2.42 | 28.73 | 4044 | 1281 | 6.38 | | | | | 70% | 44.57 | 8615 | 2.55 | 31.20 | 4145 | 1391 | 6.20 | | | | | 80% | 44.37 | 10932 | 3.23 | 45.81 | 4635 | 2032 | 5.38 | | | | | 90% | 44.04 | 13323 | 3.95 | 65.64 | 5093 | 2891 | 4.61 | | | | | 100% | 43.77 | 14233 | 4.23 | 84.17 | 5278 | 3684 | 3.86 | | | | | VL8015 KV170 + V80A 14S + G26\*8.5 | | 40% | 50.33 | 3722 | 1.10 | 7.98 | 2742 | 402 | 9.26 | 63 (Ambient Temperature: 25) | | 42% | 50.34 | 4099 | 1.21 | 9.17 | 2876 | 462 | 8.88 | | | | | 44% | 50.37 | 4499 | 1.33 | 10.48 | 3010 | 528 | 8.52 | | | | | 46% | 50.39 | 4916 | 1.45 | 11.88 | 3141 | 599 | 8.21 | | | | | 48% | 50.40 | 5364 | 1.58 | 13.44 | 3268 | 678 | 7.92 | | | | | 50% | 50.41 | 5787 | 1.70 | 15.04 | 3398 | 758 | 7.63 | | | | | 52% | 50.43 | 6228 | 1.83 | 16.80 | 3523 | 847 | 7.35 | | | | | 54% | 50.43 | 6683 | 1.97 | 18.66 | 3648 | 941 | 7.10 | | | | | 56% | 50.44 | 7173 | 2.11 | 20.71 | 3771 | 1045 | 6.87 | | | | | 58% | 50.43 | 7646 | 2.25 | 22.78 | 3891 | 1149 | 6.65 | | | | | 60% | 50.43 | 8136 | 2.39 | 25.08 | 4008 | 1265 | 6.43 | | | | | 62% | 50.42 | 8616 | 2.53 | 27.45 | 4129 | 1384 | 6.23 | | | | | 64% | 50.40 | 9103 | 2.68 | 29.97 | 4244 | 1511 | 6.03 | | | | | 66% | 50.37 | 9613 | 2.83 | 32.66 | 4355 | 1645 | 5.84 | | | | | 68% | 50.34 | 10111 | 2.98 | 35.47 | 4465 | 1785 | 5.66 | | | | | 70% | 50.30 | 10607 | 3.13 | 38.42 | 4574 | 1933 | 5.49 | | | | | 80% | 50.18 | 12159 | 3.59 | 48.39 | 4876 | 2428 | 5.01 | | | | | 90% | 50.00 | 13673 | 4.04 | 60.23 | 5164 | 3012 | 4.54 | | | | | 100% | 49.80 | 14842 | 4.40 | 73.75 | 5377 | 3673 | 4.04 | | | | | Note:Temperatureinthechartisthebelltemperatureafterrunning\@75%throttle on 44.4V for10mins. (Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.) | | | | | | | | | | | \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ Packing List\_x000D\_\_x000D\_ ![VL8015??????.jpg](https://store.tmotor.com/images/202502/111739253280509271.jpg) \_x000D\_\_x000D\_ Before using this \_x000D\_ product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or \_x000D\_ leave message to " " in time.\_x000D\_\_x000D\_ \_x000D\_ \_x000D\_\_x000D\_ \_x000D\_\_x000D\_ ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_rar.gif)[VL8015 3D Diagram](https://en.tmotor.com/uploadfile/2024/1115/20241115042849908.rar) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[User Manual](https://en.tmotor.com/uploadfile/2024/1108/20241108085651236.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[TM\_UAVCAN\_V2 Communication Protocol](https://en.tmotor.com/uploadfile/2024/1108/20241108085704696.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[VL8015 Propulsion System Specifications.pdf](https://github.com/Premium-Modellbau/premium-modellbau-docs/blob/main/images/file/202502/131739429298691726.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_rar.gif)[TM-Link.exe Host Computer](https://en.tmotor.com/uploadfile/2024/1101/TM-Link.zip) \_x000D\_ \_x000D\_ \_x000D\_\_x000D\_ \_x000D\_\_x000D\_ \_x000D\_ *** ## T-Motor VTOL Brushless Motor VL8018 180kv - 655g 12S **Artikelnr.:** PM-7091 | **HAN:** VL8018 -180kv [Zum Premium-Modellbau Shop](https://www.premium-modellbau.de/search?sSearch=PM-7091) ![T-Motor VTOL Brushless Motor VL8018 180kv - 655g 12S](https://img.tmotor.com/products/vl-power-system/mobile_images/VL8018.jpg) #### T-Motor VTOL Brushless Motor aus der VL Serie \_x000D\_ Es handelt sich um den reinen Motor wie in der Packaging List beschrieben. \_x000D\_ Hier finden Sie zusätzlich die Empfehlung von T-Motor für eine passende Antriebskombination (alle Artikel sind bei uns bestellbar) sowie alle Technischen Daten der Komponenten: \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ ![T-MOTOR VL8018](https://img.tmotor.com/products/vl-power-system/mobile_images/VL8018.jpg) VL Series Propulsion System VL8018 KV190 MOTOR V120A ESC G26 PROPELLER ![T-MOTOR VL8018](https://img.tmotor.com/products/vl-power-system/mobile_images/section2.jpg) Fast and economical propeller locking Fast (Lock the propeller in seconds) The 360° custom angle propeller-locking can effectively avoid the turbulence caused by the rotation of the\_x000D\_ rotor and ensure that\_x000D\_ the aerodynamic layout of the fixed-wing aircraft is not affected,\_x000D\_ thereby improving flight safety Economical (Adaptive propeller locking) The ESC can automatically adjust the current to control the torque to\_x000D\_ lock the propeller as per the change of external force,\_x000D\_ reducing power consumption and heat to achieve energy saving Recommendation 12S Voltage 17.6kg Max Thrust/Arm 30\~32kg Recommended MTOW(Quad) \_x000D\_ \_x000D\_\_x000D\_\_x000D\_\_x000D\_ Technical Drawing\_x000D\_\_x000D\_ ![VL8018-V120A-G26x8.5?????.png](https://store.tmotor.com/images/202501/211737444385920764.png) \_x000D\_\_x000D\_\_x000D\_\_x000D\_ Specification\_x000D\_\_x000D\_ | | | | | | ------------------------- | ------------------------------------------ | ----------------------------- | ----------------------- | | Model No. | VL8018 | Magnet Level | 180? | | Motor Size | F88.8\*43.5mm | Lead Cable | Silicone wire14# 1000mm | | Stator | 150°C high temperature -resisting coatings | Copper Wire | 220? | | Configuration | 24N28P | Coil Insulation Test | 1000V/5s | | Shaft Diameter | IN: 12 OUT: 10 | Rotor Dynamic BalanceStandard | =10mg | | Bearing | Imported 6901 | IP | IPX5 | | CentrifugalCooling Design | YES | Package Size | 150\*120\*57mm | | | | | | | ------------------------ | ------ | ------------------------- | --------- | | Model No. | VL8018 | KV (RPM/V) | 180 | | Rated Voltage (LiPo) | 12S | Idle Current (15V) | 2.2A | | Internal Resistance(25?) | 37mO | Peak Current | 100A | | Continuous Power(180s) | 1600W | Ambient Temperature | -30?\~55? | | Max. Thrust | 17.6kg | Motor Weight(indl. Cable) | 655g | | | | | | | ------------------------- | ------------------------------------------------ | --------------------- | ------------------------------------------------------------------------------------- | | ESC specs. | | | | | Model No. | V120A | Control | PWM/CAN | | Max. Voltage | 60V | Protocol | DRONE CAN/UAV CAN | | Peak Current (10s) | 130A (Under certain heat dissipation conditions) | Propeller-locking | ElectronicPropeller -locking | | Continuous Current | 60A (Under certain heat dissipation conditions) | Encoder cables | Shielded cables-Black -24AWG-5C-450±10mm -M6 aviation connector | | Standby Consumption | =50mA | Output Cable | Silicone wire-orange -12AWG-85±10mm | | Throttle Pos. Range | 1040\~1940us (fixed) | Input Cable | Silicone wire-red/black -12AWG-180±10mm | | Throttle RefreshFrequency | 50\~500Hz | Signal Cable | Shielded cables-Black -OD4.2-5C-500±10-JP -3P\*2-Black blank white -green yellow gray | | Throttle ResponseSpeed | 300ms | Weight (Incl. cables) | 170g | | | | | | | ----------- | ------------------------------ | --------------------- | ----- | | Prop specs. | | | | | Model No. | G26\*8.5 inch (660.4\*215.9mm) | Weight (Single Blade) | 68±5g | \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ Test Data\_x000D\_\_x000D\_ | Type | | Throttle | Voltage (V) | Thrust (g) | Torque (N\*m) | Current (A) | RPM | Power (W) | Effciency (g / W) | Operating Temperature (?) | | --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | ----- | -------- | ----------- | ---------- | ------------- | ----------- | ---- | --------- | ----------------- | ---------------------------- | | VL8018 KV180 + V120A 14S + G26\*8.5 | | 40% | 44.38 | 3277 | 1.01 | 7.97 | 2628 | 354 | 9.26 | 59 (Ambient Temperature: 25) | | 42% | 44.35 | 3623 | 1.11 | 9.14 | 2758 | 405 | 8.94 | | | | | 44% | 44.33 | 3971 | 1.22 | 10.41 | 2886 | 461 | 8.61 | | | | | 46% | 44.29 | 4349 | 1.32 | 11.78 | 3014 | 522 | 8.34 | | | | | 48% | 44.25 | 4741 | 1.44 | 13.28 | 3140 | 587 | 8.07 | | | | | 50% | 44.22 | 5123 | 1.55 | 14.85 | 3266 | 657 | 7.80 | | | | | 52% | 44.18 | 5527 | 1.67 | 16.55 | 3390 | 731 | 7.56 | | | | | 54% | 44.13 | 5980 | 1.81 | 18.48 | 3517 | 816 | 7.33 | | | | | 56% | 44.09 | 6424 | 1.94 | 20.50 | 3638 | 904 | 7.11 | | | | | 58% | 44.05 | 6860 | 2.07 | 22.62 | 3757 | 996 | 6.89 | | | | | 60% | 44.00 | 7328 | 2.20 | 24.87 | 3875 | 1094 | 6.70 | | | | | 62% | 43.95 | 7794 | 2.34 | 27.25 | 3991 | 1198 | 6.51 | | | | | 64% | 43.90 | 8246 | 2.47 | 29.72 | 4105 | 1305 | 6.32 | | | | | 66% | 43.85 | 8720 | 2.61 | 32.34 | 4218 | 1418 | 6.15 | | | | | 68% | 43.79 | 9188 | 2.76 | 35.13 | 4329 | 1538 | 5.97 | | | | | 70% | 43.73 | 9667 | 2.90 | 38.08 | 4436 | 1665 | 5.80 | | | | | 80% | 43.34 | 12133 | 3.65 | 55.09 | 4940 | 2388 | 5.08 | | | | | 90% | 42.93 | 14394 | 4.34 | 75.04 | 5364 | 3222 | 4.47 | | | | | 100% | 42.48 | 16107 | 4.88 | 95.16 | 5657 | 4043 | 3.98 | | | | | VL8018 KV180 + V120A 14S + G26\*8.5 | | 40% | 49.91 | 4097 | 1.25 | 9.65 | 2927 | 482 | 8.50 | 59 (Ambient Temperature: 25) | | 42% | 49.88 | 4525 | 1.37 | 11.08 | 3071 | 553 | 8.19 | | | | | 44% | 49.84 | 4967 | 1.50 | 12.60 | 3213 | 628 | 7.91 | | | | | 46% | 49.81 | 5423 | 1.64 | 14.29 | 3353 | 712 | 7.62 | | | | | 48% | 49.76 | 5900 | 1.78 | 16.15 | 3488 | 804 | 7.34 | | | | | 50% | 49.73 | 6392 | 1.92 | 18.09 | 3606 | 899 | 7.11 | | | | | 52% | 49.68 | 6894 | 2.07 | 20.20 | 3758 | 1004 | 6.87 | | | | | 54% | 49.64 | 7388 | 2.22 | 22.46 | 3890 | 1115 | 6.63 | | | | | 56% | 49.61 | 7938 | 2.38 | 24.89 | 4021 | 1235 | 6.43 | | | | | 58% | 49.55 | 8452 | 2.53 | 27.45 | 4147 | 1360 | 6.22 | | | | | 60% | 49.49 | 8996 | 2.70 | 30.16 | 4273 | 1493 | 6.03 | | | | | 62% | 49.42 | 9529 | 2.86 | 33.03 | 4397 | 1632 | 5.84 | | | | | 64% | 49.35 | 10077 | 3.03 | 36.12 | 4519 | 1783 | 5.65 | | | | | 66% | 49.28 | 10632 | 3.19 | 39.32 | 4642 | 1938 | 5.49 | | | | | 68% | 49.21 | 11190 | 3.36 | 42.71 | 4755 | 2102 | 5.32 | | | | | 70% | 49.14 | 11751 | 3.52 | 46.19 | 4867 | 2270 | 5.18 | | | | | 80% | 48.74 | 14450 | 4.34 | 66.04 | 5353 | 3219 | 4.49 | | | | | 90% | 48.28 | 16458 | 4.97 | 87.07 | 5712 | 4204 | 3.91 | | | | | 100% | 48.03 | 17587 | 5.22 | 99.04 | 5855 | 4756 | 3.63 | | | | | Note:Temperatureinthechartisthebelltemperatureafterrunning\@75%throttle on 44.4V for10mins. (Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.) | | | | | | | | | | | \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ Packing List\_x000D\_\_x000D\_ ![VL8018??????.jpg](https://store.tmotor.com/images/202502/111739253362991032.jpg) \_x000D\_\_x000D\_ Before using this \_x000D\_ product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or \_x000D\_ leave message to " " in time.\_x000D\_\_x000D\_ \_x000D\_ \_x000D\_\_x000D\_ \_x000D\_\_x000D\_ ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_rar.gif)[VL8018 3D Diagram](https://en.tmotor.com/uploadfile/2024/1115/20241115043627349.rar) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[User Manual](https://en.tmotor.com/uploadfile/2024/1108/20241108085651236.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[TM\_UAVCAN\_V2 Communication Protocol](https://en.tmotor.com/uploadfile/2024/1108/20241108085704696.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[VL8018 Propulsion System Specifications.pdf](https://github.com/Premium-Modellbau/premium-modellbau-docs/blob/main/images/file/202502/131739429376894632.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_rar.gif)[TM-Link.exe Host Computer](https://en.tmotor.com/uploadfile/2024/1101/TM-Link.zip) \_x000D\_ \_x000D\_ \_x000D\_\_x000D\_ \_x000D\_\_x000D\_ \_x000D\_ *** ## T-Motor VTOL Brushless Motor VL8020 170kv - 735g 12S **Artikelnr.:** PM-7092 | **HAN:** VL8020 -170kv [Zum Premium-Modellbau Shop](https://www.premium-modellbau.de/search?sSearch=PM-7092) ![T-Motor VTOL Brushless Motor VL8020 170kv - 735g 12S](https://img.tmotor.com/products/vl-power-system/mobile_images/VL8020.jpg) #### T-Motor VTOL Brushless Motor aus der VL Serie \_x000D\_ Es handelt sich um den reinen Motor wie in der Packaging List beschrieben. \_x000D\_ Hier finden Sie zusätzlich die Empfehlung von T-Motor für eine passende Antriebskombination (alle Artikel sind bei uns bestellbar) sowie alle Technischen Daten der Komponenten: \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ ![T-MOTOR VL8020](https://img.tmotor.com/products/vl-power-system/mobile_images/VL8020.jpg) VL Series Propulsion System VL8020 KV170 MOTOR V150A ESC VZ28 PROPELLER ![T-MOTOR VL8020](https://img.tmotor.com/products/vl-power-system/mobile_images/section2.jpg) Fast and economical propeller locking Fast (Lock the propeller in seconds) The 360° custom angle propeller-locking can effectively avoid the turbulence caused by the rotation of the\_x000D\_ rotor and ensure that\_x000D\_ the aerodynamic layout of the fixed-wing aircraft is not affected,\_x000D\_ thereby improving flight safety Economical (Adaptive propeller locking) The ESC can automatically adjust the current to control the torque to\_x000D\_ lock the propeller as per the change of external force,\_x000D\_ reducing power consumption and heat to achieve energy saving Recommendation 12S Voltage 19.7kg Max Thrust/Arm 35kg Recommended MTOW(Quad) \_x000D\_\_x000D\_\_x000D\_\_x000D\_ Technical Drawing\_x000D\_\_x000D\_ ![VL8020-V150A-VZ28x10.8?????.png](https://store.tmotor.com/images/202501/211737445690776775.png) \_x000D\_\_x000D\_\_x000D\_\_x000D\_ Specification\_x000D\_\_x000D\_ | | | | | | ------------------------- | ------------------------------------------ | ----------------------------- | ----------------------- | | Model No. | VL8020 | Magnet Level | 180? | | Motor Size | F88.8\*45.5mm | Lead Cable | Silicone wire13# 1000mm | | Stator | 150°C high temperature -resisting coatings | Copper Wire | 220? | | Configuration | 24N28P | Coil Insulation Test | 1000V/5s | | Shaft Diameter | IN: 12 OUT: 10 | Rotor Dynamic BalanceStandard | =10mg | | Bearing | Imported 6901 | IP | IPX5 | | CentrifugalCooling Design | YES | Package Size | 150\*120\*57mm | | | | | | | ------------------------ | ------ | ------------------------- | --------- | | Model No. | VL8020 | KV (RPM/V) | 170 | | Rated Voltage (LiPo) | 12S | Idle Current (15V) | 2.4A | | Internal Resistance(25?) | 32mO | Peak Current | 116A | | Continuous Power(180s) | 1760W | Ambient Temperature | -30?\~55? | | Max. Thrust | 19.7kg | Motor Weight(indl. Cable) | 735g | | | | | | | ------------------------- | ------------------------------------------------ | --------------------- | ------------------------------------------------------------------------------------- | | ESC specs. | | | | | Model No. | V150A | Control | PWM/CAN | | Max. Voltage | 60V | Protocol | DRONE CAN/UAV CAN | | Peak Current (10s) | 160A (Under certain heat dissipation conditions) | Propeller-locking | ElectronicPropeller -locking | | Continuous Current | 70A (Under certain heat dissipation conditions) | Encoder cables | Shielded cables-Black -24AWG-5C-450±10mm -M6 aviation connector | | Standby Consumption | =50mA | Output Cable | Silicone wire-orange -10AWG-150±10mm | | Throttle Pos. Range | 1040\~1940us (fixed) | Input Cable | Silicone wire-red/black -10AWG-200±10mm | | Throttle RefreshFrequency | 50\~500Hz | Signal Cable | Shielded cables-Black -OD4.2-5C-500±10-JP -3P\*2-Black blank white -green yellow gray | | Throttle ResponseSpeed | 300ms | Weight (Incl. cables) | 295g | | | | | | | ----------- | --------------------------------- | --------------------- | ----- | | Prop specs. | | | | | Model No. | VZ28\*10.8 inch (711.2\*274.32mm) | Weight (Single Blade) | 80±5g | \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ Test Data\_x000D\_\_x000D\_ | Type | | Throttle | Voltage (V) | Thrust (g) | Torque (N\*m) | Current (A) | RPM | Power (W) | Effciency (g / W) | Operating Temperature (?) | | --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | ----- | -------- | ----------- | ---------- | ------------- | ----------- | ---- | --------- | ----------------- | ---------------------------- | | VL8020 KV170 + V150A 14S + VZ28\*10.8 | | 40% | 44.40 | 3783 | 1.26 | 8.87 | 2357 | 394 | 9.61 | 72 (Ambient Temperature: 25) | | 42% | 44.37 | 4186 | 1.40 | 10.21 | 2473 | 453 | 9.24 | | | | | 44% | 44.35 | 4620 | 1.53 | 11.71 | 2589 | 519 | 8.89 | | | | | 46% | 44.31 | 5066 | 1.67 | 13.30 | 2703 | 589 | 8.59 | | | | | 48% | 44.28 | 5498 | 1.82 | 14.98 | 2815 | 663 | 8.29 | | | | | 50% | 44.25 | 5972 | 1.97 | 16.84 | 2924 | 745 | 8.01 | | | | | 52% | 44.20 | 6436 | 2.12 | 18.78 | 3032 | 830 | 7.75 | | | | | 54% | 44.16 | 6923 | 2.28 | 20.88 | 3139 | 922 | 7.51 | | | | | 56% | 44.12 | 7426 | 2.44 | 23.13 | 3245 | 1021 | 7.28 | | | | | 58% | 44.07 | 7938 | 2.60 | 25.52 | 3348 | 1124 | 7.06 | | | | | 60% | 44.02 | 8469 | 2.78 | 28.14 | 3454 | 1239 | 6.84 | | | | | 62% | 43.96 | 9016 | 2.96 | 30.89 | 3555 | 1358 | 6.64 | | | | | 64% | 43.89 | 9552 | 3.13 | 33.73 | 3652 | 1481 | 6.45 | | | | | 66% | 43.84 | 10092 | 3.30 | 36.77 | 3748 | 1612 | 6.26 | | | | | 68% | 43.76 | 10627 | 3.48 | 39.91 | 3842 | 1746 | 6.09 | | | | | 70% | 43.69 | 11158 | 3.65 | 43.15 | 3932 | 1885 | 5.92 | | | | | 80% | 43.28 | 13892 | 4.56 | 61.99 | 4361 | 2683 | 5.18 | | | | | 90% | 42.71 | 16422 | 5.39 | 84.09 | 4715 | 3592 | 4.57 | | | | | 100% | 42.11 | 18321 | 6.02 | 109.61 | 4964 | 4616 | 3.97 | | | | | VL8020 KV170 + V150A 14S + VZ28\*10.8 | | 40% | 49.88 | 4756 | 1.57 | 10.82 | 2629 | 540 | 8.81 | 72 (Ambient Temperature: 25) | | 42% | 49.85 | 5243 | 1.73 | 12.43 | 2755 | 620 | 8.46 | | | | | 44% | 49.82 | 5750 | 1.90 | 14.18 | 2879 | 706 | 8.14 | | | | | 46% | 49.78 | 6282 | 2.07 | 16.08 | 3003 | 800 | 7.85 | | | | | 48% | 49.75 | 6823 | 2.24 | 18.14 | 3123 | 902 | 7.56 | | | | | 50% | 49.71 | 7386 | 2.43 | 20.37 | 3242 | 1012 | 7.30 | | | | | 52% | 49.67 | 7984 | 2.62 | 22.81 | 3358 | 1133 | 7.05 | | | | | 54% | 49.61 | 8579 | 2.81 | 25.37 | 3473 | 1258 | 6.82 | | | | | 56% | 49.56 | 9189 | 3.01 | 28.14 | 3586 | 1395 | 6.59 | | | | | 58% | 49.50 | 9791 | 3.21 | 31.00 | 3696 | 1535 | 6.38 | | | | | 60% | 49.44 | 10431 | 3.42 | 34.19 | 3807 | 1690 | 6.17 | | | | | 62% | 49.37 | 11059 | 3.62 | 37.43 | 3913 | 1848 | 5.98 | | | | | 64% | 49.30 | 11680 | 3.83 | 40.87 | 4014 | 2015 | 5.80 | | | | | 66% | 49.23 | 12307 | 4.03 | 44.43 | 4114 | 2187 | 5.63 | | | | | 68% | 49.15 | 12916 | 4.23 | 48.11 | 4210 | 2365 | 5.46 | | | | | 70% | 49.08 | 13528 | 4.43 | 51.97 | 4304 | 2550 | 5.30 | | | | | 80% | 48.61 | 16375 | 5.38 | 73.08 | 4712 | 3553 | 4.61 | | | | | 90% | 48.10 | 18594 | 6.11 | 95.83 | 4994 | 4610 | 4.03 | | | | | 100% | 47.64 | 19679 | 6.48 | 115.38 | 5122 | 5496 | 3.58 | | | | | Note:Temperatureinthechartisthebelltemperatureafterrunning\@75%throttle on 44.4V for10mins. (Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.) | | | | | | | | | | | \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ Packing List\_x000D\_\_x000D\_ ![VL8020??????.jpg](https://store.tmotor.com/images/202502/111739253485837774.jpg) \_x000D\_\_x000D\_ Before using this \_x000D\_ product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or \_x000D\_ leave message to " " in time.\_x000D\_\_x000D\_ \_x000D\_ \_x000D\_\_x000D\_ \_x000D\_\_x000D\_ ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_rar.gif)[VL8020 3D Diagram](https://en.tmotor.com/uploadfile/2024/1115/20241115044040136.rar) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[User Manual](https://en.tmotor.com/uploadfile/2024/1108/20241108085651236.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[TM\_UAVCAN\_V2 Communication Protocol](https://en.tmotor.com/uploadfile/2024/1108/20241108085704696.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[VL8020 Propulsion System Specifications.pdf](https://github.com/Premium-Modellbau/premium-modellbau-docs/blob/main/images/file/202502/131739429438176928.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_rar.gif)[TM-Link.exe Host Computer](https://en.tmotor.com/uploadfile/2024/1101/TM-Link.zip) \_x000D\_ \_x000D\_ \_x000D\_\_x000D\_ \_x000D\_\_x000D\_ \_x000D\_ *** ## T-Motor VTOL Brushless Motor VL8022 170kv - 785g 12S **Artikelnr.:** PM-7093 | **HAN:** VL8022 -170kv [Zum Premium-Modellbau Shop](https://www.premium-modellbau.de/search?sSearch=PM-7093) ![T-Motor VTOL Brushless Motor VL8022 170kv - 785g 12S](https://img.tmotor.com/products/vl-power-system/mobile_images/VL8022.jpg) #### T-Motor VTOL Brushless Motor aus der VL Serie \_x000D\_ Es handelt sich um den reinen Motor wie in der Packaging List beschrieben. \_x000D\_ Hier finden Sie zusätzlich die Empfehlung von T-Motor für eine passende Antriebskombination (alle Artikel sind bei uns bestellbar) sowie alle Technischen Daten der Komponenten: \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ ![T-MOTOR VL8022](https://img.tmotor.com/products/vl-power-system/mobile_images/VL8022.jpg) VL Series Propulsion System VL8022 KV190 MOTOR V150A ESC VZ29 PROPELLER ![T-MOTOR VL8022](https://img.tmotor.com/products/vl-power-system/mobile_images/section2.jpg) Fast and economical propeller locking Fast (Lock the propeller in seconds) The 360° custom angle propeller-locking can effectively avoid the turbulence caused by the rotation of the\_x000D\_ rotor and ensure that\_x000D\_ the aerodynamic layout of the fixed-wing aircraft is not affected,\_x000D\_ thereby improving flight safety Economical (Adaptive propeller locking) The ESC can automatically adjust the current to control the torque to\_x000D\_ lock the propeller as per the change of external force,\_x000D\_ reducing power consumption and heat to achieve energy saving Recommendation 12S Voltage 22.2kg Max Thrust/Arm 40kg Recommended MTOW(Quad) \_x000D\_ \_x000D\_\_x000D\_\_x000D\_\_x000D\_ Technical Drawing\_x000D\_\_x000D\_ ![VL8022-V150A-VZ29x11?????.png](https://store.tmotor.com/images/202501/211737446963271290.png) \_x000D\_\_x000D\_\_x000D\_\_x000D\_ Specification\_x000D\_\_x000D\_ | | | | | | ------------------------- | ------------------------------------------ | ----------------------------- | ----------------------- | | Model No. | VL8022 | Magnet Level | 180? | | Motor Size | F88.8\*47.5mm | Lead Cable | Silicone wire13# 1000mm | | Stator | 150°C high temperature -resisting coatings | Copper Wire | 220? | | Configuration | 24N28P | Coil Insulation Test | 1000V/5s | | Shaft Diameter | IN: 12 OUT: 10 | Rotor Dynamic BalanceStandard | =10mg | | Bearing | Imported 6901 | IP | IPX5 | | CentrifugalCooling Design | YES | Package Size | 150\*120\*57mm | | | | | | | ------------------------ | ------ | ------------------------- | --------- | | Model No. | VL8022 | KV (RPM/V) | 170 | | Rated Voltage (LiPo) | 12S | Idle Current (15V) | 2.5A | | Internal Resistance(25?) | 30mO | Peak Current | 135A | | Continuous Power(180s) | 2100W | Ambient Temperature | -30?\~55? | | Max. Thrust | 22.2kg | Motor Weight(indl. Cable) | 785g | | | | | | | ------------------------- | ------------------------------------------------ | --------------------- | ------------------------------------------------------------------------------------- | | ESC specs. | | | | | Model No. | V150A | Control | PWM/CAN | | Max. Voltage | 60V | Protocol | DRONE CAN/UAV CAN | | Peak Current (10s) | 160A (Under certain heat dissipation conditions) | Propeller-locking | ElectronicPropeller -locking | | Continuous Current | 70A (Under certain heat dissipation conditions) | Encoder cables | Shielded cables-Black -24AWG-5C-450±10mm -M6 aviation connector | | Standby Consumption | =50mA | Output Cable | Silicone wire-orange -10AWG-150±10mm | | Throttle Pos. Range | 1040\~1940us (fixed) | Input Cable | Silicone wire-red/black -10AWG-200±10mm | | Throttle RefreshFrequency | 50\~500Hz | Signal Cable | Shielded cables-Black -OD4.2-5C-500±10-JP -3P\*2-Black blank white -green yellow gray | | Throttle Response Speed | 300ms | Weight (Incl. cables) | 295g | | | | | | | ----------- | ------------------------------ | --------------------- | ----- | | Prop specs. | | | | | Model No. | VZ29\*11 inch (736.6\*279.4mm) | Weight (Single Blade) | 90±5g | \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ Test Data\_x000D\_\_x000D\_ | Type | | Throttle | Voltage (V) | Thrust (g) | Torque (N\*m) | Current (A) | RPM | Power (W) | Effciency (g / W) | Operating Temperature (?) | | --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | ----- | -------- | ----------- | ---------- | ------------- | ----------- | ---- | --------- | ----------------- | ----------------------------- | | VL8022 KV170 + V150A 14S + VZ29\*11 | | 40% | 44.41 | 4517 | 1.52 | 10.56 | 2366 | 469 | 9.63 | 125 (Ambient Temperature: 25) | | 42% | 44.38 | 5026 | 1.68 | 12.29 | 2494 | 545 | 9.22 | | | | | 44% | 44.34 | 5554 | 1.86 | 14.17 | 2620 | 628 | 8.84 | | | | | 46% | 44.31 | 6094 | 2.03 | 16.26 | 2744 | 720 | 8.46 | | | | | 48% | 44.26 | 6664 | 2.22 | 18.52 | 2866 | 819 | 8.13 | | | | | 50% | 44.22 | 7239 | 2.41 | 20.93 | 2986 | 926 | 7.82 | | | | | 52% | 44.18 | 7843 | 2.61 | 23.56 | 3103 | 1041 | 7.54 | | | | | 54% | 44.13 | 8446 | 2.81 | 26.35 | 3218 | 1163 | 7.26 | | | | | 56% | 44.07 | 9060 | 3.02 | 29.34 | 3331 | 1293 | 7.01 | | | | | 58% | 44.02 | 9706 | 3.23 | 32.52 | 3441 | 1432 | 6.78 | | | | | 60% | 43.96 | 10346 | 3.44 | 35.89 | 3549 | 1578 | 6.56 | | | | | 62% | 43.89 | 10993 | 3.66 | 39.43 | 3654 | 1731 | 6.35 | | | | | 64% | 43.83 | 11629 | 3.87 | 43.13 | 3757 | 1890 | 6.15 | | | | | 66% | 43.75 | 12266 | 4.09 | 46.99 | 3857 | 2056 | 5.97 | | | | | 68% | 43.67 | 12919 | 4.30 | 51.07 | 3955 | 2230 | 5.79 | | | | | 70% | 43.60 | 13561 | 4.52 | 55.31 | 4047 | 2411 | 5.62 | | | | | 80% | 43.26 | 16064 | 5.37 | 73.74 | 4388 | 3190 | 5.04 | | | | | 90% | 42.74 | 18875 | 6.33 | 99.88 | 4733 | 4268 | 4.42 | | | | | 100% | 42.33 | 20308 | 6.84 | 119.59 | 4916 | 5062 | 4.01 | | | | | VL8022 KV170 + V150A 14S + VZ29\*11 | | 40% | 50.07 | 5672 | 1.91 | 13.18 | 2654 | 660 | 8.59 | 125 (Ambient Temperature: 25) | | 42% | 50.04 | 6305 | 2.12 | 15.36 | 2795 | 769 | 8.20 | | | | | 44% | 50.01 | 6973 | 2.34 | 17.75 | 2933 | 888 | 7.85 | | | | | 46% | 49.97 | 7665 | 2.56 | 20.33 | 3069 | 1016 | 7.55 | | | | | 48% | 49.92 | 8356 | 2.79 | 23.14 | 3201 | 1155 | 7.23 | | | | | 50% | 49.88 | 9068 | 3.03 | 26.16 | 3332 | 1305 | 6.95 | | | | | 52% | 49.82 | 9805 | 3.28 | 29.46 | 3460 | 1468 | 6.68 | | | | | 54% | 49.75 | 10574 | 3.53 | 33.09 | 3589 | 1646 | 6.42 | | | | | 56% | 49.68 | 11335 | 3.79 | 36.84 | 3709 | 1831 | 6.19 | | | | | 58% | 49.61 | 12094 | 4.04 | 40.78 | 3827 | 2023 | 5.98 | | | | | 60% | 49.54 | 12802 | 4.29 | 44.87 | 3941 | 2222 | 5.76 | | | | | 62% | 49.46 | 13543 | 4.54 | 49.19 | 4052 | 2433 | 5.57 | | | | | 64% | 49.38 | 14310 | 4.81 | 53.81 | 4157 | 2657 | 5.39 | | | | | 66% | 49.30 | 15022 | 5.06 | 58.50 | 4259 | 2884 | 5.21 | | | | | 68% | 49.20 | 15758 | 5.31 | 63.48 | 4359 | 3123 | 5.05 | | | | | 70% | 49.10 | 16468 | 5.55 | 68.63 | 4454 | 3370 | 4.89 | | | | | 80% | 48.53 | 19564 | 6.63 | 95.19 | 4834 | 4620 | 4.23 | | | | | 90% | 47.95 | 21820 | 7.41 | 123.70 | 5086 | 5932 | 3.68 | | | | | 100% | 47.70 | 22268 | 7.56 | 136.67 | 5140 | 6519 | 3.42 | | | | | Note:Temperatureinthechartisthebelltemperatureafterrunning\@75%throttle on 44.4V for10mins. (Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.) | | | | | | | | | | | \_x000D\_\_x000D\_\_x000D\_\_x000D\_\_x000D\_ Packing List\_x000D\_\_x000D\_ ![VL8022??????.jpg](https://store.tmotor.com/images/202502/111739253576568771.jpg) \_x000D\_\_x000D\_ Before using this \_x000D\_ product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or \_x000D\_ leave message to " " in time.\_x000D\_\_x000D\_ \_x000D\_ \_x000D\_\_x000D\_ \_x000D\_\_x000D\_ ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_rar.gif)[VL8022 3D Diagram](https://en.tmotor.com/uploadfile/2024/1115/20241115051604113.rar) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[User Manual](https://en.tmotor.com/uploadfile/2024/1108/20241108085651236.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[TM\_UAVCAN\_V2 Communication Protocol](https://en.tmotor.com/uploadfile/2024/1108/20241108085704696.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_pdf.gif)[VL8022 Propulsion System Specifications.pdf](https://github.com/Premium-Modellbau/premium-modellbau-docs/blob/main/images/file/202502/131739429507835946.pdf) ![](https://store.tmotor.com/includes/ueditor/dialogs/attachment/fileTypeImages/icon_rar.gif)[TM-Link.exe Host Computer](https://en.tmotor.com/uploadfile/2024/1101/TM-Link.zip) \_x000D\_ \_x000D\_ \_x000D\_\_x000D\_ \_x000D\_\_x000D\_ \_x000D\_
