Premium-Modellbau - Portal für Anleitungen
Premium-Modellbau Onlineshop
  • Premium-Modellbau - Portal für Anleitungen
  • Impressum
  • APD
    • APD Übersicht
      • APD PDB360
      • APD PDB500
  • Benewake
    • Benewake Übersicht
      • TF Luna 8m LiDAR
      • TF-Mini S 12m LIDAR
      • TFmini Plus 12m Lidar
      • TF02 Pro 40m LIDAR
      • TF03 100m UART / CAN LIDAR
  • Emax
    • Emax Übersicht
      • Emax Brushless Motoren
      • Emax Servos
  • Feetech
    • Feetech - Übersicht
      • Feetech Servos (PWM)
      • Feetech TTL Linker
      • Feetech FE-URT 1 für SCS / SMS Servos
      • Feetech Smart Control Servos (SCS)
        • SCS15
        • SCS-115
        • SCS-009
        • SCS215
        • SC2115
        • SCS20
        • SCS2332
        • STS3215
      • FT-TIS-5CH
      • FT-SMC-2CH
      • Programmierkarte für FR5311M
  • Frsky
    • Frsky Übersicht
      • Frsky Fernsteuerungen
        • Tandem Serie
          • Tandem X18 / X18S
          • Tandem X20 / X20S
          • Tandem XE
        • Twin Serie
          • Twin X Lite / X Lite S
          • FrSky Twin Lite Pro -Modul
        • Horus Serie
          • Frsky Horus X10 Express / X10S Express
        • Taranis Serie
          • Taranis X9D 2019 / 2019SE
          • Q X7 / X7S ACCESS Version
          • Taranis X9 Lite S
          • Taranis X Lite Pro
      • Frsky Empfänger
        • 2.4Ghz ACCST D16 Empfänger
          • R-XSR
          • XSR-SIM Simulator Dongle
          • X8R
        • 2.4 GHz & 868Mhz Tandem TD Empfänger
          • TD MX
          • TD R6
          • TD R10
          • TD R18
        • 2.4Ghz Twin TW Empfänger
          • Twin TW MX Empfänger
          • Twin TW R6 Empfänger
          • Twin TW GR6 Empfänger
        • 2.4Ghz Archer ACCESS Empfänger
          • Archer M+
          • Archer RS
          • Archer R4
          • Archer R6
          • Archer R8 Pro
          • Archer R10 Pro
          • Archer SR6
          • Archer SR8 Pro
          • Archer SR10 Pro
          • Archer GR6
          • Archer GR8
          • Frsky Archer Serie - How to
        • 2.4Ghz Archer Plus - ACCST D16 + ACCESS Empfänger
          • Archer Plus RS Mini
          • Archer Plus R6
          • Archer Plus R8
          • Archer Plus R10+
          • Archer Plus GR6
          • Archer Plus GR8
          • Archer Plus SR10+
      • Frsky R9 868Mhz Long Range Serie
        • FrSKY R9M Lite Pro - Sendemodul
        • FrSKY R9M 2019 ACCESS Sendemodul
        • FrSKY R9 MX OTA Access Empfänger
        • FrSKY R9 SX OTA Access Empfänger
        • FrSKY Empfänger R9 STAB OTA
      • Frsky Smart Port Sensoren und Zubehör
        • RB-10 Redundancy Bus Adapter
        • FLVS ADV (mit / ohne) Display
        • FAS 7 ADV Lite - Stromstärke Sensor
        • FAS 40 ADV - Stromstärke Sensor
        • FAS 100 ADV - Stromstärke Sensor
        • ASS 70 ADV / ASS100 ADV - Airspeed Sensor
        • GPS ADV
        • Vario ADV
        • PS30 ADV
        • RPMS - Drehzahl und Temperatur Sensor
        • Frsky S.Port Airlink S Adapter
        • FrSKY STK Adapter
        • FrSKY Servo Channel Changer
        • FrSKY SBUS zu PWM Decoder
        • FrSky F.PORT FP2CH4 / FP2CH6 / FP2CH8 Adapter
        • FrSky S2F.PORT 2.0 Adapter Konverter
        • Tipps & Tricks zu Smart Port Sensoren
      • Frsky Tipps & Tricks + FAQ
        • Ethos Betriebssystem
          • Ethos Suite
          • Neues Modell in Ethos anlegen
          • Empfänger binden und registrieren in Ethos
          • Ethos Reichenweitentest
          • Ethos Failsafe Einstellungen
      • Frsky - Sonstige Produkte und Zubehörartikel
        • FrSKY M7 Gimbal
        • FrSKY M9 Gimbal
        • Frsky M9-R Gimbal
        • FrSky Blheli32 USB Dongle
        • FrSky Neuron 8A BEC
        • Frsky Neuron 40S / 60S Brushless Regler
        • FrSky Xact Flächenservo HV5611
        • FrSky Xact Flächenservo HV5612
      • Frsky Archiv alte Produkte
  • Gremsy
    • Gremsy Übersicht
      • Pixy Gimbal Serie
        • Gremsy PIXY U Gimbal
        • Gremsy Pixy F Gimbal
        • Gremsy Pixy SM
        • Gremsy PIXY WP
      • S1 V3 / T3 / T7 Gimbal Serie
        • Gremsy S1 V3 Gimbal
        • Gremsy T3 Gimbal
        • Gremsy T7 Gimbal
      • Mio Gimbal
        • Gremsy MIO Gimbal
      • Zubehörartikel
        • Damping Plate Pro 2.0
        • Gremsy gPort
  • Hex Technology
    • Hex Technology Übersicht
      • GPS Module & Zubehör
        • Here 3 / Here 3+ GPS Modul
          • Here 3 Link zur Hersteller Doku
        • Here+V2 RTK Basis
          • Here+ V2 Link zur Hersteller Doku
      • Flightcontroller & Zubehör
        • Cube Orange / Orange+ Flightcontroller - Anleitung und Übersicht
        • Cube Flightcontroller Hersteller Übersicht und Architektur
        • Installation von Software und Firmware
        • Carrier Boards für Cube Flightcontroller
          • Kore Carrier Board
            • Kore Carrier Board 3D Modell Gehäuse
          • Mini Carrier Board
            • Hersteller Doku mit allen Pinouts
          • ADS-B IN Carrier Board
          • Airbot Systems Mini Carrier Board
      • EDU Frame Serie
        • EDU 450 V2
        • EDU 650
      • Herelink HD Video System und Fernsteuerung
        • Herelink User Guides in der Hersteller Doku
        • Herelink Hersteller Übersichtsseite
        • Herelink Hersteller Quickstart Guide
        • Herelink Hersteller FAQ
      • Here Flow
      • Sonstige Produkte
        • Power Brick Mini- Power Modul für The Cube (Pixhawk 2.1)
        • Hexsoon 40A PDB inkl. 5V und 12V BEC
        • Cube ID
          • Hex HX4-06252 - Cube ID
          • Hex HX4-06253 - Cube ID CAN
          • HEX Cube ID Hersteller Doku
      • Sonstige Downloads und Informationen
        • 3D Modelle
  • Holybro
    • Holybro - Übersicht
      • Holybro ARF & RTF Sets
        • X500 V2 ARF Set Quadcopter - 30125
        • QAV250 ARF Set Quadcopter - 30149
        • QAV250 Basic Set Pix32 V6 + 433Mhz Telemetrie Set Quadcopter - 30150
        • PX4 Vision Dev Kit V1.5 - 30157
      • Holybro Flightcontroller
        • Pixhawk 6C Flightcontroller
          • Pixhawk 6C (Kunststoff Gehäuse) Standard Set - 20183
          • Pixhawk 6C (Alu Gehäuse) Standard Set - 20179
          • Pixhawk 6C Link zur Hersteller Doku
        • Pixhawk 6C Mini Flightcontroller
          • Pixhawk 6C Mini Version - 11062
          • Pixhawk 6C Mini Link zur Hersteller Doku
        • Pixhawk 6X Flightcontroller Serie
          • Pixhawk 6x Standard Set - 20172
          • Pixhawk 6X Link zur Hersteller Doku
      • Holybro GPS Module
        • M8 GPS Serie
          • GPS Modul NEO M8N - 12012
          • Nano Ublox M8 5883 GPS Module - 12023
          • Holybro M8N GPS Module Hersteller Doku
          • 2nd GPS Modul NEO M8N - 12014
        • M9 GPS Serie
          • GPS Modul M9N - 12027
          • CAN GPS Modul M9N - 12032
          • 2nd GPS Modul M9N - 12029
          • Holybro M9N GPS Module Hersteller Doku
        • F9P RTK Serie
          • H-RTK F9P Rover Lite GPS RTK Module - 12017
          • F9P Helical GPS RTK Modul - 12018
          • F9P Base GPS RTK Modul - 12022
          • F9P Drone CAN Helical GPS RTK Modul - 12037
          • F9P Drone CAN Rover Lite GPS RTK Modul 27cm - 12034
          • F9P Drone CAN Rover Lite GPS RTK Modul 42cm - 12035
          • GPS UART zu USB Converter - 18060
          • Holybro F9P GPS Module Hersteller Doku
        • Unicore UM982
          • Unicore UM982 Dual Antennen GPS RTK Modul - 12036
          • Holybro UM982 GPS Module Hersteller Doku
      • Holybro CAN Module
        • CAN Hub 2S-12S 27cm Kabellänge - 18085
        • CAN Hub 2S-12S 42cm Kabellänge - 18086
        • CAN RM3100 Kompass 27cm Kabellänge - 18088
        • CAN RM3100 Kompass 42cm Kabellänge - 18098
      • Holybro Power Module
        • PM02 V3 Power Module - 15010
        • PM03D Power Module und PDB - 15017
        • PM06 V2 Micro Power Module - 15019
        • PM07 Power Module und PDB - 15008
        • Holybro Power Module Hersteller Doku
      • Holybro Sensoren
        • ST VL53L1X Lidar - 19004
        • Digitaler Air Speed Sensor - 19003
        • Holybro PX4FLOW KIT V1.31 optischer Flow Sensor Kamera - 19001
        • Telemetrie Set 433Mhz - 17012
      • Holybro ESCs und Motoren
        • Tekko32 F4 45A BLHeli32 ESC
        • 20A BLheli ESC - 520041 / 520053 / 520081
        • X500 V2 Brushless Motor 2216 920kv - 520085 / 520086
      • Holybro Sonstige Artikel
        • Holybro Micro OSD V2 - 13013
  • Lightware
    • Lightware LIDAR Übersicht
      • Lightware SF000/B 50m
      • Lightware LW20/C 100m
      • Lightware SF11/C 100m
      • Lightware SF20/C 100m
      • Lightware SF30/D 200m
      • Lightware SF45/B 320° 50m LiDAR
  • Matek
    • Matek Systems - Übersicht
      • Matek Flightcontroller
        • H743-Slim
        • H743-Mini
        • H743-WLITE
        • H743-WING-V3
        • F405-miniTE
        • F405-TE
        • F405-WMN
        • F405-VTOL
      • Matek GPS Module
        • M8Q 5883 - GPS und Kompass Modul
        • M10-5883 - GPS und Kompass Modul
        • M10Q-5883 GPS und Kompass Modul
        • SAM-M10Q GPS Modul
        • Matek M10 L4 3100 - GPS & Kompass Modul + CAN BUS
      • Matek Sensoren
        • 3901-L0X Optical Flow und Lidar Sensor
        • HCS-150A - Hall Effekt Sensor
        • ASPD-4525 - Digital AIRSPEED SENSOR
        • ASPD-DLVR - Airspeed Sensor
        • AP_PERIPH CAN NODE L431
        • AP_PERIPH CAN NODE L431 PWM
        • AP_PERIPH CAN NODE CAN-L4-BM
        • AP_PERIPH CAN NODE RM3100
      • Matek BECs & PDBs
        • MBEC2A
        • mbec6S
        • mBEC12S
        • BEC12S PRO
        • PM12S-3
        • SVPDB-8S
        • U4A2P Duo BEC
        • PDB-HEX
        • FCHUB-W
        • FCHUB-12S
      • Matek LEDs
        • RGB 5050 LED Boards
        • 2812 Ctrl - Controller
      • Matek sonstiges Zubehör
        • DBuz5V - Buzzer
        • USB-BZ-PAS
        • XT60-TVS - Voltage Spike Filter
        • VB2A5V - Voltage Booster
  • Mauch
    • Mauch Übersicht
      • Mauch PL-Serie Sensoren
        • PL-100 Sensor Board -Mauch 002
        • PL-200 Sensor Board - Mauch 003
        • PL-200 Sensor Board - Mauch 004
        • PL-250 Sensor Board - Mauch 005
        • Sensor Hub X2 V2 - Mauch 010
      • Mauch PL-Serie BECs
        • PL 2-6S BEC / 1x 5.3V-3A - Mauch 015
        • PL 2-6S BEC / 2x 5.3V-3A - Mauch 016
        • PL 4-6S BEC / 2x 5.3V-3A + 1x 12V-3A - Mauch 017
        • PL 4-14S HYB-BEC / 1x5.3V - Mauch 021
        • PL 4-14S HYB-BEC / 2x5.3V - Mauch 022
        • PL 4-14S HYB-BEC / 2x5.3V + 1x12.0V - Mauch 024
        • PL 4-14S HYB-BEC / 2x5.3V + 1x5.0V + 1x12.0V - Mauch 025
      • Mauch Power-Cube Serie
        • Power-Cube 2 - V3 / 5.3V / 5.3V / 10A - Mauch 052
        • Power-Cube 3 - V3 / 5.3V / 5.3V / 12V / 10A - Mauch 053
        • Power-Cube 4 - V3 / 5.3V / 5.3V / 5.3V / 12V / 10A - Mauch 054
        • PC 2x15 Ideal Diode - Batt Share für Mauch Power Cube Serie - Mauch-058
      • Mauch Backup BECs & sonstiges BECs
        • Mauch 082 - 2-6S BEC 5,35V 3A
        • Mauch 083 - 2-6S Backup BEC für Cube Flightcontroller
        • Mauch 085 4-14S HYB-BEC Backup BEC für Cube Flightcontroller
        • Mauch 090 - 4-14S BEC 12V 3A
  • OMPHobby
    • OMPHobby Übersichtsseite
      • ZMO PRO VTOL FPV ARF Combo - OSFP-P0001
      • ZMO PRO VTOL FPV RTF Combo 1 - SIYI MK15 - OSFP-P0002
      • ZMO PRO VTOL FPV RTF Combo 2 - SIYI HM30 - OSFP-P0003
  • PMT
    • PMT Übersicht
      • PMT Getriebemotoren
      • PMT Brushless Motoren
  • RFD
    • RFD - RFDesign - Übersicht
      • RFD868x-EU Modem 868Mhz
      • RFD868ux-EU Mini Modem 868Mhz
  • SIYI
    • SIYI Übersicht
      • SIYI Gimbals
        • SIYI ZR10 Gimbal
        • SIYI ZR30 Gimbal
        • SIYI ZT30 Wärmebild Gimbal
        • SIYI A8 Gimbal
        • SIYI A2 Gimbal
      • SIYI Fernsteuerungen + Downlinks
        • SIYI MK15 Fernsteuerung & Groundstation Agriculture Dual FPV Combo -SYMK15 DF
        • SIYI MK15 Fernsteuerung & Groundstation Enterprise FPV Combo - SYMK15 EF
        • SIYI MK15 Fernsteuerung & Groundstation Enterprise HDMI Combo - SYMK15 HM
        • SIYI MK15 & MK15 Fernsteuerung & Groundstation Dual Link Combo - SYMK15 DR
        • SIYI MK15 & HM30 Fernsteuerung & Groundstation Dual Link Combo - SYMK15 HM30 DL
        • SIYI MK32 Fernsteuerung & Groundstation Enterprise HDMI Combo
        • SIYI MK32 Fernsteuerung & Groundstation Enterprise Combo
        • SIYI MK32 Fernsteuerung & Groundstation Enterprise DUAL Link Combo - SYMK32-DR
        • SIYI MK32 + MK15 Fernsteuerung & Groundstation Enterprise DUAL Link Combo
        • SIYI MK32 + HM30 Fernsteuerung & Groundstation Enterprise DUAL Link Combo
        • SIYI HM30 Groundstation & FULLHD Downlink - Fly More Combo
        • SIYI Zubehörartikel (für HM30 / MK15)
          • Air Units
            • SIYI Air Unit Solo - MK15-AU
            • SIYI Air Unit Dual Link- HM30-AU-DL
          • SIYI 4S-18S BEC Modul
          • Dual FPV Camera Hub - MK15-DCH
          • HDMI Adapter / Converter
            • Air Unit HDMI Input Converter - AU-HDMI-IN
            • Ground Unit HDMI Output Converter - GU-HDMI-OUT
          • IP Kameras
            • IP FPV Kamera - IPCAM-MK15
            • IP67 Kamera mit Scheinwerfer - IP67CAM-MK15
            • R1 / R1M IP HD Kamera mit Aufnahmefunktion
  • Tarot
    • Tarot Übersicht
      • Tarot Gimbals
        • Tarot TL3T05 Gimbal
        • Tarot TL3T06 Gimbal
        • Tarot TL03FLIR FLIR Gimbal
      • Tarot TL2955 Brushless Motor
      • Tarot Brushless Motor
      • Tarot TL2961 02 Abwurfvorrichtung / Ausklinkvorrichtung
      • Fahrwerke 5V (TL65B43 /TL65B44
      • Fahrwerke mit TL8X002 Controller (TL96030, XS690 TL69A02, TL4N002, TL8X021,...)
  • T-Motor
    • T-Motor Übersicht
      • T-Motor Brushless Regler Übersicht
        • T-Motor 4D ESC F3P 16A
        • T-Motor Air Serie Brushless Regler (15A, 20A, 40A)
        • T-Motor AT Serie Brushless Regler
        • T-Motor AT 115A Brushless Regler
        • F35A V2 FPV Brushless Regler 35A
        • T Motor 55A 4in1 32bit BLHeli Regler
        • T-Motor F66 Mini 66A 4in1 32bit BLHeli Regler
        • T-Motor F60A 60A 4in1 BLHeli 32bit Regler
        • T-Motor CINE55A Cine 55 8S 8in1 BLHeli 32bit
        • T-Motor Flame Brushless Regler
          • T-Motor Flame 60A HV
          • T-Motor Flame 70A
          • T-Motor Flame 80A HV V2.0
          • T-Motor Flame 100A
          • T-Motor FLAME 180A 14S V2.0
      • T-Motor Gimbal Motoren Übersicht
        • GB Gimbal Brushless Außenläufer Motor Serie
        • GL Gimbal Brushless Außlenäufer Motor Serie
        • G Gimbal Brushless Innenläufer Motor Serie
        • RI Brushless Innenläufer Motoren Serie
        • R Brushless Außenläufer Motor Serie
      • T-Motor Alpha Serie
        • T-Motor Alpha Linker V2
        • T-Motor Alpha ESC Brushles Regler
      • T-Motor Cube Mars AK Motoren Serie
        • AK60-6 V1.1 80kv
        • AK70-10 100kv
        • AK80-6 100kv
        • AK80-9 100kv
        • AK80-64 80kv
        • AK10-9 V1.1 100kv
        • AK10-9 V2.0 60kv
        • Rubik-Link-V2
      • T-Motor Brushless Motoren
Powered by GitBook
On this page
  • Link zum Premium-Modellbau Shop
  • Beschreibung Kore Carrier Board
  • Anleitung mit Integrationstipps:
  • Digital and Analog Connectors
  • Buzzer and Volume Control
  1. Hex Technology
  2. Hex Technology Übersicht
  3. Flightcontroller & Zubehör
  4. Carrier Boards für Cube Flightcontroller

Kore Carrier Board

Cube Kore Carrier Board - Trägermodul für The Cube (Pixhawk 2.1) - Übersichtsseite

PreviousCarrier Boards für Cube FlightcontrollerNextMini Carrier Board

Last updated 2 years ago

Link zum Premium-Modellbau Shop

Beschreibung Kore Carrier Board

Das Cube Kore ist ein hochwertiges Trägermodul für den Cube. Es verfügt über den Standard DF17 Stecker und kann mit allen Cubes (Blau, Lila, Schwarz, Orange, Orange+, Gelb) eingesetzt werden.

Lieferumfang:

- 1x Kore Carrier Board

Ein Cube ist nicht im Lieferumfang enthalten und dient nur zur Illustrationszwecken auf den Fotos.

Anleitung mit Integrationstipps:

The primary purpose of the Kore Multi-Rotor Carrier Board for The CUBE is to reduce the rat’s nest of wires and modules typically associated with a multi-rotor assembly. It provides built-in power distribution, redundant power supplies for the autopilot, built-in fail-over power selection, a separate payload power regulator, and many other features.

While this carrier board is geometrically optimized for quadcopters, X8 configurations, and octocopters, it provides connections for every function of The CUBE autopilot. Therefore, this board can be integrated into any vehicle type that is supported by The CUBE, including all other multi-rotor frame types, plane, rover, sub, and antenna tracker.

  • Up to 12-cell Lithium battery (50.4V)

  • 140A continuous current with 280A surges

  • Power and signal for ESCs conveniently located in corners

  • 12V navigation light power available at each corner

  • Built-in power distribution

  • Built-in voltage and current sense

  • Redundant power supplies for flight critical components

  • Payload connectors with resettable fuses for 5V, 12V, and direct battery power

  • Good power and error indicator lights

  • Built-in buzzer with volume control

  • Connectors for every function of The CUBE

  • Easily accessible PWM voltage level selector (3.3V or 5V)

  • Resistant to ground bounce on PWM signal

  • Connector-compatible with standard ProfiCNC carrier board

  • Connector ports for debugging IO and FMU processors

The system battery should be connected directly to the large pads labeled “MAIN PWR”. Pads are available on both top and bottom of the board. No external power brick is necessary, as voltage and current sense is done directly on the board. Pay special attention to the polarity symbols, as there is no reverse protection. Batteries up to 12S, or 50.4V, may be used.

The power distribution system is rated to supply 140A to the ESCs when exposed to stagnant air at room temperature, with surges up to 280A. If the board will have continuous airflow across it (exposed to prop wash during flight), significantly higher currents may be sourced. Alternatively, if the board will be mounted within an enclosure or if flown on a very hot day, it may be necessary to de-rate the current capacity. For users that expect to operate their vehicle continuously at high currents (over 100A), it is recommended that ground testing is done with a temperature gun prior to flight. The surface of the carrier board should never exceed 100°C.

In order to accurately read the voltage and current using the built-in sensors on the board, the following parameters should be set in The CUBE:

Parameter

Value

BATT_AMP_OFFSET

0.45

BATT_AMP_PERVOLT

50

BATT_CURR_PIN

3

BATT_MONITOR

4

BATT_VOLT_MULT

15.3

BATT_VOLT_PIN

2

To set these parameters in mission planner, navigate to the Config/Tuning -> Full Parameter List Page.

  • Note: If you are using a fresh installation of mission planner you will have to enable this page by setting Config/Tuning->Planner->Layout to “Advanced”

You may either type in these parameters manually, or download this

and upload via mission planner. After inputting via either method, be sure to click “Write Params” to save the parameters in the Cube.

General Use Payload Power Connectors

There are three general use payload power connectors to source power for external devices and payloads. They are labeled as J1, J14, and J19 in white ink on the board. Molex brand Clik-Mate connectors are used for the power connectors.

Reference

Voltage

Max Current

Pinout

Mating Part Number

J1

Battery Voltage

3A

1-3: Battery, 4-6: GND

Molex 5023800600

J14

5.3V

1.5A

1-2: 5.3V, 3-4: GND

Molex 5023800400

J19

12.2V

2A

1-2: 12.2V, 3-5: GND

Molex 5023800500

The battery voltage and 5.3V power connectors are independently fused with resettable fuses. If a short occurs, the fuse will cut power to the offending connector. If this occurs, identify the short and remove it. Wait a couple of minutes and the fuse should reset. The fuses may not react instantly and damage may occur to your carrier board if an external device has a short. SpektreWorks is not responsible for damage caused by an external device.

The 12.2V power connector is not internally fused. It is highly recommended that the user fuse any external loads to prevent excessive current from damaging the carrier board.

At each corner of the board are solder pads for ESC power. The power wires from your ESCs may be soldered to the pads on the top or bottom surface.

Next to the ESC power pads are 3x3 0.1” header pins. The bottom row of pins provides power for navigation lights. The center pin is 12V and the right pin is ground. The left pin is unused and should be removed. Make sure you do not plug in an ESC cable into the bottom row of this connector.

The top two rows of pins are for the ESC PWM signal. These two rows correspond to two of the “Main Out” connections of The CUBE. The rows are labeled in white ink on the board. The “S”, “+”, and “-“ correspond to the PWM signal, power, and ground, respectively. All eight Main Out connections are available in the four corners of the board. It helps to look at the header pins from the side to see which row corresponds to which label.

By default, the board does not supply power to the ESC PWM connections. However, if no BEC is available to power the ESCs, the user may bridge JP1 with solder to provide 5.3V from the board to the ESCs. If JP1 is bridged with solder, do not plug a BEC into the ESC connections.

Most commercially available ESCs expect 3.3V PWM signals from the autopilot to control the motor. This is the default setting of a The CUBE. If, however, you require 5V PWM signals, there is a convenient switch for this on the carrier board. The switch is located on the right side of the board and is labeled “3V PWM” and “5V PWM”. Use a pen or a sharp tool to slide the switch to the desired voltage.

Additionally, the six “Aux Out” connections are available as part of a 3x8 group of headers on the right side of the board. Refer to the labels in white ink to identify each pin. By default, the board does not supply power to the center pins of the Aux channels. An external power supply connected to these pins will supply all of the Aux pins, but will be isolated from the rest of the board. If desired, the board can supply 5.3V to the Aux rail by bridging the pads of JP2 with solder. It is recommended to only use on-board power for low-noise and low-power devices. It is not recommended to use servo motors with on-board power. If JP2 is bridged with solder, do not connect an external power supply to the Aux pins.

The default Motor PWM pin arrangement of the carrier board was chosen for easy integration with a standard quadcopter. For other vehicle or frame types (including X8, Hex, Octo, etc), it is necessary to re-map the motor outputs to the correct corners of the board. This is possible for ArduCopter Firmware v3.5.0+.

When re-mapping PWM outputs with Ardupilot, it is important to distinguish the motor number from the output number. The motor number refers to the physical location of the motor, and does not change. The following graphics show the motor numbers used by the ArduCopter firmware.

The output number refers to the physical pin on each board that each motor is assigned to. These pins are on the corners of the board and are numbered “MAIN1” through “MAIN8”.

Any motor number can be re-mapped to any output. This is done by setting the SERVOX_FUNCTION (where x is the output number) to the appropriate value given in the table below.

Motor Number Desired

SERVORX_FUNCTION Value

1

33

2

34

3

35

4

36

5

37

6

38

7

39

8

40

For example, if I wanted to plug Motor 3 into the MAIN5 connector on the board, I would set the SERVO5_FUNCTION parameter to 35.

The following procedure may be used to configure the board for a hexacopter:

  1. 1.

    Flash the cube with ArduCopter 3.5.0 or later.

  2. 2.

    Connect to the cube in mission planner and navigate to the Initial Setup -> Mandatory Hardware -> Frame Type page.

  3. 3.

    Set the FRAME_CLASS to Hexa

  4. 5.

    Navigate to the Config/Tuning -> Full Parameter List Page.

    • Note: If you are using a fresh installation of mission planner you will have to enable this page by setting Config/Tuning->Planner->Layout to “Advanced”

  5. 6.

    Set the following parameter values:

    • You may either type in these parameters manually, or download this

      and upload via mission planner. After inputting via either method, be sure to click “Write Params” to save the parameters in the Cube.

  6. 7.

    Connect your ESCs according to the following table using the motor numbers from the “Hexa X” picture above

    Motor Number

    Output

    1

    MAIN6

    2

    MAIN5

    3

    MAIN3

    4

    MAIN4

    5

    MAIN1

    6

    MAIN2

The following procedure may be used to configure the board for a flat octacopter:

  1. 1.

    Flash the cube with ArduCopter 3.5.0 or later.

  2. 2.

    Connect to the cube in mission planner and navigate to the Initial Setup -> Mandatory Hardware -> Frame Type page.

  3. 3.

    Set the FRAME_CLASS to Octa

  4. 5.

    Navigate to the Config/Tuning -> Full Parameter List Page.

    • Note: If you are using a fresh installation of mission planner you will have to enable this page by setting Config/Tuning->Planner->Layout to “Advanced”

  5. 6.

    Set the following parameter values:

    • You may either type in these parameters manually, or download this

      and upload via mission planner. After inputting via either method, be sure to click “Write Params” to save the parameters in the Cube.

  6. 7.

    Connect your ESCs according to the following table using the motor numbers from the “Octo X” picture above

    Motor Number

    Output

    1

    MAIN1

    2

    MAIN2

    3

    MAIN6

    4

    MAIN4

    5

    MAIN5

    6

    MAIN8

    7

    MAIN3

    8

    MAIN7

The following procedure may be used to configure the board for an X-8 (OctaQuad):

  1. 1.

    Flash the cube with ArduCopter 3.5.0 or later.

  2. 2.

    Connect to the cube in mission planner and navigate to the Initial Setup -> Mandatory Hardware -> Frame Type page.

  3. 3.

    Set the FRAME_CLASS to OctaQuad

  4. 5.

    Navigate to the Config/Tuning -> Full Parameter List Page.

    • Note: If you are using a fresh installation of mission planner you will have to enable this page by setting Config/Tuning->Planner->Layout to “Advanced”

  5. 6.

    Set the following parameter values:

    • You may either type in these parameters manually, or download this

      and upload via mission planner. After inputting via either method, be sure to click “Write Params” to save the parameters in the Cube.

  6. 7.

    Connect your ESCs according to the following table using the motor numbers from the “Octo X” picture above

    Motor Number

    Output

    1

    MAIN1

    2

    MAIN3

    3

    MAIN2

    4

    MAIN4

    5

    MAIN5

    6

    MAIN6

    7

    MAIN7

    8

    MAIN8

Digital and Analog Connectors

The SpektreWorks carrier board comes with all of the same JST-brand receptacles as the standard ProfiCNC carrier board with a few exceptions. The tables below describe the pin-out of each JST connector.

Name

Label

Pins

TLM1

J4

1. 5V

​

​

2. Serial 1 TX

​

​

3. Serial 1 RX

​

​

4. Serial 1 CTS

​

​

5. Serial 1 RTS

​

​

6. GND

Name

Label

Pins

TLM2

J8

1. 5V

​

​

2. Serial 2 TX

​

​

3. Serial 2 RX

​

​

4. Serial 2 CTS

​

​

5. Serial 2 RTS

​

​

6. GND

Name

Label

Pins

SER3/I2C1

J2

1. 5V

​

​

2. Serial 3 TX

​

​

3. Serial 3 RX

​

​

4. SCL1

​

​

5. SDA1

​

​

6. Safety Button

​

​

7. Safety LED

​

​

8. GND

Name

Label

Pins

SER4/ I2C2

J18

1. 5V

​

​

2. Serial 4 TX

​

​

3. Serial 4 RX

​

​

4. SCL2

​

​

5. SDA2

​

​

6. GND

Name

Label

Pins

I2C1

J3

1. 5V

​

​

2. SCL1

​

​

3. SDA1

​

​

4. GND

Name

Label

Pins

I2C2

J7

1. 5V

​

J15

2. SCL1

​

​

3. SDA1

​

​

4. GND

Name

Label

Pins

CAN1

J16

1. 5V

​

​

2. CAN1_H

​

​

3. CAN1_L

​

​

4. GND

Name

Label

Pins

CAN2

J6

1. 5V

​

​

2. CAN2_H

​

​

3. CAN2_L

​

​

4. GND

Name

Label

Pins

SPI

J5

1. 5V

​

​

2. SCK

​

​

3. MISO

​

​

4. MOSI

​

​

5. ~NSS

​

​

6. DRDY

​

​

7. GND

Note: The SPI port will likely be removed in future versions of this carrier board.

Name

Label

Pins

ADC

J13

1. 5V

​

​

2. ADC_IN

​

​

3. NC

​

​

4. GND

The ADC_IN input voltage is divided by two using a symmetric 10kΩ voltage divider on the board. Do not exceed analog voltages above 6.6V on this pin.

Name

Label

Pins

BATT2 SENSE

J17

1. 5V

​

​

2. BATT2_Volt_Sense

​

​

3. BATT2_Current_Sense

​

​

4. GND

In order to use the BATT2_Volt_Sense pin, a user-selected resistor must be soldered to the board. Use the following equation to select the resistor value:

Where Vmax is the maximum voltage expected on this pin. R will be the resistance in Ohms. Once this value is calculated, a common through hole style resistor should soldered to the space labeled R46 on the bottom surface of the board.

In order for The CUBE to accurately read the secondary voltage, the BATT2_VOLT_MULT parameter must be set. It can be calculated using the following equation:

Two Debug connectors are provided for developer use. One debug header is provided for each process on The CUBE.

Connector is JST brand and mates with SHR-06V-S-B or SHR-06V-S

Name

Label

Pins

SER5/FMU DBG

J20

1. 3.3V

​

​

2. Serial 5 TX

​

​

3. Serial 5 RX

​

​

4. FMU-SWDIO

​

​

5. FMU-SWCLK

​

​

6. GND

Name

Label

Pins

IO DBG

J21

1. 3.3V

​

​

2. IO-SERIAL1_TX

​

​

3. DSM/IO-SERIAL1_RX

​

​

4. IO-SWDIO

​

​

5. IO-SWCLK

​

​

6. GND

The carrier board has two indicator lights on the top surface labeled “Pwr” and “Err”.

Pwr Light: There are two independent 5V regulators that provide power to the autopilot and other peripherals. This light will shine blue if and only if both regulators are working. Do not fly if this light is not blue.

Err Light: If one of the two regulators has failed, this light will shine red. Do not fly if this light is red.

Buzzer and Volume Control

The carrier board comes with a piezoelectric buzzer mounted on the underside of the board. No external buzzer is required. For safety reasons, do not mount the board on your vehicle in a manner that causes the buzzer to be muffled.

The carrier board features a volume control switch located at the front edge of the board. When the switch is pushed to the right, the buzzer will be at full, ear-splitting volume. When pushed to the left, the volume is reduced. For safety reasons, never fly with the switch at the lower volume.

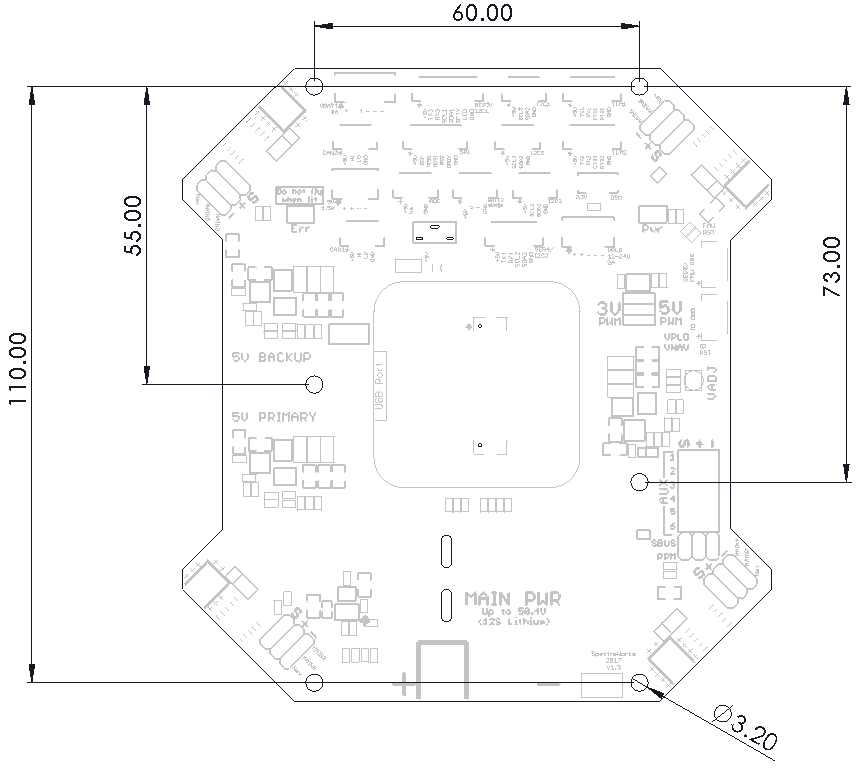

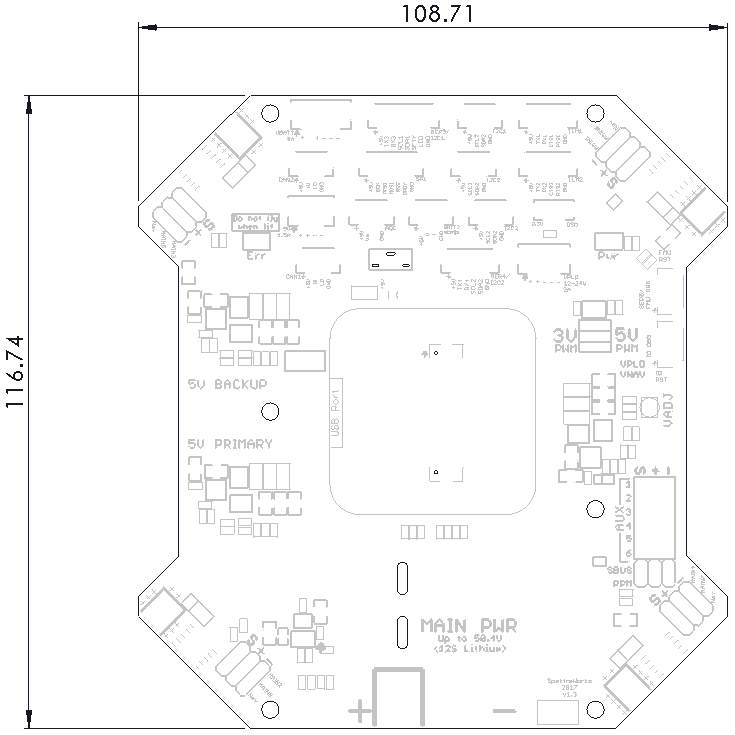

79g without Cube 108g with Cube

The pins on connector J3 should be labeled “SCL1” and “SDA1”, not “SCL2” and “SDA2”. The label “I2C1” next to the connector is correct.

Due to the complex nature of any drone vehicle, there are many causes of failure that may result in damaged components. SpektreWorks cannot warranty the carrier board against damage caused by external devices (ESCs, motors, peripherals, etc.) or due to a crash. SpektreWorks will replace a carrier board that has a manufacturer defect within 30 days of purchase.

Das Board ist speziell für Multicopter vorgesehen und unterstützt den Betrieb mit bis zu 12S (50,4V).
