# Holybro Micro OSD V2 - 13013

## Link zum Premium-Modellbau Shop

{% embed url="<https://www.premium-modellbau.de/holybro-micro-osd-v2-pixhawk>" %}
Holybro Micro OSD V2 - Pixhawk im Premium-Modellbau Shop
{% endembed %}

### **Lieferumfang**&#x20;

Micro OSD \* 1\
GH 6P cable \* 1\
GH 4P cable \* 1\
GH 3P cable \* 1

### **Ausführliche Informationen und Technische Daten:**&#x20;

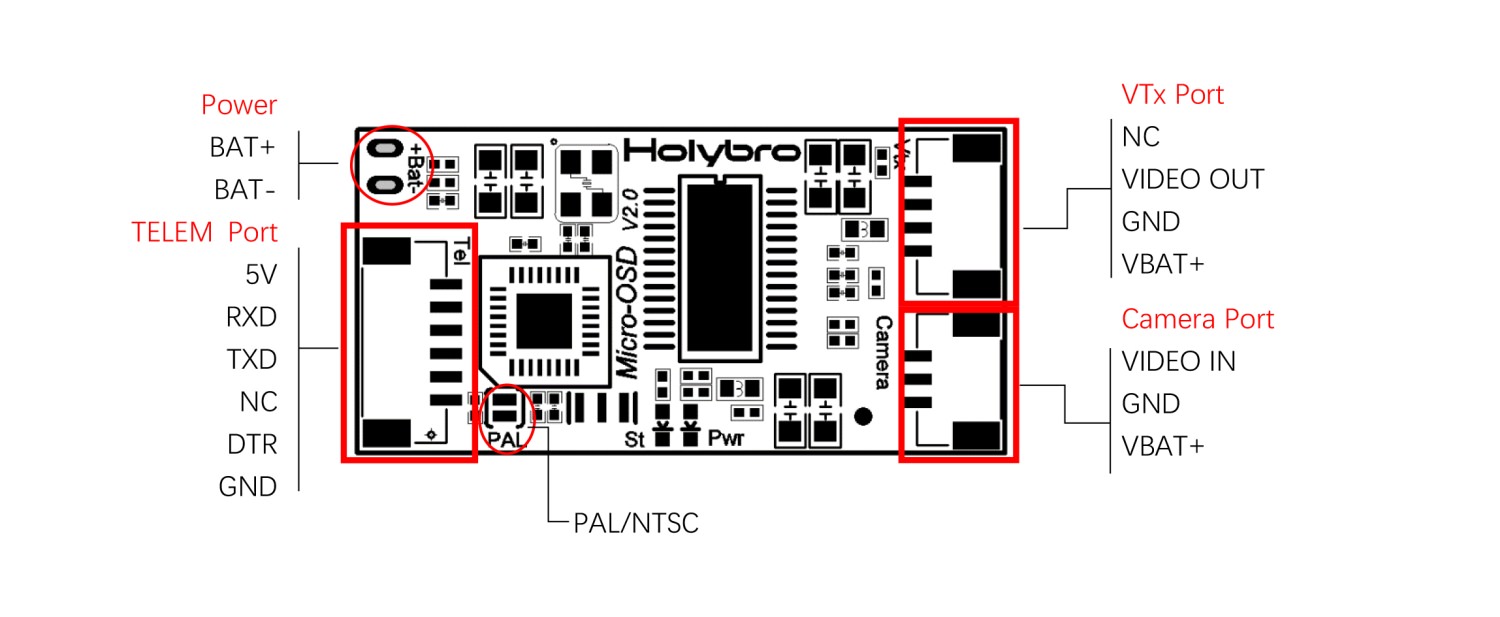

<figure><img src="/files/0bgp4uSQU75wGAQdezbj" alt=""><figcaption></figcaption></figure>

ATmega328P with Arduino bootloader\
MAX7456 monochrome on-screen display\
Standard 6-pin ISP header\
Solder jumper for PAL video option\
Exposed test points for HSYNC and LOS\
Dimensions:17.5\*35mm\
Weight:3g\
Note:BAT+ is direcrly connected with VTx and Camera (Pay attention to the max with stand voltage of your equipment)

![https://www.premium-modellbau.de/media/image/80/31/3f/13013-6.jpg](/files/YWIMCpI0nNlgEei5NPAp)


---
